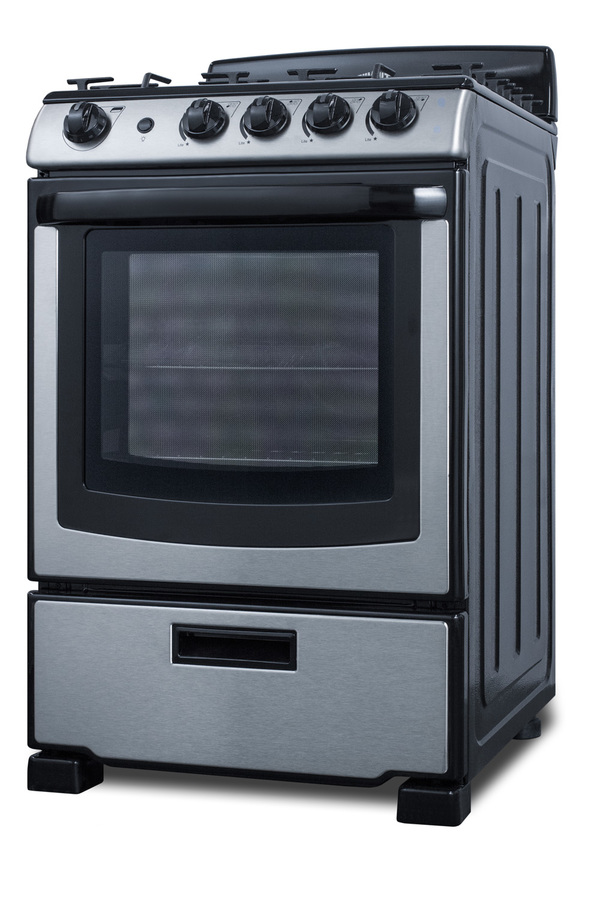

24" Wide Gas Range
11/30/2024
(107cm H x 60cm W x 62cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 42.0" (107 cm) |
| Height of Cabinet | 42.0" (107 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 25.0" (64 cm) |
| Depth | 24.5" (62 cm) |
| Depth with Handle | 25.75" (65 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | CSA |
| Canadian Electrical Safety | CSA-C |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 110.0 lbs. (50 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101058375 |
|
Gas Range
|
|
| Ignition | Spark |
| LP Convertible | Yes |
| Oven Capacity | 2.9 cu.ft |
| Burner Type | Sealed |
| Number of Burners | 4 |
| Grate Material | Cast Iron |
| Burner #1 BTU | 12000.0 |
| Burner #2 BTU | 9500.0 |
| Burner #3 BTU | 5000.0 |
| Burner #4 BTU | 9500.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Oven Light | Yes |
| Backguard | Yes |
| Cleaning Type | Manual |
| Oven Rack Qty | 2 |
| Oven Window | Yes |
| Broiler Location | Below Oven |
FEATURES

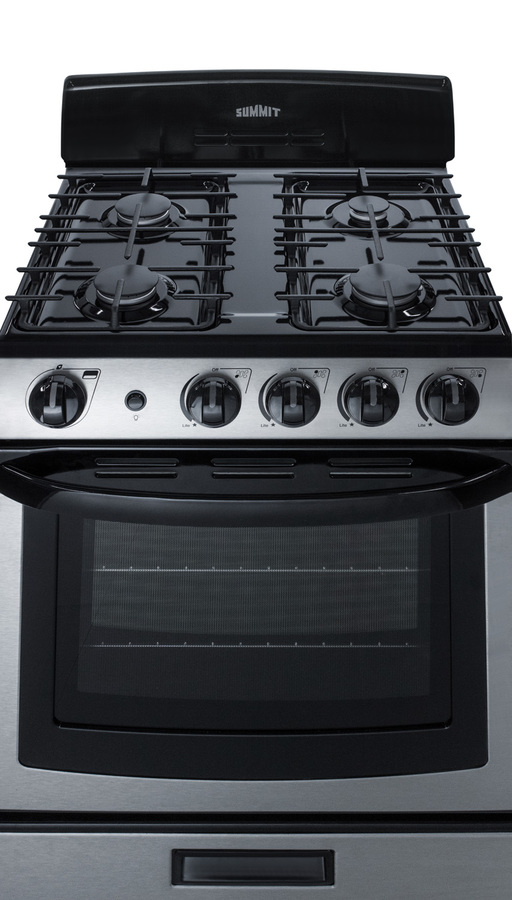

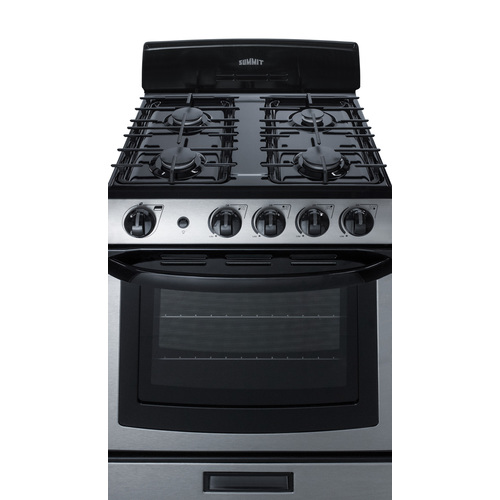

Four sealed burners with removable cast iron tops ensure safer, cleaner cooking
Perfectly sized for apartments and smaller kitchens
Unit is set for natural gas but can be converted aftermarket with the included LP kit
Door, broiler, and control panel, and handle feature a stainless steel finish for a professional look
Easier monitoring of your cooking with an oven window and on/off light
Two sets of continuous cast iron burner grates offer durable cooking with a lightweight feel for easier cleaning
Front right burner features 12,00 BTU output for powerful cooking
Two left burners operate at 9,500 BTU to handle most heating needs
Rear right burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items
Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments
Oven interior features high quality porcelain construction for long-lasting durability

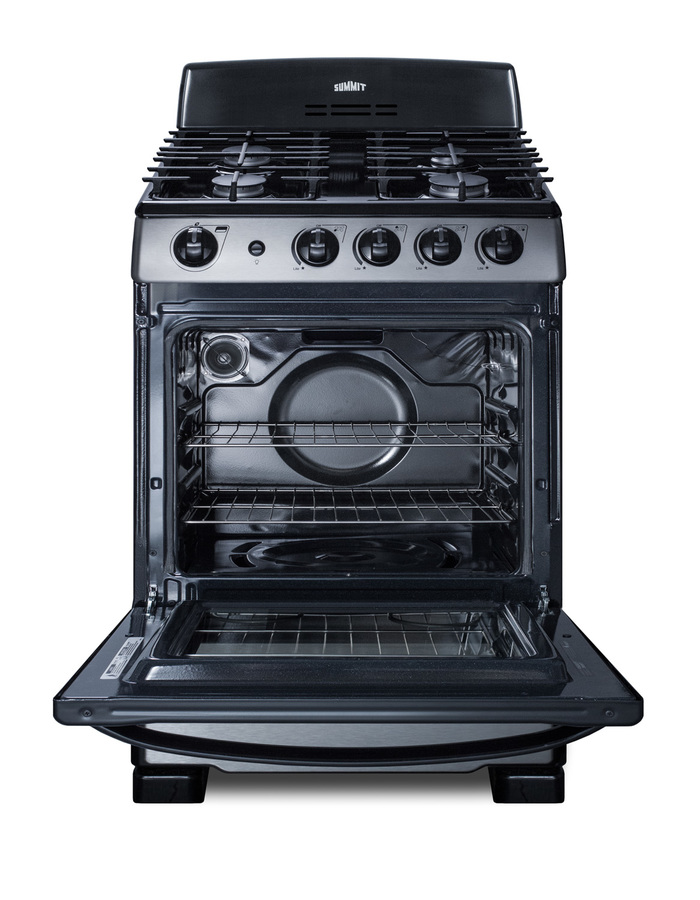

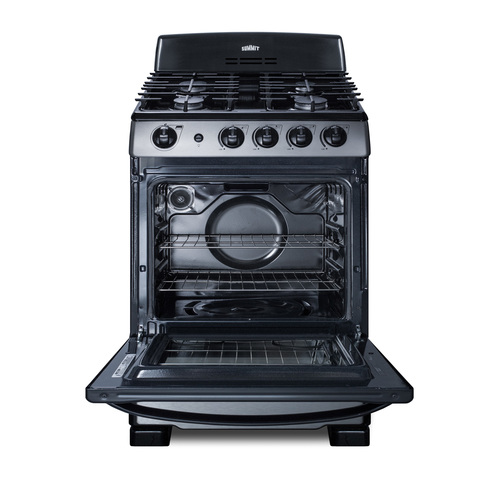

Two racks with four glide positions for flexible cooking
Sliding racks will stay in your oven with special brake mechanism
Drop-down lower compartment offers the ideal conditions for broiling
Control panel includes an 'on' light for the oven and burners for added safety when using the range
Burner knobs require a small amount of force to turn on for added protection against accidents
Spark ignition for added safety
Two-piece broiler pan with lid included with each range
Upfront controls and easy-to-operate knobs offer easier accessibility
Solid backing prevents stovetop contents from splashing up or boiling over and staining walls
Standard 3-pronged 115V cord included for the electronic ignition
Safety feature included for user installation to help prevent accidents
DESCRIPTION

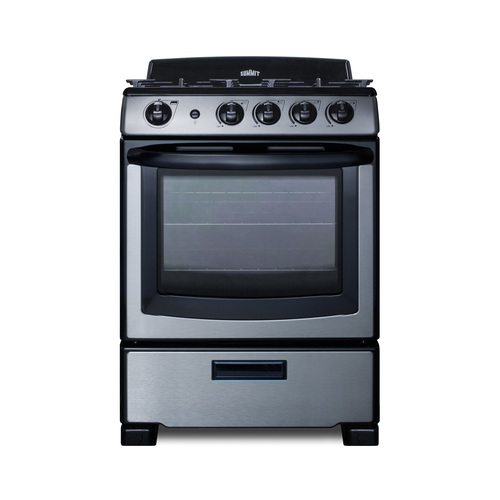

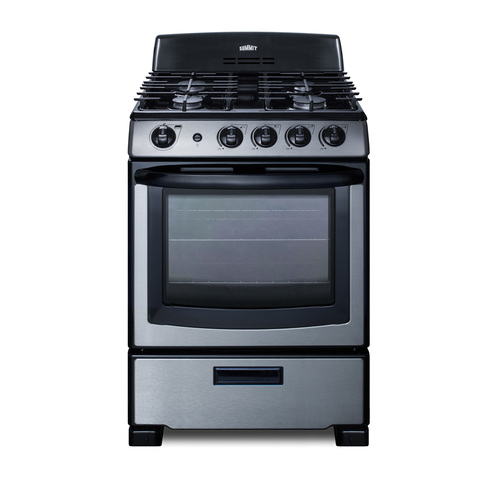

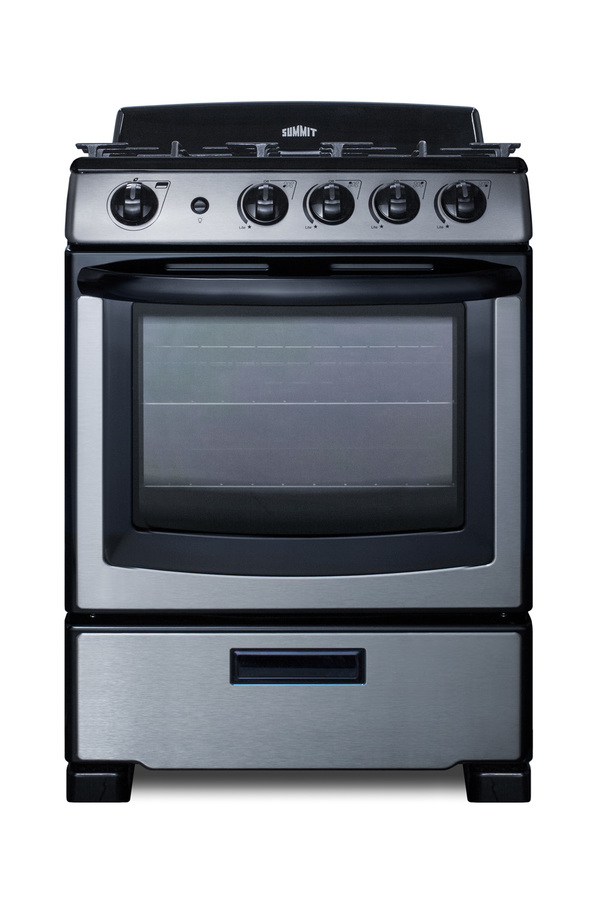

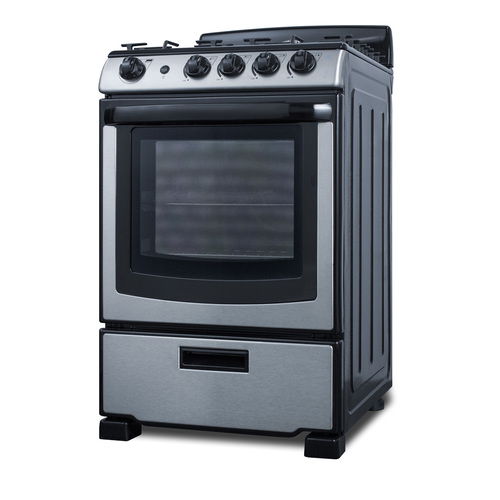

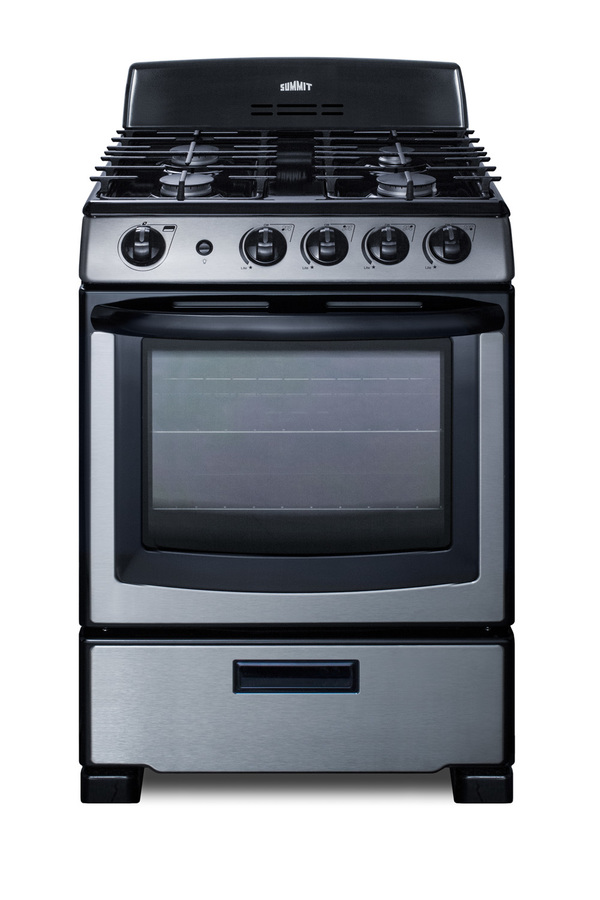

SUMMIT's line of slim-fitting gas ranges made in North America brings quality and value to space-challenged kitchens. The PRO247SS is sized at just 24" wide for an easy fit in smaller kitchen spaces. The front manifold, oven door, and broiler front feature a stainless steel finish, with a black trimmed oven window, handle, and backguard for a modern look. The oven includes a large window, interior light, and easy-grip handle for cooking convenience.This model utilizes electronic spark ignition and features four sealed burners for safer, cleaner cooking. One 12,000 BTU burner offers faster cooking for larger vessels, with two standard 9,500 BTU burners and a smaller 5,000 BTU burner for lower heating needs. Two sets of continuous grates feature a lightweight but durable cast iron design. The control panel includes upfront push-to-turn burner knobs for added safety. Inside, the PRO247SS features a 2.9 cu.ft. porcelain oven. Two slide-out racks include a safety brake system, with four position options to let you accommodate all sizes and shapes. The broiler is located in a lower drop-down compartment with a convenient pocket handle. We include a two-piece broiler pan with lid. The unit ships set for natural gas but includes its own LP kit for aftermarket conversion. With its clean look and unique size, the PRO247SS is the ideal gas range for apartment and small home kitchens. NOTE: This unit replaces model PRO246SS but features an upgraded sealed burner design.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
