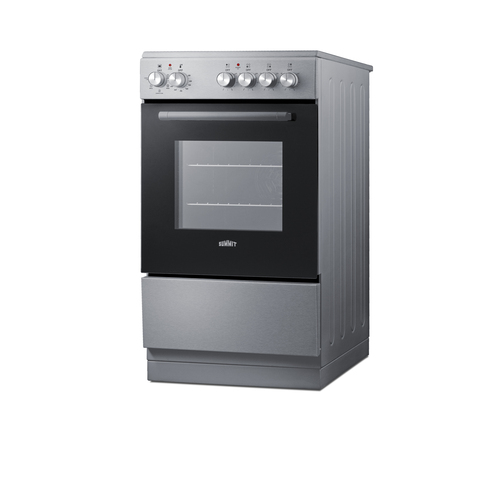

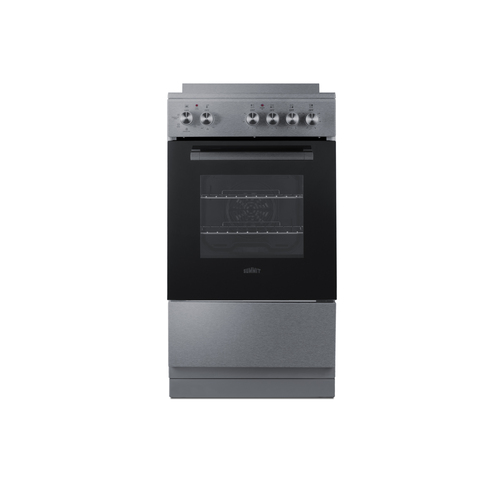

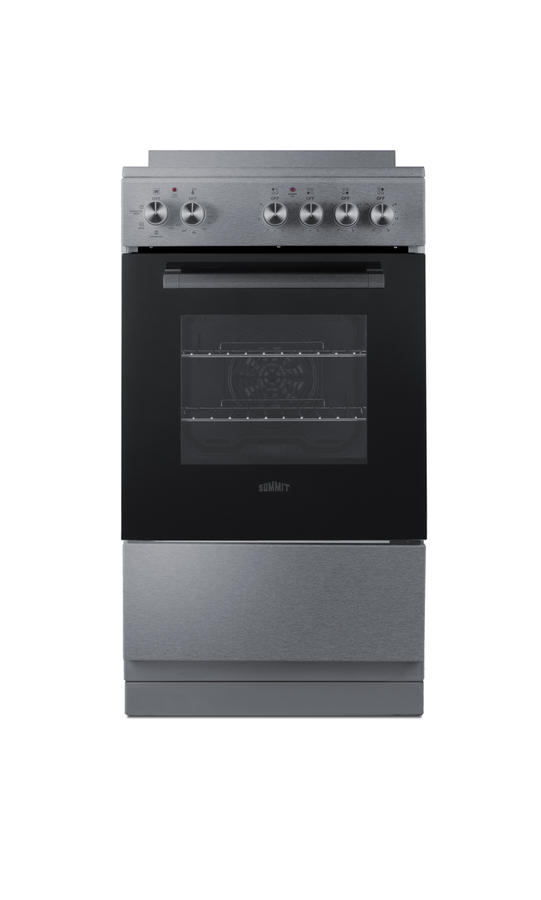

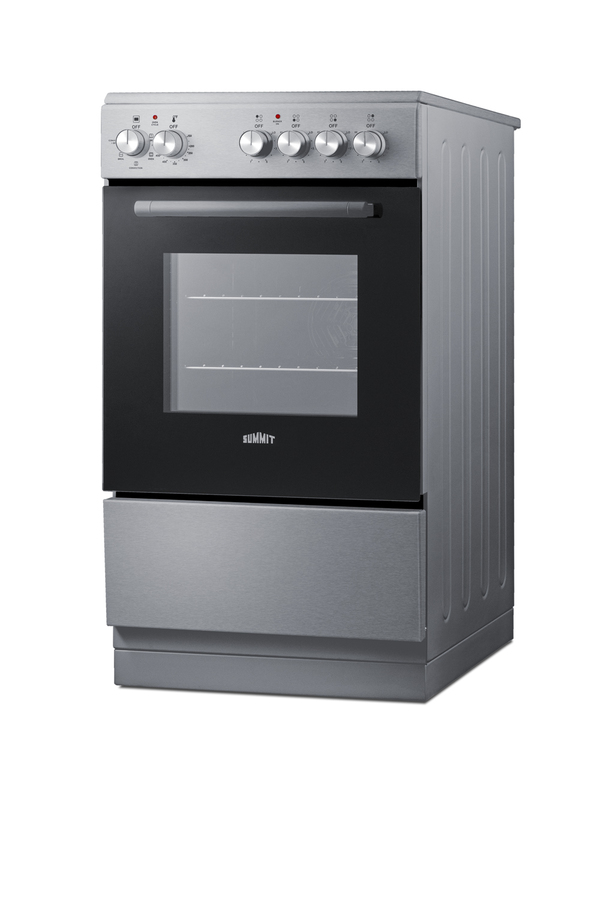

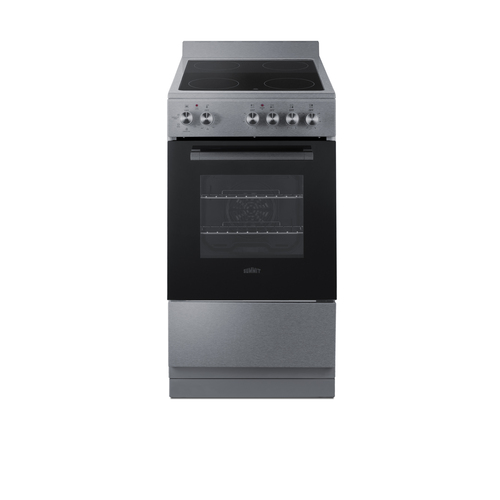

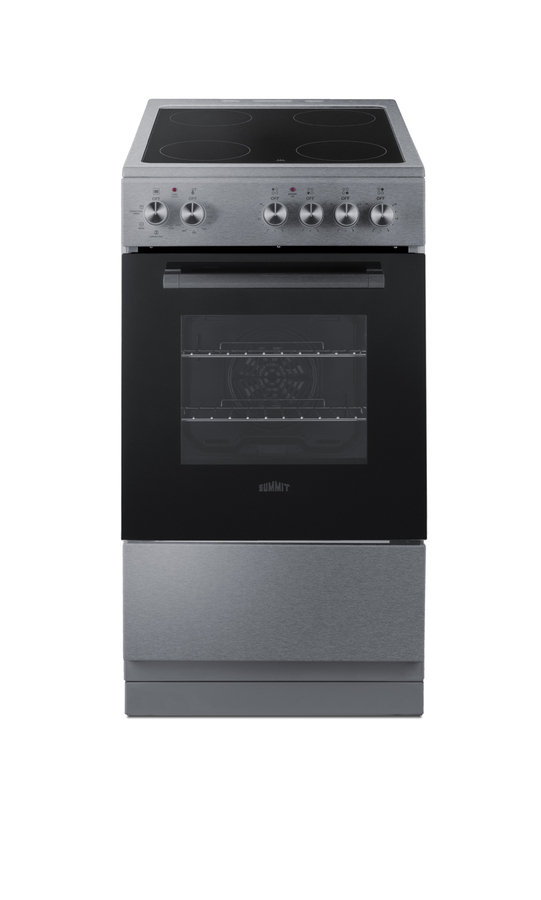

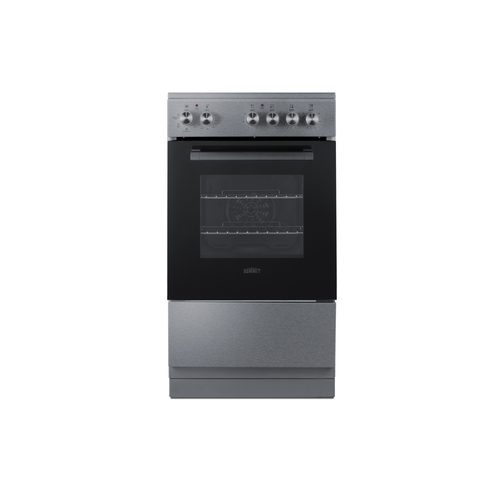

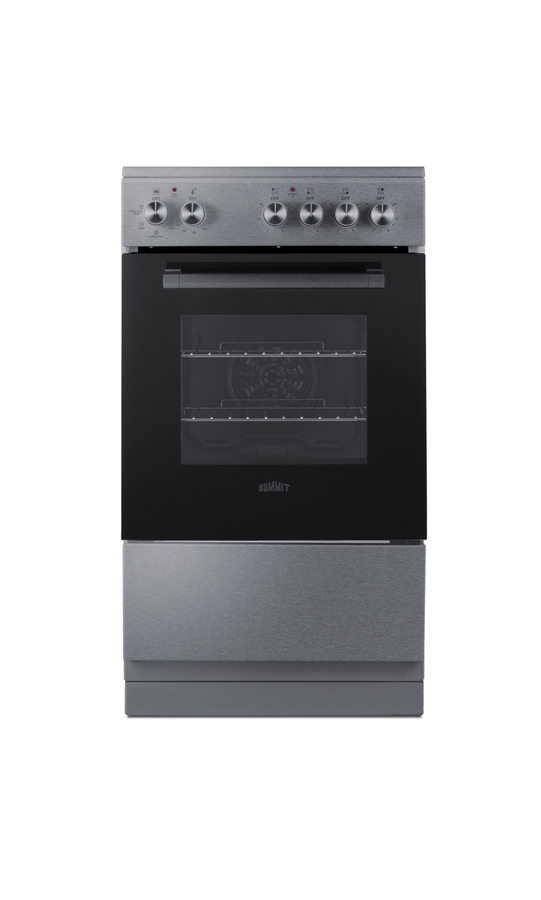

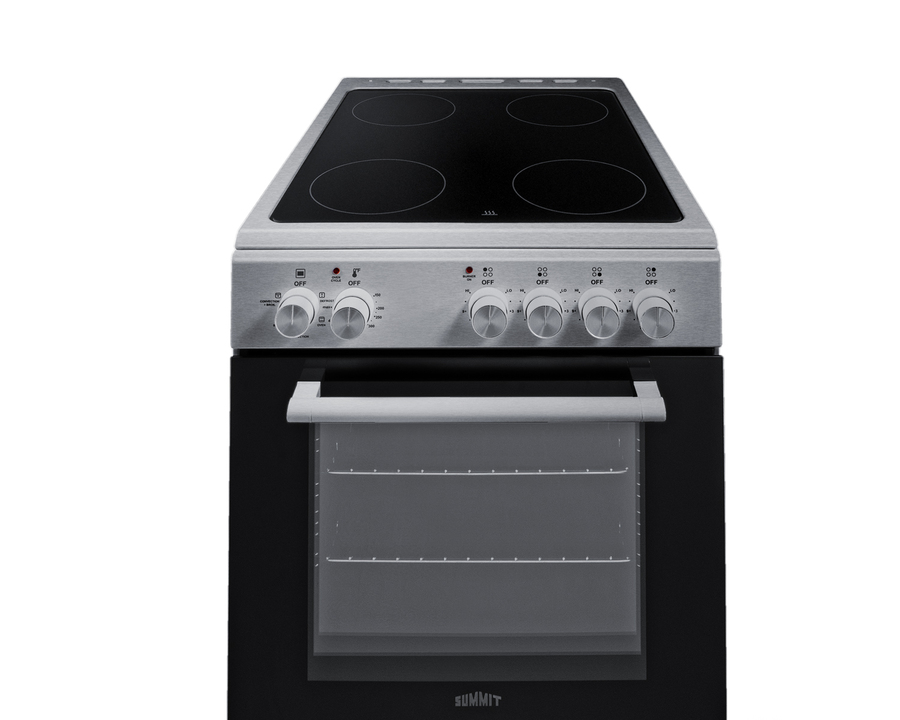

20" Wide Electric Smooth-Top Range

SKU: REXT20SS
European-made electric convection range with a smooth ceramic cooking surface for safer cooking
Estimated Time to Ship:

Next day shipping

Color: Stainless Steel

*Additional features may vary

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
35.5" H x 19.38" W x 23.63" D
(90cm H x 49cm W x 60cm D)

Overview
Nominal Height 36.0" (91 cm)
Height of Cabinet 35.5" (90 cm)
Nominal Width 20.0" (51 cm)
Width 19.38" (49 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.63" (60 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 40.88" (104 cm)
Capacity 1.87 cu.ft. (53 L)
Door Stainless Steel
Cabinet Stainless Look
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 40.0
Voltage/Frequency 240 V AC/60 Hz
Weight 124.0 lbs. (56 kg)
Parts & Labor Warranty 1 Year
UPC 761101106830
Electric Range
Cooktop Surface Glass
Element Type Glasstop
Number of Elements 4
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 1200.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 1200.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 1200.0
Element #4 Size 6.0" (15 cm)
Element #4 Wattage 1200.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Backguard Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Window Yes
Oven Interior Height 13.25" (34 cm)
Oven Interior Width 15.25" (39 cm)
Oven Interior Depth 15.75" (40 cm)
Power Source 240V
Storage Compartment Yes
Broiler Location Inside Oven

Exterior
RangeCord3P - Installed 3-pronged cord
3-pronged NEMA 10-50P cord installed on stove
RangeCord4P - Installed 4-pronged cord
4-pronged NEMA 14-50P cord installed on stove

20" Wide European-Made Electric Range

European design is perfectly sized for apartments and smaller home kitchens

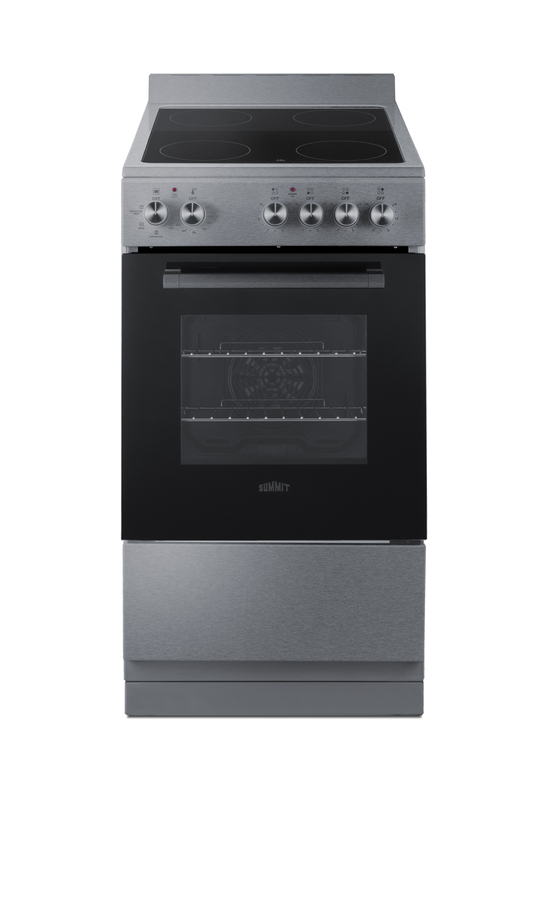

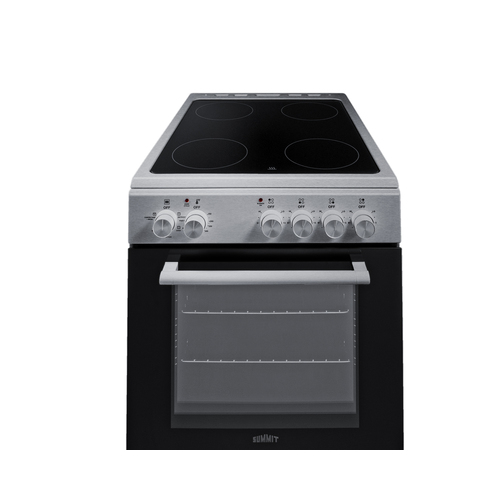

Smooth glass top

A smooth cooking surface made from glass ensures improved safety and easy cleaning

Four cooking zones

Surface features four 1200W 6" elements to accommodate a range of sizes and cooking needs

Oven window

Large oven window makes it easy to monitor your cooking progress

Interior light

Oven light automatically illuminates when the oven is on or when the door is opened

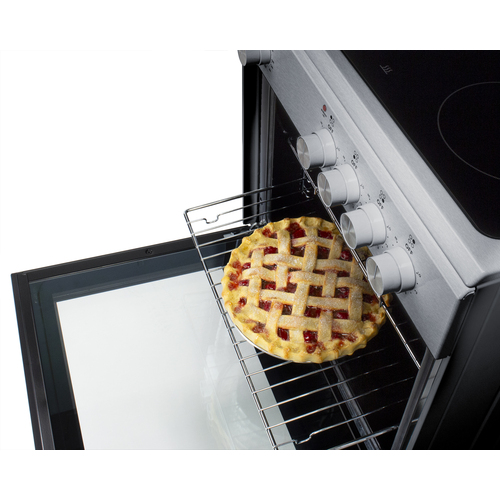

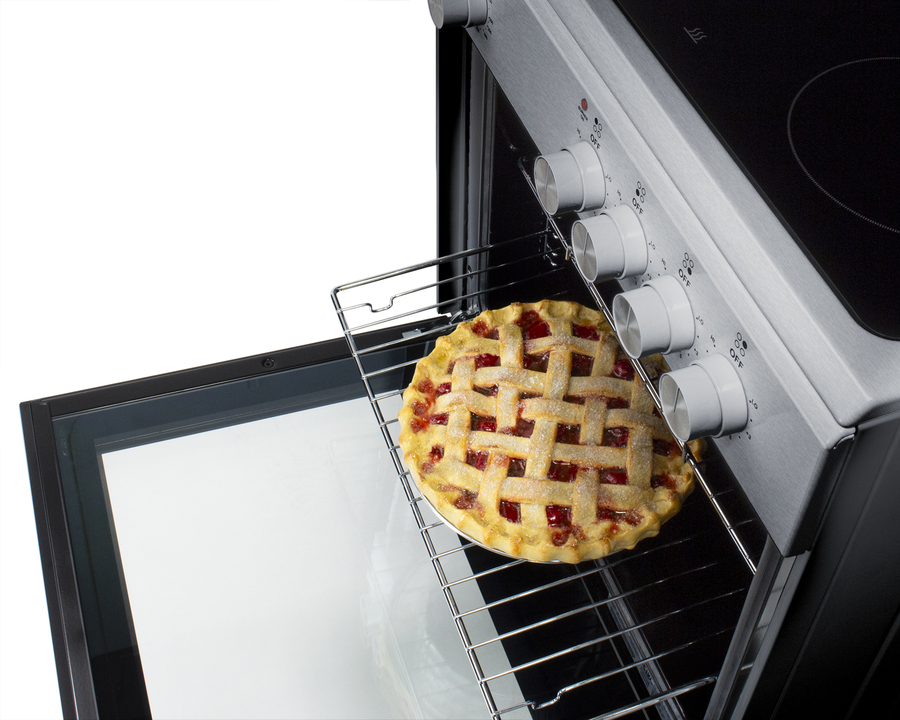

Adjustable racks

Includes two oven racks that can be adjusted to accommodate a variety of sizes when baking or broiling

Slide-out storage drawer

Save even more space by storing your pots and pans in this pull-out compartment

Broiling function

This function is used for broiling or toasting food on the upper oven shelves

Broiling and convection function

This function is used for broiling thicker food on the upper oven shelves

Convection function

Fan function is ideal for baking pastries and provides a slightly broiled effect

Defrost function

This function is only to be used to defrost, not to cook or bake

Static cooking function

This function is used for making pastries, cakes, and pizzas

Waist-high broiler

Broiler is located inside the oven, making it easier to use

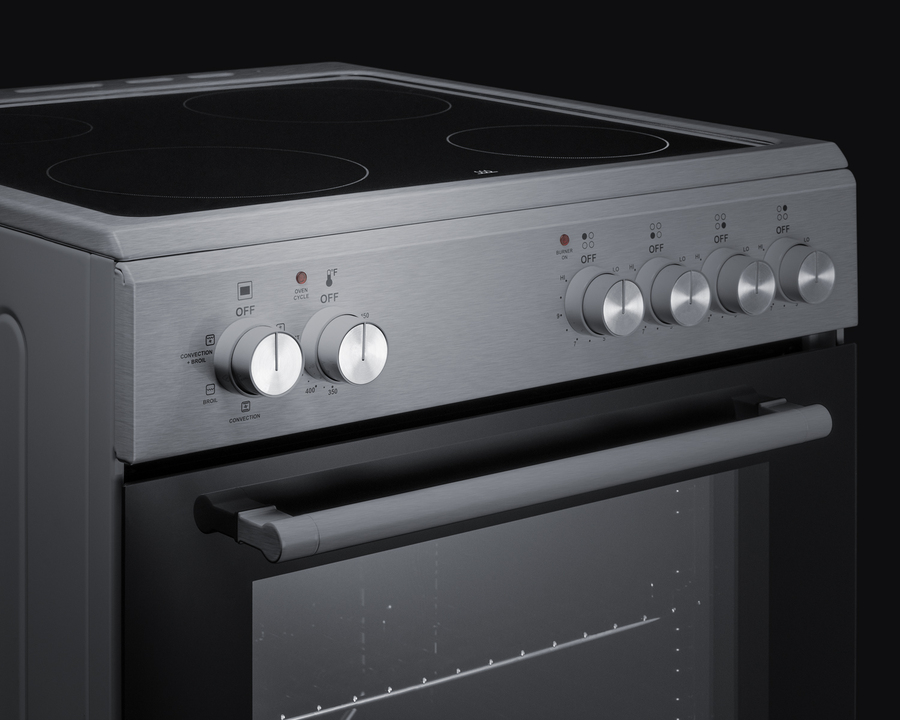

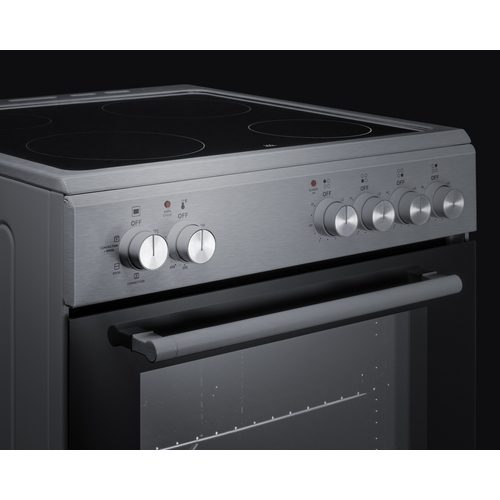

Push-To-Turn knobs

To prevent accidents, all knobs require a small amount of force when turning

Slide-in style

Optional rear backguard to allow you to customize your backsplash

Removable backguard

Unit ships with low backguard but can be easily converted to a traditional slide-in style for a more integrated look

Slide-out storage drawer

Save even more space by storing your pots and pans in this pull-out compartment

Anti-Tip bracket

Recommended for installation to help prevent accidents

ADA-compliant design

Front-located controls and proper sizing meets ADA guidelines for added accessibility

Summit's innovative series of European-made ranges offers full cooking convenience for apartments, ADUs, tiny homes, and other settings with limited kitchen space.

Made in Europe, the REXT20SS is a 220V electric range sized at just under 20" wide with a depth under 24" making it ideal for L or U-shaped kitchens.  For safer heating and easier clean-up, these units feature a smooth glass cooking surface. There are four 6" burners to ensure this unit can accommodate everyday cooking needs.

The versatile design includes a removable 2" high matching stainless steel backguard, allowing you the choice of a standard range style or a slide-in look with a flat surface that allows you to better integrate the unit with your own backsplash design. For added space savings, the REXT20SS features a slide-out drawer, perfect for storing your pots and freeing up more kitchen space.

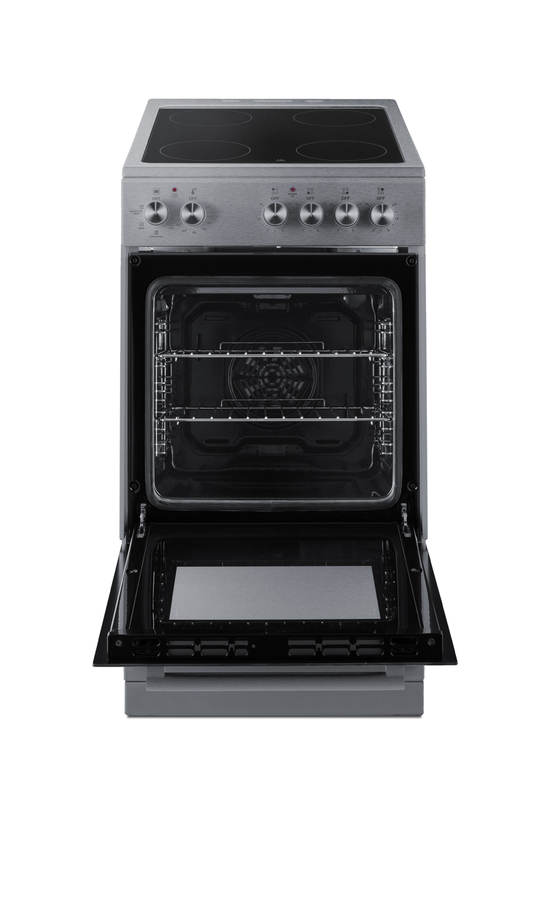

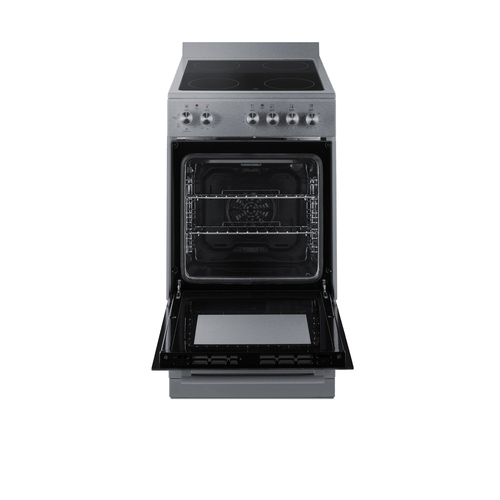

Inside, the REXT20SS features a large 1.87 cu.ft. oven made from durable porcelain enamel and includes two sliding wire racks with five positions to let you fit various dish sizes. The large oven window provides a full view of your cooking, with an interior light that automatically turns on with the oven. The oven door is constructed from low-e glass in black for a modern look, with a sleek stainless steel finish on the storage drawer and manifold.

The REXT20SS comes with multiple cooking functions to cater to various cooking methods. The oven settings include: defrost, static cooking, convection(fan), broiling, and even a broiling + convection(fan) function. All cooking controls meet ADA guidelines since each is located upfront, eliminating the danger of reaching across the cooktop surface.

For this unit in black or white see models REXT20BL and REXT20W. For a 24" wide unit, see model REXT24SS.

Browse our website to view our complete collection of ranges and cooking appliances at summitappliance.com.

Download
BROCHURE w/ DRAWINGS
REXT20SS.pdf
Download
TECHNICAL DRAWING (.dwg)
REXT20BL.dwg
Download
ASSEMBLY DRAWING
REXT20BL-Assembly__2_.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
