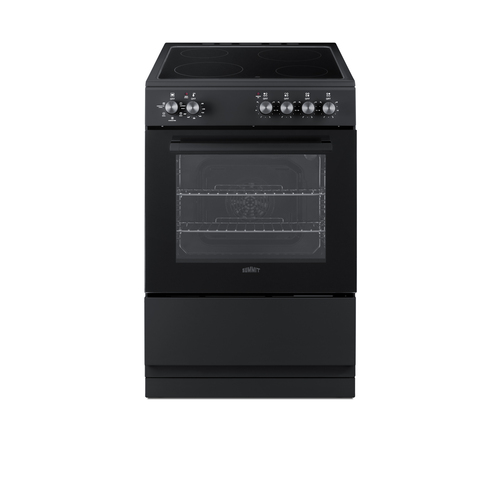

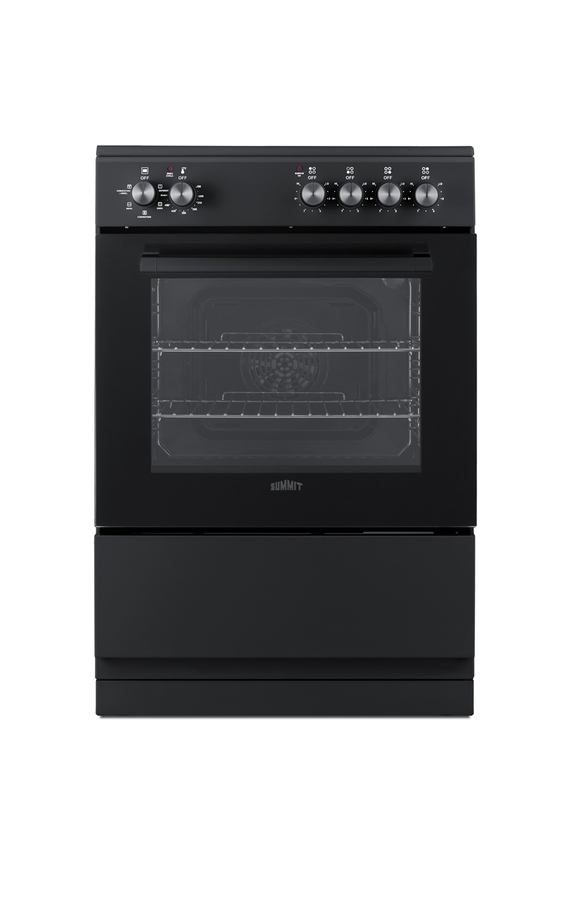

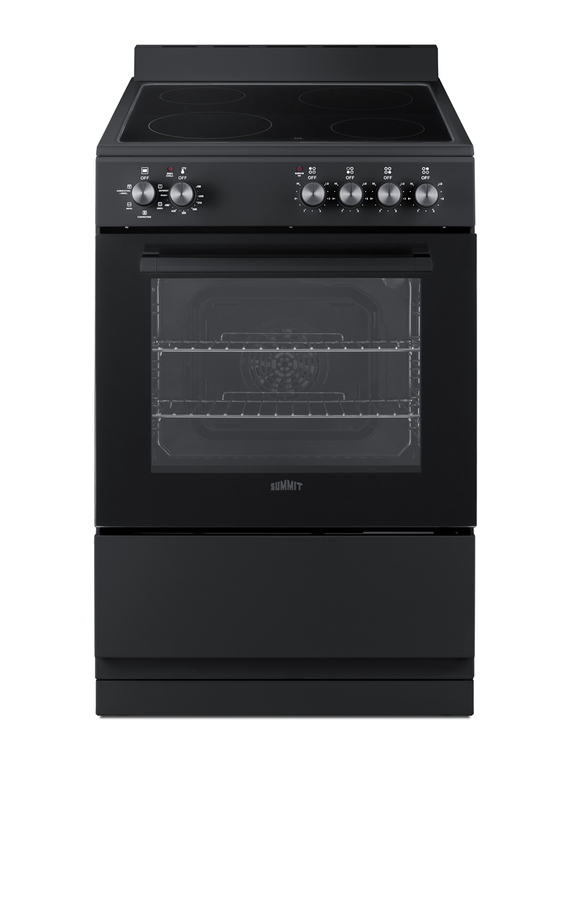

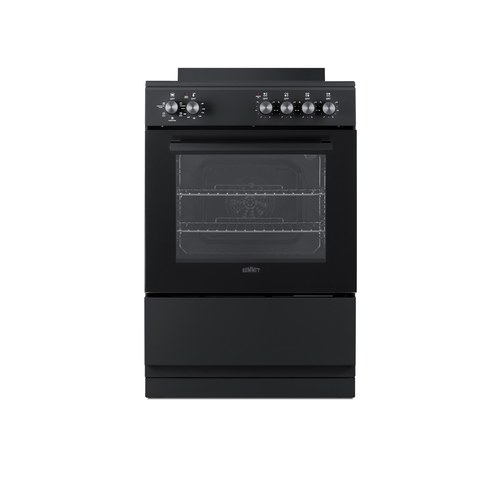

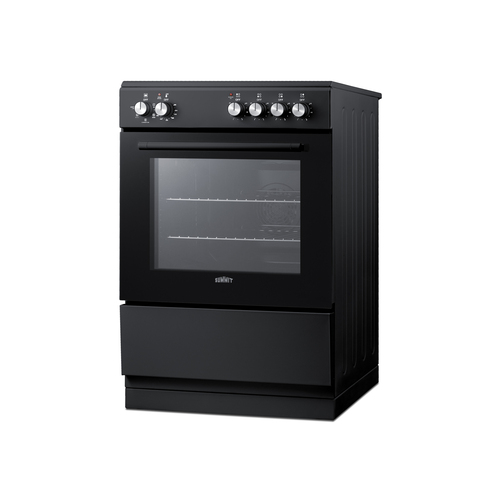

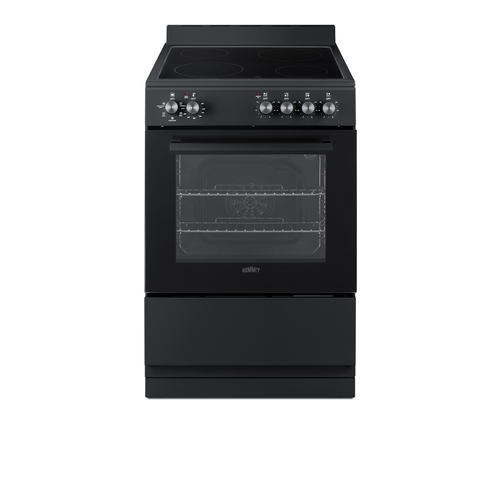

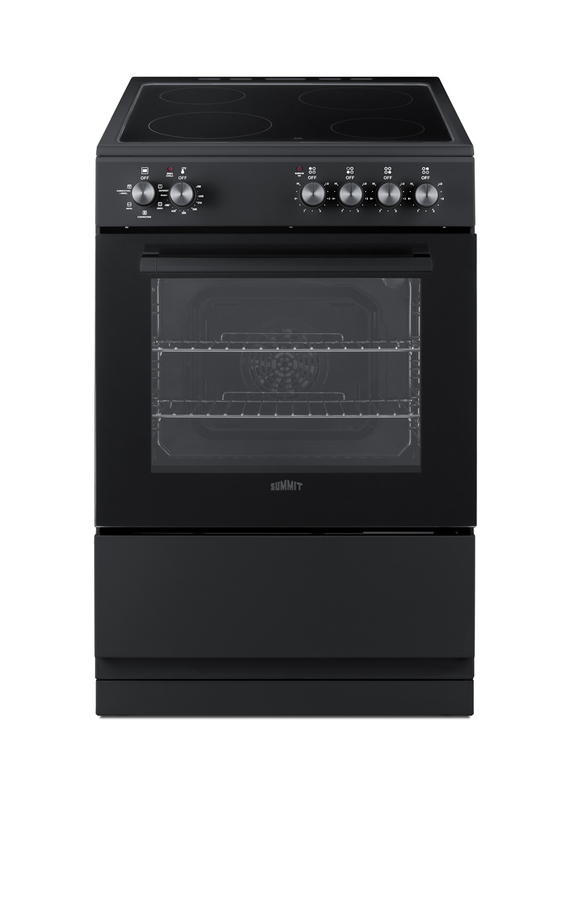

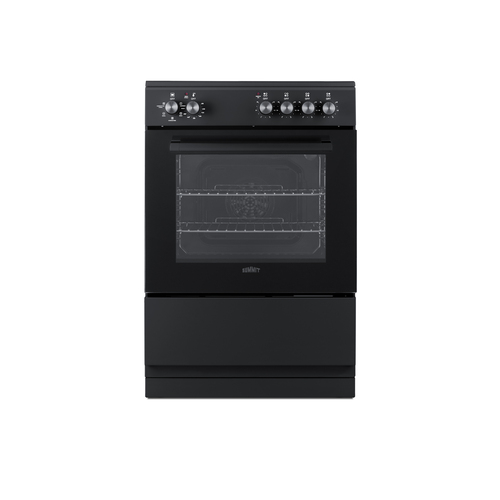

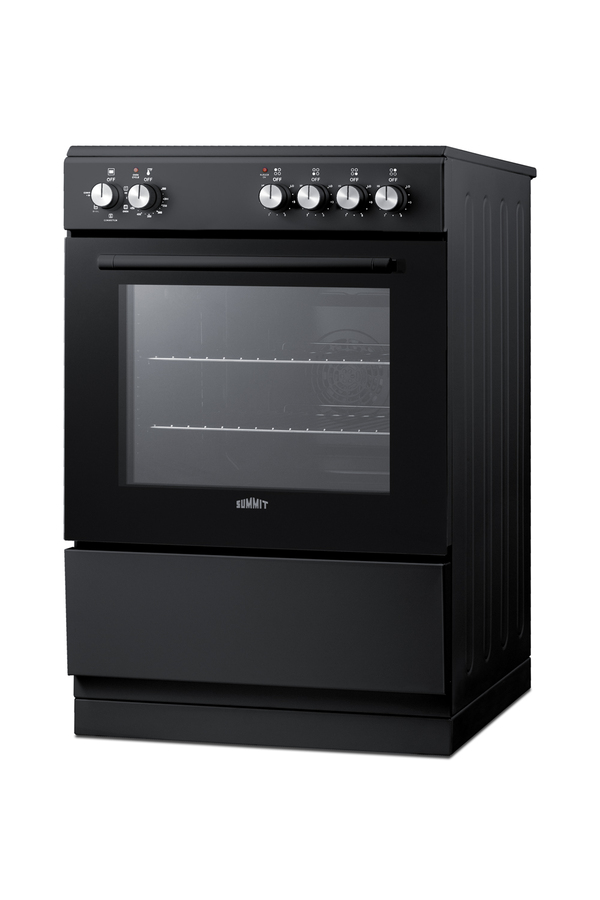

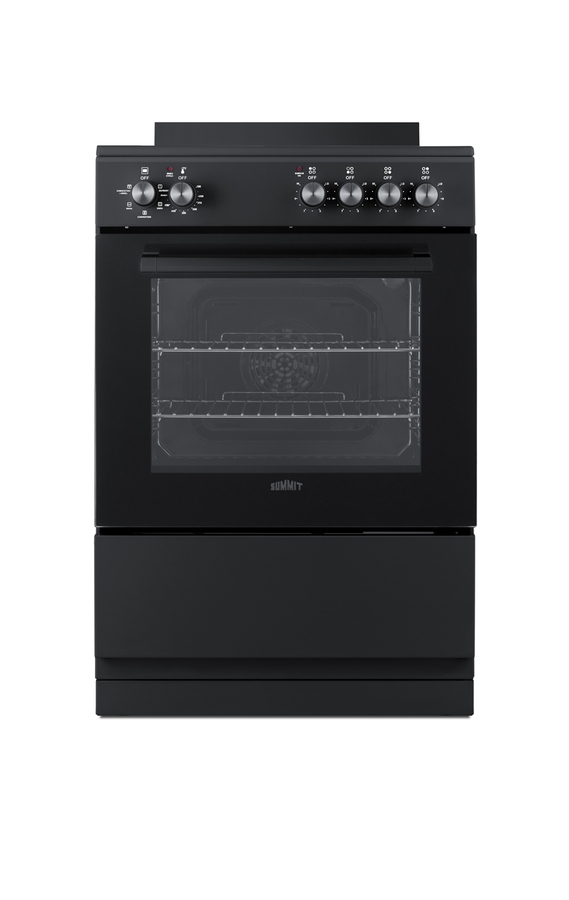

24" Wide Electric Smooth-Top Range

SKU: REXT24BL

European-made electric convection range with a smooth ceramic cooking surface for safer cooking

Estimated Time to Ship:

Next day shipping

Find a dealer

Width:
20 Inch 24 Inch

Color: Black

*Additional features may vary

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

35.5" H x 23.38" W x 23.63" D
(90cm H x 59cm W x 60cm D)

Overview
Nominal Height	36.0" (91 cm)
Height of Cabinet	35.5" (90 cm)
Nominal Width	24.0" (61 cm)
Width	23.38" (59 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.63" (60 cm)
Depth with Handle	25.13" (64 cm)
Depth with door at 90°	40.88" (104 cm)
Capacity	2.44 cu.ft. (69 L)
Door	Black
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	40.0
Voltage/Frequency	240 V AC/60 Hz
Weight	152.0 lbs. (69 kg)
Parts & Labor Warranty	1 Year
UPC	761101106793
Electric Range
Cooktop Surface	Glass
Element Type	Glasstop
Number of Elements	4
Element #1 Size	8.0" (20 cm)
Element #1 Wattage	1800.0
Element #2 Size	6.0" (15 cm)
Element #2 Wattage	1200.0
Element #3 Size	8.0" (20 cm)
Element #3 Wattage	1800.0
Element #4 Size	6.0" (15 cm)
Element #4 Wattage	1200.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Backguard	Yes
Cleaning Type	Manual
Oven Rack Qty	2
Oven Window	Yes
Oven Interior Height	13.25" (34 cm)
Oven Interior Width	18.5" (47 cm)
Oven Interior Depth	15.75" (40 cm)
Power Source	240V
Storage Compartment	Yes
Broiler Location	Inside Oven

Exterior

RangeCord3P - Installed 3-pronged cord

RangeCord4P - Installed 4-pronged cord

24" Wide European-Made Electric Range

European design is perfectly sized for apartments and smaller home kitchens

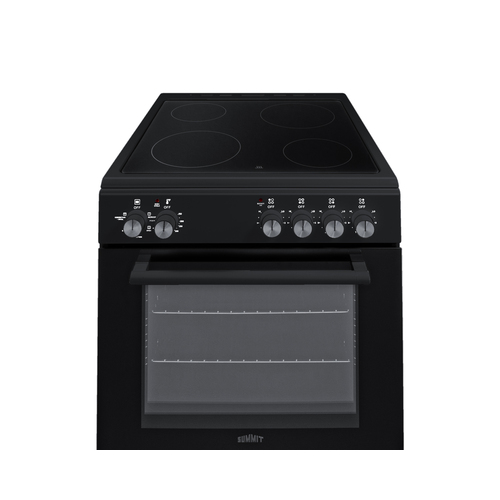

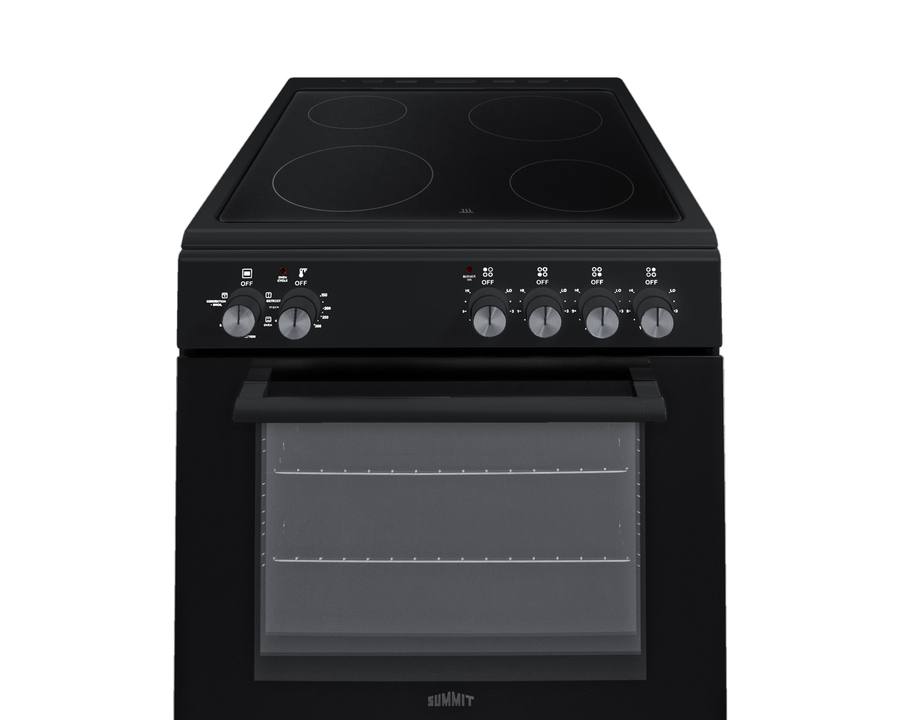

Smooth glass top

A smooth cooking surface made from glass ensures improved safety and easy cleaning

Four cooking zones

Two 1800W 8" elements paired with two 1200W 6" elements to accommodate a range of sizes and cooking needs

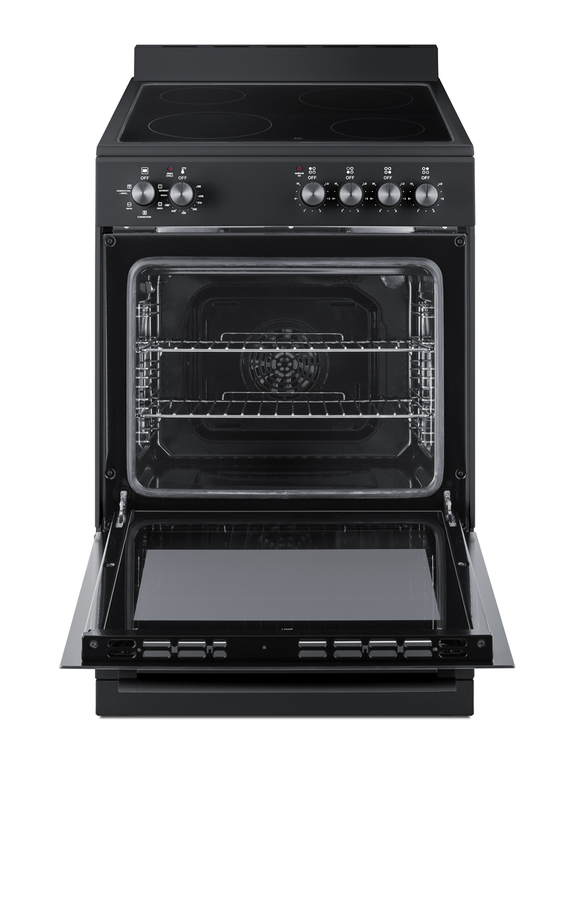

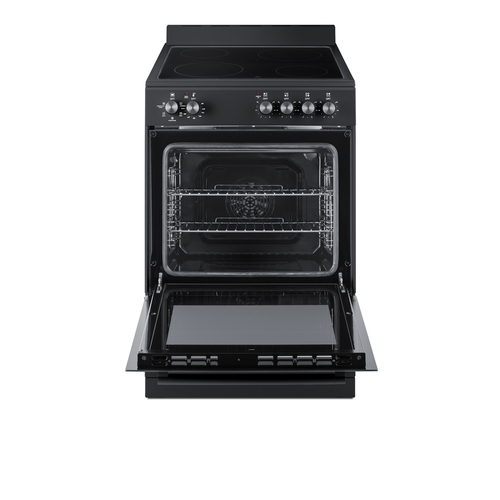

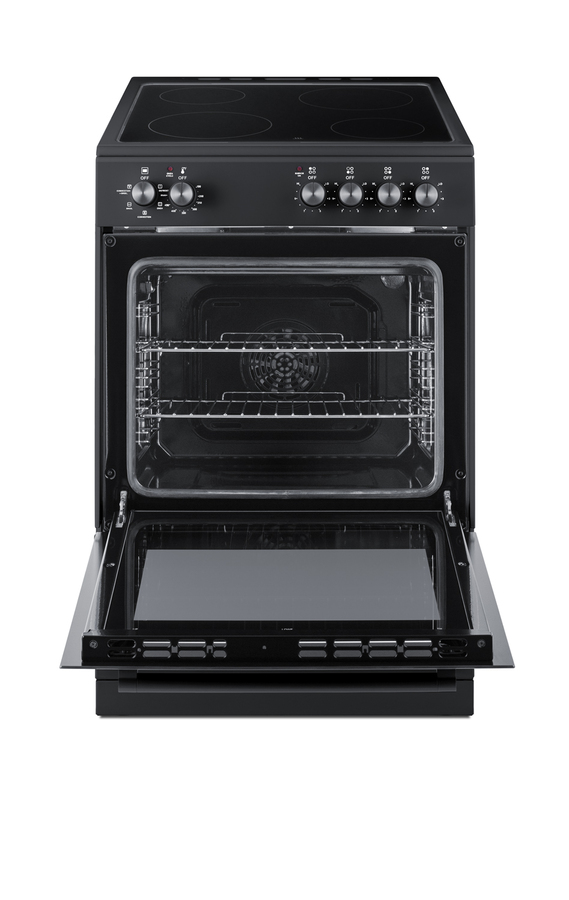

Oven window

Large oven window makes it easy to monitor your cooking progress

Interior light

Oven light automatically illuminates when the oven is on or when the door is opened

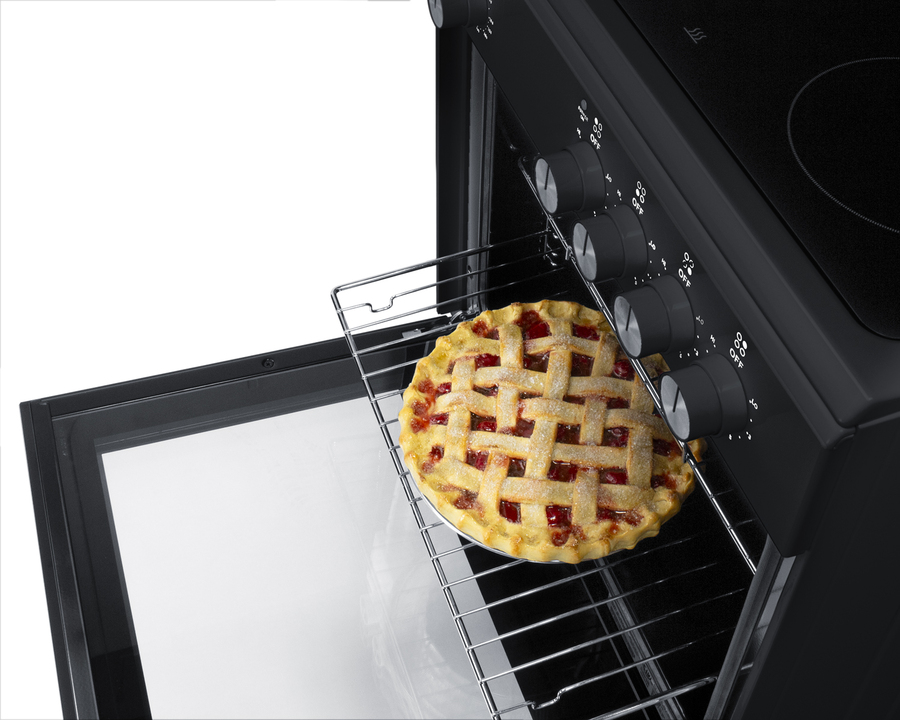

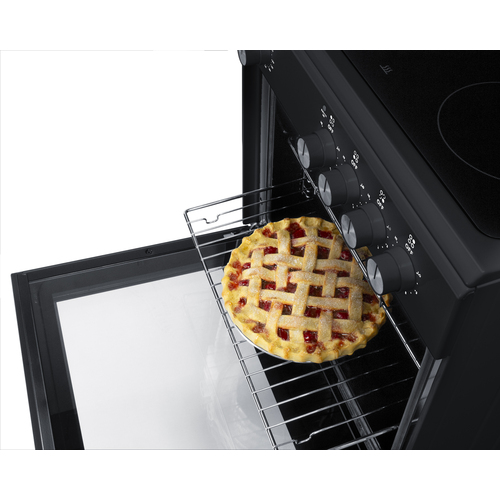

Adjustable racks

Includes two oven racks that can be adjusted to accommodate a variety of sizes when baking or broiling

Slide-out storage drawer

Save even more space by storing your pots and pans in this pull-out compartment

Broiling function

This function is used for broiling or toasting food on the upper oven shelves

Broiling and convection function

This function is used for broiling thicker food on the upper oven shelves

Convection function

Fan function is ideal for baking pastries and provides a slightly broiled effect

Defrost function

This function is only to be used to defrost, not to cook or bake

Static cooking function

This function is used for making pastries, cakes, and pizzas

Waist-high broiler

Broiler is located inside the oven, making it easier to use

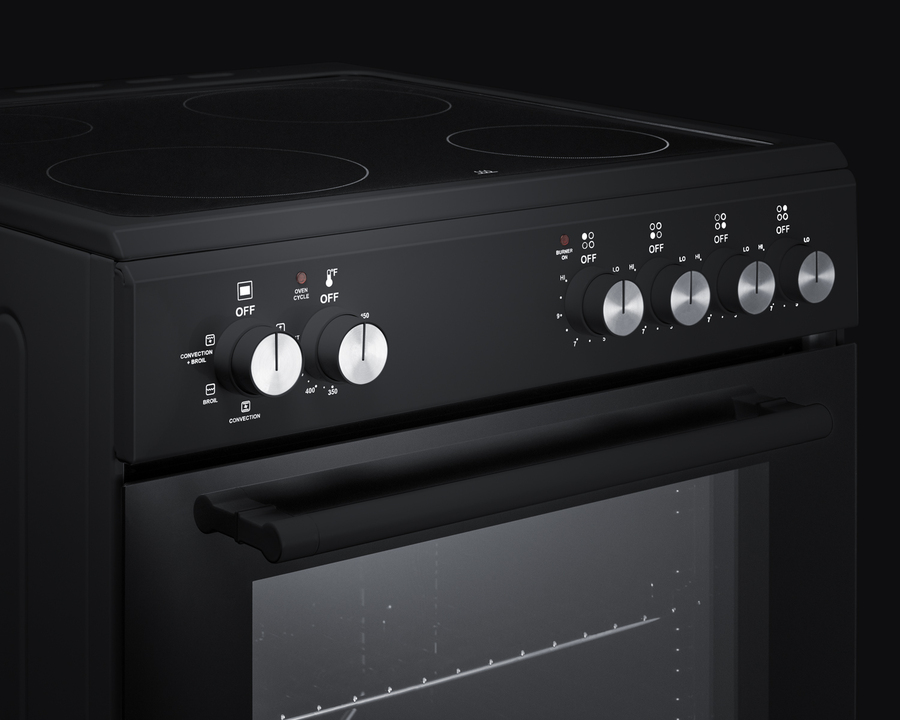

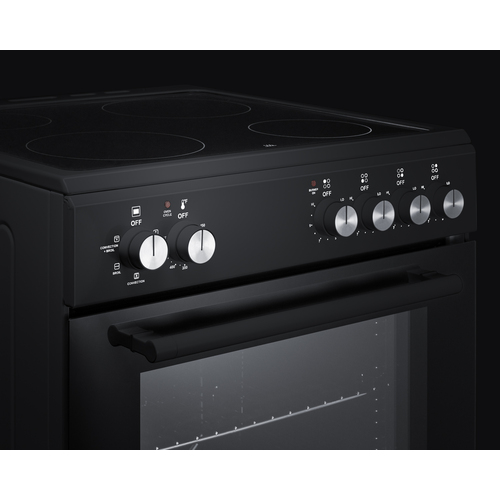

Push-To-Turn knobs

To prevent accidents, all knobs require a small amount of force when turning

Slide-in style

Optional rear backguard to allow you to customize your backsplash

Removable backguard

Unit ships with low backguard but can be easily converted to a traditional slide-in style for a more integrated look

Anti-Tip bracket

Recommended for installation to help prevent accidents

ADA-compliant design

Front-located controls and proper sizing meets ADA guidelines for added accessibility

Summit's innovative series of European-made ranges offers full cooking convenience for apartments, ADUs, tiny homes, and other settings with limited kitchen space.

Made in Europe, the REXT24BL is a 220V electric range sized at just under 24" wide with a depth under 24" making it ideal for L or U-shaped kitchens. For safer heating and easier clean-up, these units feature a smooth glass cooking surface. There are two 6" burners and two 8" burners to ensure the REXT24X can accommodate various cooking needs.

The versatile design includes a removable 2" high matching backguard, allowing you the choice of a standard range style or a slide-in look with a flat surface that allows you to better integrate the unit with your own backsplash design. For added space savings, the REXT24BL features a slide-out drawer, perfect for storing your pots and freeing up more kitchen space.

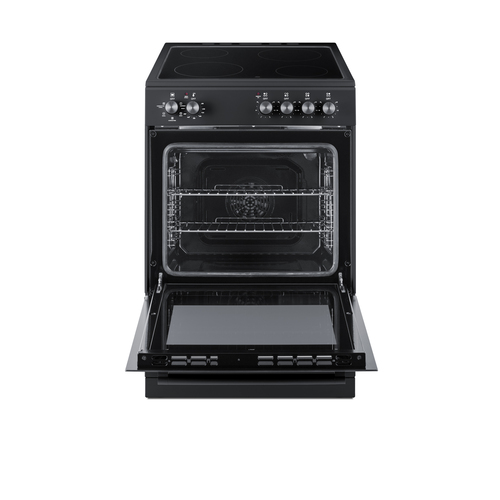

Inside, the REXT24BL features a large 2.44 cu.ft. oven made from durable porcelain enamel and includes two sliding wire racks with five positions to let you fit various dish sizes. The large oven window provides a full view of your cooking, with an interior light that automatically turns on with the oven. The oven door is constructed from low-e glass in black for a modern look, with a sleek black finish on the cabinet, storage drawer, and manifold.

The REXT24BL comes with multiple cooking functions to cater to various cooking methods. The oven settings include: defrost, static cooking, convection(fan), broiling, and even a broiling + convection(fan) function. All cooking controls meet ADA guidelines since each is located upfront, eliminating the danger of reaching across the cooktop surface.

For this unit in stainless steel or white see models REXT24SS and REXT24W. For a 20" wide unit, see model REXT20BL.

Browse our website to view our complete collection of ranges and cooking appliance at summitappliance.com

BROCHURE w/ DRAWINGS
REXT24BL.pdf

TECHNICAL DRAWING (.dwg)
REXT24W.dwg

ASSEMBLY DRAWING
REXT24W-Assembly__1_.pdf

USE & CARE
REXT20W_REXT24W_User_Manual_10-31-23.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
