24" Wide Gas Range & Convertible Hood
1 to 2 days
(107cm H x 60cm W x 62cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 42.0" (107 cm) |
| Height of Cabinet | 42.0" (107 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 25.0" (64 cm) |
| Depth | 24.5" (62 cm) |
| Depth with Handle | 25.75" (65 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | CSA |
| Canadian Electrical Safety | CSA-C |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 130.0 lbs. (59 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101088006 |
|
Gas Range
|
|
| Ignition | Spark |
| LP Convertible | Yes |
| Oven Capacity | 2.9 cu.ft |
| Burner Type | Sealed |
| Number of Burners | 4 |
| Grate Material | Cast Iron |
| Burner #1 BTU | 12000.0 |
| Burner #2 BTU | 9500.0 |
| Burner #3 BTU | 5000.0 |
| Burner #4 BTU | 9500.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Oven Light | Yes |
| Backguard | Yes |
| Cleaning Type | Manual |
| Oven Rack Qty | 2 |
| Oven Window | Yes |
| Oven Interior Height | 15.25" (39 cm) |
| Oven Interior Width | 19.0" (48 cm) |
| Oven Interior Depth | 17.5" (44 cm) |
| Broiler Location | Below Oven |
FEATURES

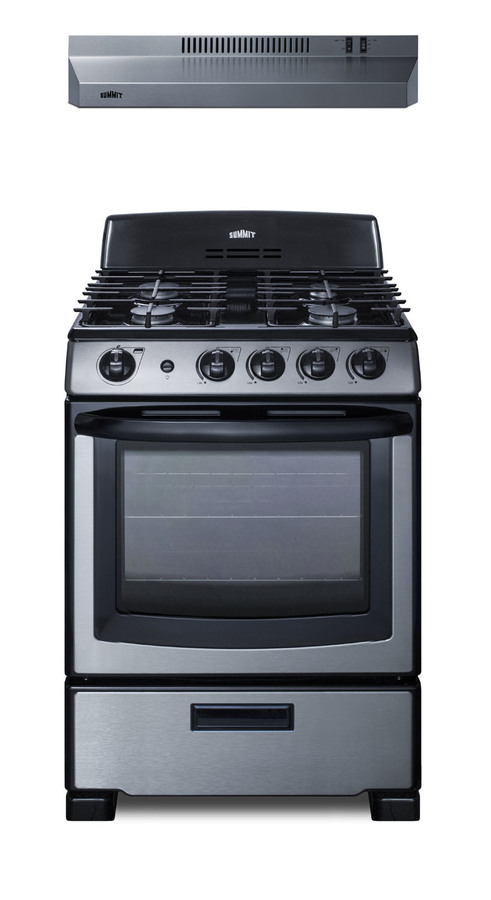

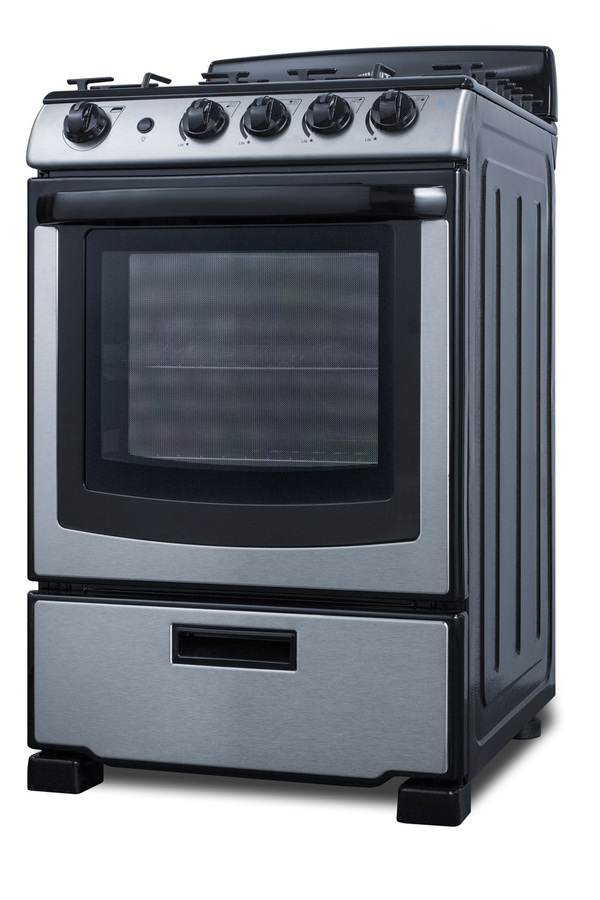

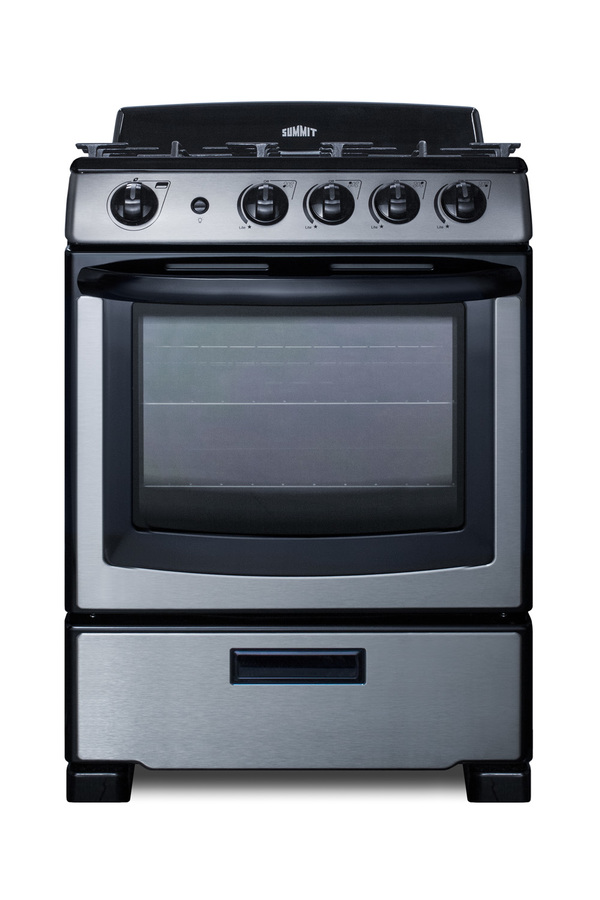

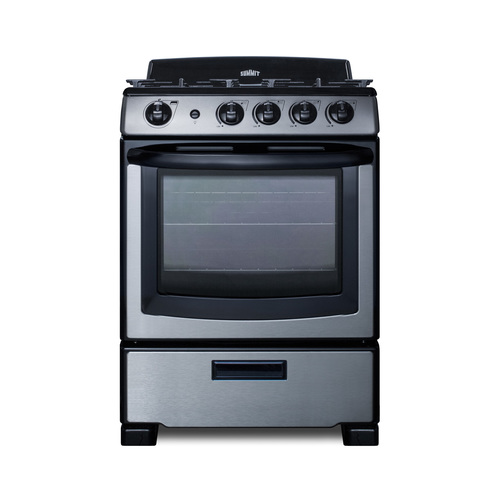

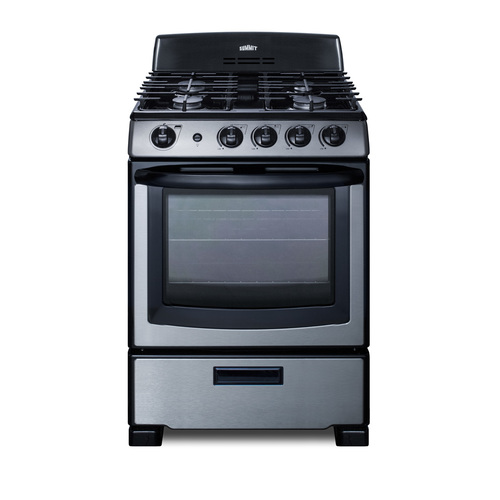

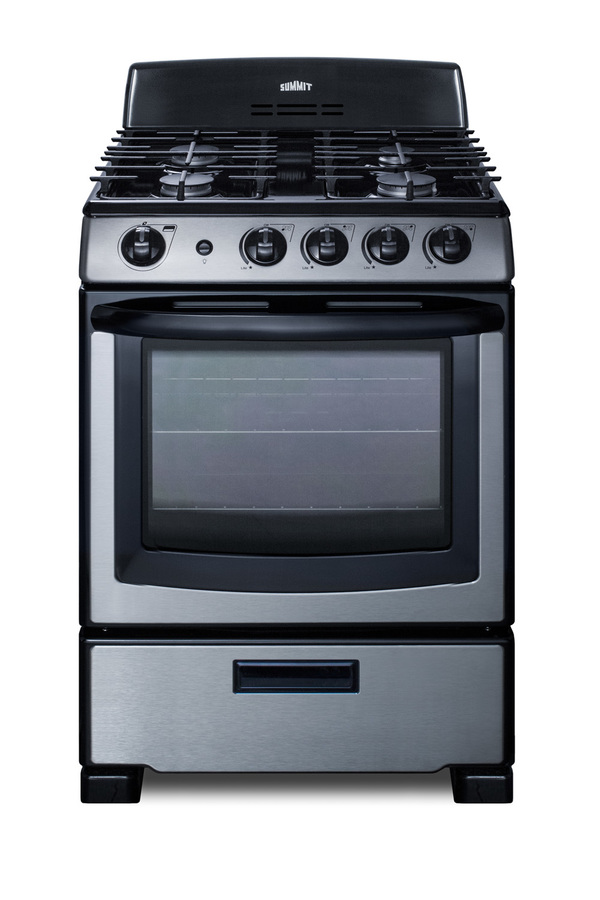

Includes our PRO247SS 4-burner gas range with oven and our H24RSS convertible range hood to create a fully functional cooking and ventilation station in small kitchens
Perfectly sized for apartments and smaller kitchens
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)

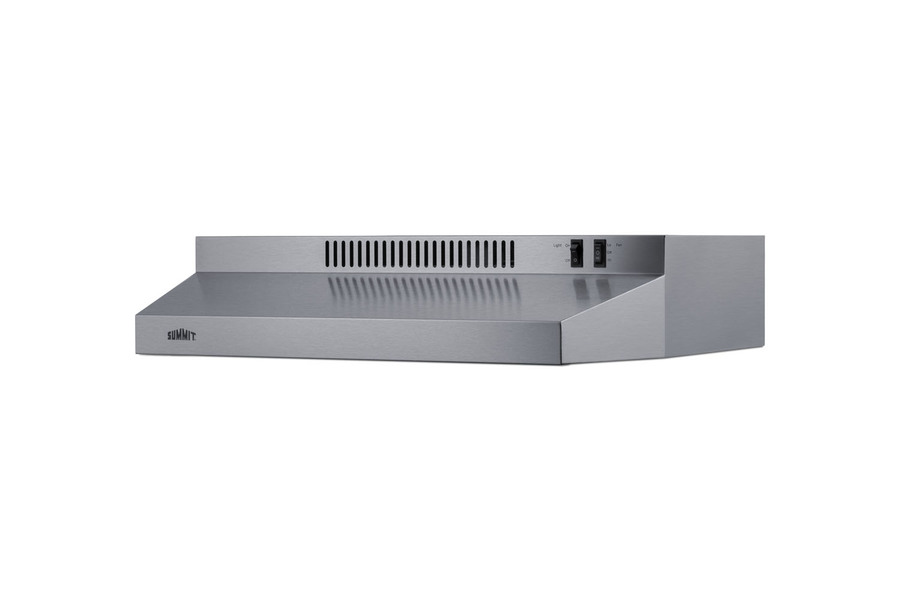

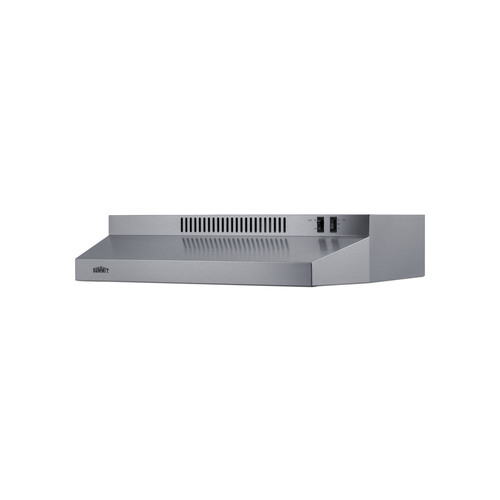

Hood ships pre-set for recirculating mode but can be converted for ducted use in less than a minute

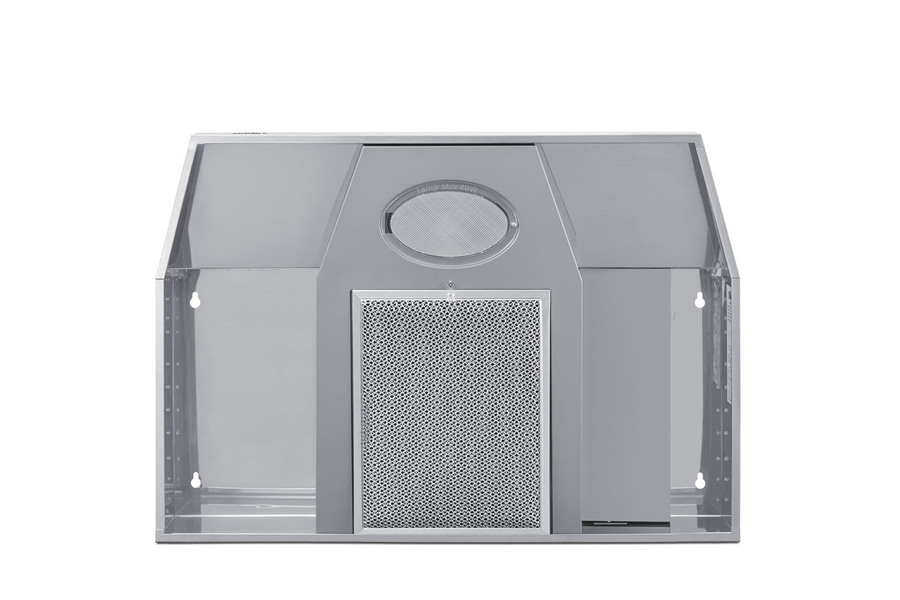

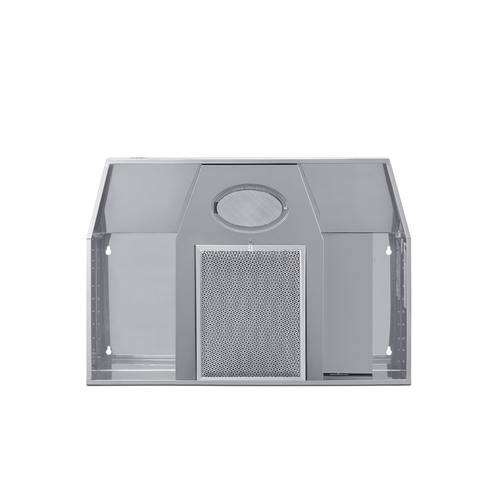

Hood ships with a removable easy-to-clean aluminum mesh filter to capture grease, and a charcoal filter to absorb odors when using the hood in recirculating mode
Low profile design offers a classic way to finish your kitchen, with a complete stainless steel exterior with an easy-to-match horizontal grain

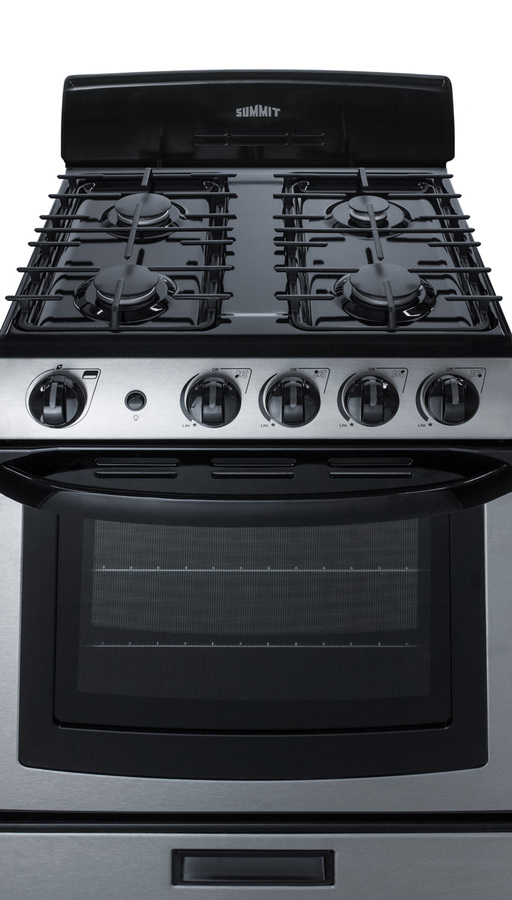

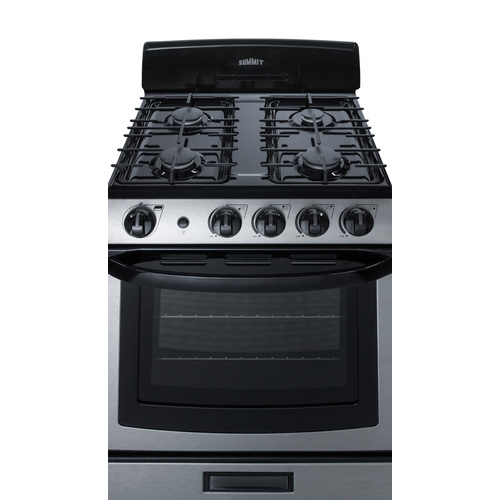

Four sealed burners with removable cast iron tops ensure safer, cleaner cooking
Unit is set for natural gas but can be converted aftermarket with the included LP kit
Range hood and the stove's door, broiler, and control panel, and handle feature a stainless steel finish for a professional look
Easier monitoring of your cooking with an oven window and on/off light
Two sets of continuous cast iron burner grates offer durable cooking with a lightweight feel for easier cleaning
Front right burner features 12,000 BTU output for powerful cooking
Two left burners operate at 9,500 BTU to handle most heating needs
Rear right burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items
Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments
Oven interior features high quality porcelain construction for long-lasting durability

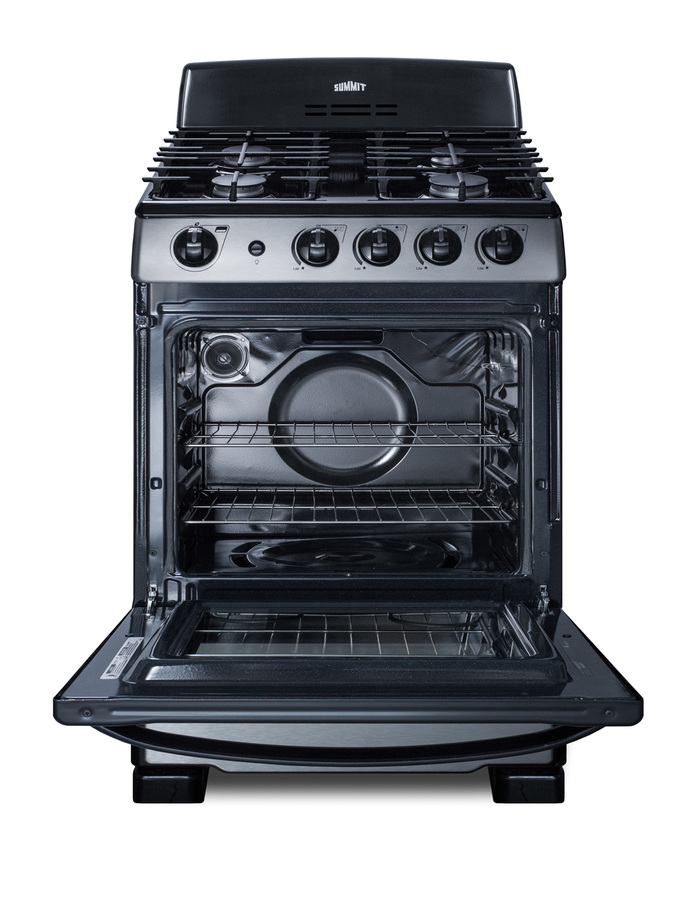

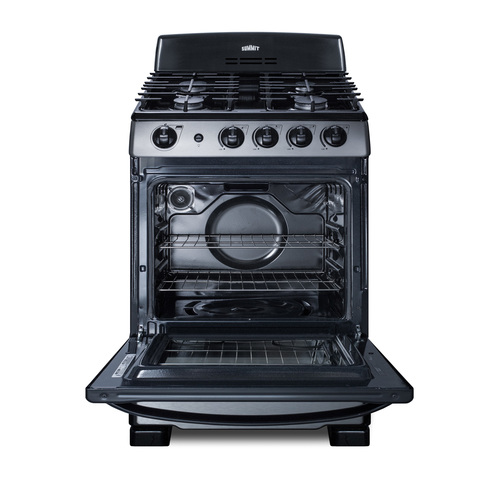

Two racks with four glide positions for flexible cooking
Sliding racks will stay in your oven with special brake mechanism
Drop-down lower compartment offers the ideal conditions for broiling
Control panel includes an 'on' light for the oven and burners for added safety when using the range
Burner knobs require a small amount of force to turn on for added protection against accidents
Spark ignition for added safety
Two-piece broiler pan with lid included with each range
Solid backing prevents stovetop contents from splashing up or boiling over and staining walls
Standard 3-pronged 115V cord included for the electronic ignition; NOTE: range hood must be hard-wired by a licensed professional
Safety feature included for user installation to help prevent accidents
DESCRIPTION

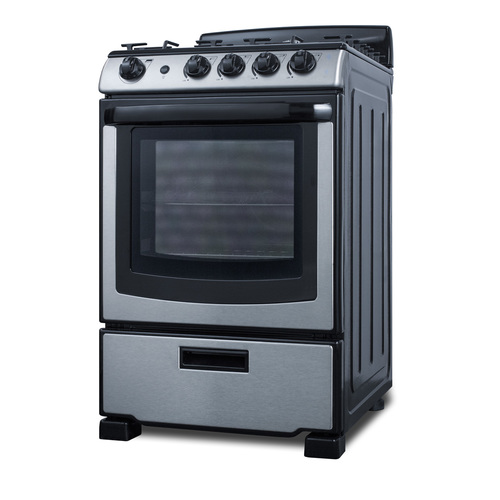

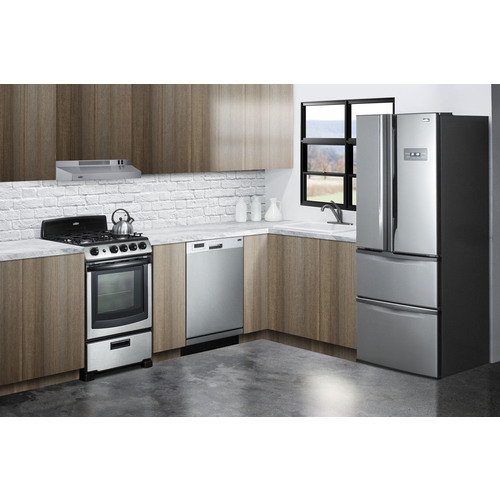

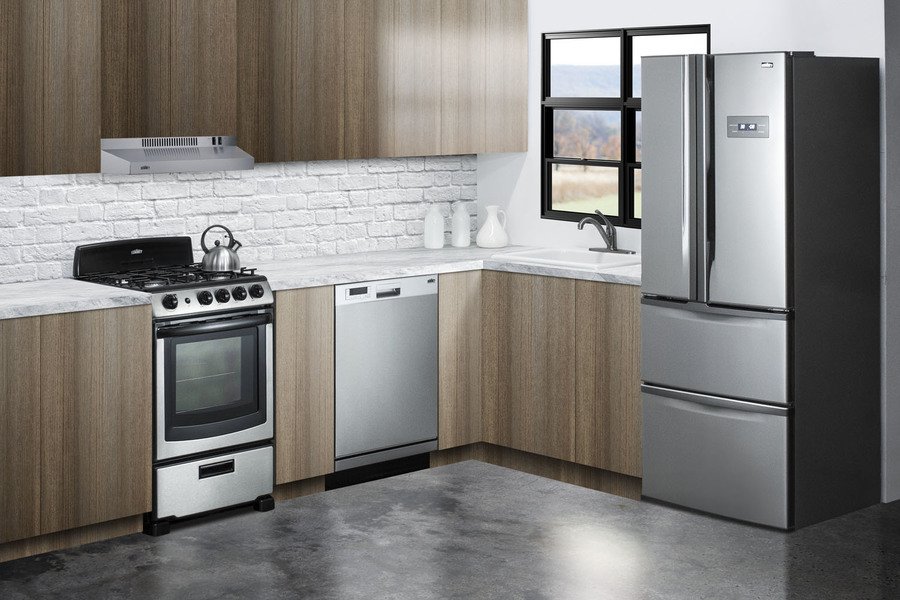

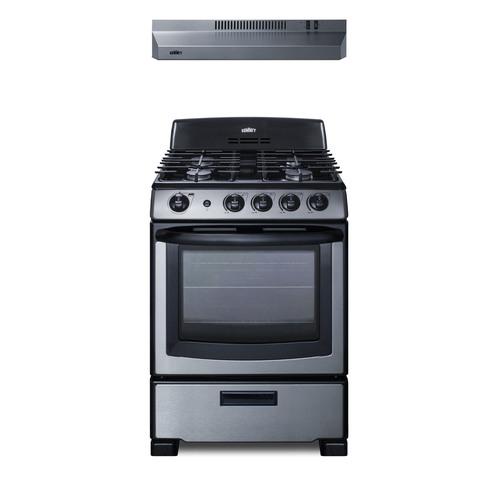

Summit lets you create the perfect small kitchen with our 24" wide range and hood sets. The RGH24RSS combines our popular PRO247SS North American-made gas range with our convertible H24RSS range hood. Ideal for apartments, this set offers versatile installation options and an attractive finish in black and stainless steel. The PRO247SS gas range ships set for natural gas but includes an LP kit to allow easy conversion to propane connections. This unit includes four sealed burners (including a 12,000 BTU power burner) and continuous grates in durable cast iron. Upfront push-to-turn knobs offer easy use and allows you to operate the unit without reaching over hot burners. The large 2.9 cu.ft. oven provides plenty of cooking space, with two adjustable racks included. This unit includes an oven window and interior light to allow a full view of your cooking. It utilizes electronic spark ignition and comes with a pre-installed 3-prong 115V power cord. The oven and drop-down broiler drawer come in stainless steel, with a jet black cooking surface and cabinet. The H24RSS range hood ships set for ductless/recirculating use in kitchens without external exhaust options. It can be converted for ducted operation (rear or top venting) in one quick step. We include an aluminum mesh grease filter, as well as an activated carbon filter for recirculating applications. A pre-installed light bulb lets you illuminate your cooking surface with a simple rocker switch light. The fan has a high and low setting to best meet your ventilation needs. Stainless steel construction completes the look and complements the stove. The RGH24RSS ships together on one pallet. For a smooth-top electric stove and hood combination, see the REXH24RSS.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
