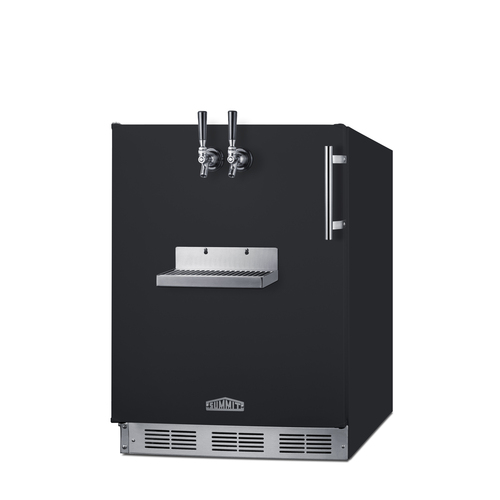

24" Wide Front Tap Built-In Beer Kegerator, ADA-Compliant

SKU: SBC58BFRTPADALHD

Commitment-free front tap beer kegerator requires zero alterations to your countertop

Estimated Time to Ship:

2 to 4 days

Find a dealer

Height:
ADA Adjustable

Door Swing:
RHD LHD

Tap System:
Beer Cold Brew Coffee

Color: Black

*Additional features may vary

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

32.0" H x 23.63" W x 27.38" D
(81cm H x 60cm W x 70cm D)

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	31.88" (81 cm)
Height to Hinge Cap	32.0" (81 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	28.0" (71 cm)
Depth	27.38" (70 cm)
Depth with door at 90°	51.88" (132 cm)
Capacity	5.3 cu.ft. (150 L)
Defrost Type	Automatic
Door	Black
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	293.0kWh/year
Amps	0.8
Voltage/Frequency	115 V AC/60 Hz
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101145426
Kegerator
Door Swing	LHD
Height Adjustable	Yes
Tap Kit	Yes
Number of Taps	2
Thermostat Type	Dial
Interior Light	Yes
Refrigerant	R600a
Refrigerant Amount	0.64 oz.
Inter Height	27.75" (70 cm)
Interior Width	21.0" (53 cm)
Interior Depth	18.0" (46 cm)
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	6.0" (15 cm)
Level Legs Qty	4
Temperature Range	36 to 46°F

Exterior

RHD - Right hand door swing Door reversal to right hand door swing	CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)

Lock

L-TopLock Add a single keyed lock located on top of the unit	L-SideLock Add a single keyed lock located on the door's side (NOTE: side lock adds 1" to overall unit width and comes in white)

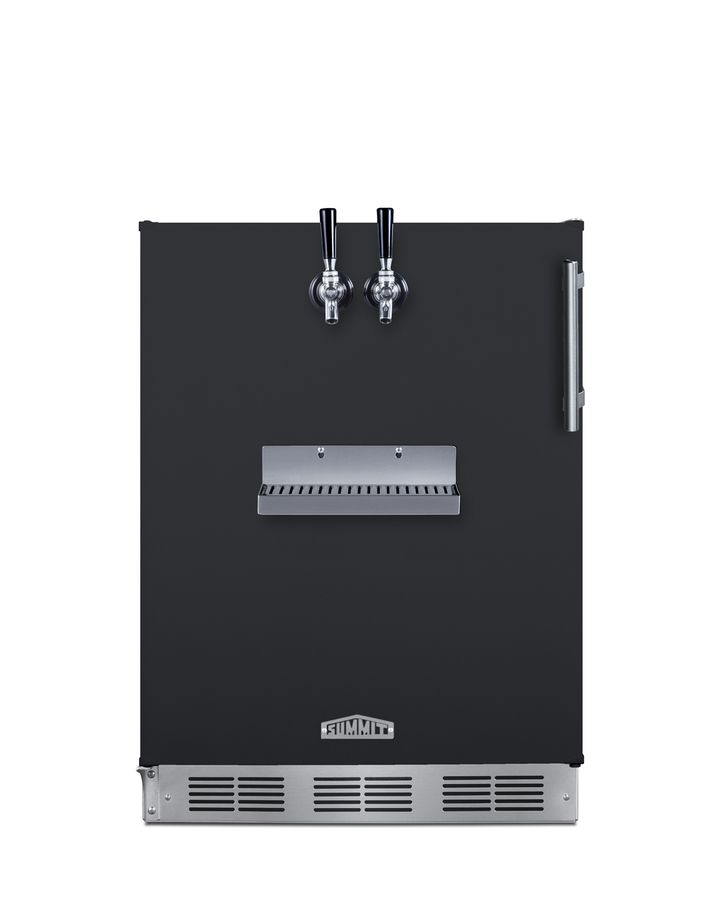

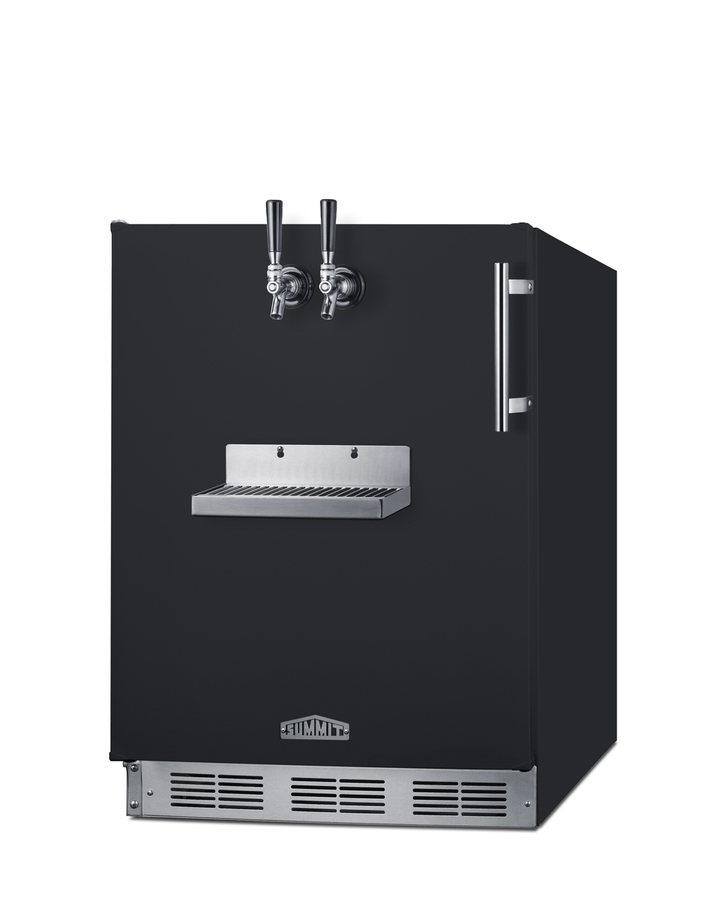

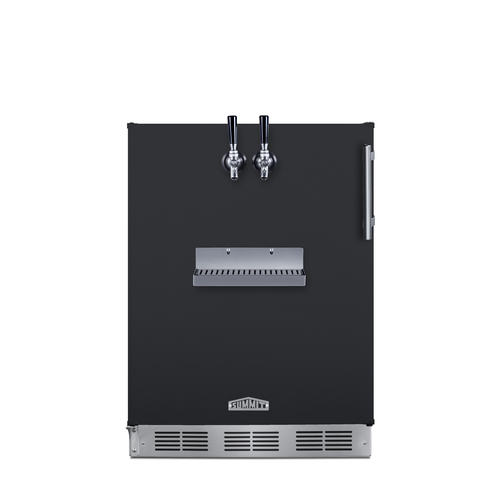

24" Wide Front-Tap Beer Dispenser

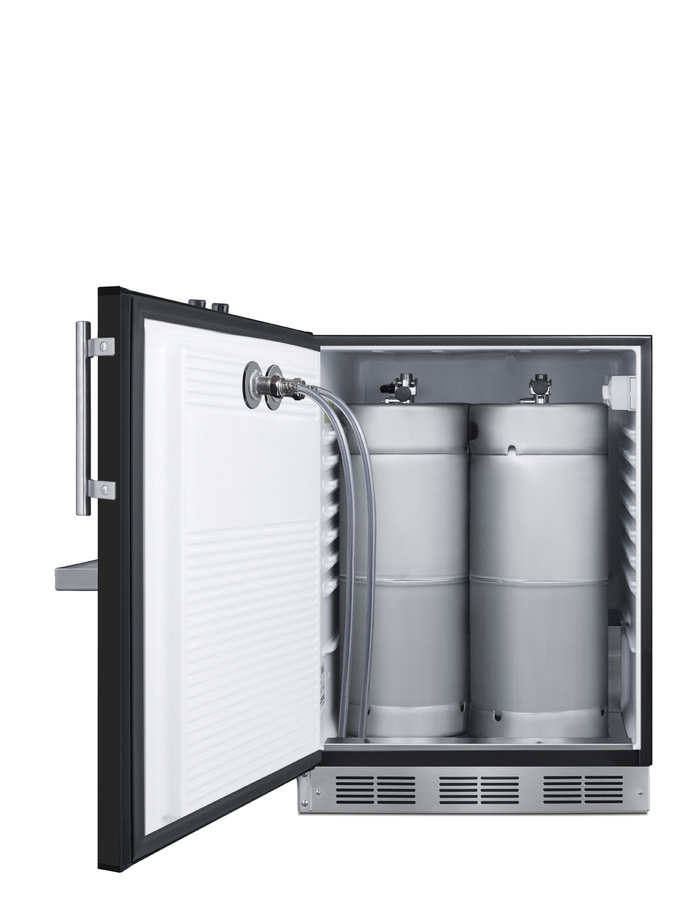

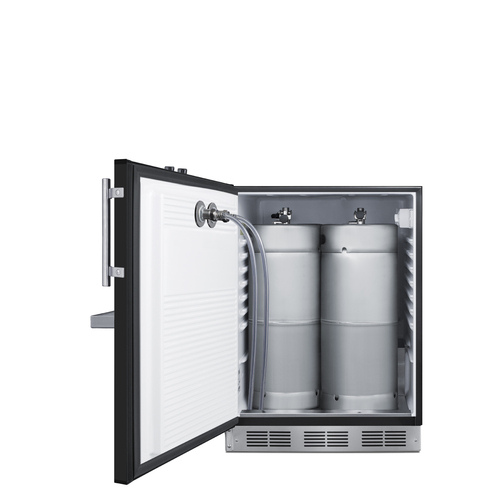

Kegerator includes front taps accessed via the door and includes all of the equipment needed to serve beer from two sixtel kegs

Commitment-free front-taps

Unique design requires no alterations to your countertop, freeing up valuable countertop space

Dual tap system

Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs

Accessible design

Taps are located on the front of the door, requiring no added reach

ADA-compliant height

Sized at 32 inches high for installation under lower ADA-compliant counters

Commercially listed

ETL-S listed to ANSI-NSF Standard 7 for commercial use

Versatile use

Approved for both residential and commercial settings

Complete beer tap kit included

Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, and the needed connection hardware.

CO2 tank included

Full-sized cannister ships with tapping equipment (ships empty)

Interior CO2 holder

Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs

Automatic defrost

No-frost operation for minimum user maintenance

Adjustable mechanical thermostat

Simple and intuitive analog controls located inside for easy temperature management

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

Hidden evaporator

Cold wall design with hidden evaporator creates a seamless, easy to clean interior

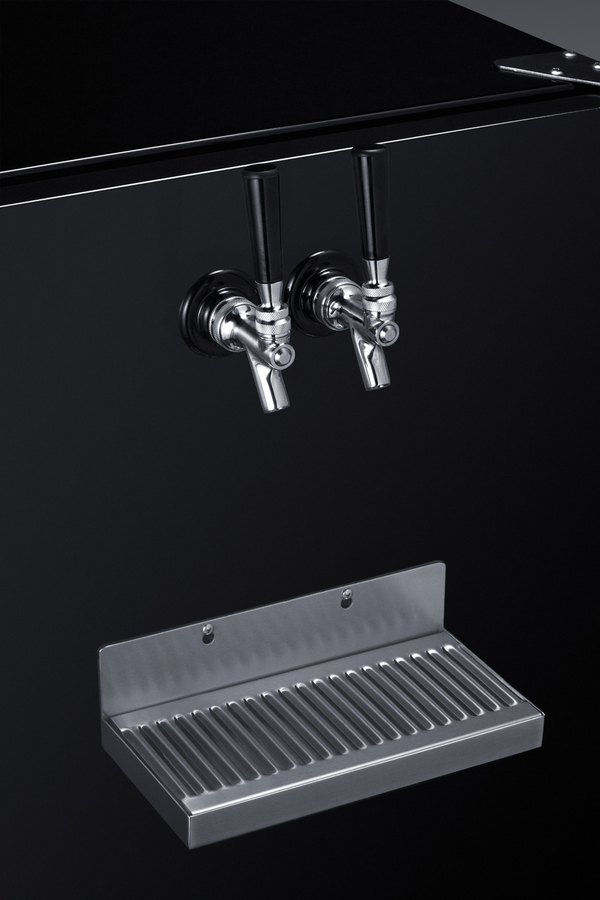

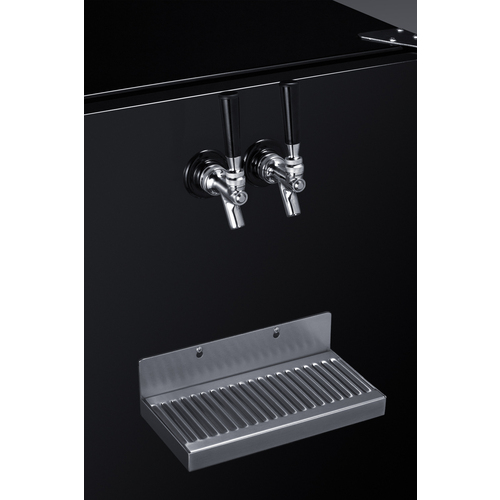

Stainless steel drip tray

Front-mounted two-piece drip tray included for added convenience that can be easily removed for better cleanability

Professional handle

Vertically-mounted handle bar in stainless steel

Left-hand door swing

For this unit with a standard right-hand door swing, see model SBC58BFRTPADA

Stainless steel kickplate

Attractive finish to match the taps and handle

Fully finished cabinet

Allows the dispenser to be used freestanding

Made in Europe & USA

Refrigeration unit constructed in Europe then designed and modified in the USA

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's innovative series of commitment-free ADA compliant kegerators offers maximum convenience, eliminating the need to make alterations to countertops while still keeping easy access to beer on tap in commercial and residential settings.

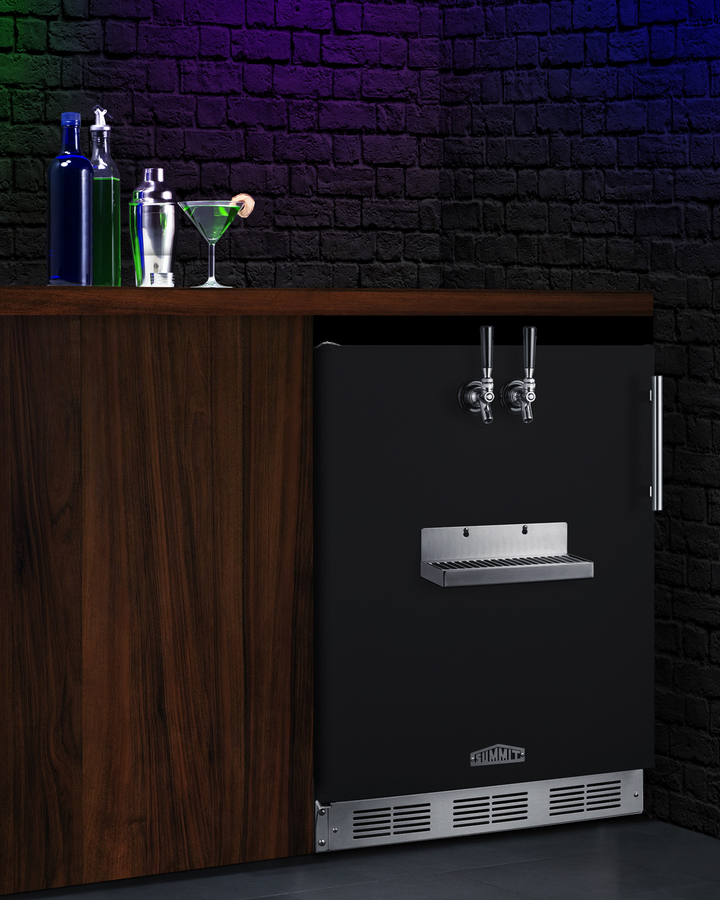

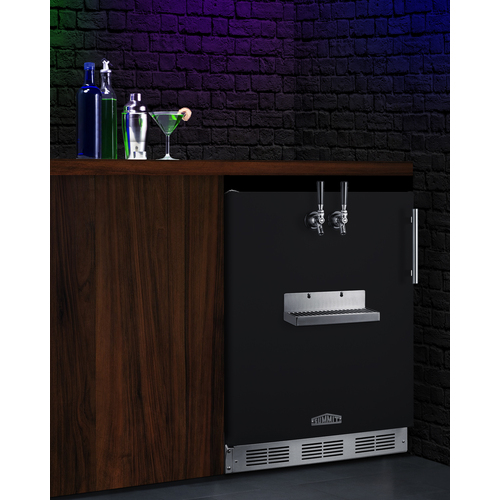

The SBC58BFRTPADALHD is unique because the twin taps are accessed via the unit's front door. The specialized design frees up valuable counter space in kitchens, home bars, and eateries with limited room. The kegerator can be installed under a counter without the need to modify the countertop with a hole for the draft tower. The front tap system also creates a more accessible kegerator experience. This kegerator ships fully assembled and includes a removable stainless steel drip tray that mounts on the door below the taps. Its commercial grade tower has two faucets serving beer from two 1/6 (sixtel) kegs. We also include a CO2 tank, regulator, and all the equipment you need to confidently serve perfectly chilled beer on tap.

Sized with a 24" footprint, this is a versatile front tap coffee dispenser that is ETL-S listed to NSF-7 standards for use in commercial environments. At 32" high, it is ideal for built-in installation under lower ADA compliant counters. It comes in a jet black finish with stainless steel accents for a professional look.

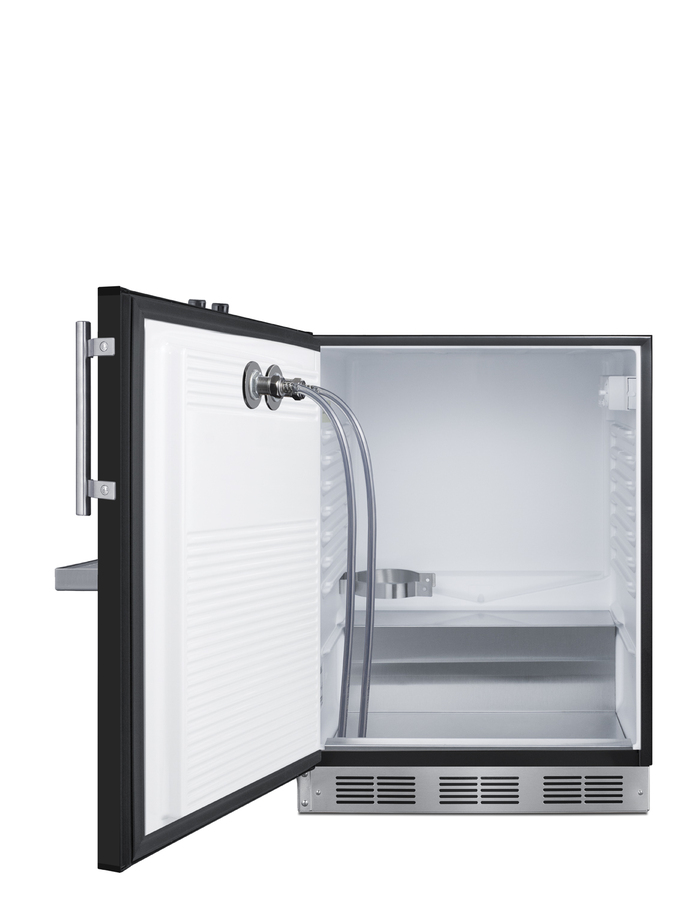

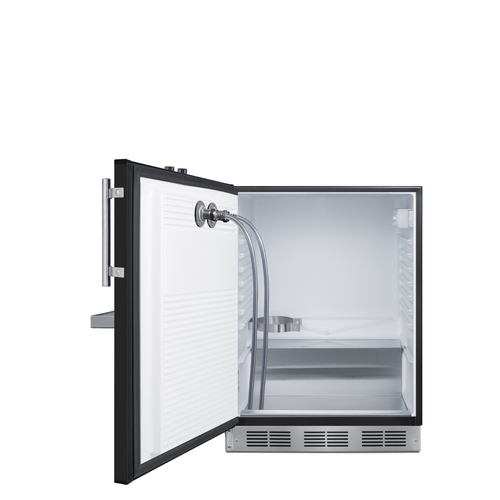

The SBC58BFRTPADALHD features a crisp white interior liner and stainless steel floor, providing added protection when loading kegs. The interior light, with an on/off rocker switch located behind the dial thermostat, ensures visibility and convenience. Classic mechanical controls guarantee an intuitive, trouble-free performance without any internal boards or chips. The automatic defrost system reduces user maintenance, while our signature cold wall design ensures an efficient, reliable cooling system.

In addition to this dual tap kegerator, our commitment-free line also includes choices that dispense cold brew coffee, as well as model SBC7BRSFLTWADA which features our innovative floating tap design.

Summit also manufactures similar kegerators in standard heights and for outdoor applications. Browse the full Summit product line or contact our product specialists to find the fit for your needs.

BROCHURE w/ DRAWINGS
SBC58BFRTPADALHD.pdf

TECHNICAL DRAWING (.dwg)
SBC7BRSFRTPADA.dwg

ASSEMBLY DRAWING
SBC7BRSFRTP-Assembly__1_.pdf

USE & CARE
Front_Dispensing_Tap_Kegerators_7.22.24.pdf
