24" Wide Built-In Cold Brew Coffee Kegerator, ADA Compliant (Panel Not Included)
5 to 7 days
*Additional features may vary
(82cm H x 60cm W x 58cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.75" (58 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.2 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 110.0 lbs. (50 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101069661 |
|
Kegerator
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Tap Kit | Yes |
| Height with Tap | 47.5" (121 cm) |
| Number of Taps | 2 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Fan Type | Exterior |
| Refrigerant | R600a |
| Refrigerant Amount | 0.64 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Inter Height | 25.75" (65 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 17.75" (45 cm) |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
| Temperature Range | 34º to 43ºF |
AVAILABLE UPGRADES
| Exterior | ||||
|---|---|---|---|---|
|
||||
| Door | ||||
|
FEATURES
Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Commercial grade tap kit includes a dual tap stainless steel draft tower, Nitrogen tank, regulator, and connections for ball lock cornelius kegs

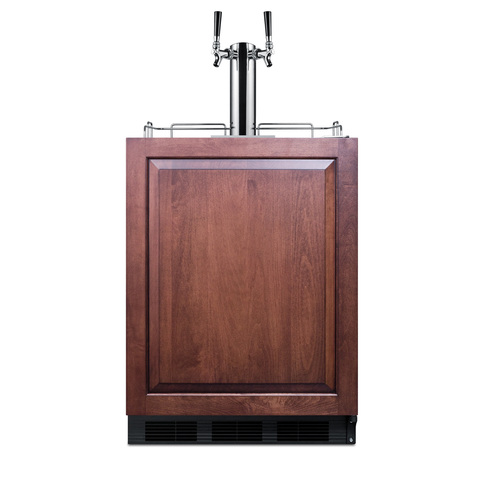

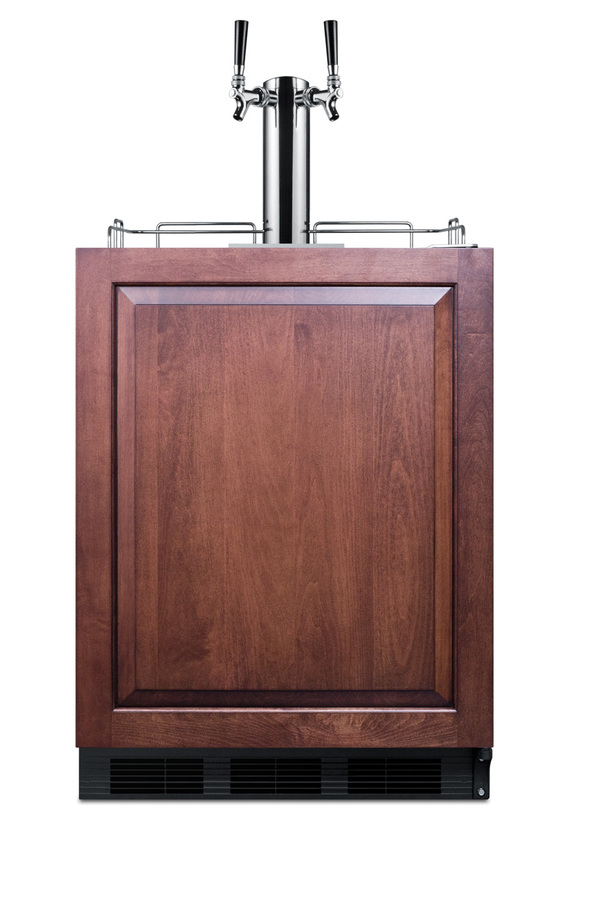

Customize the front by mounting an overlay panel over the door; seamless look can blend into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
Interior dial thermostat ensures easy temperature management
No-frost operation for minimum user maintenance
Unit ships with a right hand door swing. For a left hand version, add option LHD upon order
Removable two-piece drip tray included for added convenience
Durable railing makes it easier to neaten service
Turn the light on when you need it and off when you're done with a convenient rocker switch
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs

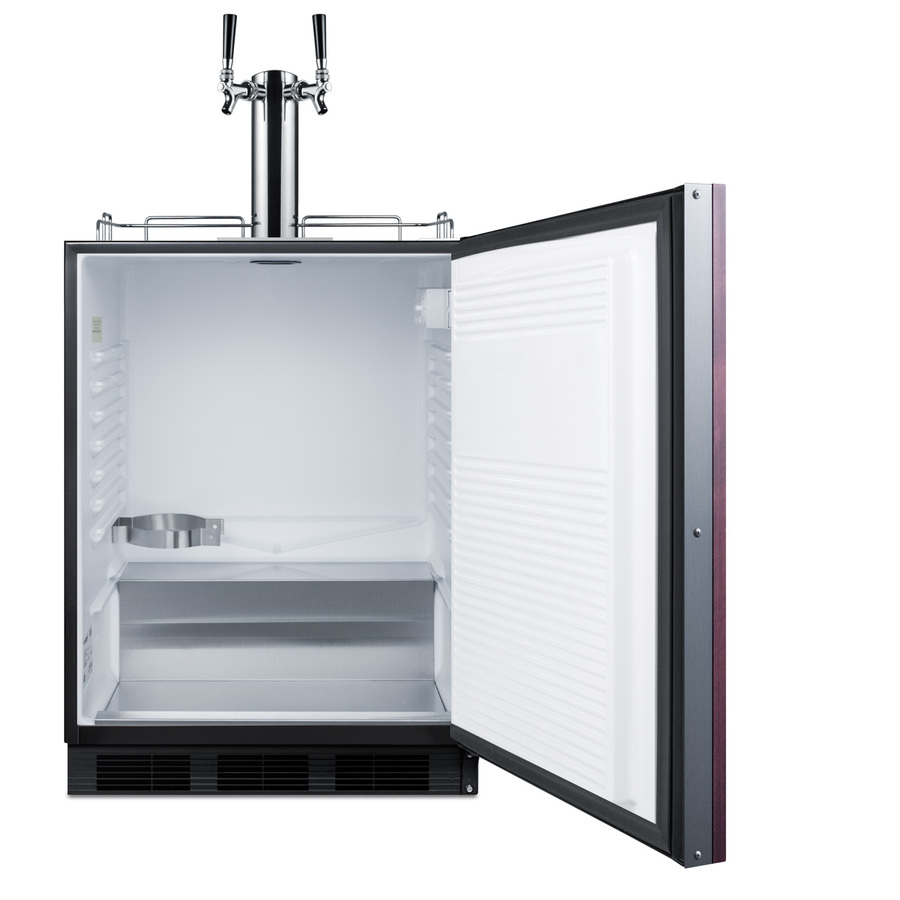

Interior includes steel cover to protect the floor when loading kegs
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Cold wall design with hidden evaporator and seamless interior
Allows the unit to be used freestanding
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design without ozone-damaging chemicals
DESCRIPTION
Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial coffeer dispensers made in Europe. Sized at 32 inches high, the SBC58BLBIADAIFCFTWIN is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. This unit features an integrated stainless steel door frame designed to accept overlay panels, allowing you to create a custom look that blends into your cabinetry. We include a guard rail (ships uninstalled) and removable two-piece stainless steel drip tray for cleaner service. This unit ships with an NSF-listed stainless steel tap kit that includes everything you need to serve iced coffee, including a standard dual tap draft tower, regulator, and nitrogen tank. Inside, the SBC58BLBIADAIFCFTWIN is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. The nitrogen tank bracket is located inside, allowing you to keep the tank inside and save on exterior depth. The SBC58BLBIADAIFCFTWIN is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant kegerator choices are available with stainless steel or glass doors. Browse our complete line for more choices.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
