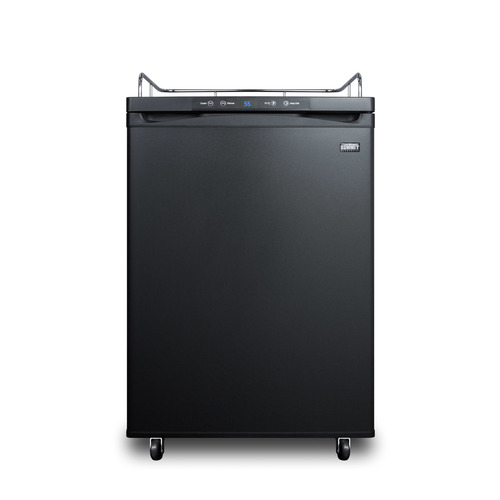

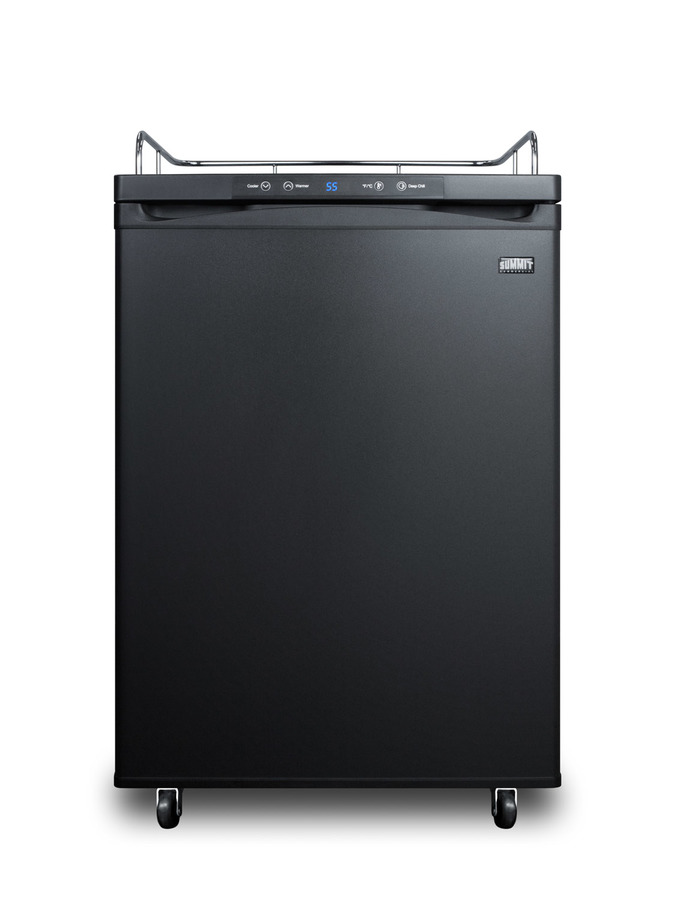

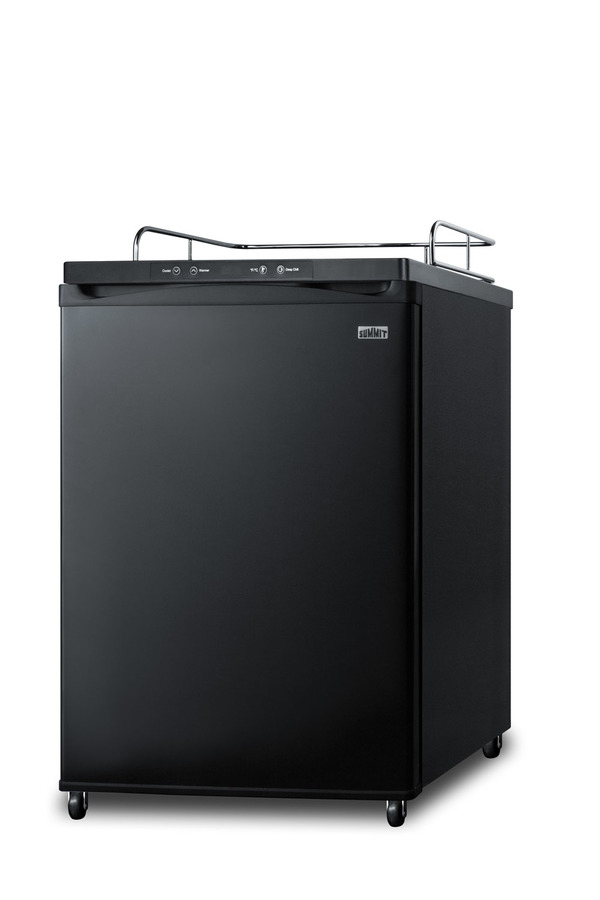

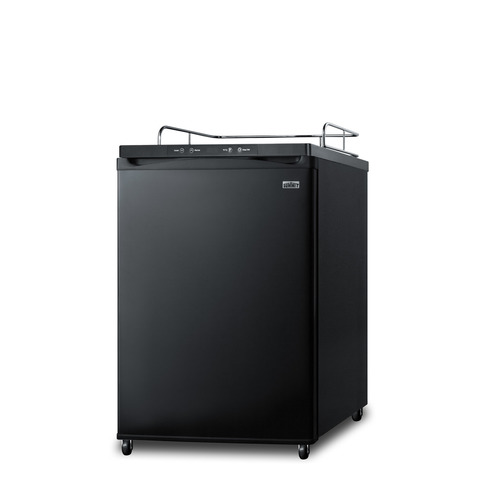

24" Wide Kegerator

SKU: SBC635M7NK

Digital thermostat lets you set the ideal temperature for keg service

DISCONTINUED- REPLACED BY SBC682NK

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

33.5" H x 23.63" W x 25.5" D
(85cm H x 60cm W x 65cm D)

Overview
Height of Cabinet	33.5" (85 cm)
Width	23.63" (60 cm)
Width with Door Open	25.0" (64 cm)
Depth	25.5" (65 cm)
Depth with door at 90°	47.0" (119 cm)
Capacity	5.6 cu.ft. (159 L)
Defrost Type	Automatic
Door	Black
Cabinet	Black
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	ETL-S
Amps	0.86
Voltage/Frequency	115 V AC/60 Hz
Weight	80.0 lbs. (36 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101055336
Kegerator
Door Swing	RHD
Reversible	Yes
Thermostat Type	Digital
Refrigerant	R600a
Refrigerant Amount	1.13 oz.
High Side PSI	250.0
Low Side PSI	110.0
Inter Height	28.0" (71 cm)
Interior Width	20.5" (52 cm)
Interior Depth	19.0" (48 cm)
Compressor Step Height	8.25" (21 cm)
Wheel Qty	4
Temperature Range	33º to 50º F

Exterior

LHD - Left hand door swing

Latch - Factory-installed door latch requires manual release to open unit

Commercially approved

ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

Full-sized beer dispenser

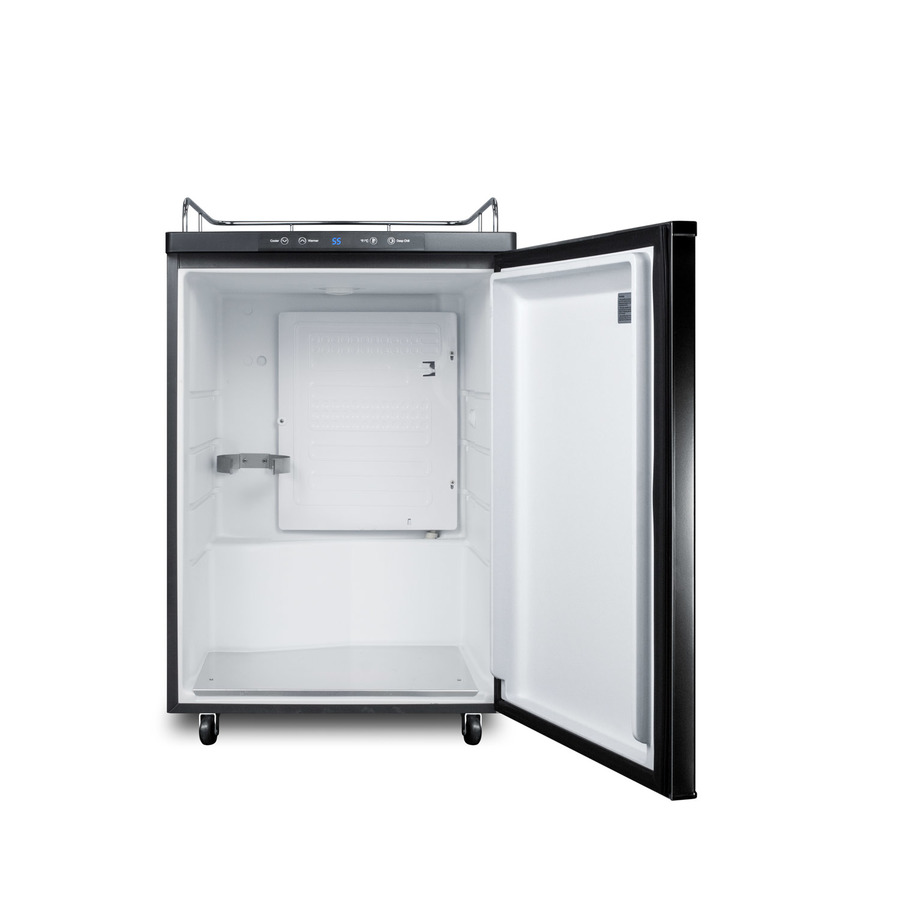

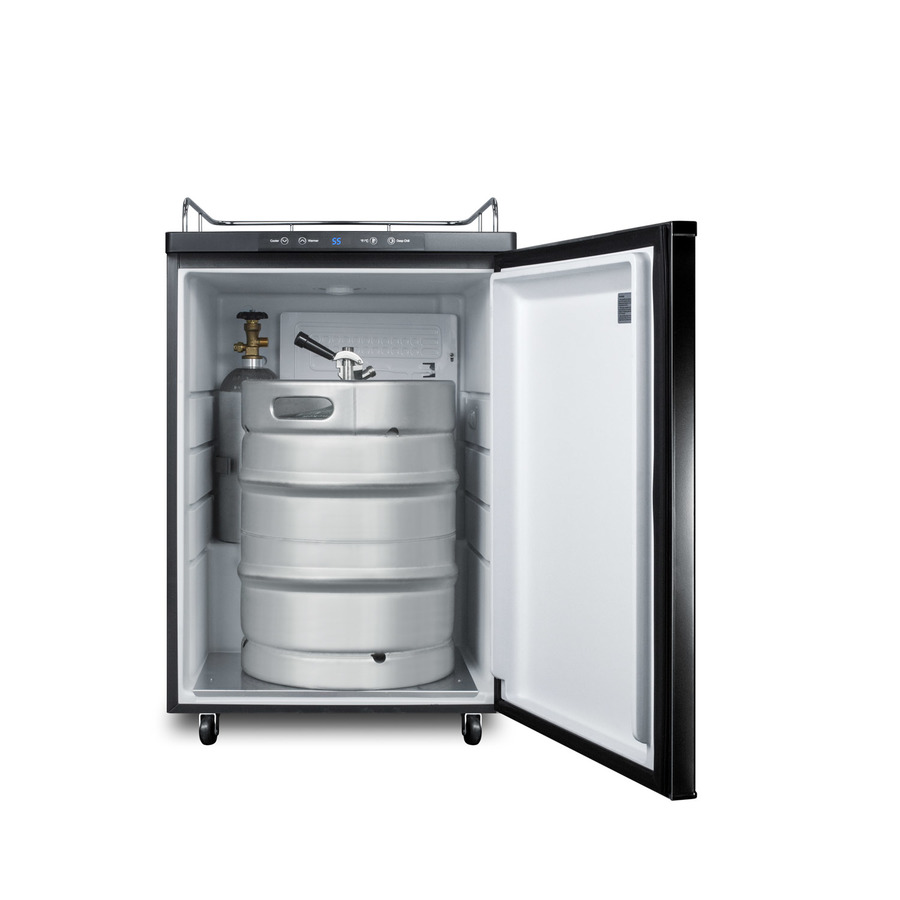

Large 5.6 cu.ft. interior accepts half, quarter, and mini kegs

Automatic defrost

Reduced user maintenance with auto defrost operation

Digital thermostat

Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

Ideal beer temperature

Operates between 33º and 50ºF to keep a variety of beers stored at just the right serving temperature

Fully finished black cabinet

Allows the beer dispenser to be used freestanding

Reversible door

User-reversible door swing for added flexibility

Casters included (ships unassembled)

To make the beer dispenser portable, install this set of 2 1/2" high locking casters

Top guard rail (ships unassembled)

Attractive chrome guard rail helps to reduce spills and neaten service

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

Drip tray

Removable drip tray catches spills to help contain the mess

Deep Chill function

Great for getting faster cooling results when loading your first keg

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Commercial offers a versatile line of full-sized freestanding beer dispensers designed for use in commercial settings.

The SBC635M7NK is ETL-S listed to NSF-7 commercial standards. It features a large interior that can hold a full half, quarter, 1/6 or mini keg. It comes in a jet black finish. The surface includes a removable drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. We include a set of locking casters for easy mobility. The user-reversible door swing makes it easy to accommodate any location’s setup.

Automatic defrost operation ensures minimum user maintenance inside the 5.6 cu.ft. interior. A digital thermostat makes it easy to manage the temperature at the touch of a button. The external digital display shows the temperature in Celsius or Fahrenheit to ensure your beer is stored exactly how you like it. The floor is reinforced with a steel cover for added durability when loading kegs.

This unit is designed for freestanding use.

BROCHURE
SBC635M7NK.pdf

USE & CARE
SBC635MResidentialManual.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
