24" Wide Built-In Kegerator (Panel Not Included)

SKU: SBC635MBIIF
Digital thermostat lets you set the ideal temperature for keg service
DISCONTINUED- REPLACED BY SBC682PNR
33.5" H x 24.0" W x 25.88" D
(85cm H x 61cm W x 66cm D)

Overview
Height of Cabinet 33.5" (85 cm)
Width 24.0" (61 cm)
Width with Door Open 25.25" (64 cm)
Depth 25.88" (66 cm)
Depth with door at 90° 47.5" (121 cm)
Capacity 5.6 cu.ft. (159 L)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 310.0kWh/year
Amps 0.86
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101045924
Kegerator
Door Swing RHD
Reversible Factory Reversible
Tap Kit Yes
Number of Taps 1
Thermostat Type Digital
Fan Type Exterior
Refrigerant R134a
Refrigerant Amount 1.13 oz.
High Side PSI 250.0
Low Side PSI 110.0
Inter Height 28.0" (71 cm)
Interior Width 20.5" (52 cm)
Interior Depth 19.0" (48 cm)
Compressor Step Height 8.25" (21 cm)
Level Legs Qty 4
Wheel Qty 4
Temperature Range 33º to 50º F

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing

Full-sized beer dispenser

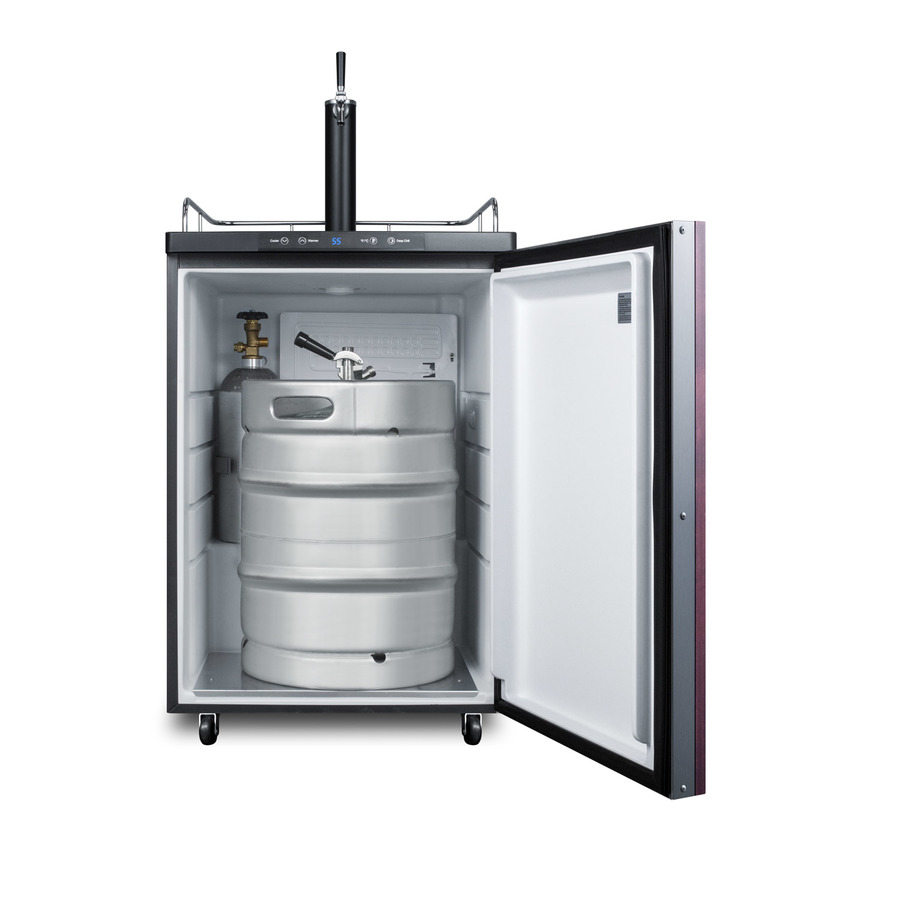

Large 5.6 cu.ft. interior can accept a full half barrel keg, two 1/6 barrel kegs, or a pony keg

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Tap Kit

Includes a regulator, draft arm, Sankey American tap, and connection hardware

Panel-ready door

Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the door or blend it into your cabinetry design (panel dimensions: 23 3/4" W x 30 13/16" H and at least 3/4" thick; maximum weight: 10 lbs.)

Automatic defrost

Reduced user maintenance with auto defrost operation

Digital thermostat

Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

Ideal beer temperature

Operates between 33º and 50ºF to keep a variety of beers stored at just the right serving temperature

Fully finished black cabinet

Allows the unit to be used freestanding

Casters included (ship unassembled)

To make the beer dispenser portable, install this set of 2 1/2" high locking casters

Top guard rail (ships unassembled)

If using the unit freestanding, install this silver rail on top to reduce spills and neaten service

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

Drip tray

Removable drip tray catches spills to help contain the mess

Deep Chill function

Great for getting faster cooling results when loading your first keg

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Appliance offers a versatile line of full-sized built-in beer dispensers designed for low maintenance storage in the style of your choice.

The SBC635MBIIF features a large interior that can hold a full half, quarter, 1/6 or mini keg. It features a front-breathing design for built-in installation under counters, with a panel-ready door to allow seamless integration into your own cabinet design. The surface includes a removable drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. Users provide their own handles to complete the custom look. This unit is height adjustable from 33 1/2" to 34" to best fit your undercounter space. Please note that the door does not open in its own radius. When planning your cutout, if the unit is mounted against a wall or flush under cabinetry, you will need between 25 and 25 1/4" width for proper ventilation.

Automatic defrost operation ensures minimum user maintenance inside the 5.6 cu.ft. interior. A digital thermostat makes it easy to manage the temperature at the touch of a button. The external digital display shows the temperature in Celsius or Fahrenheit to ensure your beer is stored exactly how you like it. Our American Sankey tap kit includes all the accessories you need for draft service, including a regulator. The floor is reinforced with a steel cover for added durability when loading kegs.

For more style options, browse the full SBC635MBI Series.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
