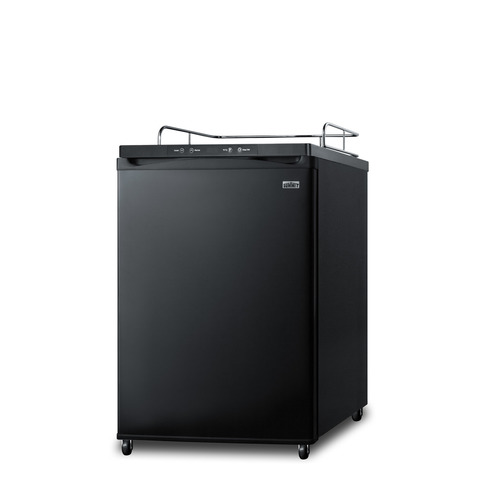

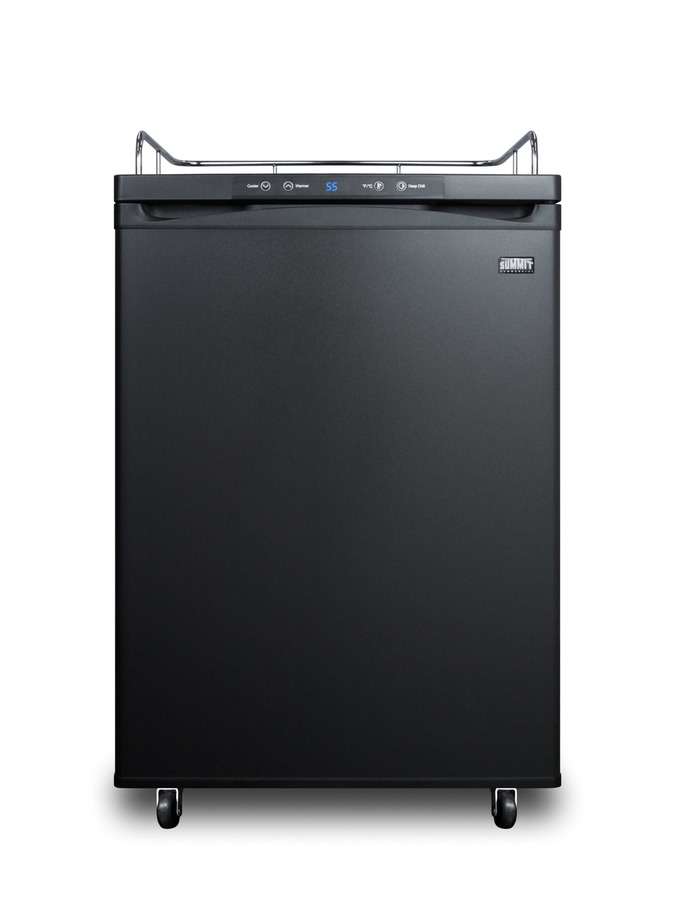

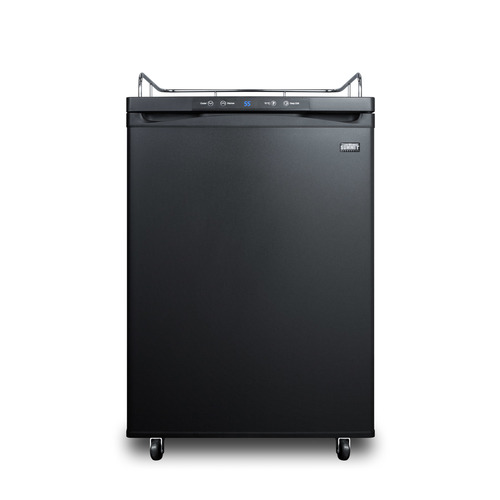

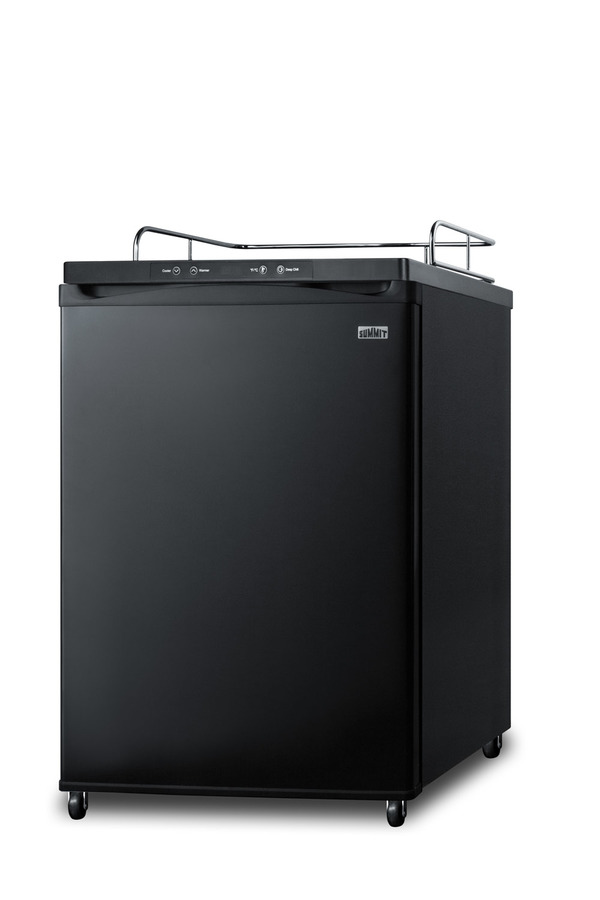

24" Wide Built-In Kegerator

SKU: SBC635MBINK

Digital thermostat lets you set the ideal temperature for keg service

DISCONTINUED- REPLACED BY SBC682NK

33.5" H x 24.0" W x 25.88" D
(85cm H x 61cm W x 66cm D)

Overview
Height of Cabinet	33.5" (85 cm)
Width	24.0" (61 cm)
Width with Door Open	25.0" (64 cm)
Depth	25.88" (66 cm)
Depth with door at 90°	47.5" (121 cm)
Capacity	5.6 cu.ft. (159 L)
Defrost Type	Automatic
Door	Black
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	310.0kWh/year
Amps	0.86
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101046129
Kegerator
Door Swing	RHD
Reversible	Yes
Thermostat Type	Digital
Fan Type	Exterior
Refrigerant	R600a
Refrigerant Amount	1.13 oz.
High Side PSI	250.0
Low Side PSI	110.0
Inter Height	28.0" (71 cm)
Interior Width	20.5" (52 cm)
Interior Depth	19.0" (48 cm)
Compressor Step Height	8.25" (21 cm)
Level Legs Qty	4
Wheel Qty	4
Temperature Range	33

Exterior

Latch - Factory-installed door latch requires manual release to open unit

LHD - Left hand door swing

Full-sized beer dispenser

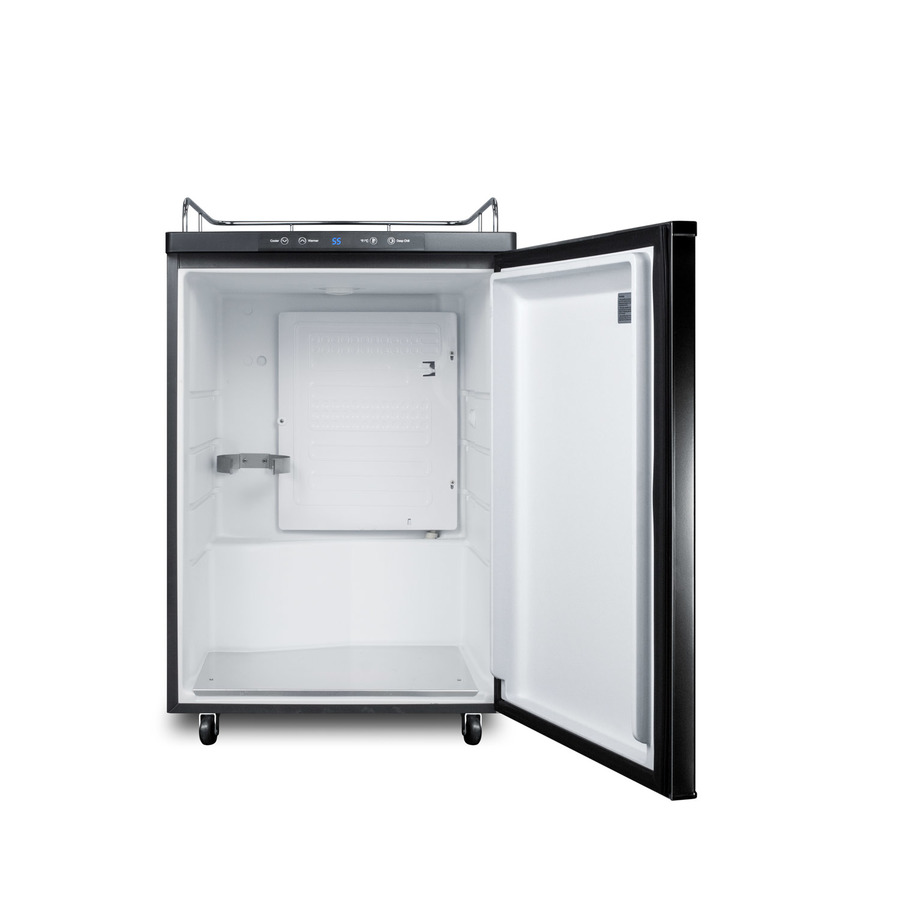

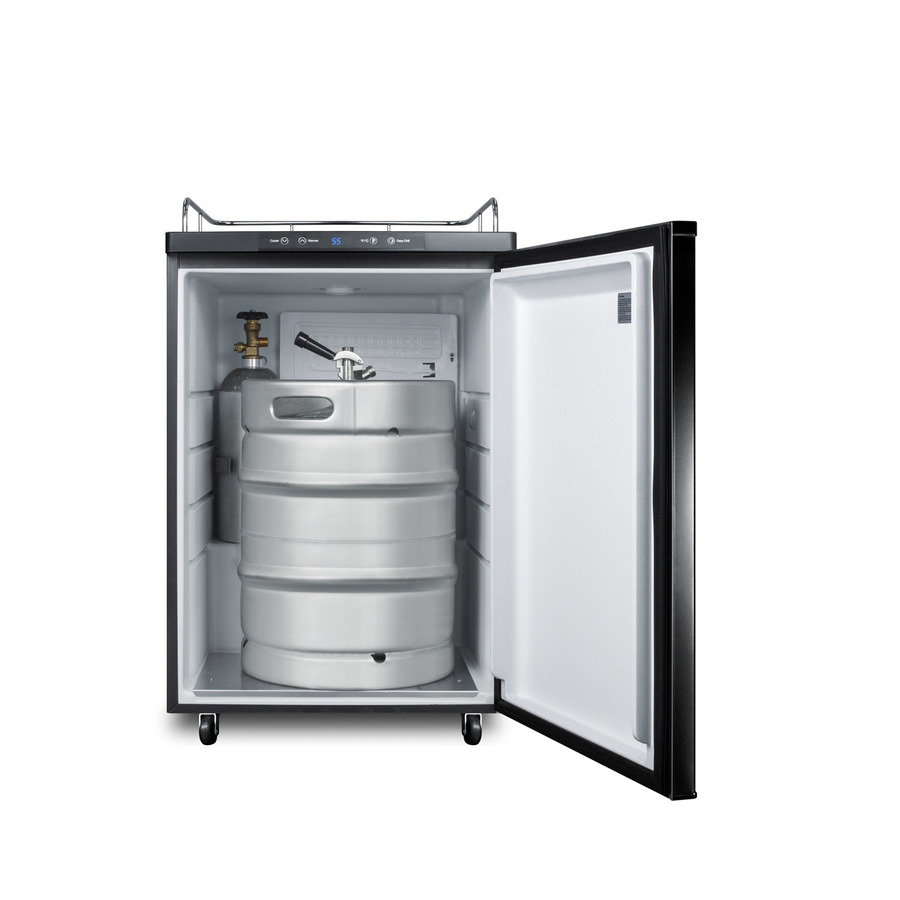

Large 5.6 cu.ft. interior can accept a full half barrel keg, two 1/6 barrel kegs, or a pony keg

Built-in capable

Make the best use of space by installing your appliance under the counter; NOTE: if installing flush with wall or cabinets, unit will require extra space due to the door design. Width should be 25" to 25 1/4". For more information, see the user manual

NO TAP KIT

Install your own tapping equipment for a customized beer cooler

Digital thermostat

Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

Ideal beer temperature

Operates between 33º and 50ºF to keep a variety of beers stored at just the right serving temperature

Automatic defrost

Reduced maintenance with auto defrost system

Reversible door

User-reversible door swing for added flexibility

Fully finished black cabinet

Allows the unit to be used freestanding

Casters included (ship unassembled)

To make the beer dispenser portable, install this set of 2 1/2" high locking casters

Top guard rail (ships unassembled)

Attractive chrome guard rail helps to reduce spills and neaten service

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

Drip tray

Removable drip tray catches spills to help contain the mess

Deep Chill function

Great for getting faster cooling results when loading your first keg

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Appliance offers a versatile line of full-sized built-in beer dispensers designed for low maintenance storage in the style of your choice.

The SBC635MBINK features a large interior that can hold a full half, quarter, 1/6 or mini keg. No tapping equipment is included, allowing 'do-it-yourselfers' to customize the unit with their own system. It features a front-breathing design for built-in installation under counters, with a jet black finish. The surface includes a removable drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. The user-reversible door swing makes it easy to accommodate any location’s setup. This unit is height adjustable from 33 1/2" to 34" to best fit your undercounter space. Please note that the door does not open in its own radius. When planning your cutout, if the unit is mounted against a wall or flush under cabinetry, you will need between 25 and 25 1/4" width for proper ventilation.

Automatic defrost operation ensures minimum user maintenance inside the 5.7 cu.ft. interior. A digital thermostat makes it easy to manage the temperature at the touch of a button. The external digital display shows the temperature in Celsius or Fahrenheit to ensure your beer is stored exactly how you like it. The floor is reinforced with a steel cover for added durability when loading kegs.

For more style options, browse the full SBC635MBI Series.

BROCHURE w/ DRAWINGS
SBC635MBINK.pdf

TECHNICAL DRAWING (.dwg)
SBC635MBIEFFRDISP.A-C2000.dwg

USE & CARE
SBC635MBI_OS_Manual_rvsd_9-1-16.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
