24" Wide Built-In Kegerator (Panel Not Included)
(85cm H x 61cm W x 66cm D)
SPECIFICATIONS
Overview
|
|
---|---|
Height of Cabinet | 33.5" (85 cm) |
Width | 24.0" (61 cm) |
Width with Door Open | 25.25" (64 cm) |
Depth | 25.88" (66 cm) |
Depth with door at 90° | 47.5" (121 cm) |
Capacity | 5.6 cu.ft. (159 L) |
Defrost Type | Automatic |
Door | Panel-Ready |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 310.0kWh/year |
Amps | 0.86 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 100.0 lbs. (45 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101046150 |
Kegerator
|
|
Door Swing | RHD |
Reversible | Factory Reversible |
Thermostat Type | Digital |
Fan Type | Exterior |
Refrigerant | R600a |
Refrigerant Amount | 1.13 oz. |
High Side PSI | 250.0 |
Low Side PSI | 110.0 |
Inter Height | 28.0" (71 cm) |
Interior Width | 20.5" (52 cm) |
Interior Depth | 19.0" (48 cm) |
Compressor Step Height | 8.25" (21 cm) |
Level Legs Qty | 4 |
Wheel Qty | 4 |
Temperature Range | 33º to 50º F |
AVAILABLE UPGRADES
Exterior | ||
---|---|---|
|
FEATURES

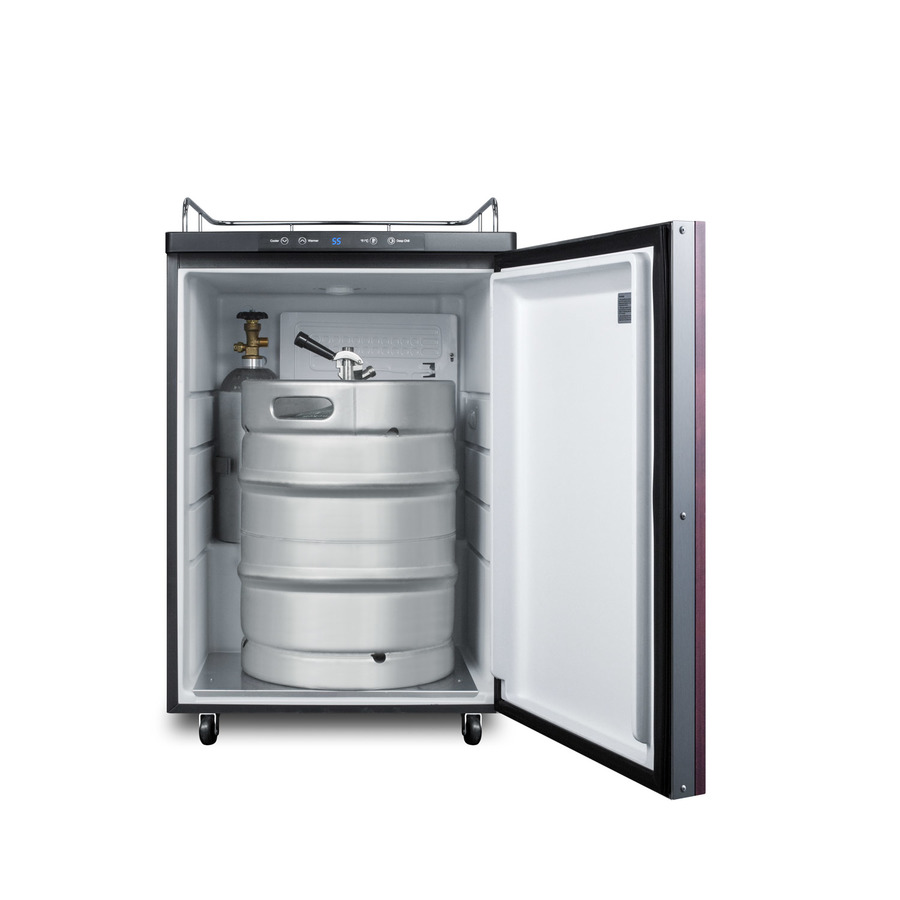

Large 5.6 cu.ft. interior can accept a full half barrel keg, two 1/6 barrel kegs, or a pony keg
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Install your own tapping equipment for a customized beer cooler

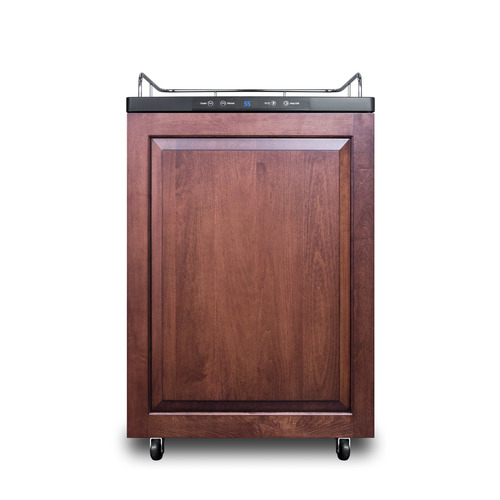

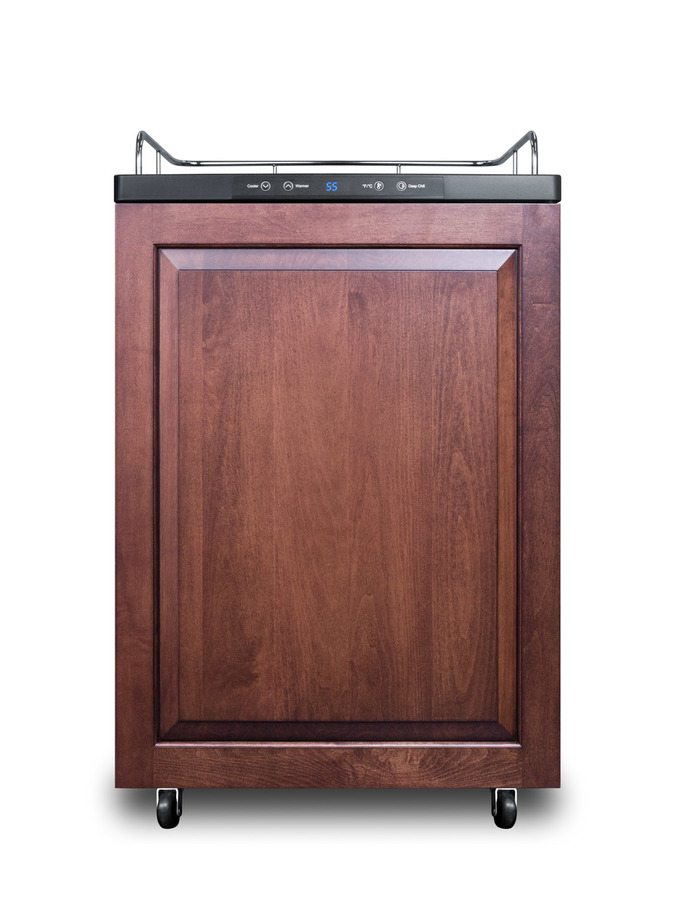

Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the door or blend it into your cabinetry design (panel dimensions: 23 3/4" W x 30 13/16" H and at least 3/4" thick; maximum weight: 10 lbs.)
Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
Operates between 33º and 50ºF to keep a variety of beers stored at just the right serving temperature
Reduced maintenance with auto defrost system
Allows the unit to be used freestanding
To make the beer dispenser portable, install this set of 2 1/2" high locking casters
Attractive chrome guard rail helps to reduce spills and neaten service

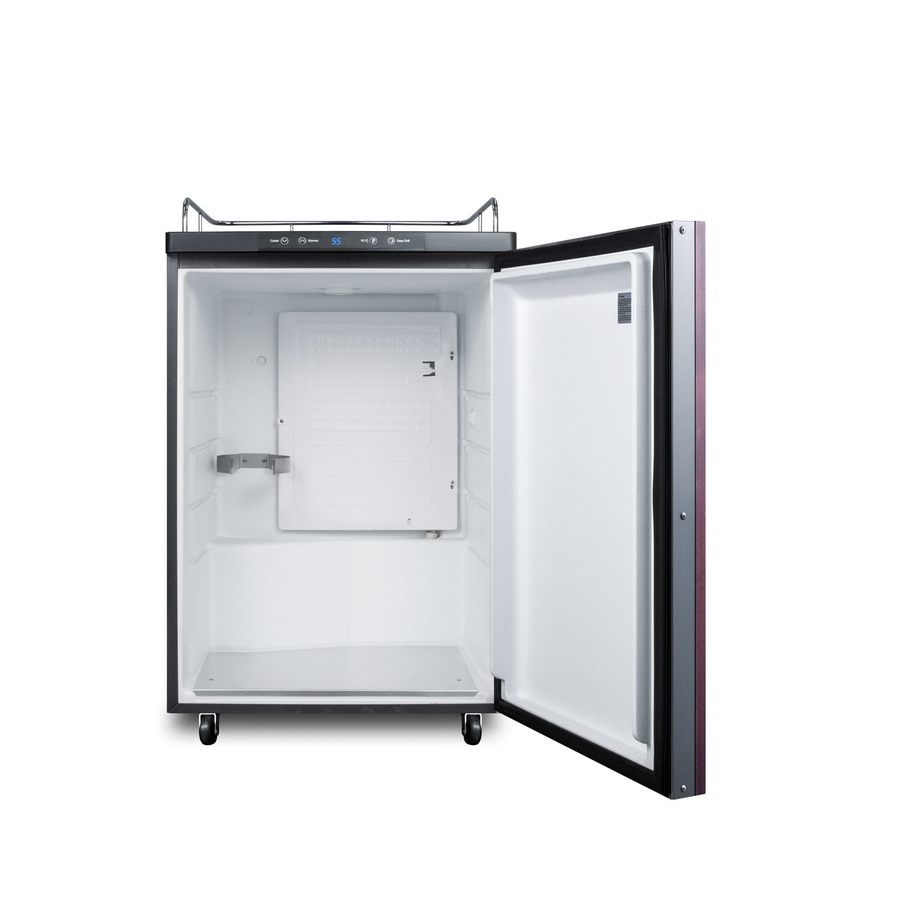

Interior includes steel cover to protect the floor when loading kegs
Removable drip tray catches spills to help contain the mess
Great for getting faster cooling results when loading your first keg
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit Appliance offers a versatile line of full-sized built-in beer dispensers designed for low maintenance storage in the style of your choice. The SBC635MBINKIF features a large interior that can hold a full half, quarter, 1/6 or mini keg. No tapping equipment is included, allowing 'do-it-yourselfers' to customize the unit with their own system. It features a front-breathing design for built-in installation under counters. The panel-ready door has an integrated stainless steel frame to accept full overlay panels, allowing you to blend the unit into your own cabinetry design. Users provide their own handle for a custom look. The surface includes a removable drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. This unit is height adjustable from 33 1/2" to 34" to best fit your undercounter space. Please note that the door does not open in its own radius. When planning your cutout, if the unit is mounted against a wall or flush under cabinetry, you will need between 25 and 25 1/4" width for proper ventilation. Automatic defrost operation ensures minimum user maintenance inside the 5.6 cu.ft. interior. A digital thermostat makes it easy to manage the temperature at the touch of a button. The external digital display shows the temperature in Celsius or Fahrenheit to ensure your beer is stored exactly how you like it. The floor is reinforced with a steel cover for added durability when loading kegs. For more style options, browse the full SBC635MBI Series.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
