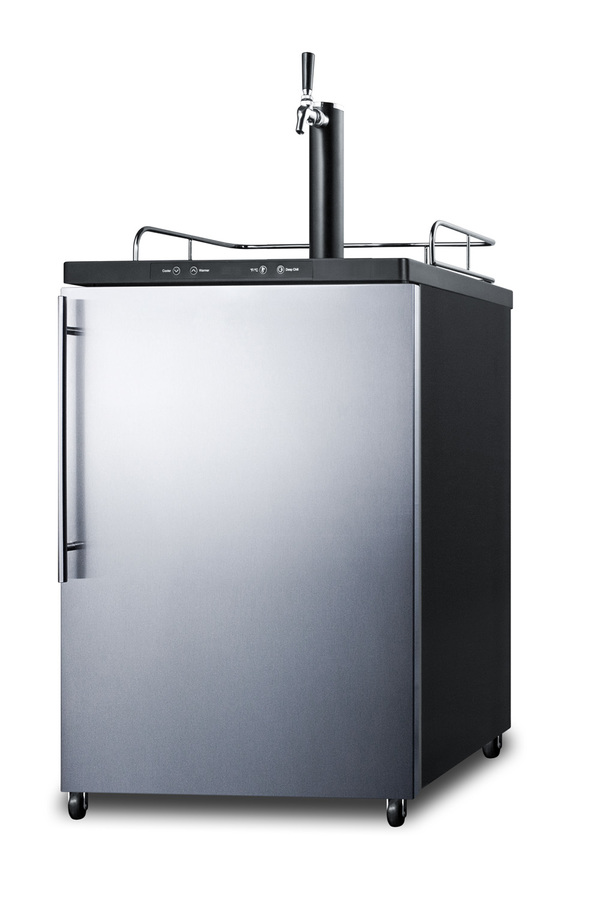

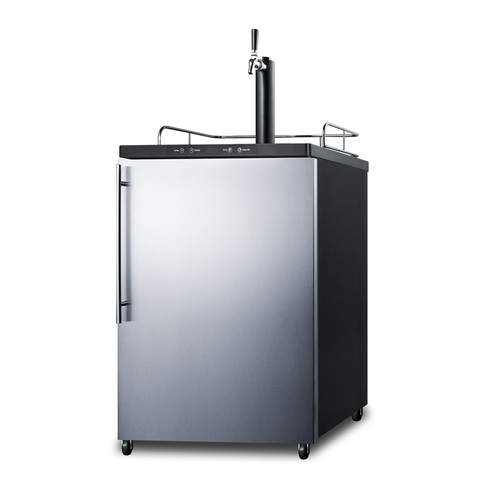

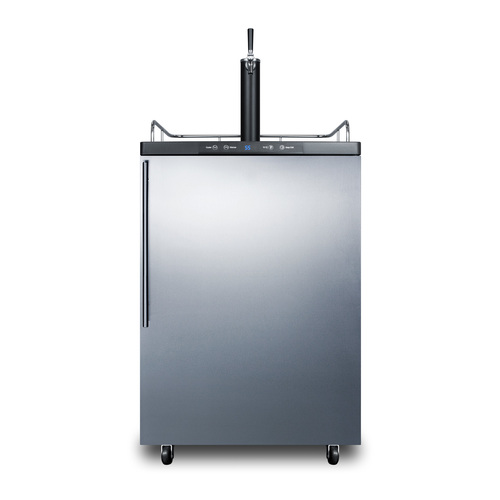

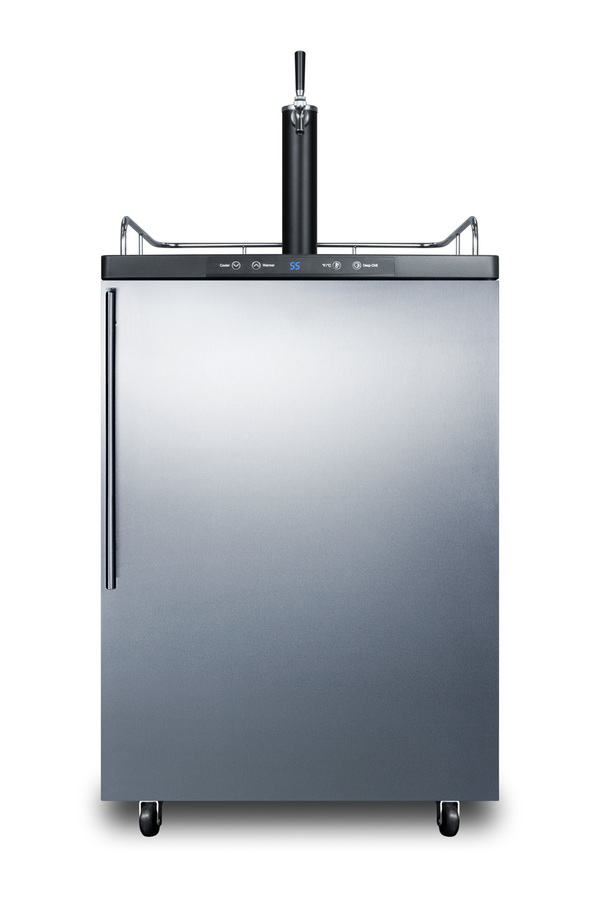

24" Wide Built-In Kegerator

SKU: SBC635MBISSHV

Digital thermostat lets you set the ideal temperature for keg service

DISCONTINUED- REPLACED BY SBC683OS

33.5" H x 24.0" W x 25.88" D
(85cm H x 61cm W x 66cm D)

Overview
Height of Cabinet	33.5" (85 cm)
Width	24.0" (61 cm)
Width with Door Open	25.25" (64 cm)
Depth	25.88" (66 cm)
Depth with door at 90°	47.5" (121 cm)
Capacity	5.6 cu.ft. (159 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	310.0kWh/year
Amps	0.86
Voltage/Frequency	115 V AC/60 Hz
Weight	110.0 lbs. (50 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101045955
Kegerator
Door Swing	RHD
Reversible	Factory Reversible
Tap Kit	Yes
Number of Taps	1
Thermostat Type	Digital
Fan Type	Exterior
Refrigerant	R600a
Refrigerant Amount	1.13 oz.
High Side PSI	250.0
Low Side PSI	110.0
Inter Height	28.0" (71 cm)
Interior Width	20.5" (52 cm)
Interior Depth	19.0" (48 cm)
Compressor Step Height	8.25" (21 cm)
Level Legs Qty	4
Wheel Qty	4
Temperature Range	33º to 50º F

Exterior

Latch - Factory-installed door latch requires manual release to open unit

LHD - Left hand door swing

Handle

TBC Copper Towel Bar Handle Upgrade

Full-sized beer dispenser

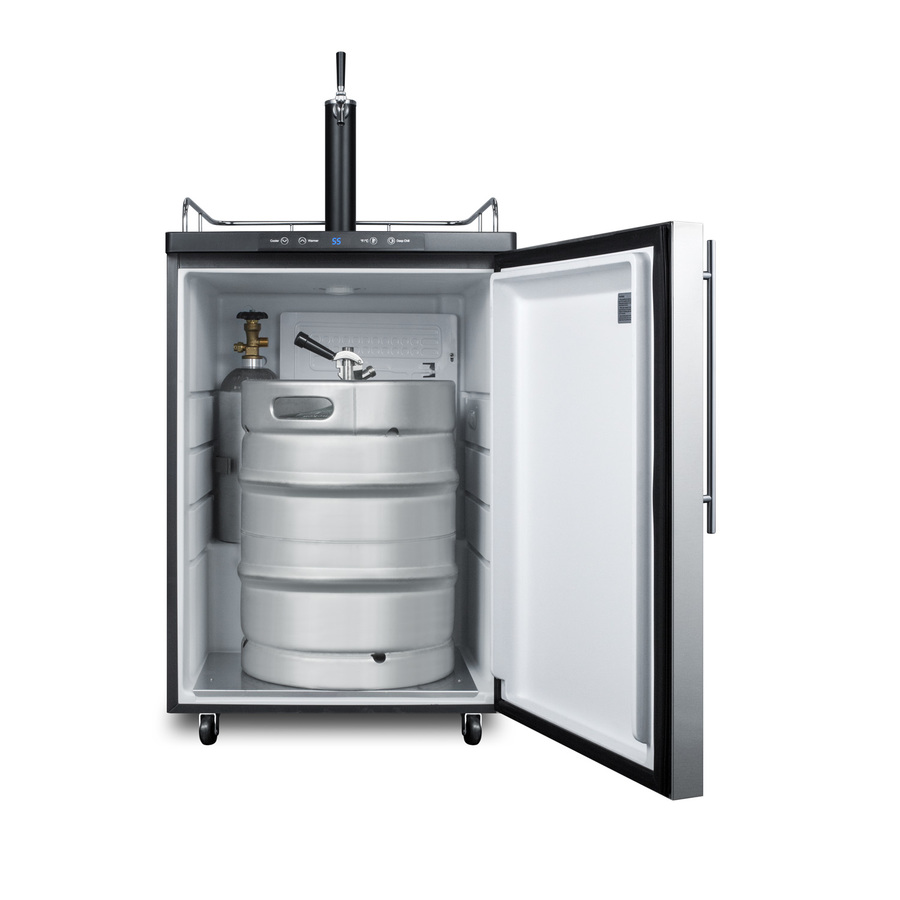

Large 5.6 cu.ft. interior can accept a full half barrel keg, two 1/6 barrel kegs, or a pony keg

Built-in capable

Make the best use of space by installing your appliance under the counter; NOTE: if installing flush with wall or cabinets, unit will require extra space due to the door design. Width should be 25" to 25 1/4". For more information, see the user manual

Tap Kit

Includes a regulator, draft arm, Sankey American tap, and connection hardware

Stainless steel wrapped door

Durable design with lasting elegance

Professional handle

Thin (14mm diameter) stainless steel handle mounted vertically for a sleek look that matches many popular styles of cabinetry

Automatic defrost

Reduced user maintenance with auto defrost operation

Digital thermostat

Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

Ideal beer temperature

Operates between 33º and 50ºF to keep a variety of beers stored at just the right serving temperature

Fully finished black cabinet

Allows the unit to be used freestanding

Casters included (ship unassembled)

To make the beer dispenser portable, install this set of 2 1/2" high locking casters

Top guard rail (ships unassembled)

Attractive chrome guard rail helps to reduce spills and neaten service

Stainless steel floor cover

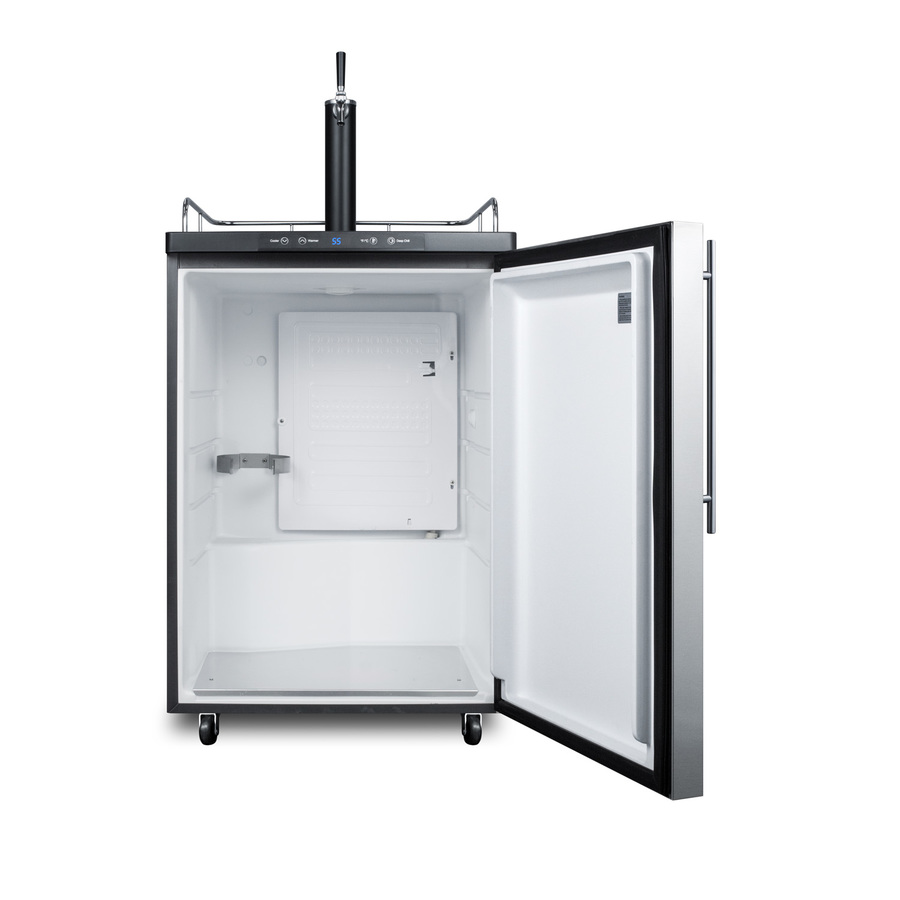

Interior includes steel cover to protect the floor when loading kegs

Drip tray

Removable drip tray catches spills to help contain the mess

Deep Chill function

Great for getting faster cooling results when loading your first keg

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Appliance offers a versatile line of full-sized built-in beer dispensers designed for low maintenance storage in the style of your choice.

The SBC635MBISSHV features a large interior that can hold a full half, quarter, 1/6 or mini keg. It features a front-breathing design for built-in installation under counters, with a stainless steel wrapped door and sleek handle for a professional look. The surface includes a removable drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. This unit is height adjustable from 33 1/2" to 34" to best fit your undercounter space. Please note that the door does not open in its own radius. When planning your cutout, if the unit is mounted against a wall or flush under cabinetry, you will need between 25 and 25 1/4" width for proper ventilation.

Automatic defrost operation ensures minimum user maintenance inside the 5.6 cu.ft. interior. A digital thermostat makes it easy to manage the temperature at the touch of a button. The external digital display shows the temperature in Celsius or Fahrenheit to ensure your beer is stored exactly how you like it. Our American Sankey tap kit includes all the accessories you need for draft service, including a regulator. The floor is reinforced with a steel cover for added durability when loading kegs.

For more style options, browse the full SBC635MBI Series.

BROCHURE
SBC635MBISSHV.pdf

USE & CARE
SBC635MBI_OS_Manual_rvsd_9-1-16.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
