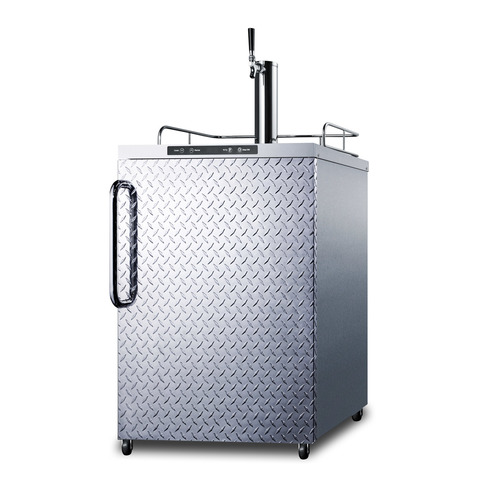

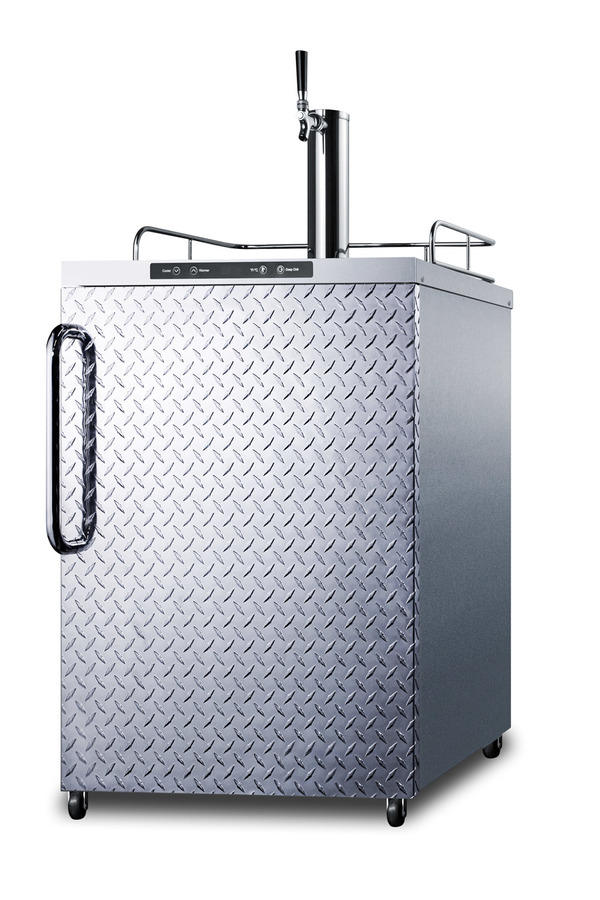

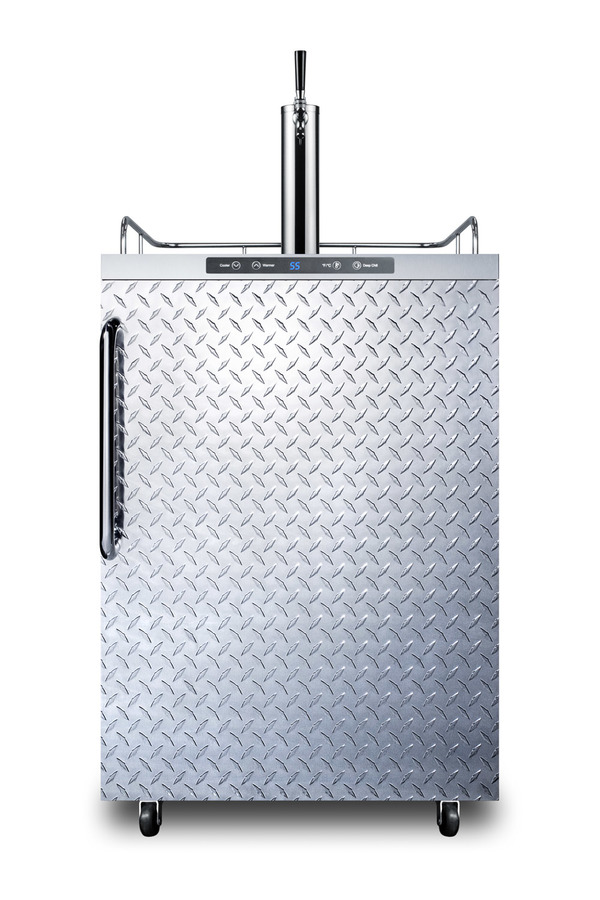

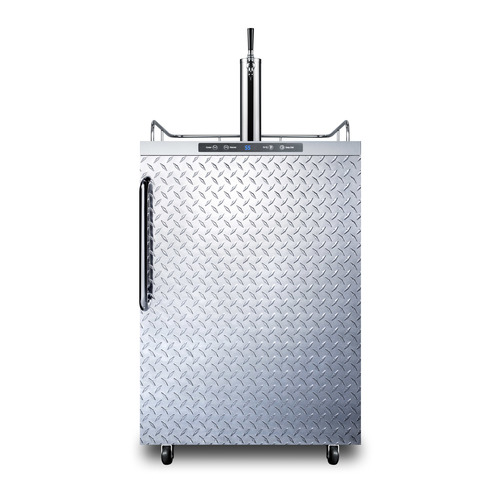

24" Wide Outdoor Kegerator

SKU: SBC635MOSDPL

Weatherproof construction for outdoor use

DISCONTINUED- REPLACED BY SBC683OS

49.0" H x 24.0" W x 25.88" D
(124cm H x 61cm W x 66cm D)

Overview
Height of Cabinet	49.0" (124 cm)
Width	24.0" (61 cm)
Width with Door Open	25.25" (64 cm)
Depth	25.88" (66 cm)
Depth with door at 90°	47.0" (119 cm)
Capacity	5.6 cu.ft. (159 L)
Defrost Type	Automatic
Door	Diamond Plate
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	310.0kWh/year
Amps	0.86
Voltage/Frequency	115 V AC/60 Hz
Weight	150.0 lbs. (68 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101046204
Kegerator
Door Swing	RHD
Reversible	Factory Reversible
Tap Kit	Yes
Number of Taps	1
Thermostat Type	Digital
Refrigerant	R600a
Refrigerant Amount	1.13 oz.
High Side PSI	250.0
Low Side PSI	110.0
Inter Height	28.0" (71 cm)
Interior Width	20.5" (52 cm)
Interior Depth	19.0" (48 cm)
Wheel Qty	4
Surface	Stainless Steel
Temperature Range	33º to 50º F

Exterior

Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)

Full-sized capacity

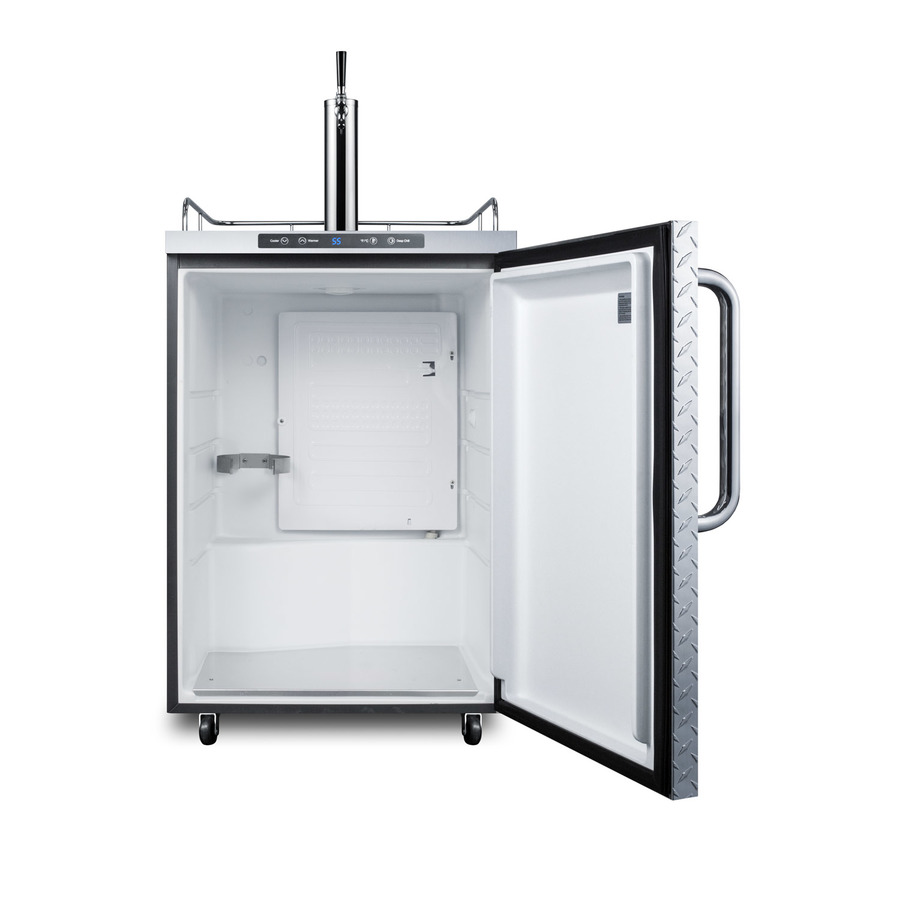

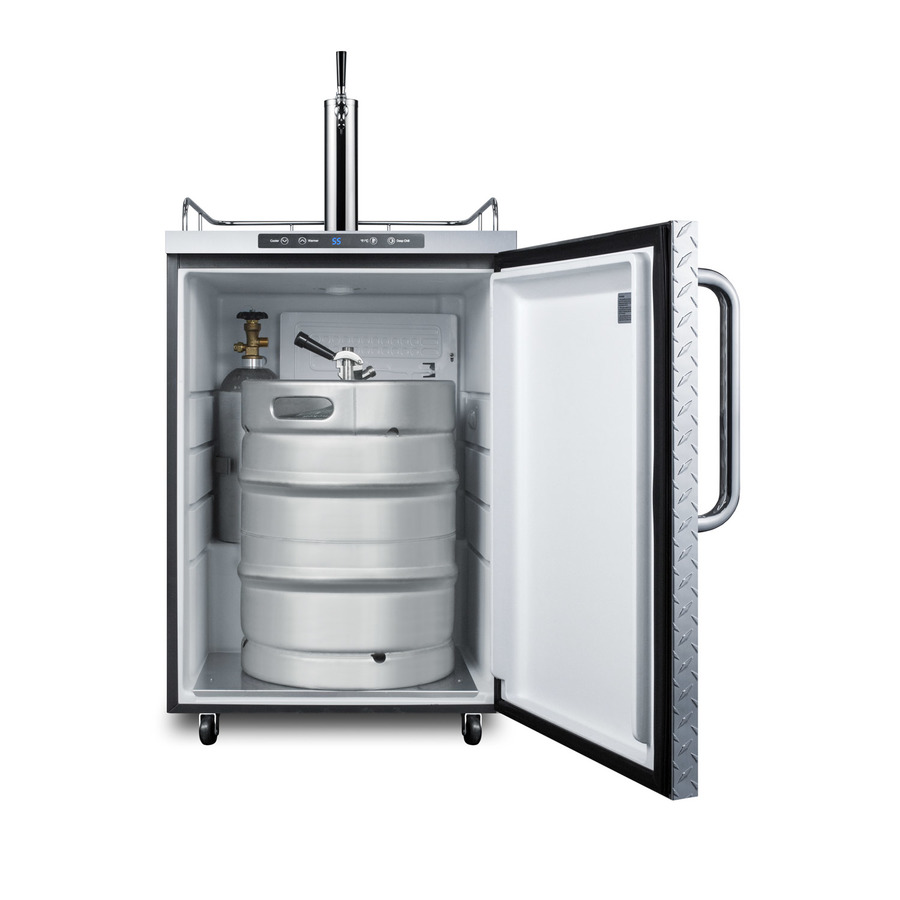

Large 5.6 cu.ft. interior accepts half, quarter, and mini kegs

Outdoor beer dispenser

Meets UL guidelines for use in the outdoors, with weatherproof construction and a sealed back

Tap Kit included

Includes a regulator, draft arm, Sankey American dual tap, and connection hardware

Stainless steel wrapped exterior

Weatherproof construction on the exterior cabinet and top

Diamond plate door

Textured diamond plate finish in rust-free aluminum creates a unique industrial look

Professional towel bar handle

Curved handle in polished stainless steel

Digital thermostat

Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

Automatic defrost

Reduced user maintenance with auto defrost operation

Ideal beer temperature

Operates between 33º and 50ºF to keep a variety of beers stored at just the right serving temperature

Ground Fault Circuit Interrupter

Our integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks

Top guard rail (ships unassembled)

Attractive chrome guard rail helps to reduce spills and neaten service

Casters included (ship unassembled)

To make the beer dispenser portable, install this set of 2 1/2" high locking casters

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Appliance offers a versatile line of fully featured weatherproof beer dispensers designed for freestanding use in the outdoors.

The SBC635MOSDPL is a full-sized beer dispenser that can hold a full half, quarter, 1/6, or mini keg. The weatherproof design features a 304 grade stainless steel wrapped cabinet and top. The rust-free aluminum door features a textured diamond plate design with a curved towel bar handle completing the look. The surface includes a removable drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. We include a set of locking casters for easy mobility. An integrated ground fault circuit interrupter (GFCI) offers added safety.

Automatic defrost operation ensures minimum user maintenance inside the 5.6 cu.ft. interior. A digital thermostat makes it easy to manage the temperature at the touch of a button. The external digital display shows the temperature in Celsius or Fahrenheit to ensure your beer is stored exactly how you like it. Our American Sankey dual tap kit includes all the accessories you need for draft service, including a regulator. The floor is reinforced with a steel cover for added durability when loading kegs.

This unit is designed for freestanding use.

BROCHURE
SBC635MOSDPL.pdf

USE & CARE
SBC635MBI_OS_Manual_rvsd_9-1-16.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
