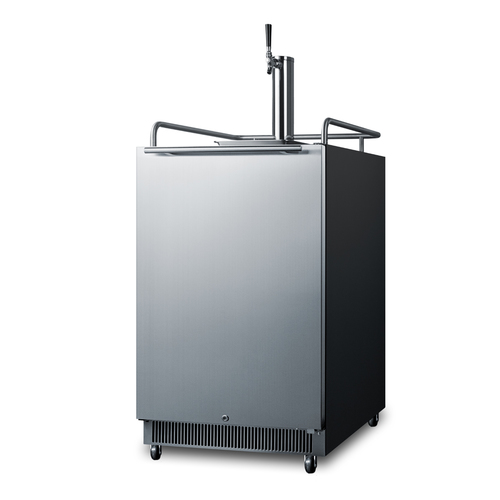

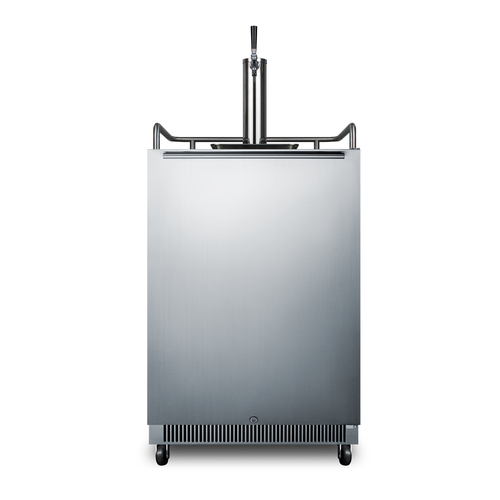

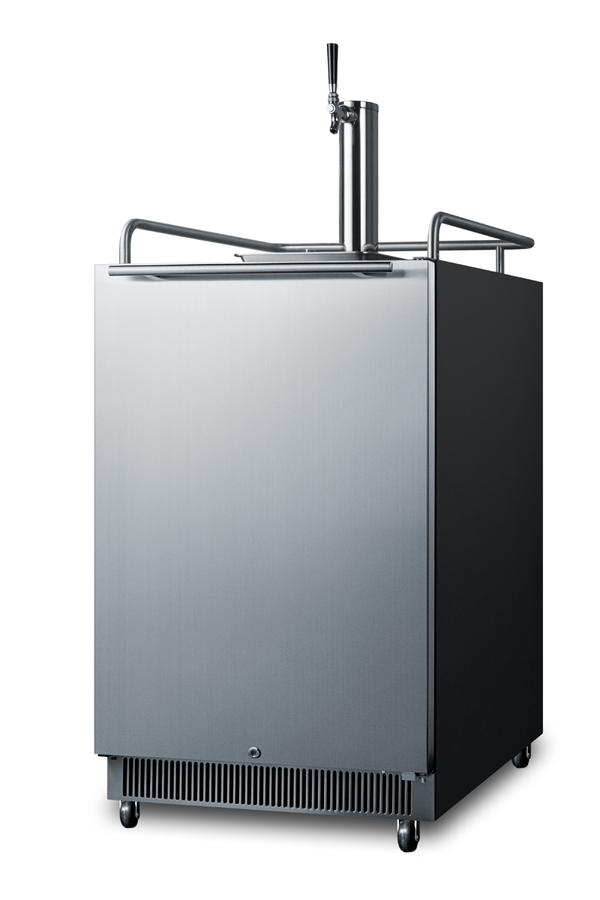

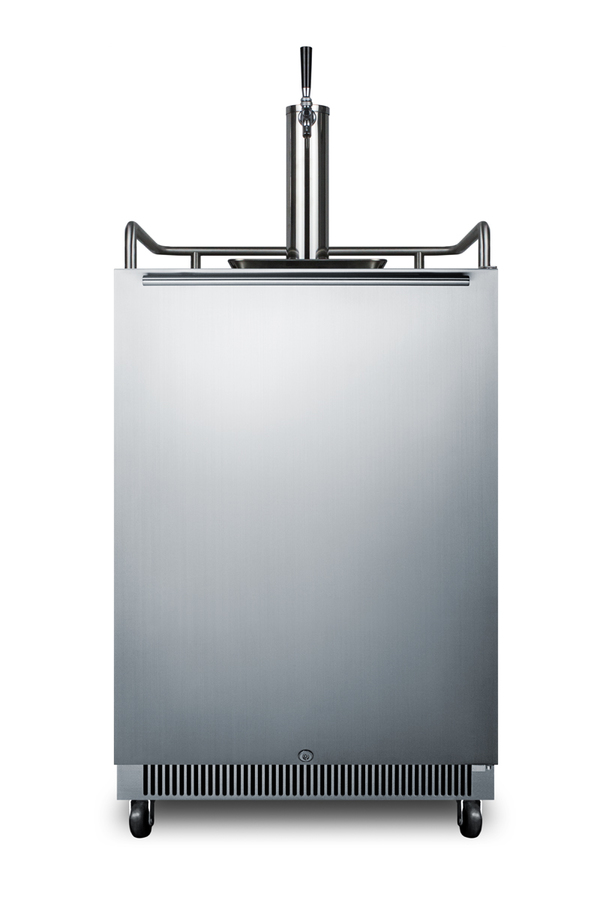

24" Wide Built-In Kegerator
(88cm H x 60cm W x 65cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.5" (88 cm) |
| Width | 23.63" (60 cm) |
| Depth | 25.75" (65 cm) |
| Depth with Handle | 27.25" (69 cm) |
| Depth with door at 90° | 48.25" (123 cm) |
| Capacity | 6.6 cu.ft. (187 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 308.0kWh/year |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 106.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101048253 |
|
Kegerator
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Tap Kit | Yes |
| Height with Tap | 50.0" (127 cm) |
| Number of Taps | 1 |
| Adjustable Shelves | Yes |
| Shelf Type | Glass |
| Shelf Qty | 2 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant | R600a |
| Refrigerant Amount | 1.2 oz. |
| High Side PSI | 277.0 |
| Low Side PSI | 103.0 |
| Inter Height | 27.75" (70 cm) |
| Interior Width | 19.25" (49 cm) |
| Interior Depth | 24.25" (62 cm) |
| Compressor Step Height | 6.25" (16 cm) |
| Compressor Step Width | 19.25" (49 cm) |
| Compressor Step Depth | 9.75" (25 cm) |
| Surface | Stainless Steel |
| Temperature Range | 32º to 50ºF |
AVAILABLE UPGRADES
| Exterior | |
|---|---|
|
FEATURES

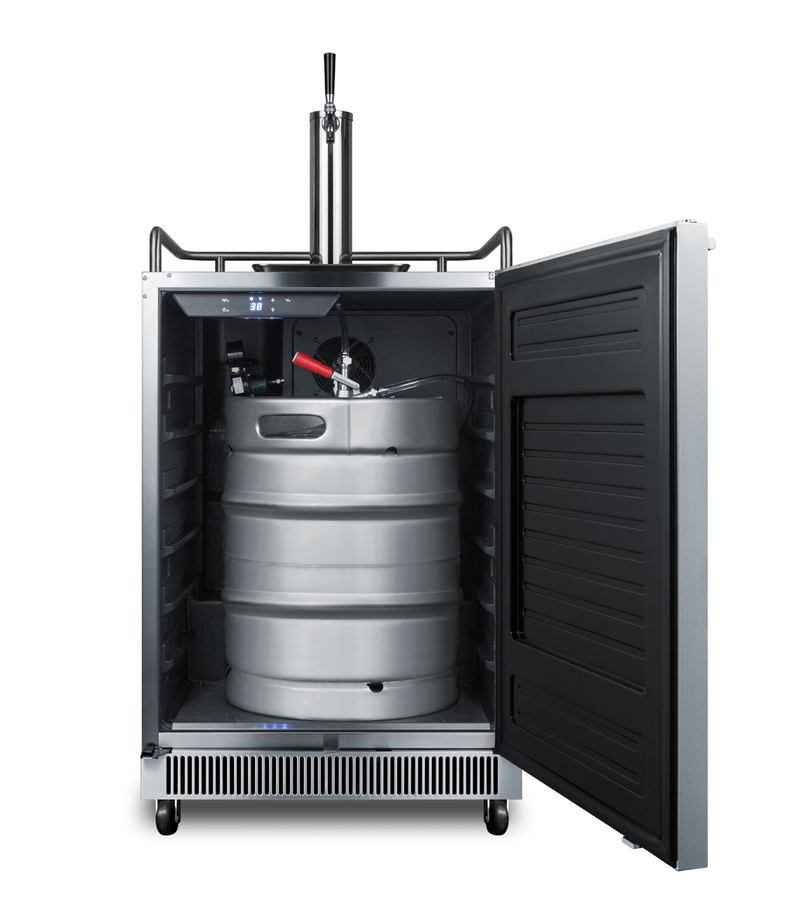

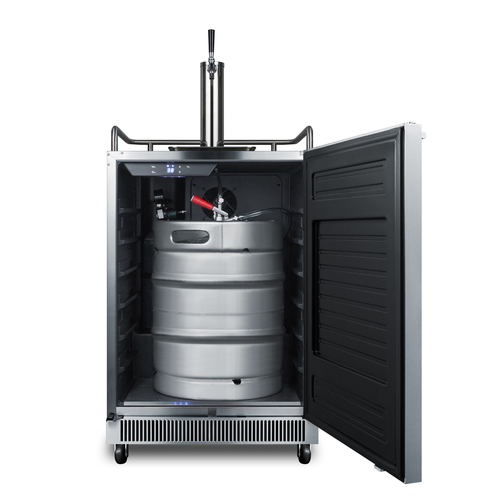

Large interior can accept a full half barrel keg

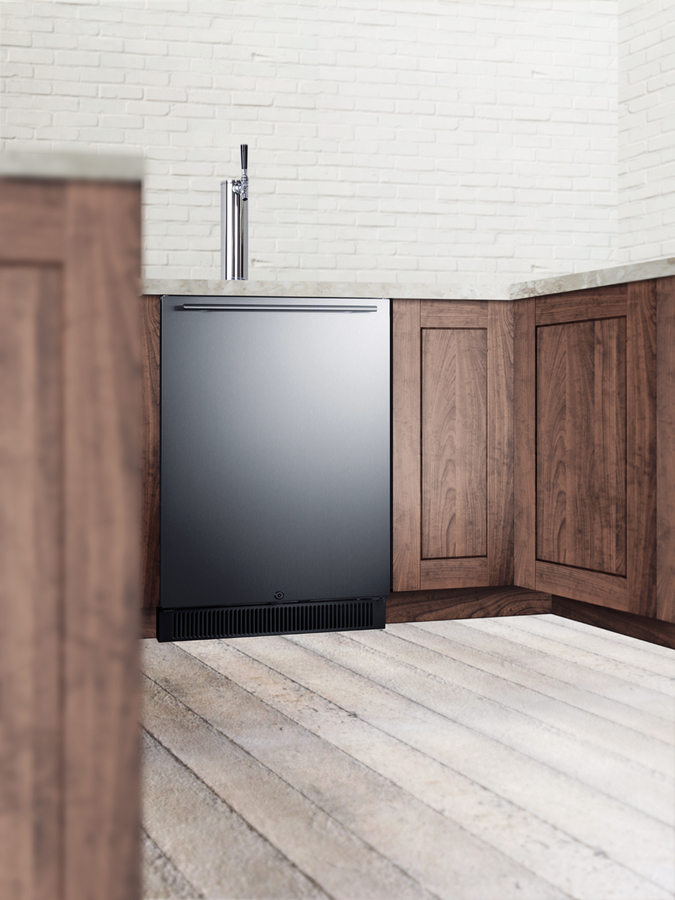

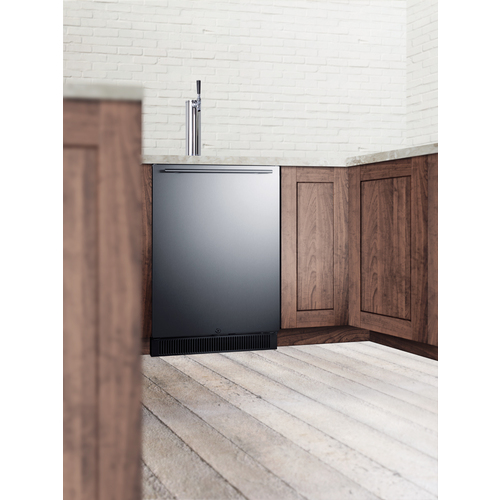

Front-breathing design allows fully recessed installation under counters
No-frost operation for minimum user maintenance
Fully wrapped 304 grade stainless steel door offers lasting durability and style
Sleek stainless steel handle is mounted horizontally for a modern look
Electronic controls ensure easy temperature management for optimum beer storage
Includes a 5 lb. CO2 tank and regulator, draft arm, dual Sankey American tap, connection hardware, and cleaning kit

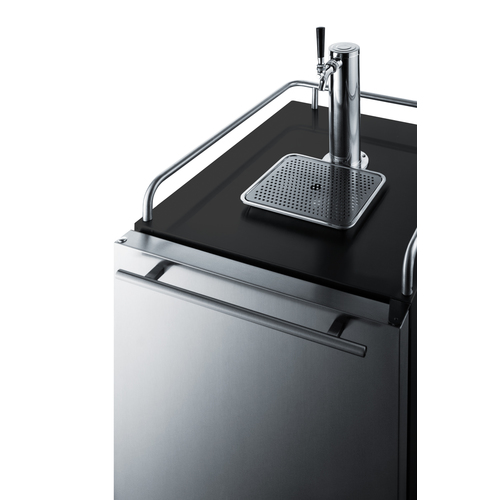

Unique "cold pipe" addition ensures beer stays cold inside the tap tower, reducing the amount of foam keeping every pour at its best
Two-piece drip tray included to help catch spills
Includes two adjustable glass shelves for alternate storage
Keyed lock offers added security
User reversible door swing for added placement flexibility

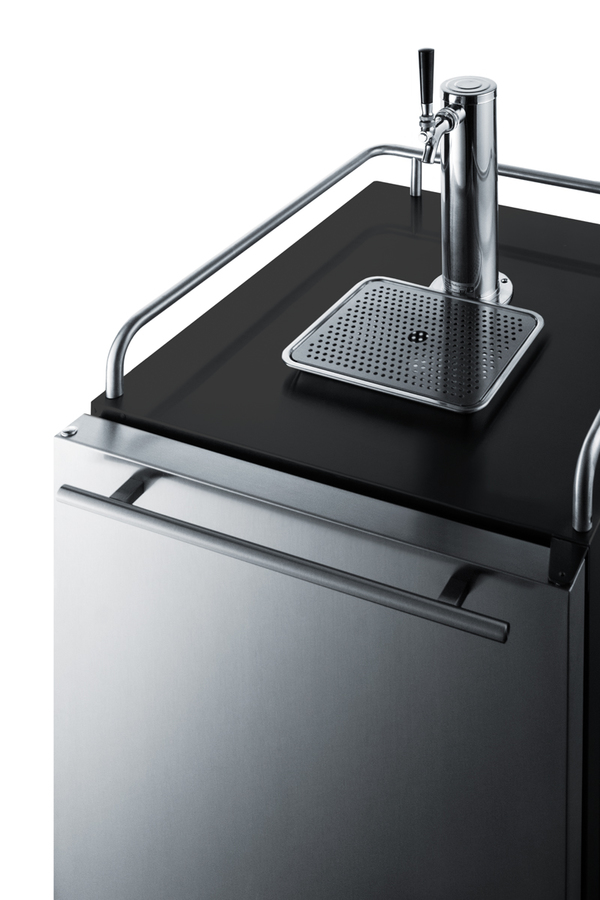

Durable railing makes it easier to neaten service
Space saving design with easier cleanability

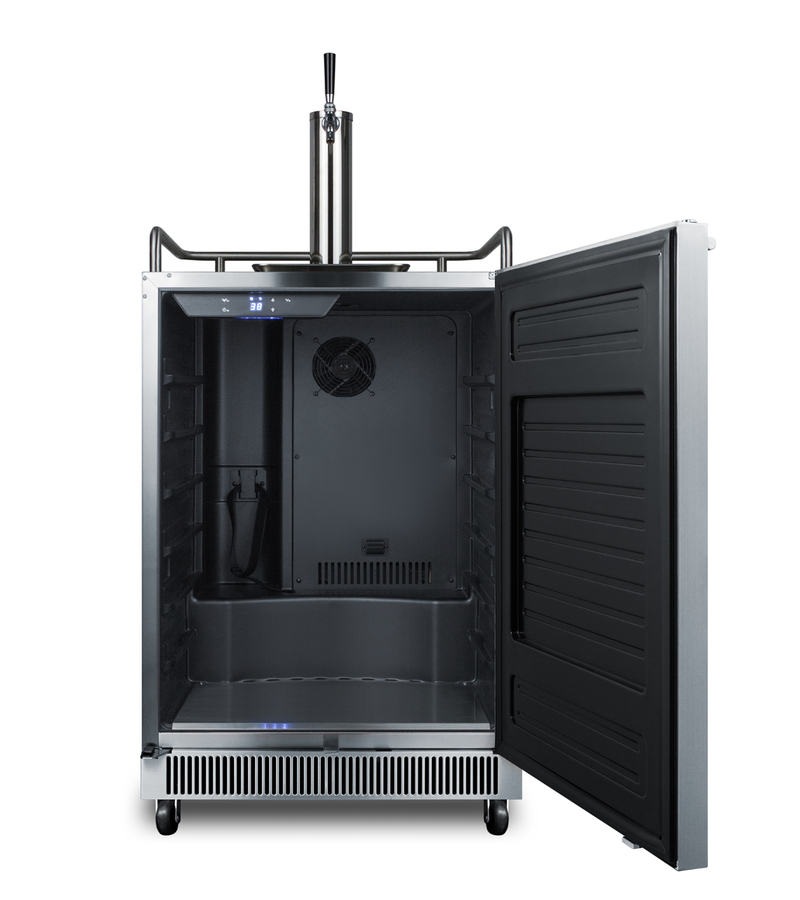

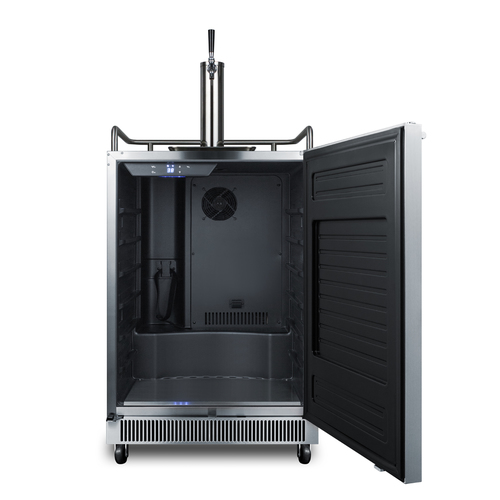

Interior LED lighting offers an efficient and attractive view
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Interior includes steel cover to protect the floor when loading kegs
Allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit's collection of built-in beer dispensers offers a stunning combination of user-convenience, quality storage, and luxury design. The SBC677BI is a full-sized beer dispenser that can store a full half keg. The front breathing design allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. This model comes with a black cabinet and user-reversible stainless steel door. A factory installed lock offers added safety and a sleek horizontally mounted stainless steel handle completes the modern look. We include a durable guard rail in brushed stainless steel and a two-piece stainless steel drip tray for cleaner service. Inside, the SBC677BI utilizes full frost-free operation to minimize user maintenance. The digital control panel lets you manage the temperature between 32º and 50º to best accommodate a variety of brews. The stainless steel floor helps to protect the unit when loading and unloading heavy kegs, while an attractive and efficient LED light offers added convenience inside. This unit can be converted to a standard all-refrigerator in just a few easy steps. Two adjustable glass shelves are included for flexible storage. This unit comes with a complete tap kit for all your draft needs. Accessories include a draft arm, CO2 cylinder and regulator, American Sankey tap, and a cleaning kit to keep your kegerator functioning at its best. The tap features an innovative "cold pipe" design that keeps beer chilled when it reaches the draft tower, saving users from having to discard the initial output while also reducing the amount of foam with each tap. With its user-friendly design and attractive presentation, the SBC677BI is the perfect piece for any home bar.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
