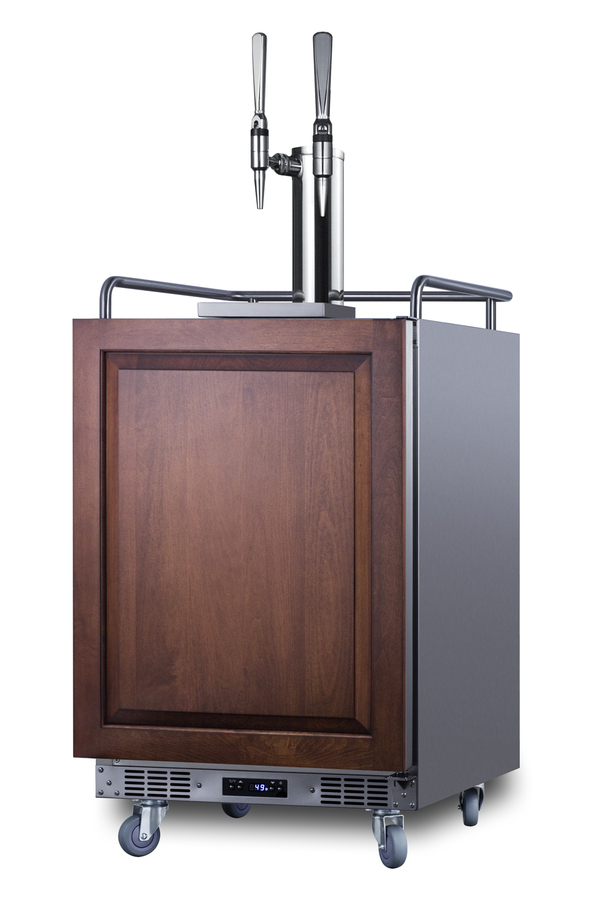

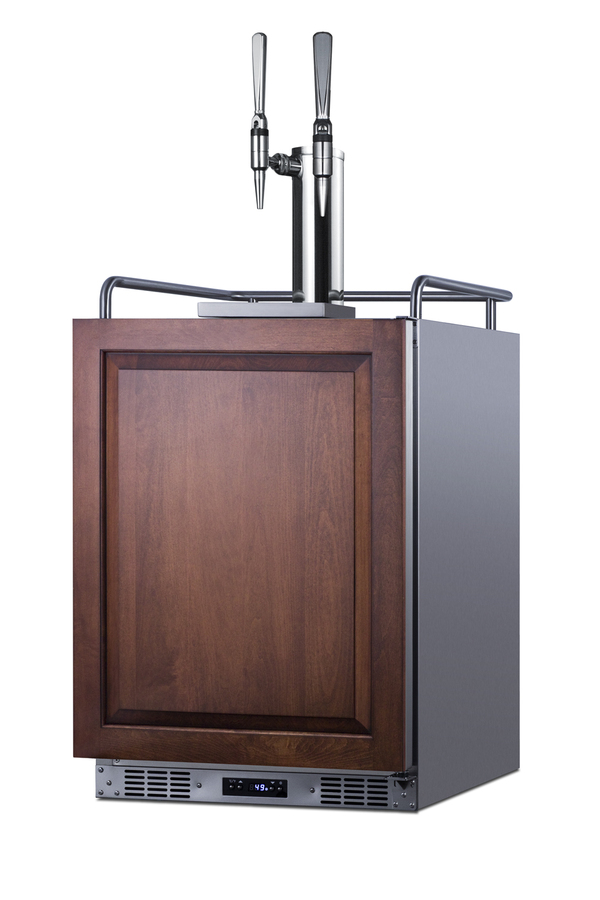

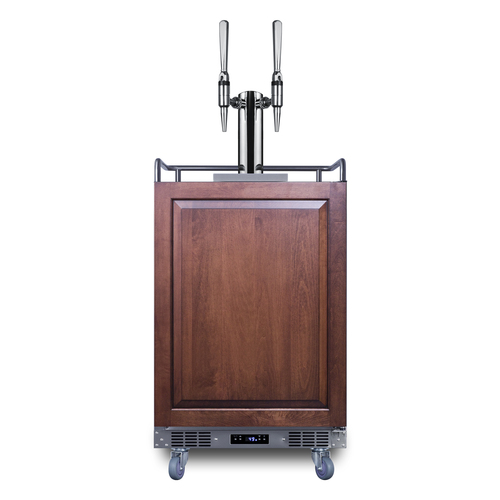

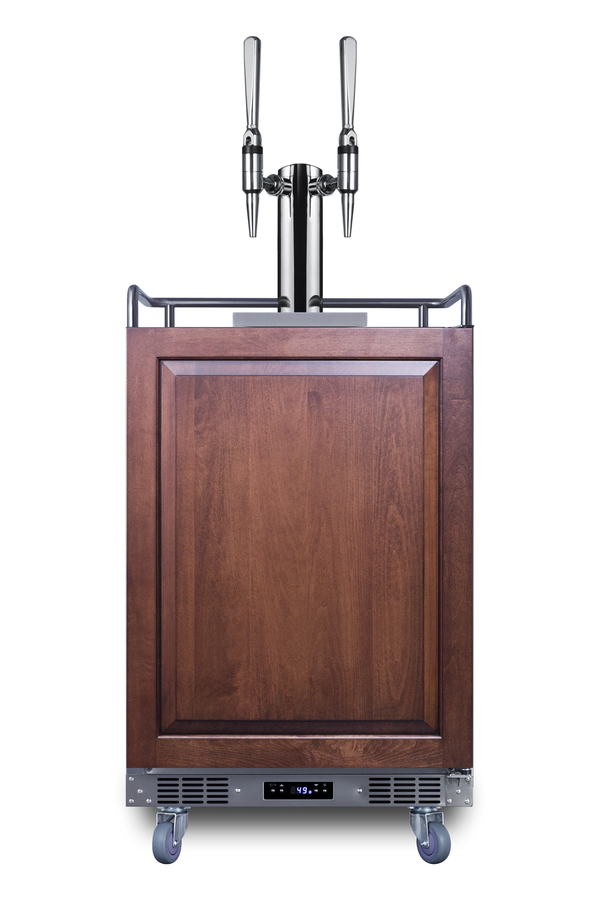

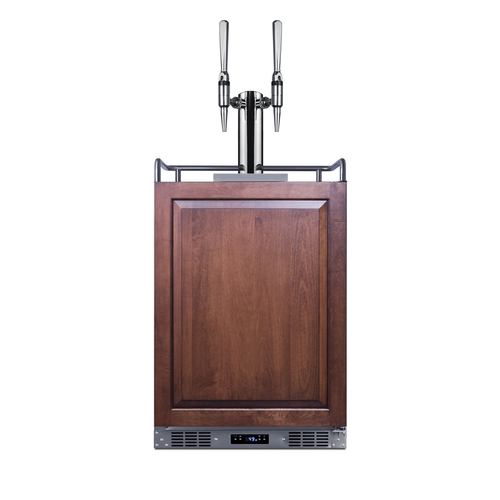

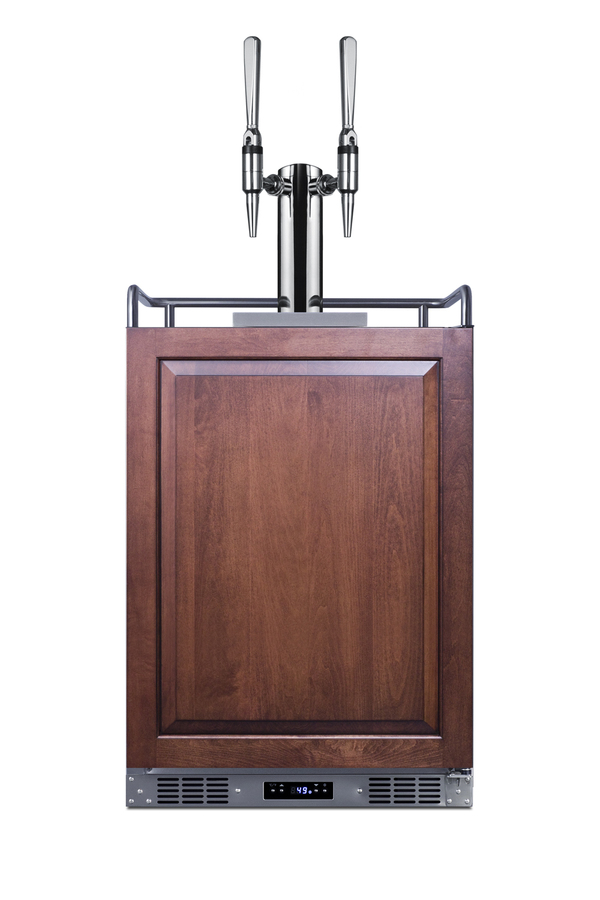

24" Wide Built-In Nitro Coffee Kegerator (Panel Not Included)

SKU: SBC682PNRNCFTWIN
Panel-ready door allows you to customize the front to achieve the perfect style for every indoor or outdoor kitchen space
Estimated Time to Ship:

2 to 4 days

Color: Panel-Ready

*Additional features may vary

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
33.63" H x 23.75" W x 24.75" D
(85cm H x 60cm W x 63cm D)

Overview
Nominal Height 34.0" (86 cm)
Height of Cabinet 33.63" (85 cm)
Nominal Width 24.0" (61 cm)
Width 23.75" (60 cm)
Nominal Depth 25.0" (64 cm)
Depth 24.75" (63 cm)
Depth with door at 90° 46.75" (119 cm)
Capacity 5.6 cu.ft. (159 L)
Defrost Type Automatic
Door Panel-Ready
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 305.0kWh/year
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101087481
Kegerator
Door Swing RHD
Reversible Reversible w/ Optional Hinge
Tap Kit Yes
Height with Tap 51.5" (131 cm)
Number of Taps 2
Adjustable Shelves Yes
Shelf Type Chrome
Shelf Qty 2
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Inter Height 26.75" (68 cm)
Interior Width 20.0" (51 cm)
Interior Depth 19.0" (48 cm)
Level Legs Qty 4
Wheel Qty 4
Temperature Range 34°F to 68°F (1°C to 20°C)
Sound Level 34.0 db

Exterior
LHDHinge
Left hand door hinges
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)

Full-sized coffee dispenser

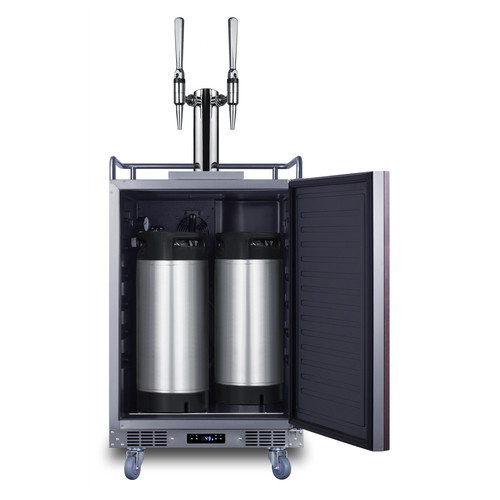

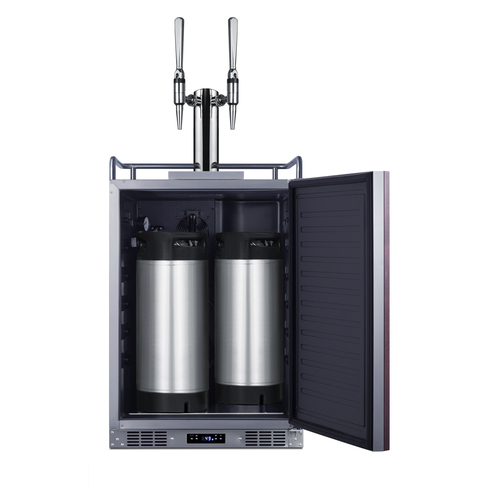

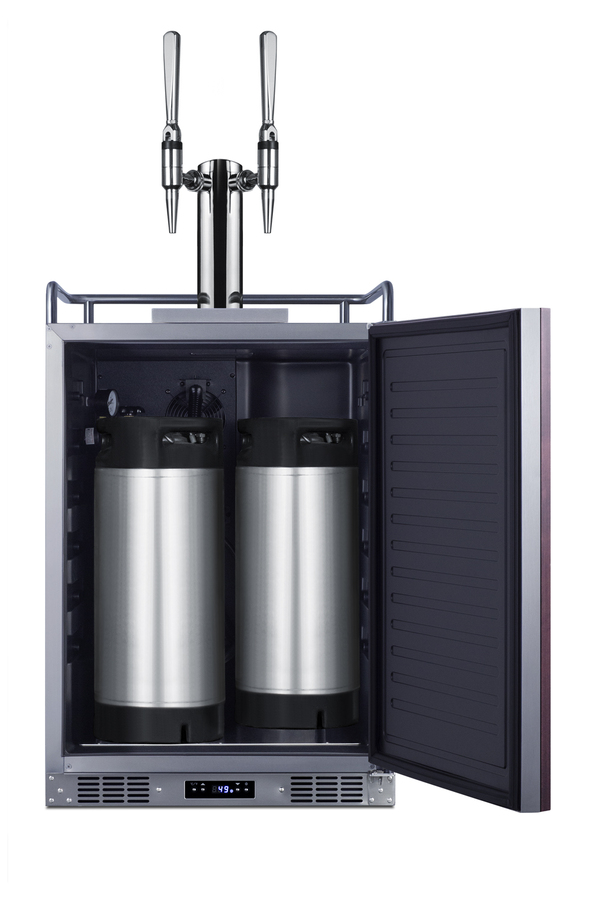

5.6 cu.ft. interior can accept a full half barrel or quarter keg, or up to three sixth barrels or Cornelius style kegs

Dispenses nitro coffee

Stout style tap allows you to serve smooth nitro cold brew on tap

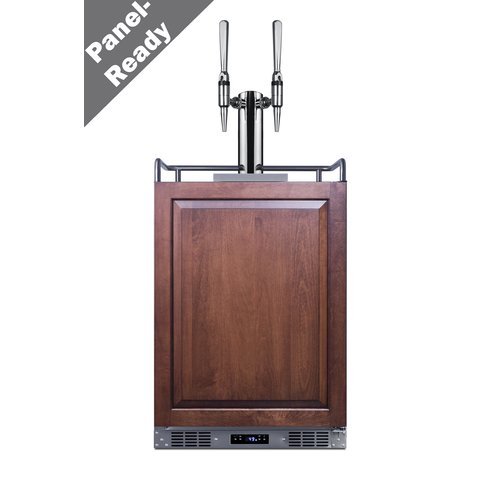

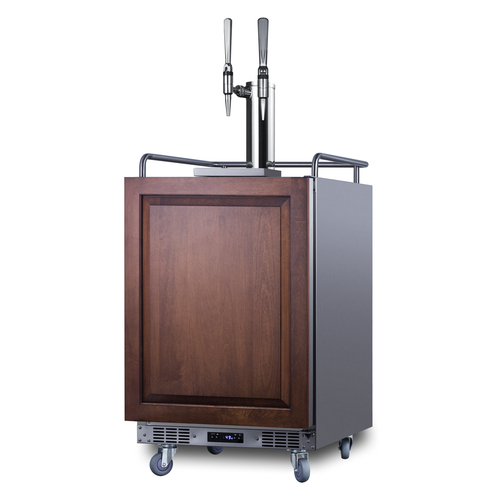

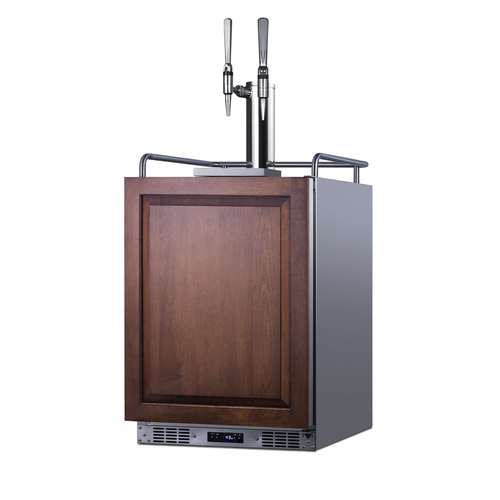

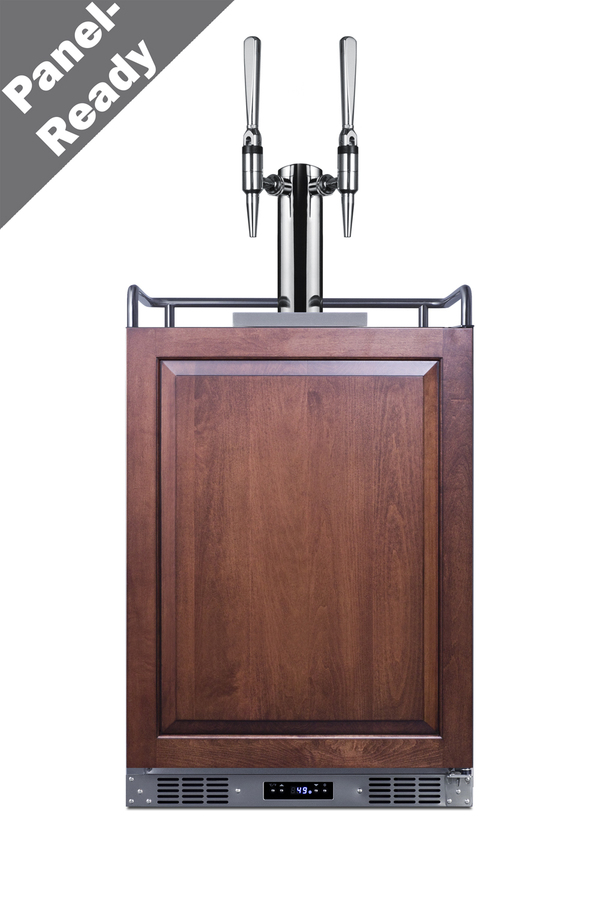

Panel-ready door

Extended hinging allows you to install your own panel overlay on the door, creating a custom look to complement or blend into your own cabinetry (panel size: 29 3/4" H x 23 5/16" W at a 3/4" thickness)

Commercially approved

ETL-S listed to NSF-7 standards and meets UL-471 for use in commercial settings

Weatherproof design

Solid 304 grade stainless steel construction allows placement in the outdoors

Built-in capable

Front-breathing design allows fully recessed installation under counters

Complete dual tap kit

Commercial grade tap kit includes a dual tap stainless steel draft tower, Nitrogen tank, regulator, and all the connection equipment you need to serve cold brew coffee

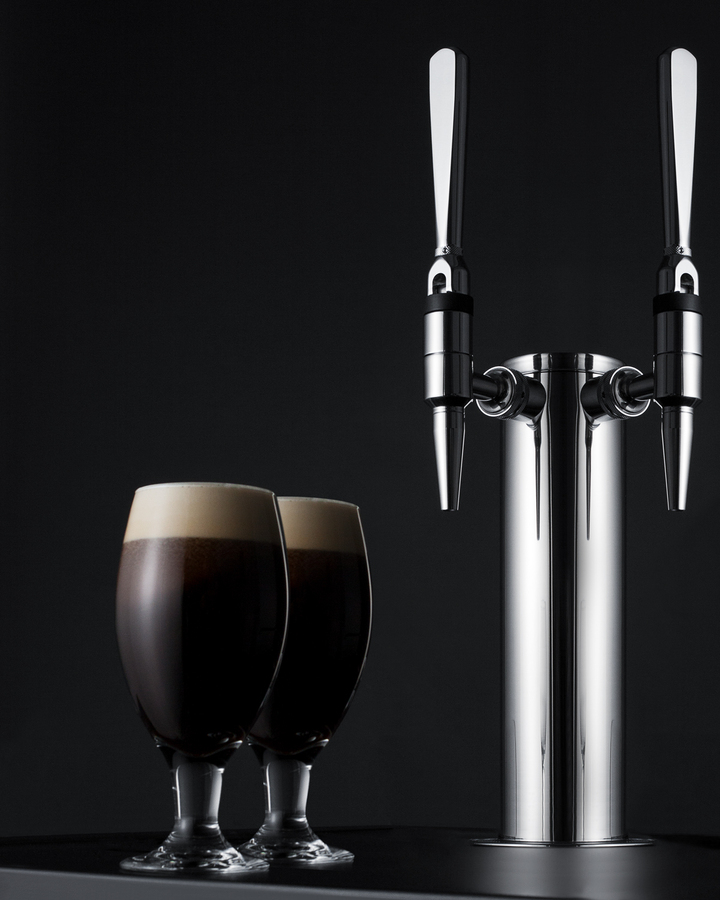

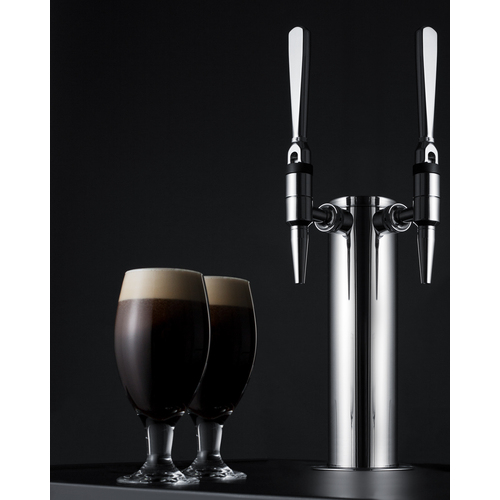

Dual tap system

Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs

Automatic defrost

Reduced user maintenance with auto defrost operation

Digital thermostat

Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

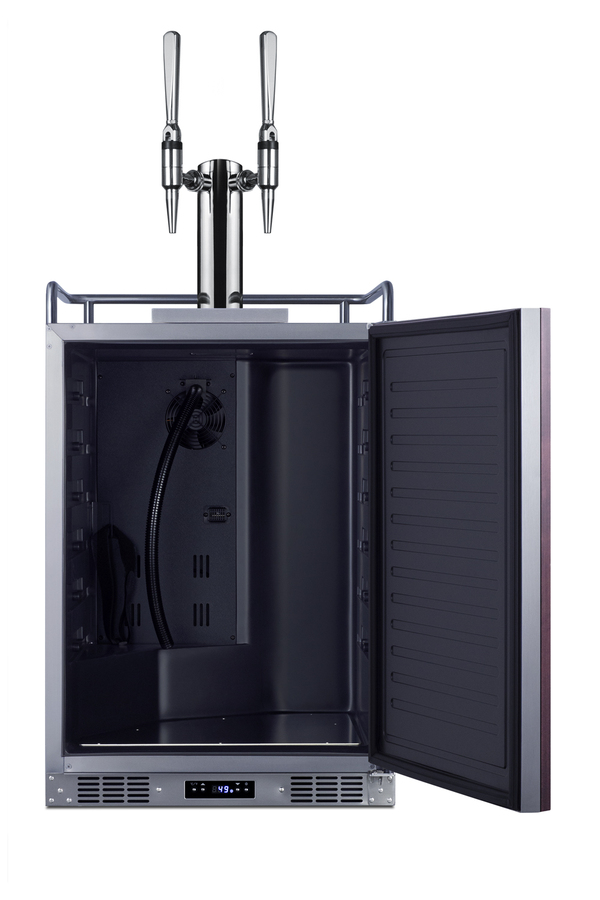

Tap cool system

Interior tube allows you to extend the cold air flow up into draft tower, ensuring coffee freshly tapped stays chilled

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

Top guard rail (ships unassembled)

Attractive chrome guard rail helps to reduce spills and neaten service

Stainless steel drip tray

Removable two-piece drip tray catches spills to help contain the mess

Adjustable shelves

2 chrome shelves (with six placement options) allow unit to also function as a beverage refrigerator

Memory IC function

Recovers the unit's last settings in the case of a power outage or disruption

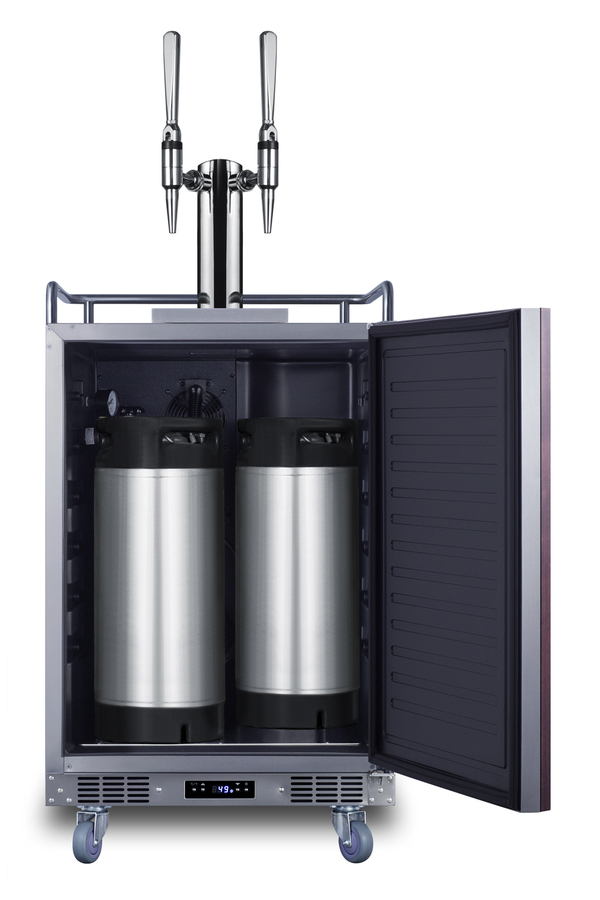

Casters included (ship unassembled)

Four casters (two locking) afford easy portability

Fully finished stainless steel cabinet

Allows the dispenser to be used freestanding

Sealed back

Space saving design with easier cleanability

Right hand door swing

Default swing is RHD. For hinges that will allow this door to open from the left, add upgrade "LHDHinge"

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit manufactures a complete line of versatile built-in kegerators designed for indoor/outdoor use in commercial or residential settings.

The SBC682PNRNCFTWIN is a full-sized kegerator designed to serve nitro cold brew coffee on tap. It is ETL-S listed to NSF-7 standards and meets UL-471 for commercial applications but is also approved for residential use. Sized at just 24" wide, it features a front-breathing system for built-in installation and a fully-finished cabinet that also allows freestanding use, with an included caster set for optional mobility. The exterior features 304 grade stainless steel construction for safe, weatherproof use in the outdoors. The door is designed to accept overlay panels (sized at 29 3/4" H x 23 5/16" W at a 3/4" thickness) to allow you to create a custom look to best suit your own kitchen design. This unit ships with a right hand door swing. For a left hand version, add option "LHDHinge." Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. This unit has a sealed rear for added protection from the elements.

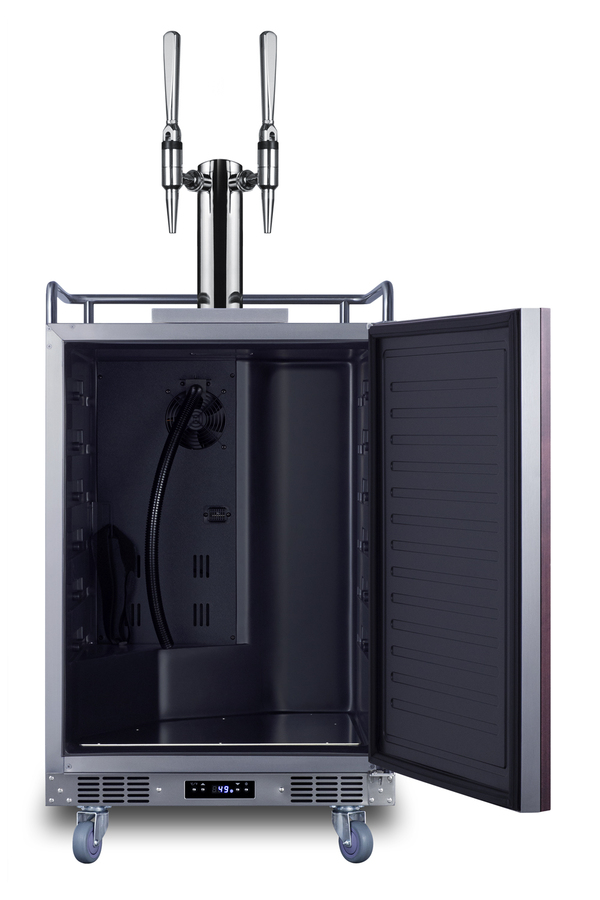

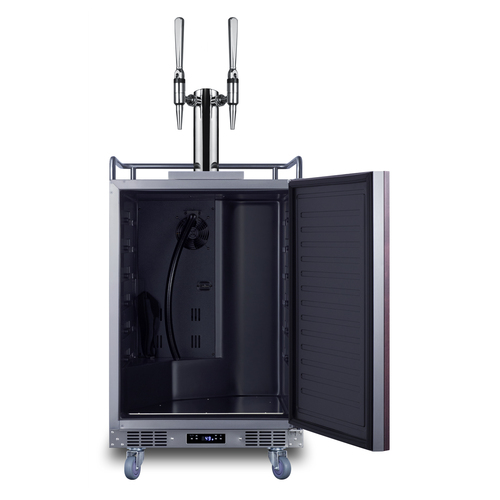

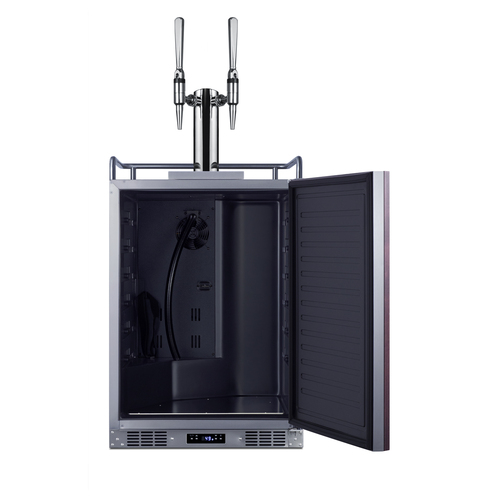

Inside, the SBC682PNRNCFTWIN has a 5.6 cu.ft. interior that can hold a full half or quarter keg, or up to three Cornelius or sixth barrel kegs. A digital thermostat lets you set easily manage the unit temperature, with a wide range between 34°F to 68°F to accommodate a variety of brews, with a readout in Fahrenheit or Celsius for added convenience. We include a complete tap kit for dispensing nitro coffee, including a Sankey tap system and dual tap stout-style draft tower, along with a Nitrogen tank and regulator. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator.  Automatic defrost operation ensures minimal user maintenance. A tap cool system keeps your coffee cold as it goes through your tower, and a Velcro strap holds the tank in place. The interior floor is made from stainless steel to add protection when loading and removing kegs. Automatic defrost operation ensures minimal user maintenance. The Memory IC function recovers the unit's last settings in the case of a power outage or disruption.

With its solid construction, user-friendly features, and attractive design, the SBC682PNRNCFTWIN is the perfect cold brew dispenser for indoor or outdoor commercial and residential applications. For this unit designed to serve regular cold brew coffee, see the SBC682PNRCFTWIN or cold brew and nitro coffee, see model SBC682PNRCMTWIN. Additional tapping options are available. Browse the full Summit line to explore your options.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
