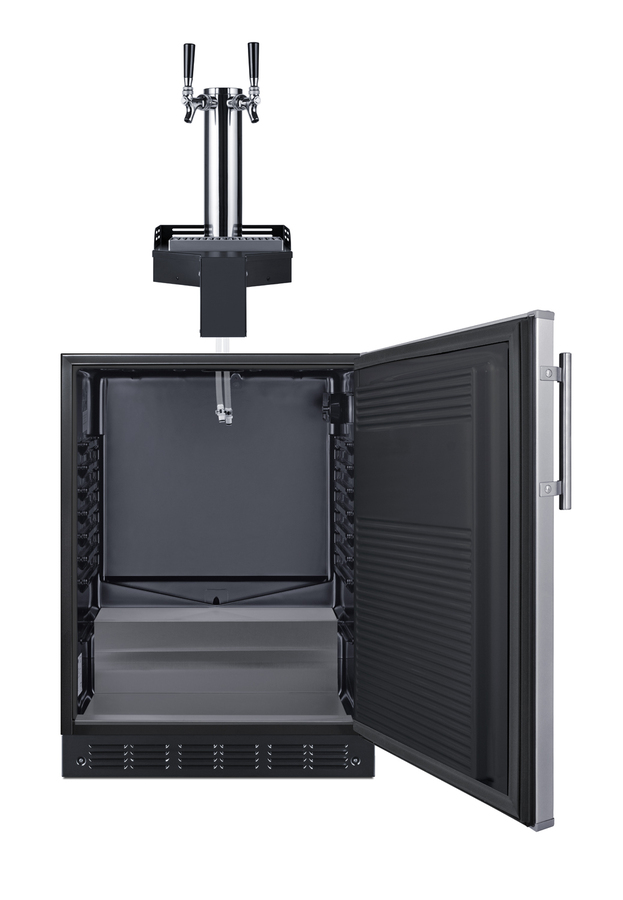

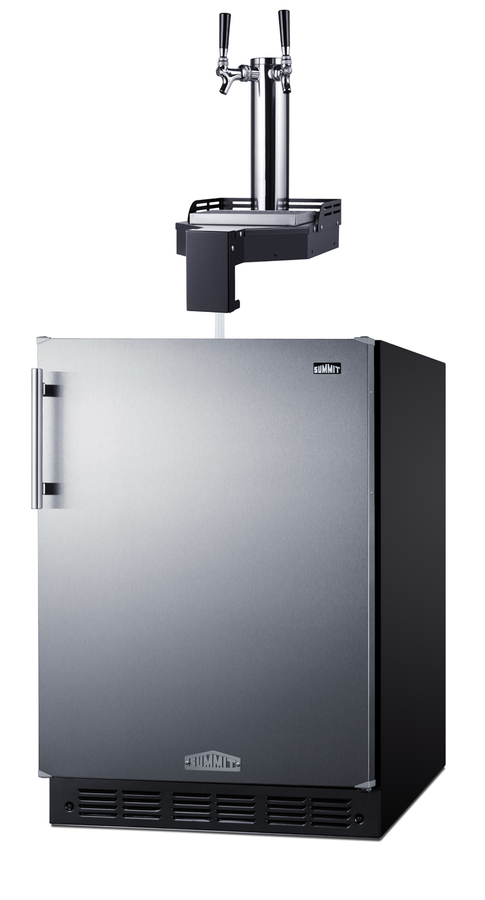

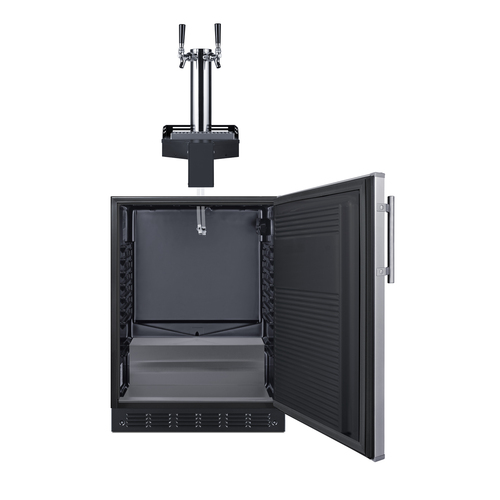

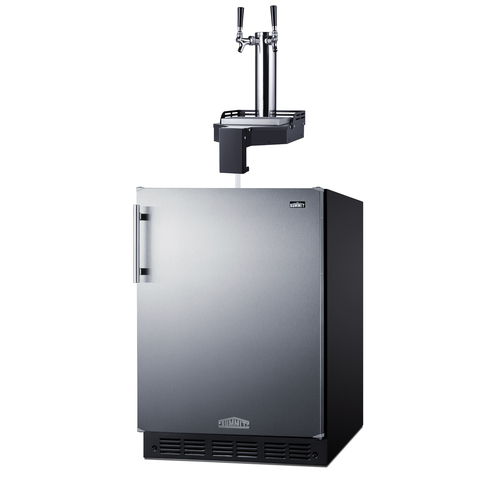

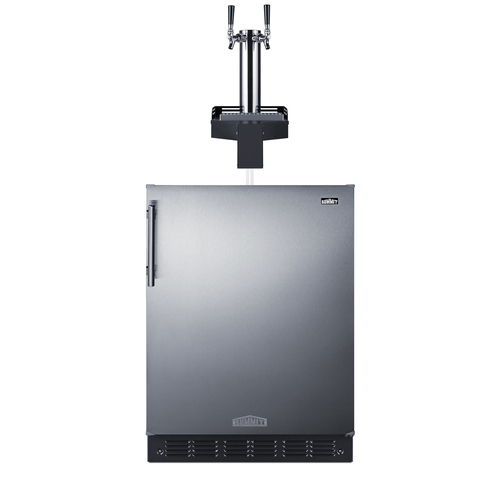

24" Wide Built-In Floating Tap Beer Kegerator, ADA-Compliant
2 to 3 days
*Additional features may vary
(81cm H x 60cm W x 57cm D)
SPECIFICATIONS
Overview
|
|
---|---|
Nominal Height | 32.0" (81 cm) |
Height of Cabinet | 31.88" (81 cm) |
Height to Hinge Cap | 32.0" (81 cm) |
Nominal Width | 24.0" (61 cm) |
Width | 23.63" (60 cm) |
Depth | 22.38" (57 cm) |
Depth with Handle | 24.3" (62 cm) |
Depth with door at 90° | 44.5" (113 cm) |
Capacity | 5.8 cu.ft. (164 L) |
Defrost Type | Automatic |
Door | Stainless Steel |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Energy Usage/Year | 239.0kWh/year |
Amps | 0.8 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 180.0 lbs. (82 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101145556 |
Kegerator
|
|
Door Swing | RHD |
Reversible | Yes |
Height Adjustable | No |
Tap Kit | Yes |
Number of Taps | 2 |
Adjustable Shelves | Yes |
Shelf Type | Glass and Scalloped |
Shelf Qty | 4 |
Thermostat Type | Dial |
Interior Light | Yes |
Refrigerant | R600a |
Refrigerant Amount | 0.64 oz. |
Inter Height | 27.0" (69 cm) |
Interior Width | 21.0" (53 cm) |
Interior Depth | 17.75" (45 cm) |
Compressor Step Height | 6.5" (17 cm) |
Compressor Step Width | 21.0" (53 cm) |
Compressor Step Depth | 5.5" (14 cm) |
Level Legs Qty | 4 |
Temperature Range | 36 to 46°F |
AVAILABLE UPGRADES
Exterior | |||
---|---|---|---|
|
|||
Lock | |||
|
FEATURES

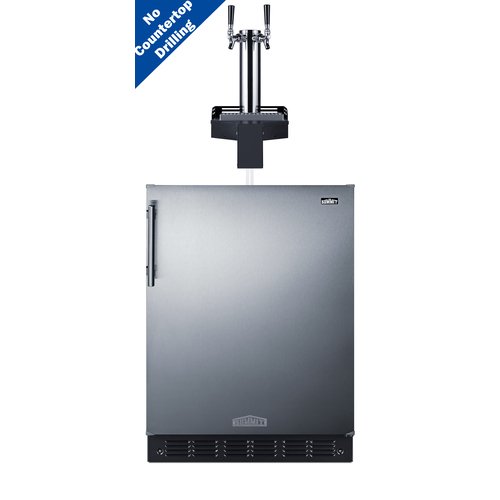

Dual tap kegerator with a remote tapping system that includes everything you need to pour draft beer without modifying your countertop
Non-permanent draft tower is separated from the actual kegerator and designed for temporary installation on counter surfaces, allowing you to remove as needed
32" height allows easy installation under lower ADA compliant counters
Designed for installation under the counter

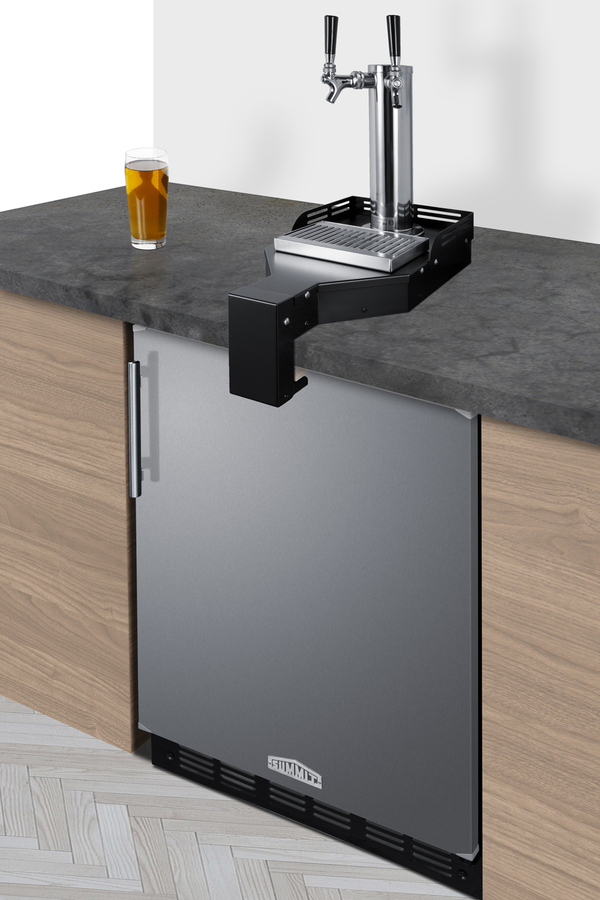

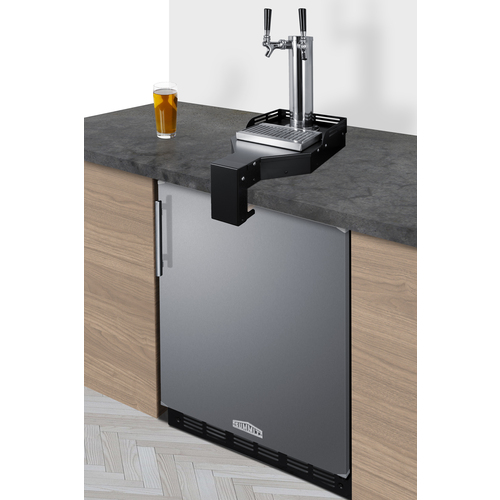

Tower is connected to the removable tap kit that does not need to be permanently attached to your countertop

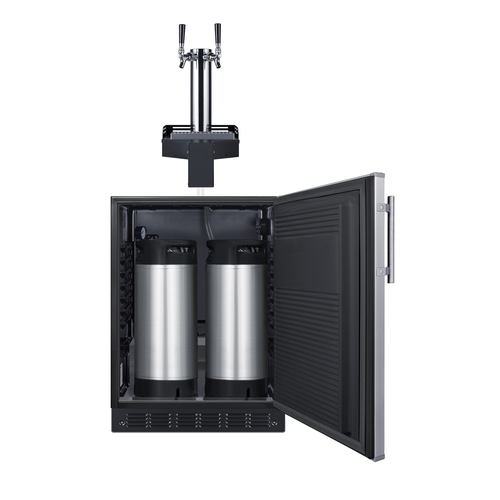

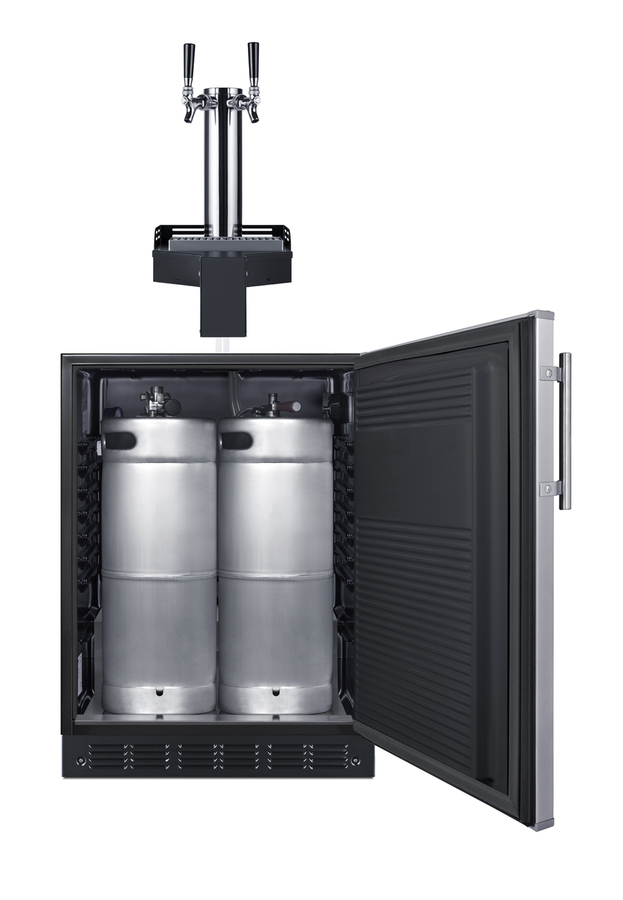

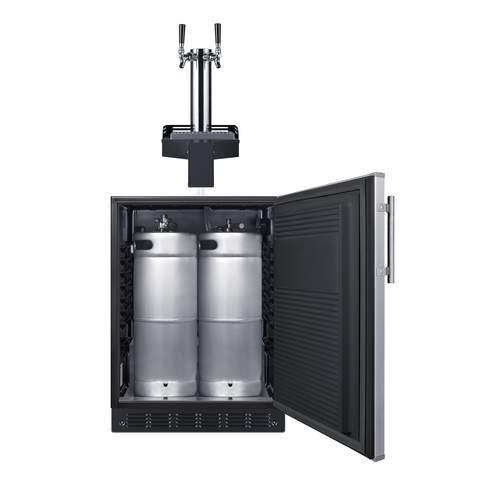

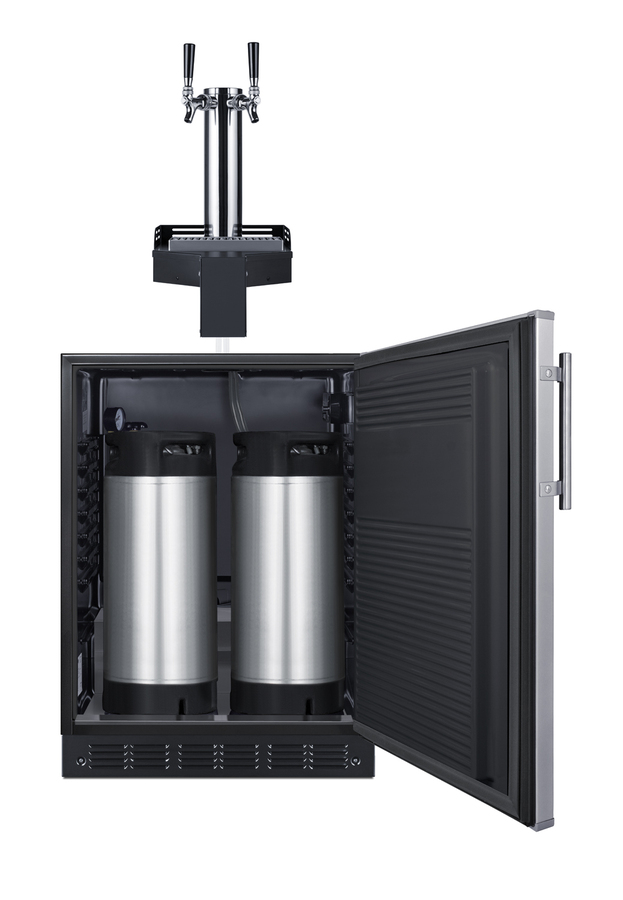

Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs
No tools or equipment needed for fast setup and easy removal
Includes a tap hole cover, glass shelves, and a scalloped steel bottle rack to all you to convert the kegerator into a traditional all-refrigerator
Approved for both residential and commercial settings
Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, and the needed connection hardware
Full-sized cannister ships with tapping equipment (ships empty)
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
No-frost operation for minimum user maintenance

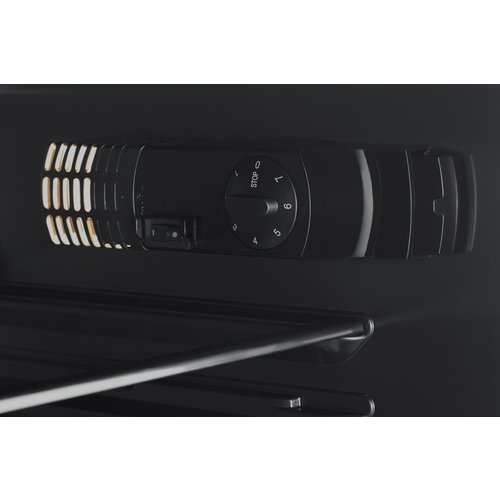

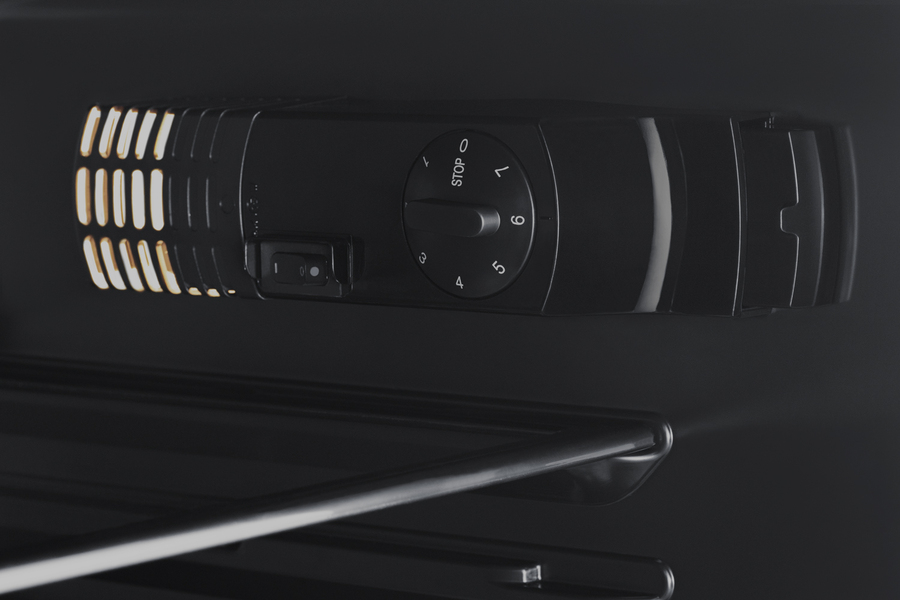

Simple and intuitive analog controls located inside for easy temperature management
Interior includes steel cover to protect the floor when loading kegs
Cold wall design with hidden evaporator creates a seamless, easy to clean interior
Vertically-mounted handle bar in stainless steel
2-piece drip tray for easier cleanup
User-reversible door swing for added flexibility to best accommodate your setting
Allows the dispenser to be used freestanding
Refrigeration unit constructed in Europe then designed and modified in the USA
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

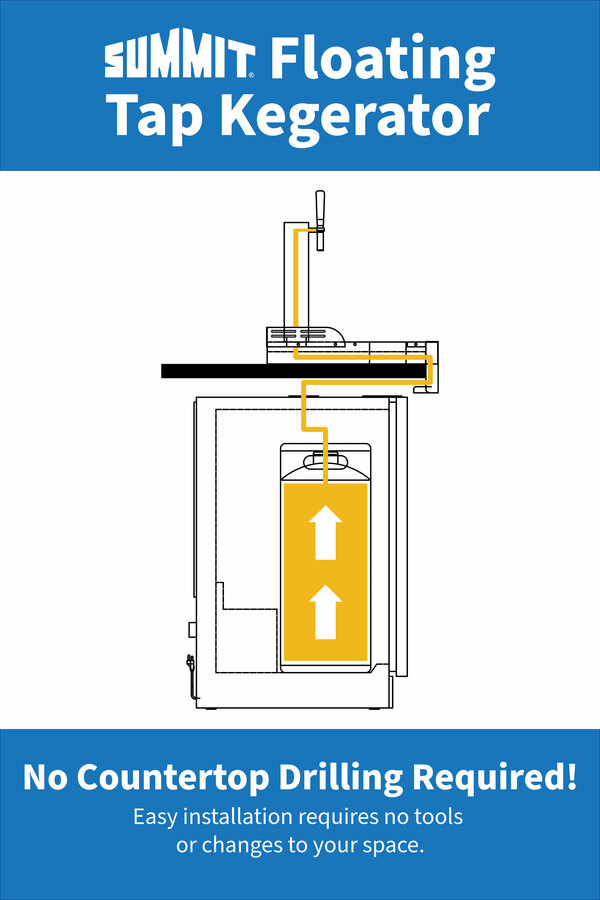

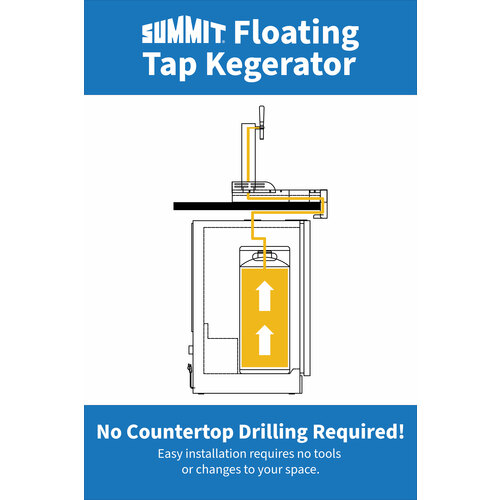

Summit's innovative series of commitment-free built-in kegerators offers maximum convenience and flexibility, eliminating the need to make alterations to countertops while still keeping easy access to beer on tap. These units ship with everything you need to pour draft beer in an incredibly easy-to-install package for your home bar. Model SBC7BRSFLTWADA is part of our one-a-kind Floating Tap collection of beer dispensers that separates the draft tower from the kegerator's top. Instead of drilling a hole in your counter surface to feed the kegerator's beer line from the refrigerator to draft tower, Summit has created a standalone tap kit that sits on your counter and can be easily disconnected, removed, and relocated as needed. The tubing comes out at the top of the kegerator and loops into the remote tap kit, which you attach to your counter with the included non-permanent adhesive strips. You can easily remove the tap kit without damaging your countertop and convert the undercounter kegerator into an all-refrigerator when you don't want to keep a draft tower in view. We include a plug to cover the tower hole, as well as adjustable glass shelves and a scalloped bottle rack for storage convenience. This unit ships with everything needed for draft beer service in the home. The tap kit included is a twin tower system approved to commercial standards, with a CO2 tank, regulator, and all the tapping equipment to serve beer out of two 1/6 (sixtel) taps. We include a stainless steel drip tray for cleaner service. The kegerator interior includes a CO2 holder, ensuring added space savings by keeping the tank inside. Sized at just 32" high, model SBC7BRSFLTWADA is designed to fit under ADA-compliant counters. It features a stainless steel door and pro-style handle for a modern look ideal for any space. Inside, the stainless steel floor ensures safer loading of heavy kegs. The interior light has an on/off rocker switch located behind the dial thermostat. Classic mechanical controls ensure intuitive, trouble-free performance without any internal boards or chips. Automatic defrost reduces user maintenance, and our signature cold wall design creates an efficient, reliable cooling system. Summit's SBC7 series is manufactured in Europe, with our Floating Tap kit designed and constructed in the USA. In addition to this convertible Floating Tap beer kegerator, our commitment-free line also includes choices that dispense wine and cold brew coffee, as well as beer dispensers with taps located on the door. Traditional kegerators are also available in a range of sizes and styles. Browse the full Summit product line or contact our product specialists to find the fit for your needs.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
