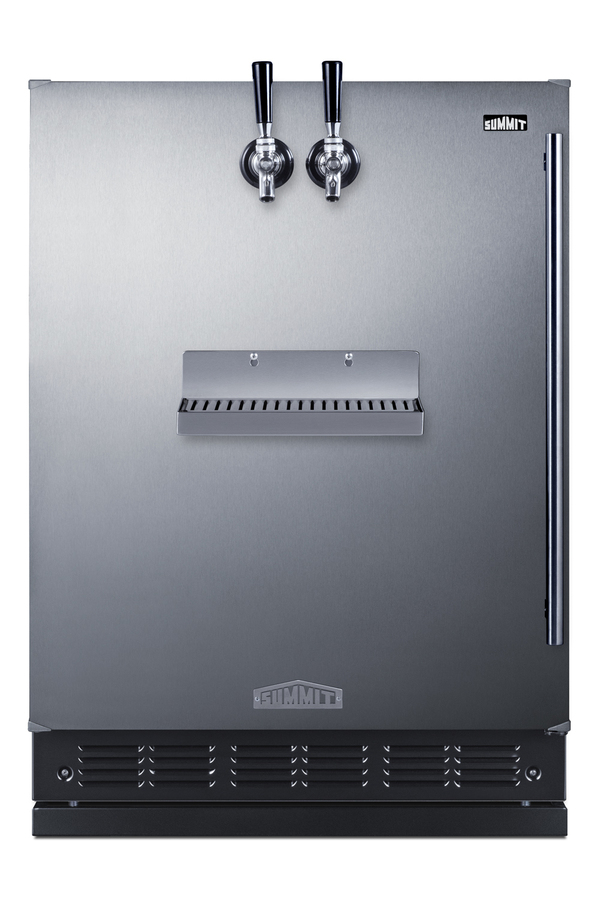

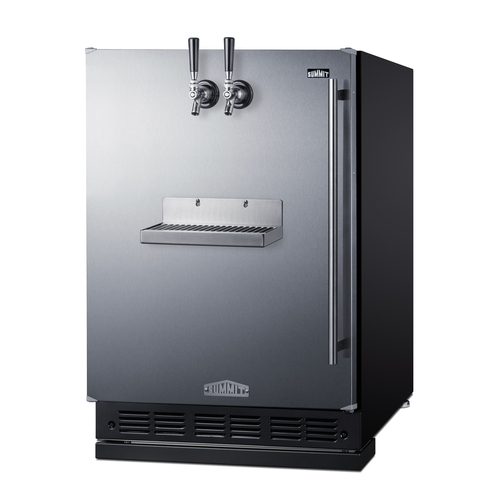

24" Wide Front Tap Built-In Cold Brew Coffee Kegerator

SKU: SBC7BRSFRTPCFLHD
Commitment-free front tap cold brew coffee kegerator requires zero alterations to your countertop
Estimated Time to Ship:

2 to 4 days

Door Swing:
RHD LHD
Color: Stainless Steel/Black

*Additional features may vary

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
33.5" H x 23.63" W x 27.38" D
(85cm H x 60cm W x 70cm D)

Overview
Nominal Height 34.0" (86 cm)
Height of Cabinet 33.5" (85 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 28.0" (71 cm)
Depth 27.38" (70 cm)
Depth with door at 90° 51.88" (132 cm)
Capacity 5.3 cu.ft. (150 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 293.0kWh/year
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101145532
Kegerator
Door Swing LHD
Height Adjustable Yes
Tap Kit Yes
Number of Taps 2
Thermostat Type Dial
Interior Light Yes
Refrigerant R600a
Refrigerant Amount 0.64 oz.
Inter Height 27.75" (70 cm)
Interior Width 21.0" (53 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)
Level Legs Qty 4
Temperature Range 36 to 46°F

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Lock
L-SideLock
Add a single keyed lock located on the door's side (NOTE: side lock adds 1" to overall unit width and comes in white)
L-TopLock
Add a single keyed lock located on top of the unit

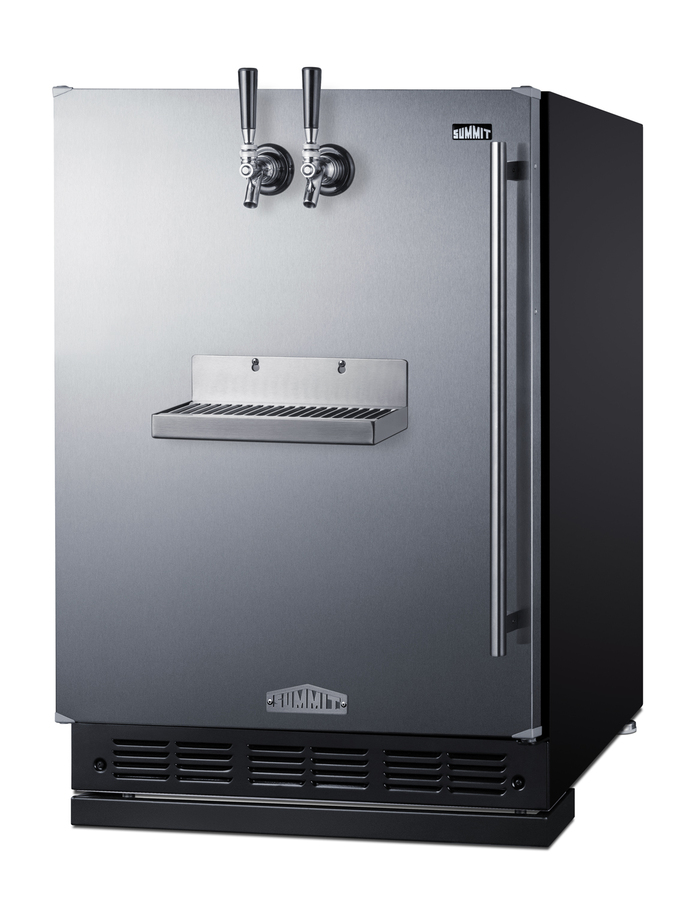

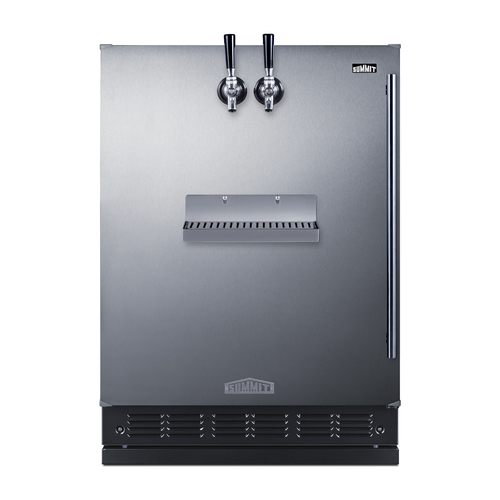

24" Wide Front-Tap Cold Brew Coffee Dispenser

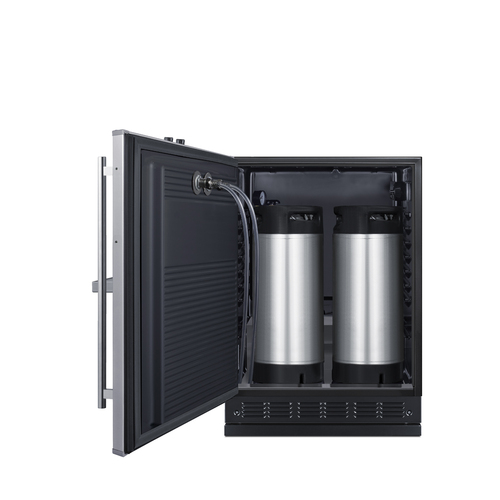

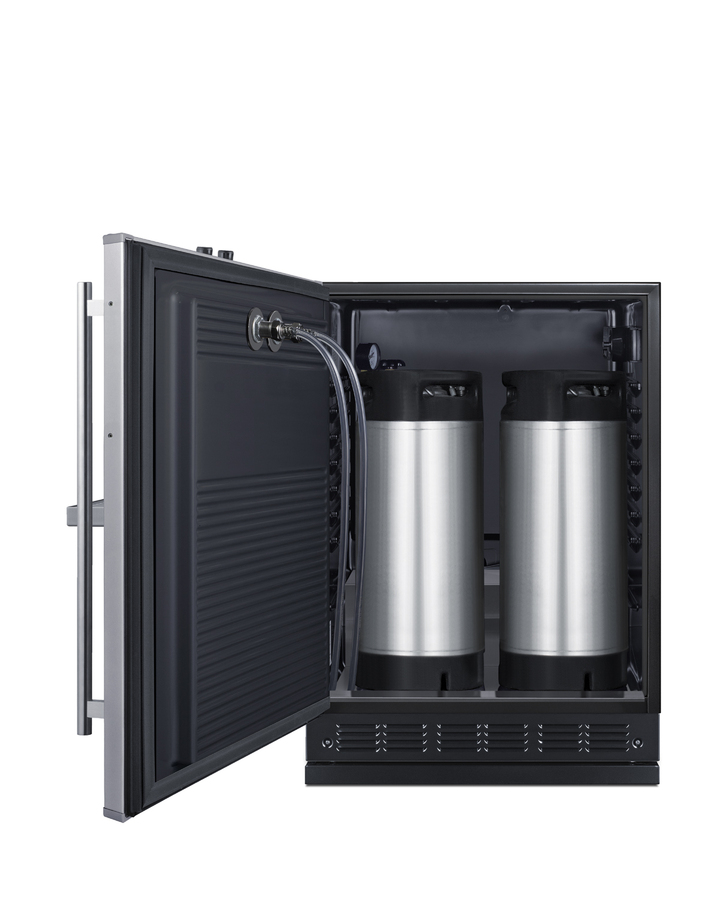

Kegerator includes front taps accessed via the door and includes all of the equipment needed to serve cold brew coffee from two sixtel kegs

Commitment-free front-taps

Unique design requires no alterations to your countertop, freeing up valuable countertop space

Dual tap system

Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs

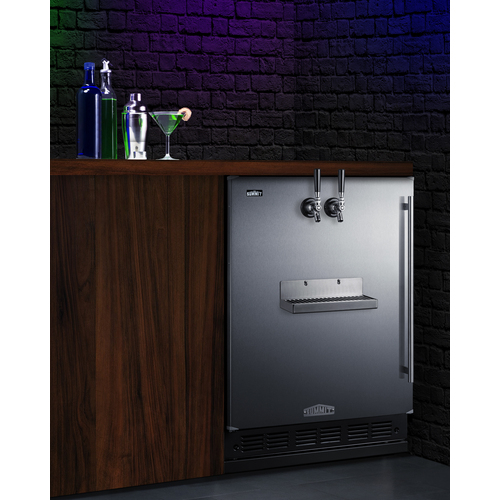

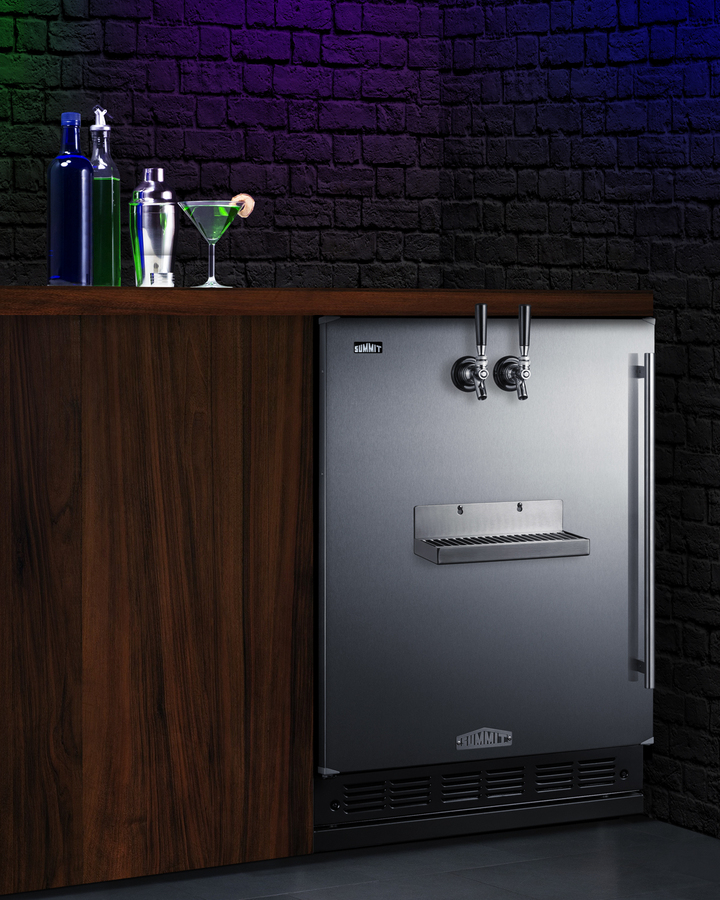

Built-in capable

Designed for installation under the counter

Accessible design

Taps are located on the front of the door, requiring no added reach

Commercially listed

ETL-S listed to ANSI-NSF Standard 7 for commercial use

Versatile use

Approved for both residential and commercial settings

Complete cold brew coffee tap kit included

Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, and the needed connection hardware

CO2 tank included

Full-sized cannister ships with tapping equipment (ships empty)

Interior CO2 holder

Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs

Automatic defrost

No-frost operation for minimum user maintenance

Adjustable mechanical thermostat

Simple and intuitive analog controls located inside for easy temperature management

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

Hidden evaporator

Cold wall design with hidden evaporator creates a seamless, easy to clean interior

Professional handle

Vertically-mounted handle bar in stainless steel

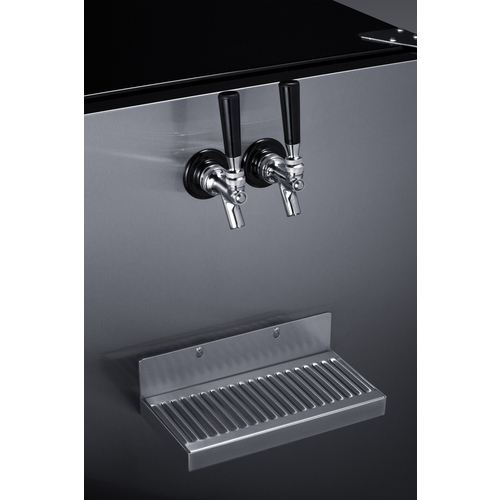

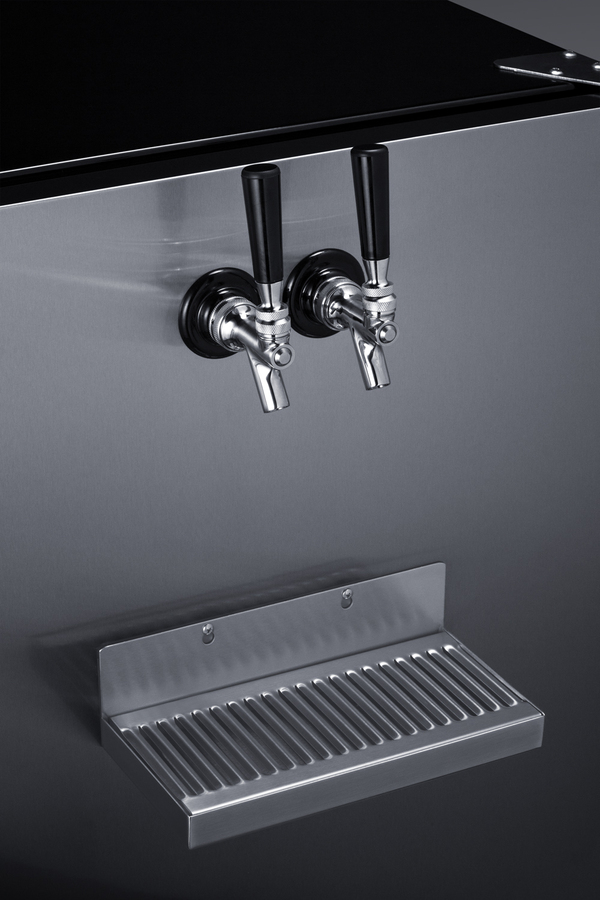

Stainless steel drip tray

Front-mounted two-piece drip tray included for added convenience that can be easily removed for better cleanability

Left-hand door swing

For this unit with a standard right hand door swing, see model SBC7BRSFRTPCF

Fully finished cabinet

Allows the dispenser to be used freestanding

Made in Europe & USA

Refrigeration unit constructed in Europe then designed and modified in the USA

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's innovative series of commitment-free built-in kegerators offers maximum convenience, eliminating the need to make alterations to countertops while still keeping easy access to cold brew coffee on tap in commercial and residential settings.

The SBC7BRSFRTPCFLHD is unique because the twin taps are accessed via the unit's front door. The specialized design frees up valuable counter space in kitchens, home bars, and eateries with limited room. The kegerator can be installed under a counter without the need to modify the countertop with a hole for the draft tower. The front tap system also creates a more accessible kegerator experience. This kegerator ships fully assembled and includes a removable stainless steel drip tray that mounts on the door below the taps. Its commercial grade tower has two faucets serving cold brew coffee from two 1/6 (sixtel) kegs. We also include a CO2 tank, regulator, and all the equipment you need to confidently serve perfectly chilled cold brew coffee or cold brew on tap.

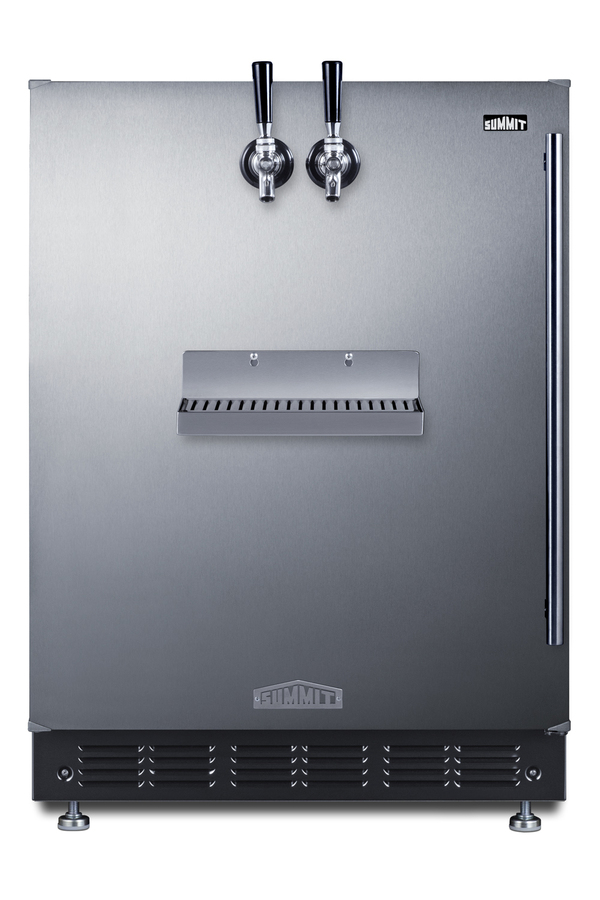

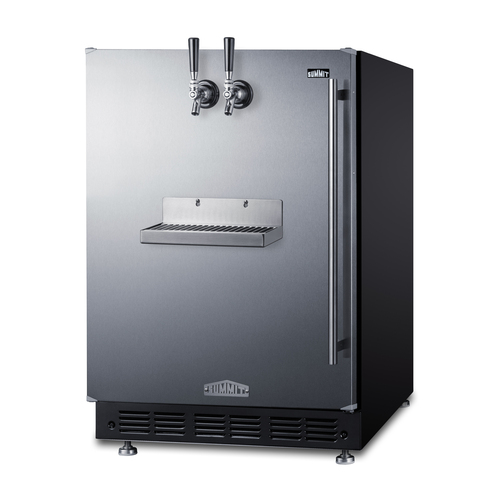

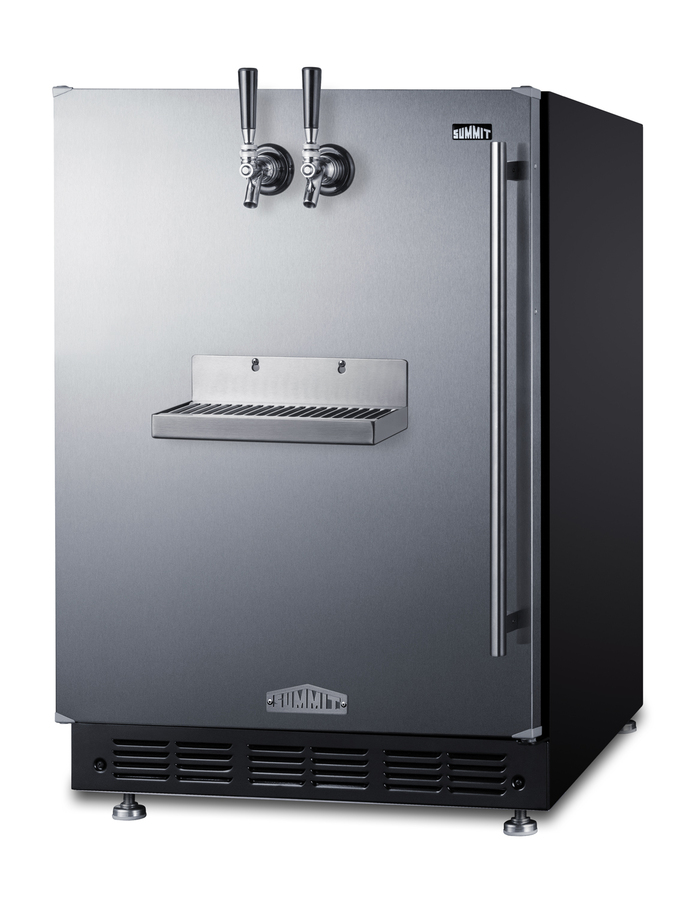

Sized with a 24" footprint, model SBC7BRSFRTPCFLHD is a versatile front tap cold brew coffee dispenser that is ETL-S listed to NSF-7 standards for use in commercial environments. The design also meets residential standards for home use. Adjustable legs allow you to set the height between 32.5" and 34.5" for the perfect fit. A leg shield is included for optional use if there is too much space between the front and the floor. This comes with a stainless steel door and pro style handle. It can be built-in under counters or used freestanding.

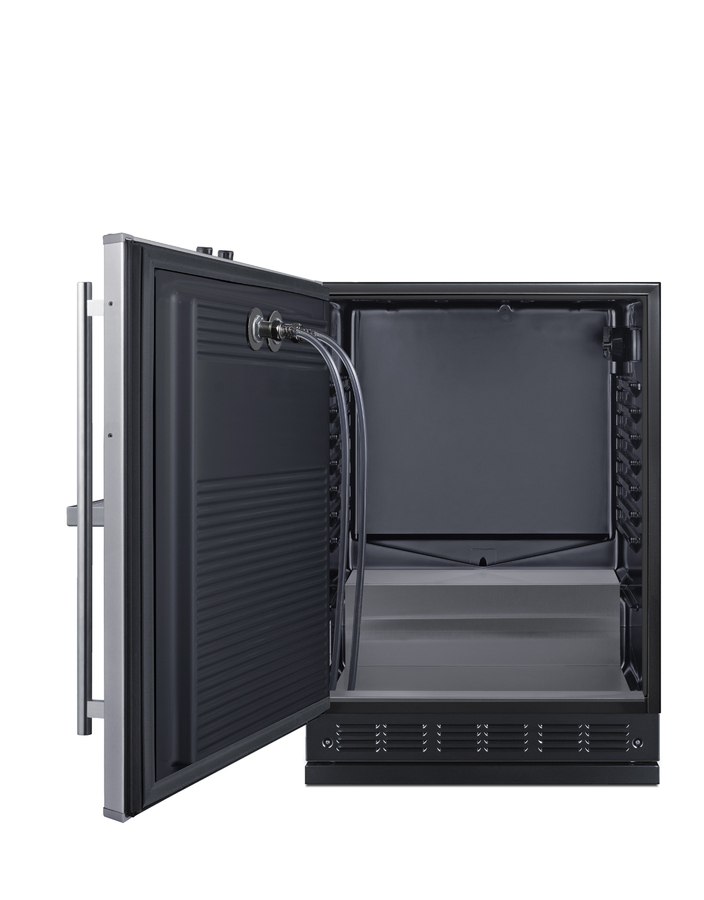

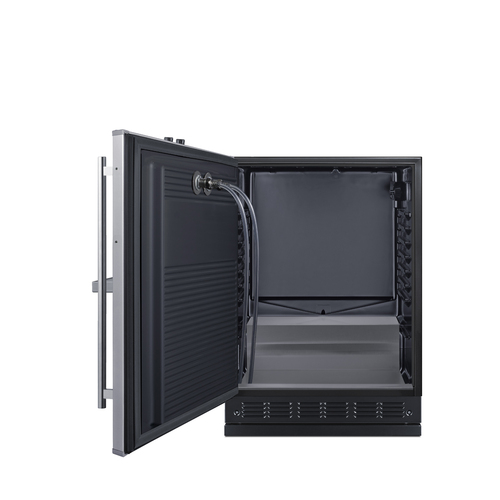

The SBC7BRSFRTPCFLHD features a jet black interior liner and stainless steel floor, providing added protection when loading kegs. The interior light, with an on/off rocker switch located behind the dial thermostat, ensures visibility and convenience. Classic mechanical controls guarantee an intuitive, trouble-free performance without any internal boards or chips. The automatic defrost system reduces user maintenance, while our signature cold wall design ensures an efficient, reliable cooling system.

In addition to this dual tap kegerator, our commitment-free line also includes choices that dispense beer, as well as model SBC7BRSFLTWADA which features our innovative floating tap design.

Summit also manufactures similar kegerators in ADA-compliant heights and for outdoor applications. Browse the full Summit product line or contact our product specialists to find the fit for your needs.

Download
BROCHURE w/ DRAWINGS
SBC7BRSFRTPCFLHD.pdf
Download
TECHNICAL DRAWING (.dwg)
SBC7BRSFRTP_2_.dwg
Download
ASSEMBLY DRAWING
SBC7BRSFRTP-Assembly.pdf
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
