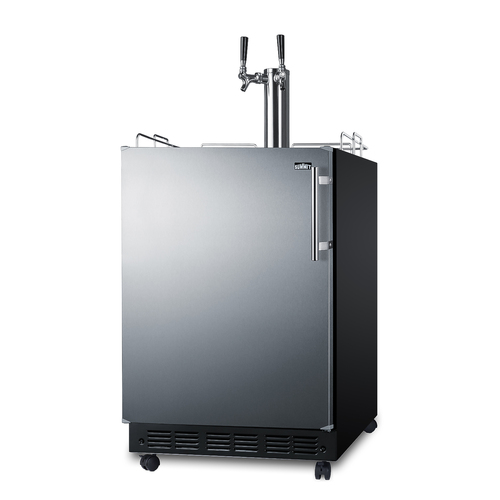

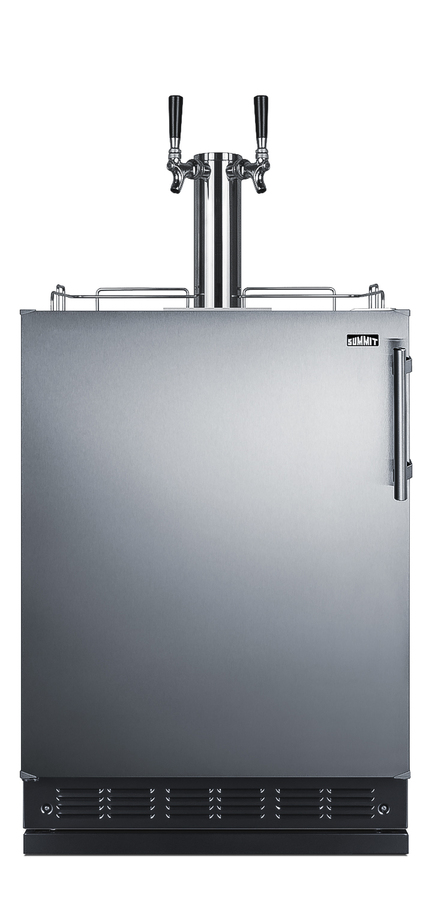

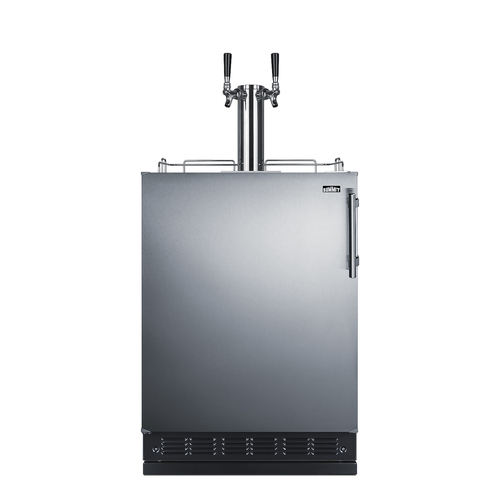

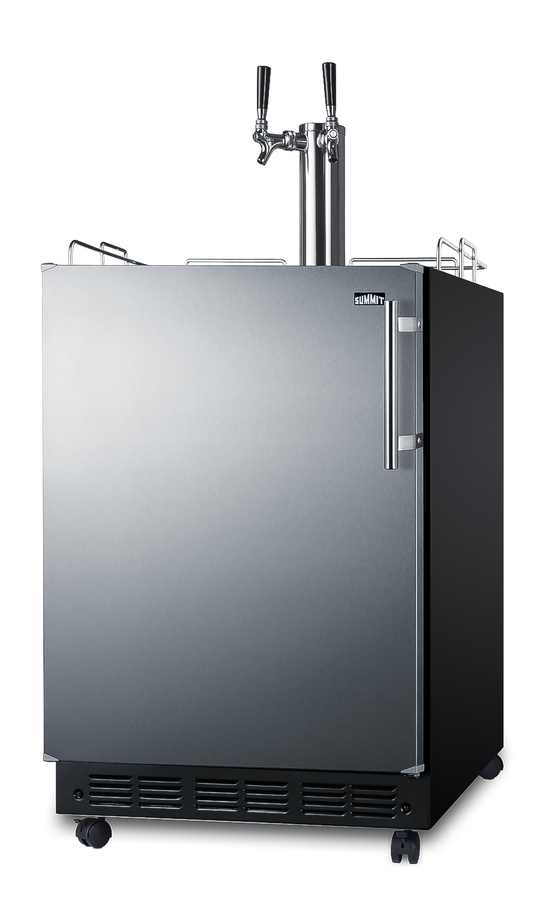

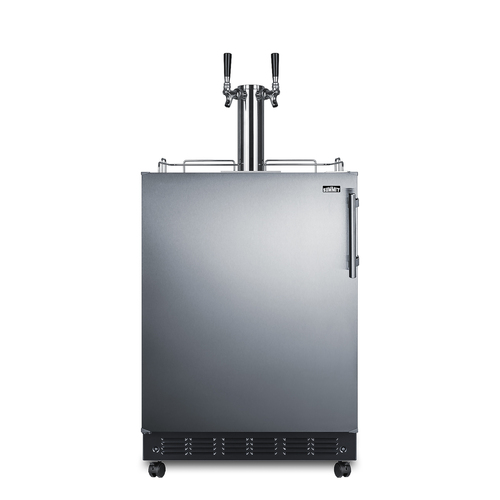

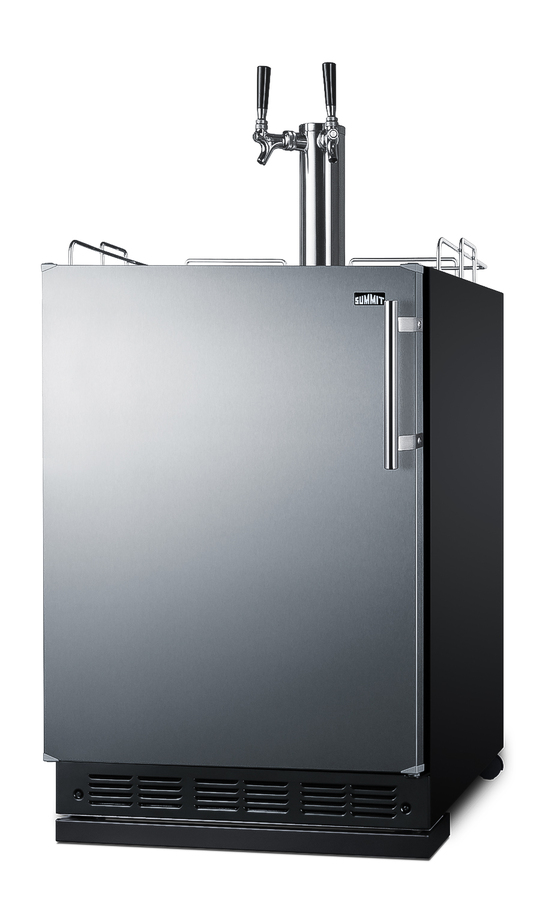

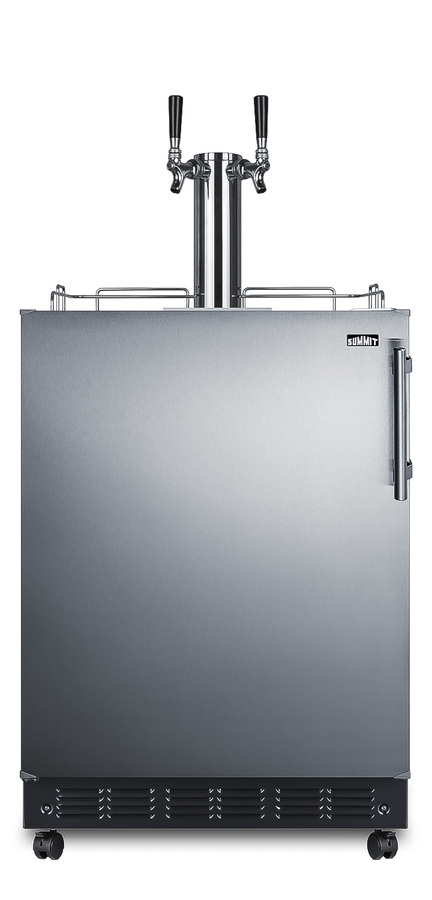

24" Wide Wine Kegerator

SKU: SBC7BRSWK2LHD
Made in Europe with a versatile design approved to both residential and commercial standards
Estimated Time to Ship:

2 to 4 days

Door Swing:
RHD LHD
Color: Stainless Steel/Black

*Additional features may vary

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
33.5" H x 23.63" W x 22.38" D
(85cm H x 60cm W x 57cm D)

Overview
Nominal Height 34.0" (86 cm)
Height of Cabinet 33.5" (85 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.38" (57 cm)
Depth with Handle 24.0" (61 cm)
Depth with door at 90° 44.25" (112 cm)
Capacity 5.3 cu.ft. (150 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 293.0kWh/year
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101106274
Kegerator
Door Swing LHD
Reversible No
Height Adjustable Yes
Tap Kit Yes
Number of Taps 2
Adjustable Shelves Yes
Shelf Type Glass and Scalloped
Shelf Qty 4
Thermostat Type Dial
Interior Light Yes
Refrigerant R600a
Refrigerant Amount 0.64 oz.
Inter Height 27.75" (70 cm)
Interior Width 21.0" (53 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 6.0" (15 cm)
Level Legs Qty 4
Wheel Qty 4
Temperature Range 36 to 46°F

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
Lock
L-SideLock
Add a single keyed lock located on the door's side (NOTE: side lock adds 1" to overall unit width and comes in white)
L-TopLock
Add a single keyed lock located on top of the unit

24" Wide Wine Dispenser

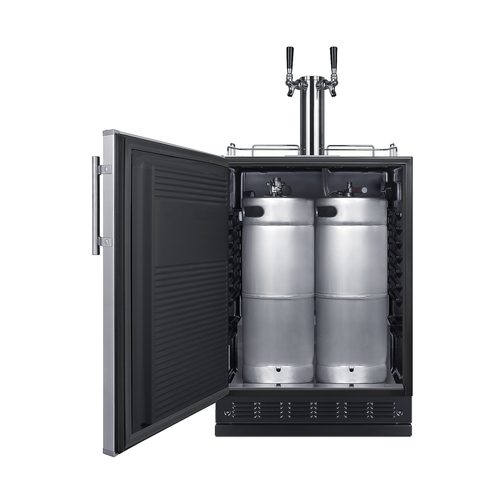

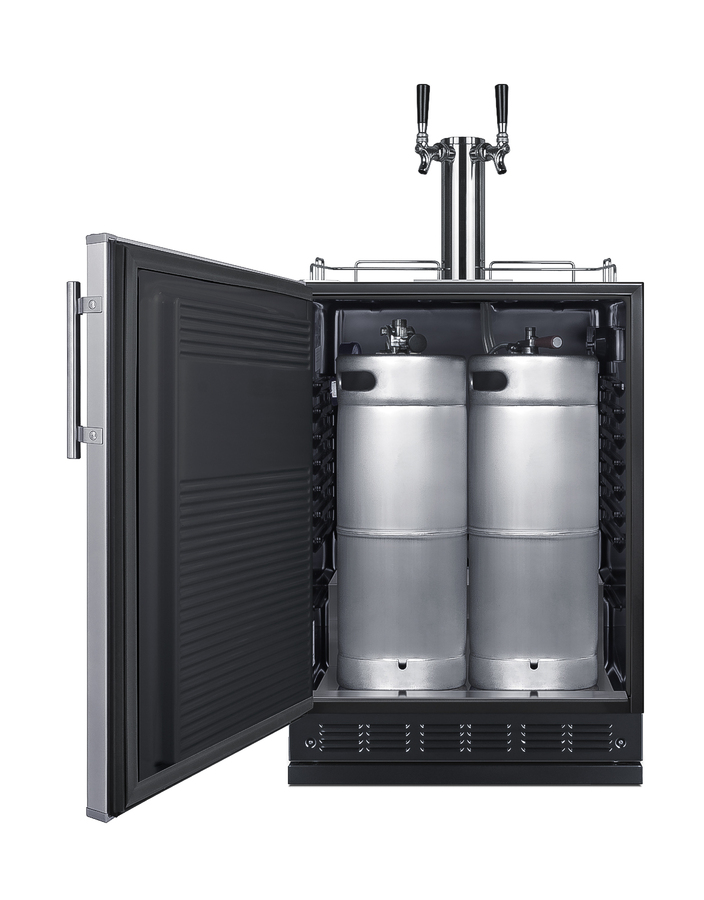

Kegerator includes all of the equipment you need to serve wine from two sixtel kegs

Made in Europe & the USA

Refrigeration unit is constructed in Europe and designed and modified in the USA

Versatile use

Approved for both residential and commercial settings

Commercially listed

ETL-S listed to ANSI-NSF Standard 7 for commercial use

Complete wine tap kit included

Includes a 5 lb. CO2/Nitrogen tank and regulator, dual tap draft arm, Sankey American tap, and connection hardware

Dual tap system

Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs

Slim counter height dimensions for recessed or freestanding use

Ideal 24" footprint for an easy fit

Height adjustable

Adjustable legs allow you to set the height anywhere between 33.5" and 34.5" to best fit under your counter

Leg shield included

Removable cover that lets you fill the gap that can appear between the refrigerator's kickplate and floor when raising the height

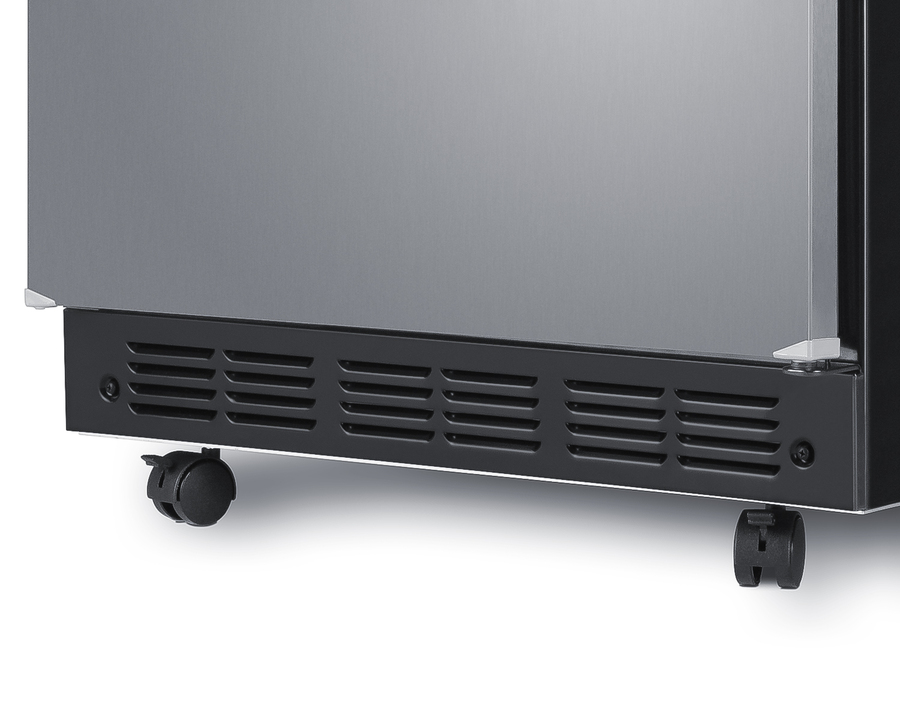

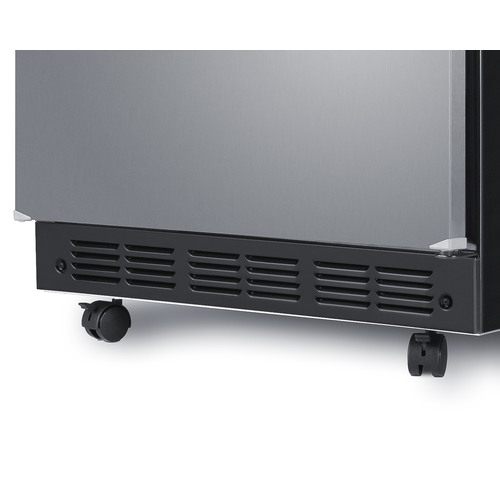

Caster set

Set of four wheels (two with locking brakes) for optional installation to allow more mobility as needed

Automatic defrost

No-frost operation for minimum user maintenance

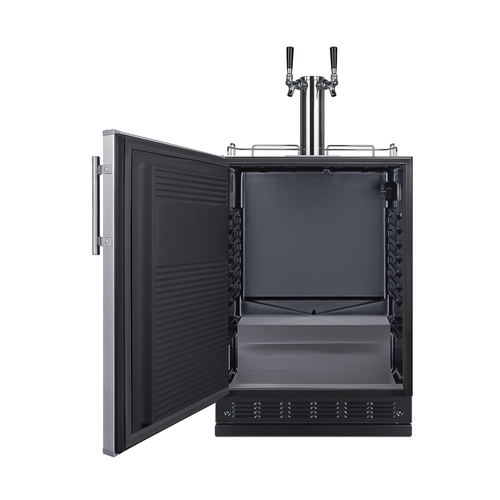

Convertible to a refrigerator

Includes tap cover, three glass shelves, and one scalloped bottle rack to allow easy storage when not holding kegs

Interior light on rocker switch

Turn the light on when you need it and off when you're done with a convenient rocker switch located just behind the thermostat

One piece interior liner

Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Hidden evaporator

Cold wall design with hidden evaporator creates a seamless, easy to clean interior

Black interior

Attractive jet black finish inside to match the cabinet and kickplate

Adjustable mechanical thermostat

Simple and intuitive analog controls located inside for easy temperature management

Pro style handle

Stainless steel handle adds an attractive touch

Smudge-proof stainless steel door

Attractive finish in real stainless steel with a unique coating that lets you wipe off fingerprints easily to ensure a clean look

Stainless steel drip tray

Removable two-piece drip tray included for added convenience

Interior CO2 holder

Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs

CO2/Nitrogen tank included

Full-sized cannister ships with tapping equipment (ships empty)

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

Left hand door swing

For this unit with the door opening from the other side, see model SBC7BRSWK2

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Made in Europe, Summit Commercial's SBC7 kegerator series offers refreshing convenience to any home or foodservice setting looking to serve a variety of beverages on tap.

Sized with a 24" footprint, model SBC7BRSWK2LHD is a versatile wine dispenser that is ETL-S listed to NSF-7 standards for use in commercial environments. The design also meets residential standards for home use. It can be recessed under counters or used freestanding. Adjustable legs allow you to set the height between 33 1/2" and 34 1/2" for the perfect fit. We include a black steel leg shield for optional use if you find there is too much space between the front and floor when the unit is set at its taller height, as well as a set of casters (two locking) for optional mobility if preferred. The stainless steel door offers an elegant look for any kitchen, with a special coating that makes it easy to wipe off the surface for a fingerprint-resistant front. The stainless steel handle is side mounted for an easy grip and attractive look. This unit ships with a left hand door swing.

This kegerator ships with our complete commercial grade stainless steel twin tap kit. The tower includes two faucets to serve wine from two 1/6 (sixtel) kegs. We also include a CO2 tank, regulator, and all of the equipment you need to serve wine on tap.

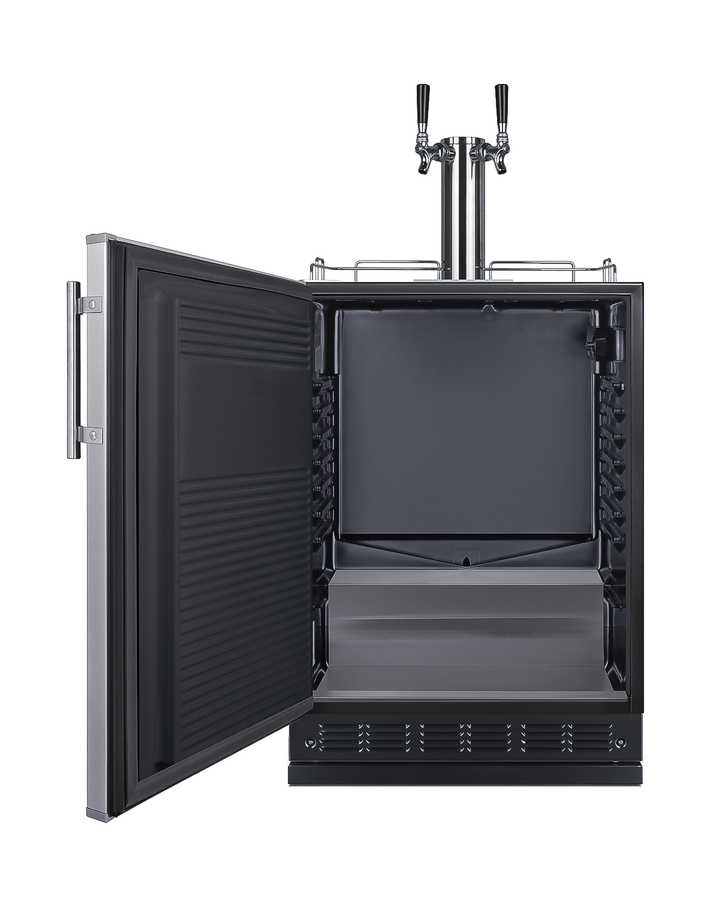

Inside, the SBC7BRSWK2LHD features a black interior liner and stainless steel floor for added protection when loading kegs. The interior light comes with an on/off rocker switch located behind the dial thermostat. Classic mechanical controls ensure an intuitive, trouble-free performance without any internal boards or chips. Automatic defrost reduces user maintenance and our signature cold wall design creates an efficient, reliable cooling system. We include a set of adjustable glass shelves and one scalloped bottle rack for easy storage if using the interior as a standard beverage refrigerator.

In addition to this dual tap wine kegerator, the SBC7 series also includes choices that dispense beer and cold brew coffee. Summit also manufactures similar kegerators in ADA compliant height, as well as for outdoor applications. Browse the full Summit product line or contact our product specialists to find the right fit for your needs.

Download
BROCHURE w/ DRAWINGS
SBC7BRSWK2LHD.pdf
Download
TECHNICAL DRAWING (.dwg)
SBC7BRS.dwg
Download
ASSEMBLY DRAWING
SBC7BRS-Assembly.pdf
Energy Guide

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
