24" Wide Built-In All-Freezer With Icemaker

SKU: SCFF53BXCSSTBIM

Frost-free operation ensures minimum user maintenance

Estimated Time to Ship:

5 to 7 days

Find a dealer

Application:
Indoor Outdoor

Icemaker:
Without Icemaker With Icemaker

Color: Stainless Steel

*Additional features may vary

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

34.0" H x 23.63" W x 23.5" D
(86cm H x 60cm W x 60cm D)

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	34.0" (86 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.35" (64 cm)
Depth with door at 90°	45.63" (116 cm)
Capacity	4.72 cu.ft. (134 L)
Defrost Type	Frost-Free
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	390.0kWh/year
Amps	2.0
Voltage/Frequency	115 V AC/60 Hz
Weight	108.0 lbs. (49 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101046464
Freezer
Door Swing	RHD
Reversible	Factory Reversible
Interior Height	25.75" (65 cm)
Interior Width	19.0" (48 cm)
Interior Depth	17.25" (44 cm)
Shelf Type	Chrome
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R134a
Refrigerant Amount	2.8 oz.
High Side PSI	270.0
Low Side PSI	106.0
Sabbath Mode	Yes

Exterior

SSK - Stainless steel kickplate Stainless steel kickplate factory installed	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
LHD - Left hand door swing Door reversal to left hand swing

Handle

TBC Copper Towel Bar Handle Upgrade Change this handle to a 12" vertically mounted towel bar style handle made from pure copper for antimicrobial protection

Undercounter freezer

Frost-free all-freezer in a 24" footprint for built-in or freestanding use

Frost-free operation

No-frost convenience eliminates the need to manually defrost the unit

Built-in capable

Make the best use of space by installing your freezer under the counter and flush with other cabinets

Stainless steel construction

Exterior cabinet and door are fully wrapped in stainless steel for lasting durability with professional elegance

Digital thermostat

Electronic controls offer easy and intuitive temperature management

Factory installed icemaker

Produces a steady supply of ice for added entertaining convenience

Recessed LED light

Elegant and efficient interior lighting automatically illuminates when the door is opened

Adjustable shelves

Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Professional towel bar handle

Curved handle in brushed stainless steel

Fully finished cabinet

Allows the freezer to be used as a freestanding model

High temperature alarm

High temperature alarm sounds if the unit's temperature goes out of the recommended range

Open door alarm

Audible alarm will sound if the door is left open longer than one minute

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of a power loss

Matching refrigerator available

Pair with the FF64BXCSSTB for a matching side-by-side or stackable set

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Lead-free certified

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

SUMMIT's SCFF53B Series brings quality and convenience under the counter with a fully featured lineup of built-in frost-free all-freezers.

Sized with a convenient 24" footprint, the SCFF53BXCSSTBIM freezer can be used built-in or freestanding. It has a stainless steel wrapped cabinet and sealed back for easy cleaning. The stainless steel wrapped door includes our signature towel bar handle to complete the professional look.

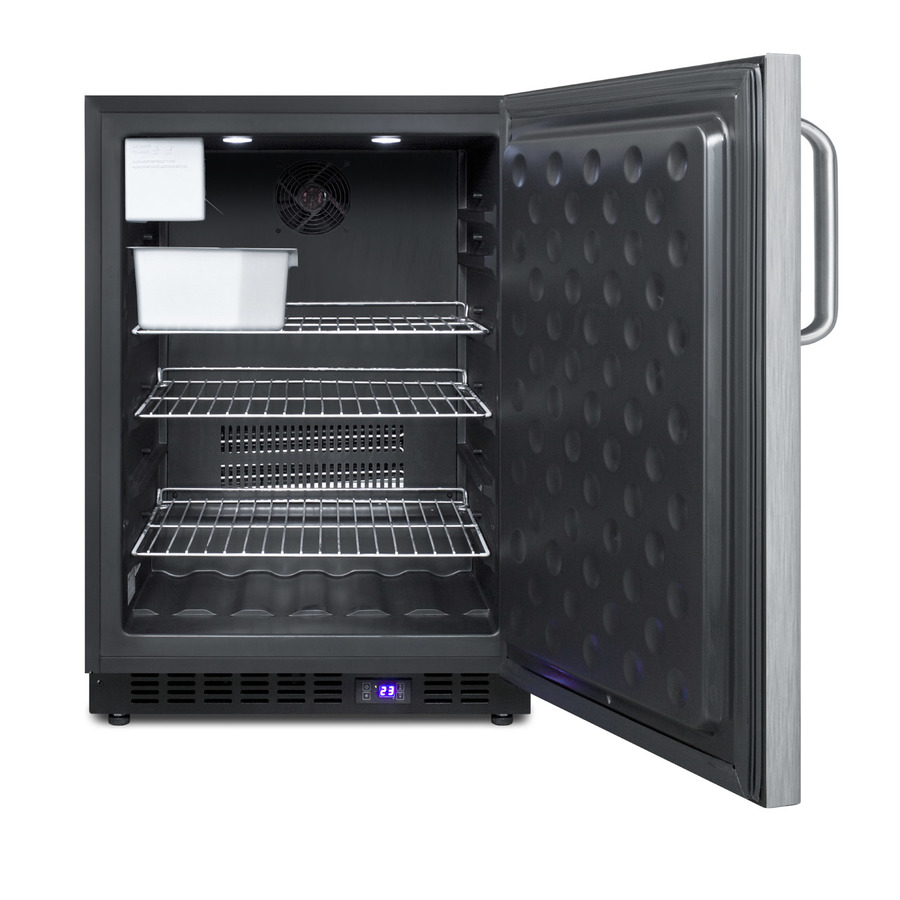

Inside, the SCFF53BXCSSTBIM utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable chrome shelves for flexible storage and a factory installed icemaker. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

With its deluxe style and user-friendly features, the SCFF53BXCSSTBIM is the perfect choice for home or commercial kitchens. For a matching frost-free all-refrigerator, see the FF64BXCSSTB.

BROCHURE
SCFF53BXCSSTBIM.pdf

USE & CARE
FF1532B_SPR316OS_FF64B_SPR627OS_SCFF1533B_SCFF52W_SCFF53B_SPFF51OS_04.2021.pdf

USE & CARE
Icemaker_Instructions_8-30-23.pdf

MSDS INFORMATION
R600a_K.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
