Compact All-Freezer

SKU: SCFU386CSS

Meets NSF-7 standards for commercial storage

Estimated Time to Ship:

3 to 5 days

Find a dealer

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

24.5" H x 23.38" W x 20.63" D
(62cm H x 59cm W x 52cm D)

Overview
Nominal Height	24.0" (61 cm)
Height of Cabinet	24.0" (61 cm)
Height to Hinge Cap	24.5" (62 cm)
Nominal Width	24.0" (61 cm)
Width	23.38" (59 cm)
Nominal Depth	21.0" (53 cm)
Depth	20.63" (52 cm)
Depth with door at 90°	42.0" (107 cm)
Capacity	2.0 cu.ft. (57 L)
Defrost Type	Manual
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	4.0
Voltage/Frequency	115 V AC/60 Hz
Weight	93.0 lbs. (42 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101052816
Freezer
Door Swing	RHD
Reversible	No
Interior Height	18.0" (46 cm)
Interior Width	18.75" (48 cm)
Interior Depth	15.38" (39 cm)
Shelf Type	Wire
Shelf Qty	2
Adjustable Shelves	Yes
Thermostat Type	Dial
Interior Light	Yes
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	1.4 oz.
High Side PSI	280.0
Low Side PSI	90.0
Compressor Step Height	8.25" (21 cm)
Compressor Step Width	18.75" (48 cm)
Compressor Step Depth	7.0" (18 cm)
Temperature Range	-4 to 5°F

Exterior

Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	FA Front - Fan assist Fan assisted cooling for enclosed use in cubbies or cabinets, front breathing
FA Rear - Fan assist Fan assisted cooling for enclosed use in cubbies or cabinets, rear breathing	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Door

T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings	T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint Tinted door in reflective deep blue finish with high energy savings	T3 Door Tint Reflective door tint in light blue finish for medium energy savings
T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings

Commercially approved

ETL-S listed to NSF standards for commercial use

Factory installed lock

Keyed security for a secure interior

Self-closing door

Ideal for busy commercial settings, where customers and staff don't always have the chance to ensure the door is closed

Fully finished stainless steel cabinet

304 grade stainless steel for an attractive and durable finish

LED lighting

Switchable light illuminates whole interior

Glass door

Provides a full display of stored contents

Removable shelves

Two wire shelves included

Adjustable thermostat

Rear mounted to prevent accidental adjustments

Manual defrost

Static cooling system for improved temperature stability

Designed to operate at 0ºF

Temperature range: -4 to 5ºF

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

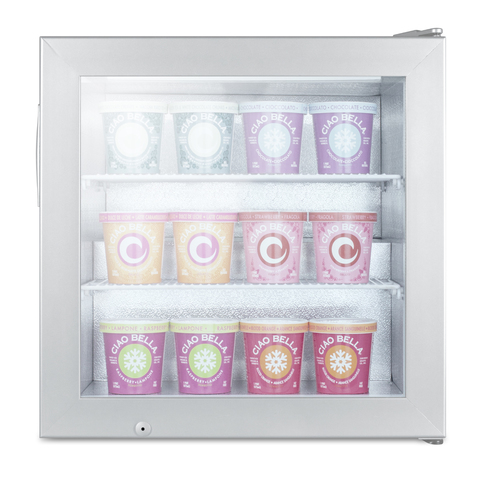

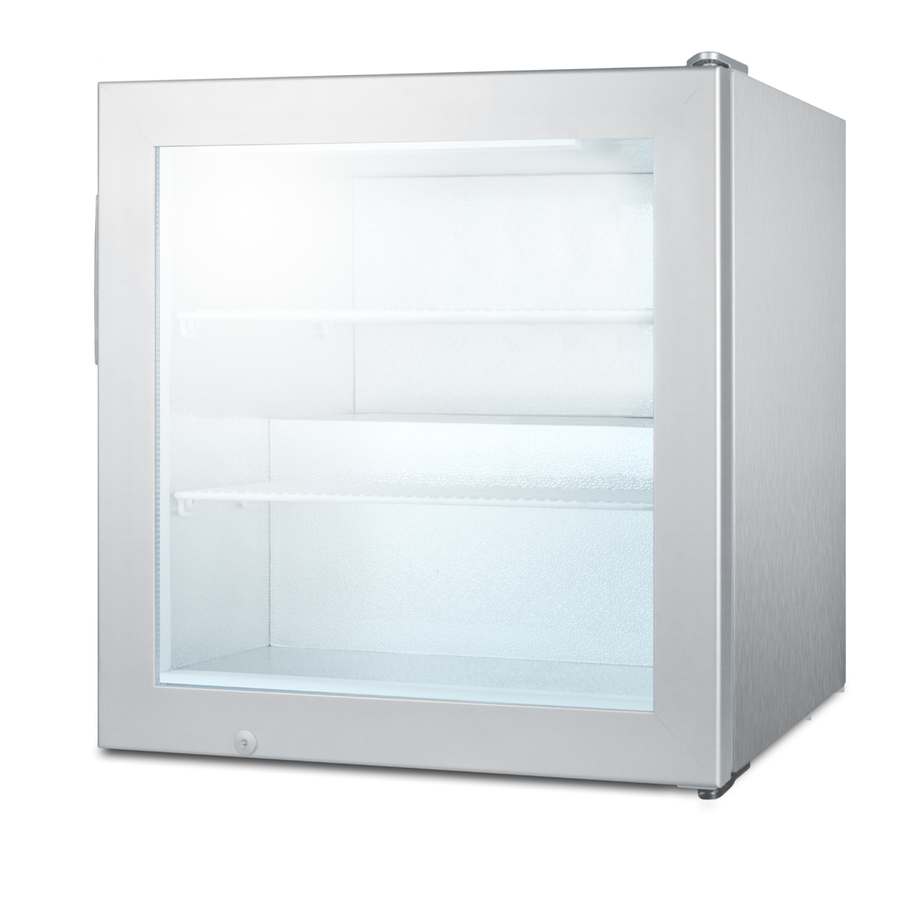

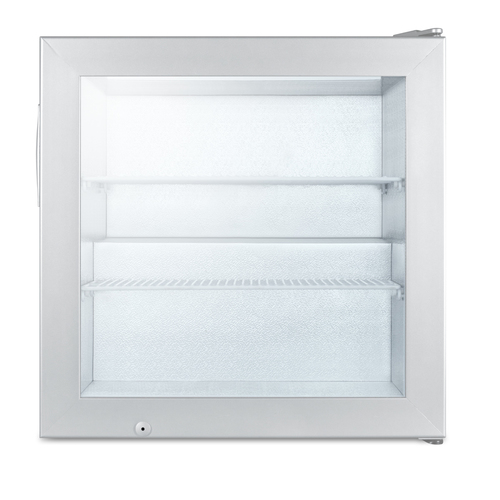

SUMMIT SCFU386 is a compact display freezer specially designed to promote impulse sales of select frozen goods.

This manual defrost unit comes fully featured for convenient use in commercial settings. A self-closing glass door helps to protect items from accidents, with an LED light providing an attractive presentation. Two wire shelves offer flexible storage and a factory installed lock offers security when needed. This model has a stainless steel wrapped cabinet to add to the professional look.

The SCFU386 is ETL-S listed to NSF standards for use in commercial settings. With its compact size and special display features, this model is ideal for storing and displaying sorbet, water ice, and other frozen treats ideally served at 0ºF. For this unit with a stainless steel cabinet, see the SCFU386CSS.

BROCHURE
SCFU386CSS.pdf

REVIT MODEL
QF_Summit_SCFU386_Countertop_Commercial_Freezer.rfa

USE & CARE
SCFU386manual051914.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
