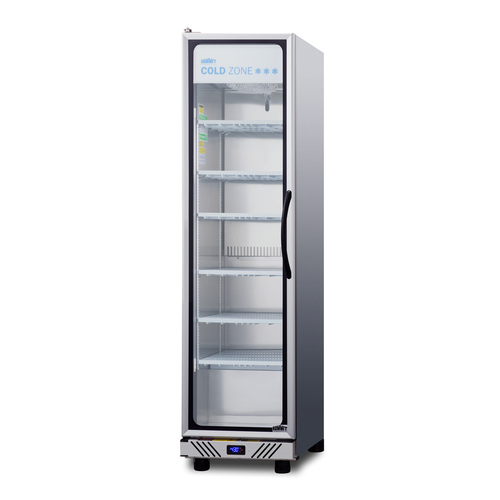

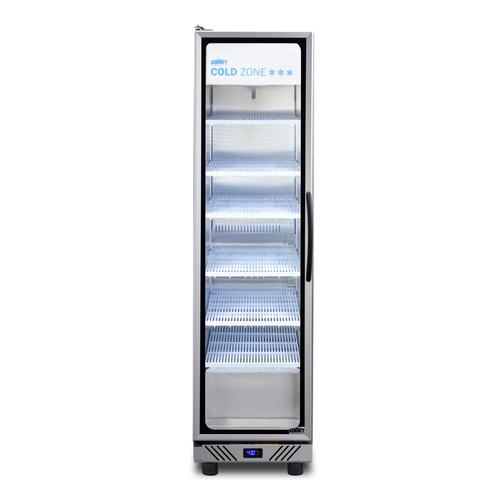

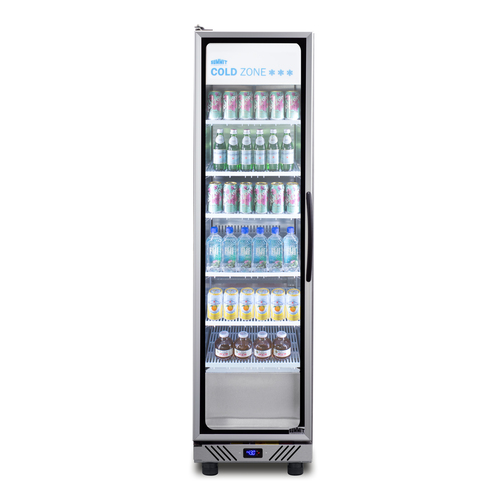

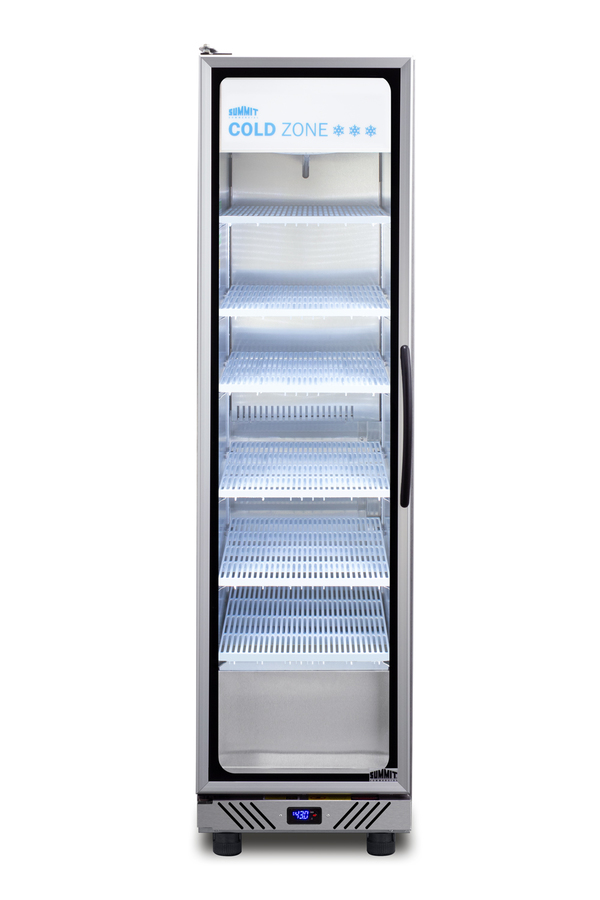

19.5" Wide Commercial Beverage Center
(184cm H x 50cm W x 60cm D)
SPECIFICATIONS
Overview
|
|
---|---|
Height of Cabinet | 71.75" (182 cm) |
Height to Hinge Cap | 72.5" (184 cm) |
Width | 19.5" (50 cm) |
Depth | 23.5" (60 cm) |
Depth with Handle | 26.0" (66 cm) |
Depth with door at 90° | 41.5" (105 cm) |
Capacity | 9.9 cu.ft. (280 L) |
Defrost Type | Automatic |
Door | Glass |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 2.6 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 165.0 lbs. (75 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101076140 |
Refrigerator Features
|
|
Door Swing | LHD |
Reversible | No |
Shelf Type | Plastic |
Shelf Qty | 7 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior |
Refrigerant Type | R290a |
Refrigerant Amount | 1.58oz. |
High Side PSI | 245.0 |
Low Side PSI | 130.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Temperature Range | 36°F to 43°F |
Sound Level | 59.1 dB |
Dimensions
|
|
Interior Height | 57.0" (145 cm) |
Interior Width | 16.38" (42 cm) |
Interior Depth | 15.0" (38 cm) |
Compressor Step Height | 9.0" (23 cm) |
Compressor Step Width | 16.38" (42 cm) |
Compressor Step Depth | 9.0" (23 cm) |
AVAILABLE UPGRADES
Door | ||||
---|---|---|---|---|
|
FEATURES
ETL-S listed to NSF standards and approved to UL-471 electrical standard for commercial use

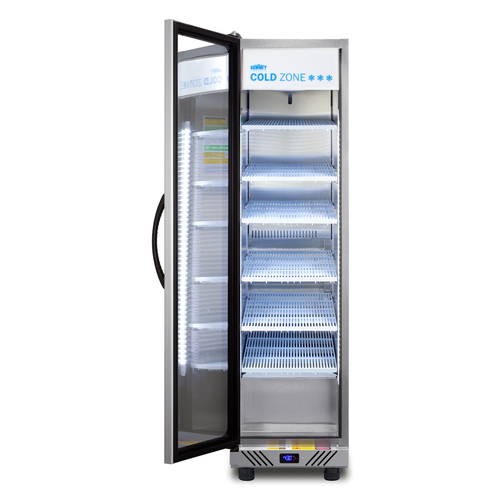

Heat-safe glass door offers full display all the way down to the floor
Walls are constructed from stainless steel for added durability and easy cleanup
Door will automatically close when left ajar, preventing items from accidentally being exposed to ambient temperatures
LED lighting on both sides and backlit header panel illuminate the interior for easy viewing
Electronic controls for precise temperature management
Generous 9.9 cu.ft. interior provides users with spacious storage

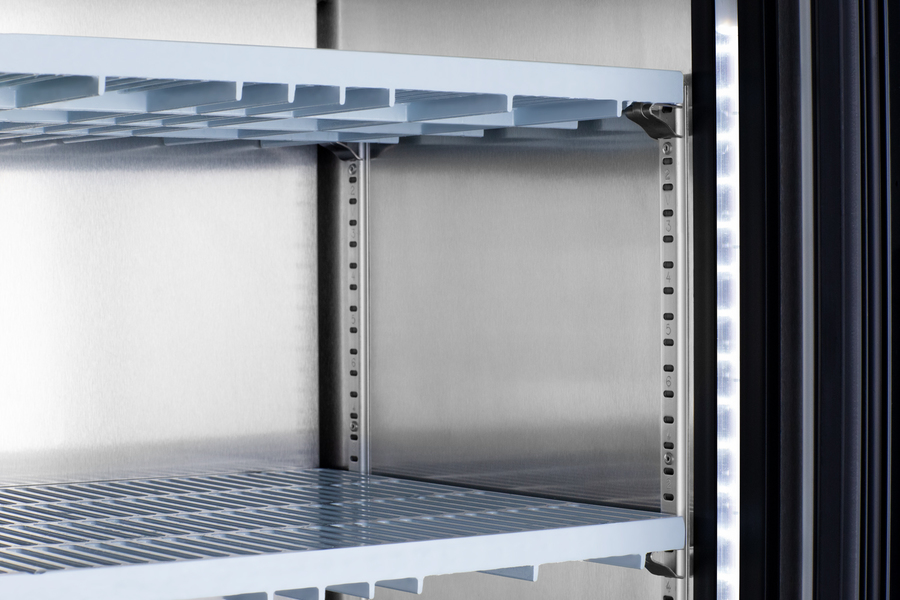

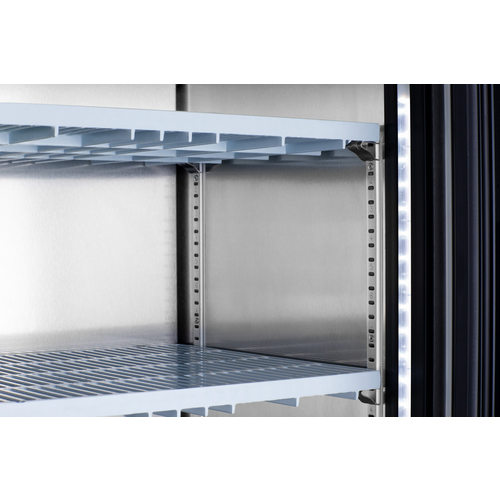

Adjustable shelving accommodates virtually any size with convenient cantilevered system
Six adjustable full and one removable half shelf accommodate a variety of sizes inside the 9.9 cu.ft. interior
High/low temperature alarm warns of fluctuations outside the specified temperature range
Reduced user maintenance with automatic defrost
Commercial grade compressor with internal fan-forced cooling ensures the interior is evenly cooled from top to bottom with rapid recovery from door openings
Limits operation time for fan, compressor, and interior lighting for savings on energy use and costs
Easily allows users to manage the interior lighting to best meet their needs
Pre-installed sturdy, curved handle in black
This unit comes with a left-hand door swing. For a right-hand door swing, see model SCR1104RH
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit Commercial's line of beverage centers is designed for durable service and convenient use in an attractive presentation. Made in North America, the SCR1105LH is an upright beverage center conveniently sized with a slim 19.5 inch width. It is ETL-S listed to NSF-7 standards for use in commercial settings and is designed for freestanding use. The double pane tempered glass door provides a full view of storage all the way down to the floor, with an aluminum trim for added style. The door comes with a left-hand door swing and features a self-closing design to help protect stored items in commercial settings where customers may not take the time to ensure a tight seal. The stainless steel cabinet and kickplate afford added durability, while the factory-installed curved, black door handle completes the look. Four leveling legs keep the unit level on uneven surfaces. Inside, the interior is fully constructed from stainless steel for easy cleanability and long-lasting durability. LED lighting on each side and the backlit header panel above the door illuminate the interior, creating an inviting view to help increase impulse sales. While the lighting is designed for a continuous presentation, users can turn it off with the rocker switch located on the ceiling inside the unit. Cantilevered shelving allows users to adjust the six plastic perforated shelves to virtually any position to accommodate a variety of sizes, with a removable half shelf at the bottom of the unit for added storage as needed. For easy temperature management, the SCR1105LH is equipped with a digital thermostat located in the kickplate. A commercial-grade compressor with powerful fan-forced cooling provides excellent temperature stability with rapid recovery after door openings, perfect for keeping the 9.9 cu.ft. interior cooled from top to bottom. Automatic defrost operation means reduced maintenance for user convenience. Additional features include a high/low temperature alarm that provides an audible warning if the interior temperature goes out of range, and the Energy-Saving Mode to limit the length of operation time for the fan, compressor, and interior lighting, helping to save users energy consumption and costs. With its large capacity storage and durable interior, the SCR1105LH is ideal for coffee shops, convenience & grocery stores, and similar commercial environments seeking reliable cooling in a durable, slim-fitting design. For this unit with a right-hand door swing, see model SCR1104RH.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
