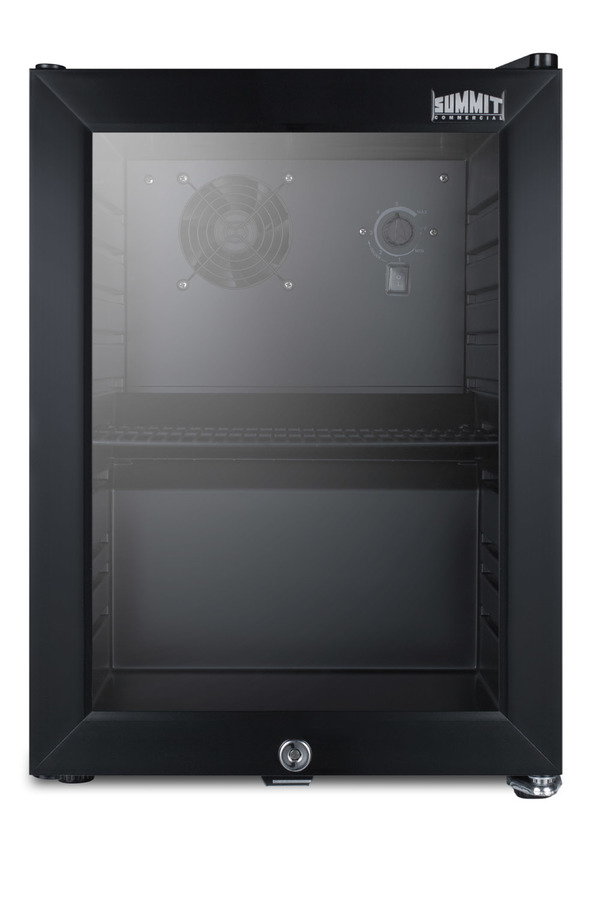

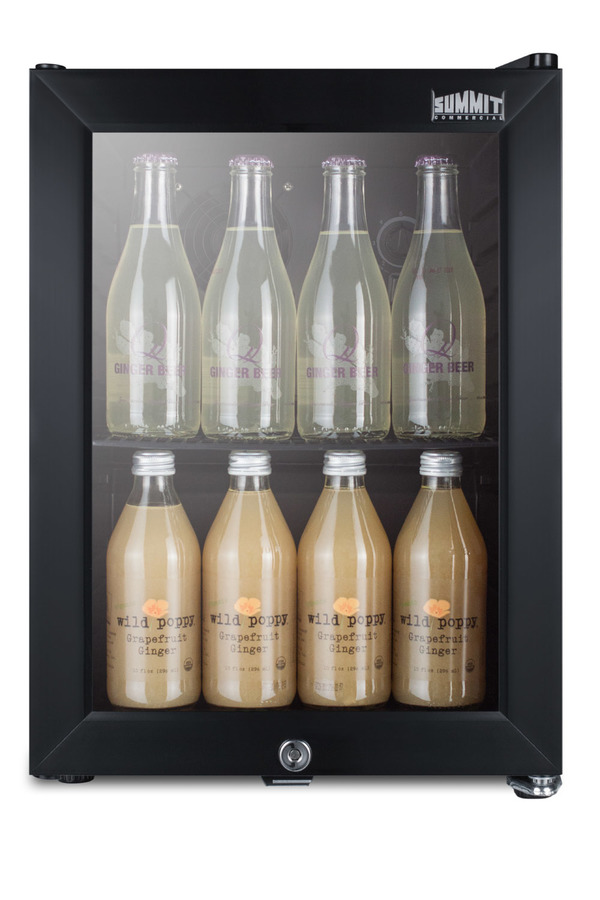

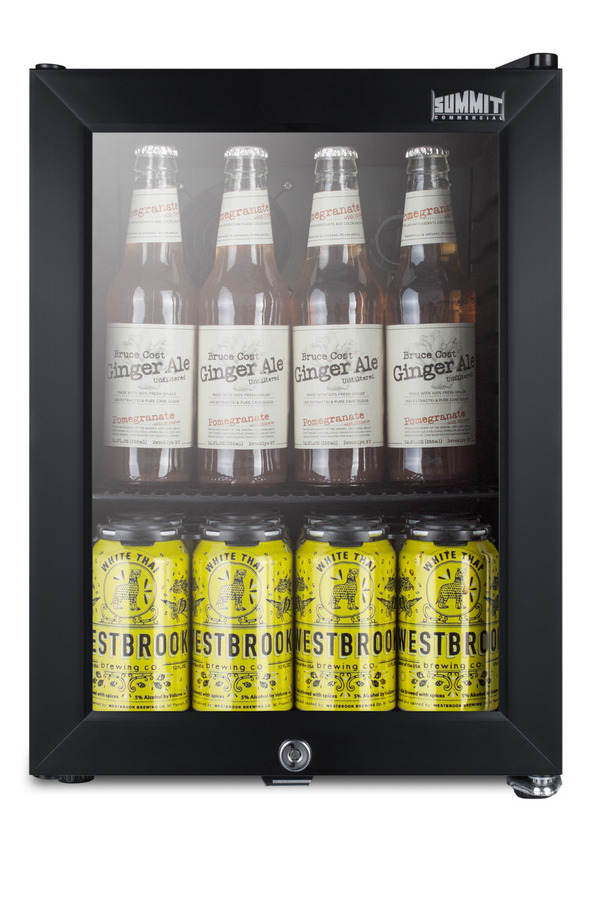

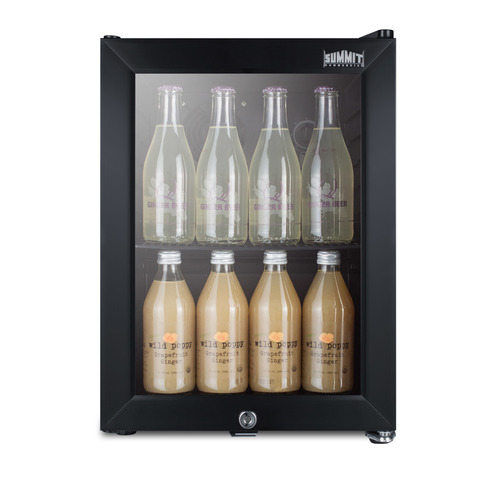

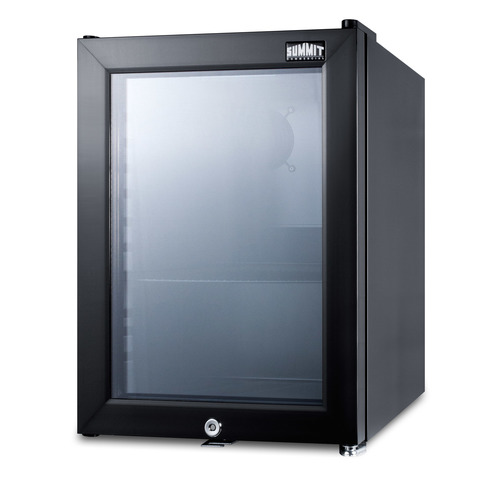

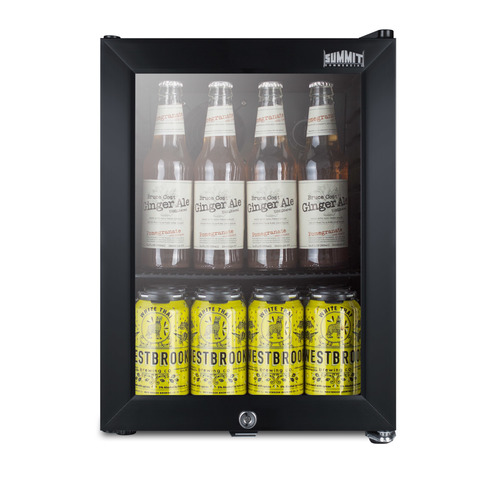

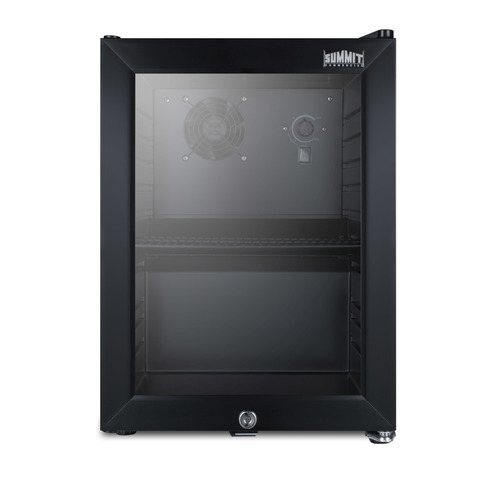

Compact Beverage Center

SKU: SCR114L

Compact size offers a convenient solution for impulse sales, with LED lighting for an attractive view of stored products

Estimated Time to Ship:

Next day shipping

Find a dealer

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

19.25" H x 13.75" W x 17.25" D
(49cm H x 35cm W x 44cm D)

Overview
Nominal Height	19.0" (48 cm)
Height of Cabinet	18.88" (48 cm)
Height to Hinge Cap	19.25" (49 cm)
Nominal Width	14.0" (36 cm)
Width	13.75" (35 cm)
Nominal Depth	18.0" (46 cm)
Depth	17.25" (44 cm)
Depth with door at 90°	30.0" (76 cm)
Capacity	0.85 cu.ft. (24 L)
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	47.0 lbs. (21 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101056227
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Shelf Type	Wire
Shelf Qty	1
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	0.6oz.
High Side PSI	220.0
Low Side PSI	43.0
Level Legs Qty	2
Interior Light	Yes
Temperature Range	34°F to 43°F
Sound Level	34.5 dB
Dimensions
Interior Height	15.0" (38 cm)
Interior Width	10.63" (27 cm)
Interior Depth	11.0" (28 cm)
Compressor Step Height	8.0" (20 cm)
Compressor Step Width	10.63" (27 cm)
Compressor Step Depth	4.0" (10 cm)

Door

T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings	T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings
T3 Door Tint Reflective door tint in light blue finish for medium energy savings	T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings
T2 Door Tint Tinted door in reflective deep blue finish with high energy savings

Commercially approved

ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

Compact dimensions

Less than 14" wide to take up minimum counter space

Double pane tempered glass door

Heat resistant design provides clear view of stored products

Automatic defrost

No-frost convenience for reduced user maintenance

Factory installed lock

Keyed lock for a secure interior, with 2 keys included

Reversible door

User-reversible door swing offers more flexibility

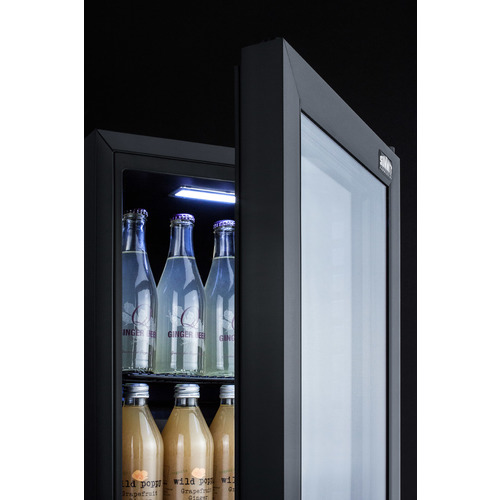

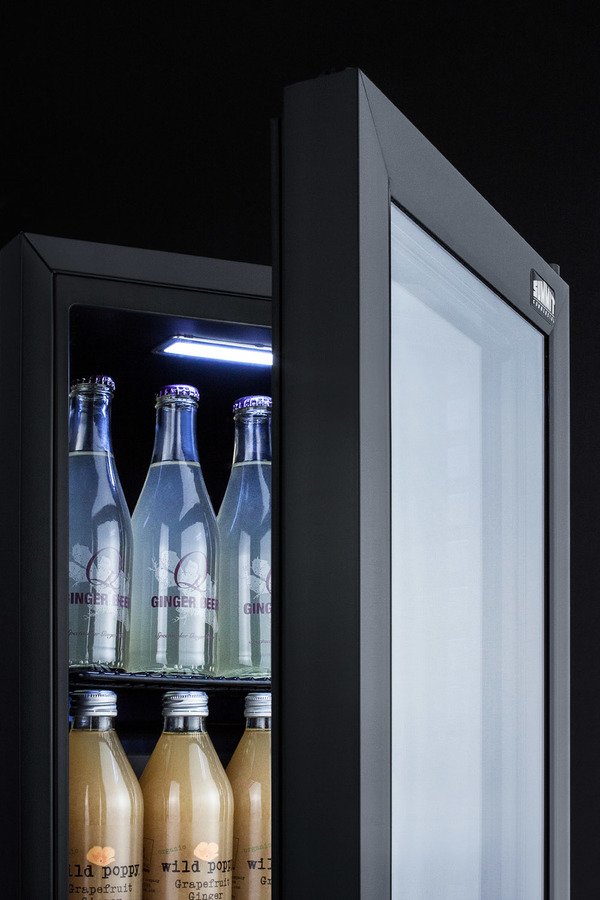

LED lighting

Interior LED lighting offers an attractive and energy efficient view

Black interior finish

Modern look that pairs well with LED lighting, ensuring stored items are illuminated in attractive style to maximize impulse sales

Dial thermostat

Adjustable thermostat located inside to prevent unsupervised temperature changes

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Adjustable wire shelf

Multiple positions allow you to adjust your storage to accommodate a range of sizes

Compressor-based cooling system

Commercial design with a quality compressor to ensure powerful cooling and fast temperature recovery in busy commercial settings

Sealed back

Space-saving design with no exposed coils in the rear offers easy cleanability

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT COMMERCIAL offers a quality line of compact refrigeration designed and constructed for reliable use in commercial applications.

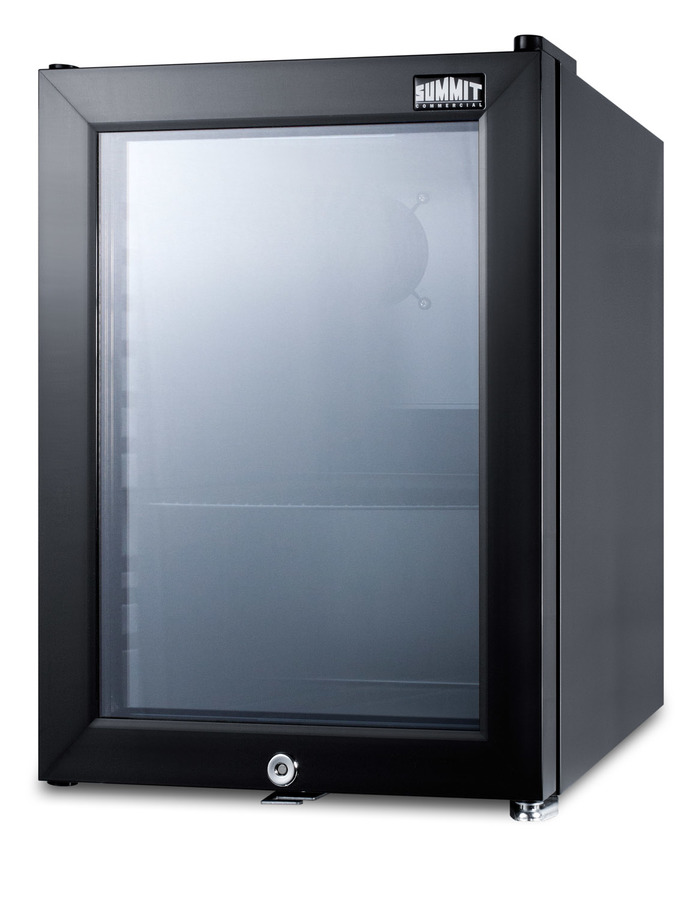

The SCR114L is a compact display refrigerator that is ETL-S listed to NSF-7 commercial standards and meets UL-471. It comes in a jet black finish with a user-reversible double pane tempered glass door to provide a full display of stored items. A factory-installed lock offers added security. This unit has a sealed back for easier cleaning.

Inside, the SCR114L utilizes automatic defrost operation for low maintenance use, with fan-forced cooling to ensure even temperature distribution. The commercial grade compressor helps to ensure more rapid temperature recovery. LED lighting provides an attractive and efficient view of the jet black interior. An adjustable wire shelf in black allows you to accommodate items of all sizes. The dial thermostat and on/off light switch is located inside the unit in order to prevent customers from making any adjustments.

With its ideal dimensions, commercial design, and user-friendly features, the SCR114L offers added convenience to commercial beverage storage and display.

BROCHURE w/ DRAWINGS
SCR114L.pdf

TECHNICAL DRAWING (.dwg)
SCR114L_BEV._CENTER__A-C_2000_.dwg

REVIT MODEL
QF_Summit_SCR114L_Compact_Commercial_Beverage.rfa

USE & CARE
SCR114L_Manual_4-2-2019.pdf

MSDS INFORMATION
MSDS_R600a_C.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
