24" Wide Single Zone Commercial Wine Cellar
5 to 7 days
All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
(148cm H x 60cm W x 58cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 59.0" (150 cm) |
| Height of Cabinet | 58.38" (148 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.88" (58 cm) |
| Depth with Handle | 24.0" (61 cm) |
| Depth with door at 90° | 64.38" (164 cm) |
| Capacity | 11.0 cu.ft. (311 L) |
| Bottles | 25 bottles |
| Defrost Type | Frost-Free |
| Door | Glass |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.7 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 220.0 lbs. (100 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101065236 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | No |
| Shelf Type | Steel |
| Shelf Qty | 4 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.66 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 50.0" (127 cm) |
| Interior Width 1 | 20.0" (51 cm) |
| Interior Depth 1 | 16.5" (42 cm) |
| Temperature Range | 36 to 68ºF |
| Interior Height 2 | 4.75" (12 cm) |
| Interior Width 2 | 20.0" (51 cm) |
| Interior Depth 2 | 4.5" (11 cm) |
AVAILABLE UPGRADES
| Door | ||||
|---|---|---|---|---|
|
FEATURES
Design meets UL-471 commercial standards and is ETL-S listed to NSF-7 standards for commercial use
Stainless steel shelves are specially sized to store wider wine and champagne bottles
Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels. Clips can be adjusted to a flat position to accommodate more shelves

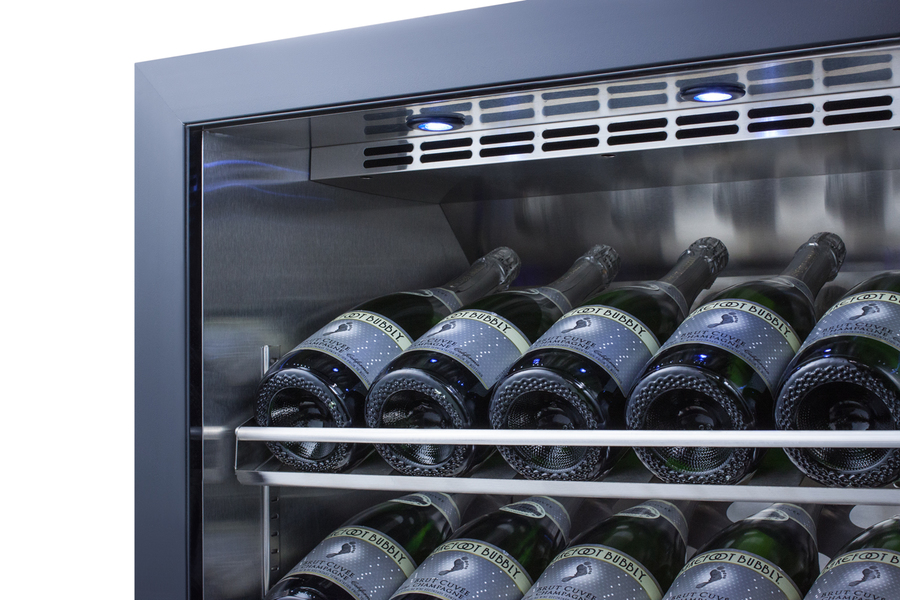

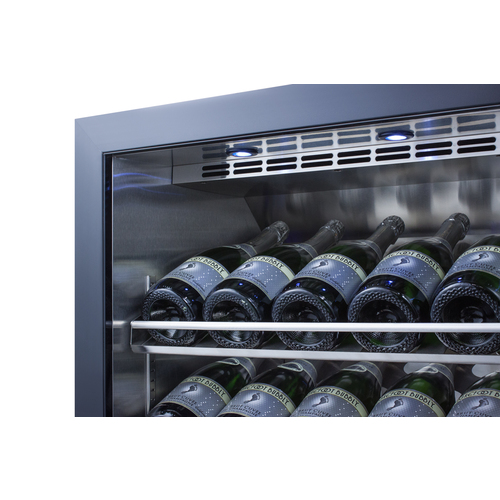

Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
Just 24" wide and deep for an easy fit in any setting
No-frost convenience requires no manual defrosting
Walls are constructed from stainless steel for added strength and easy cleanup
Heat-safe glass door with stainless steel trim offers full display all the way down to the floor
Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
Electronic controls for precise temperature management, with a readout viewable in Celsius or Fahrenheit
Interior can be set between 36 to 68ºF, allowing users to adjust for red wine, white wine, or champagne
Keyed lock for a secure interior (2 keys included)
Internal fan ensures the interior is evenly cooled from top to bottom
Attractive design in stainless steel to complete the look
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Allows the unit to be used freestanding
Flexible design with a front-breathing cooling system to allow built-in installation and a fully finished exterior that also enables safe freestanding use
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation. The SCR11561CHCSS is an upright wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, while the large 11 cu.ft. The self-closing stainless steel trimmed door includes a pro style handle and factory-installed lock for added security. This unit has a front-breathing cooling system that allows built-in installation, and a fully finished exterior that also enables freestanding use. It comes with a right hand door swing. Inside, the SC1156CHCSS includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. The digital control panel offers a wide 36 to 68ºF temperature range that allows you to program the optimum settings for red, white, or sparkling wine. The SCR1156CHCSS comes with a stainless steel wrapped cabinet. Additional choices are available in stainless steel, as well as alternate sizes. Browse our website to explore our full lineup of commercially approved wine cellars.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
