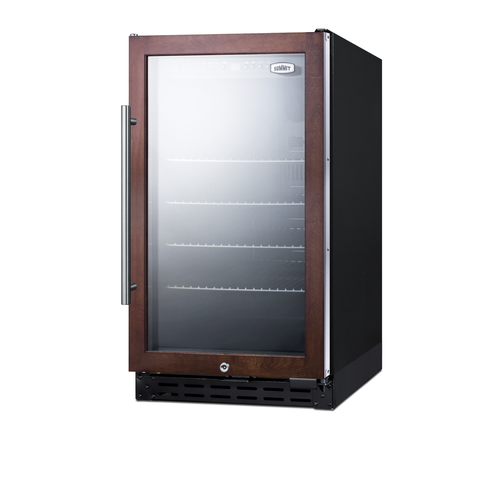

18" Wide Built-In Beverage Center, ADA Compliant (Panel Not Included)

SKU: SCR1841BPNRADA

Front-breathing design allows built-in installation under the counter in 18" wide spaces

Estimated Time to Ship:

3 to 5 days

Find a dealer

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

31.75" H x 17.75" W x 23.5" D
(81cm H x 45cm W x 60cm D)

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	31.75" (81 cm)
Nominal Width	18.0" (46 cm)
Width	17.75" (45 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with door at 90°	39.75" (101 cm)
Capacity	2.7 cu.ft. (76 L)
Defrost Type	Automatic
Door	Glass/Panel-Ready Frame
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	284.0kWh/year
Amps	2.0
Voltage/Frequency	115 V AC/60 Hz
Weight	85.0 lbs. (39 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101073668
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Chrome
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.06oz.
High Side PSI	150.0
Low Side PSI	50.0
Level Legs Qty	2
Interior Light	Yes
Sound Level	34.2 dB
Dimensions
Interior Height	21.5" (55 cm)
Interior Width	12.75" (32 cm)
Interior Depth	16.75" (43 cm)
Compressor Step Height	4.75" (12 cm)
Compressor Step Width	12.75" (32 cm)
Compressor Step Depth	4.5" (11 cm)

Exterior

SSK - Stainless steel kickplate Stainless steel kickplate factory installed	LHD - Left hand door swing Door reversal to left hand swing

Door

T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings	T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint Tinted door in reflective deep blue finish with high energy savings	T3 Door Tint Reflective door tint in light blue finish for medium energy savings
T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings

ADA compliant

32" height is designed to fit under lower ADA compliant counters

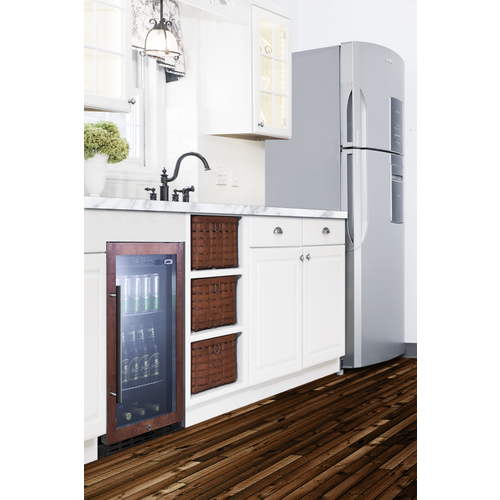

Built-in capable

Make the best use of space by installing your appliance under the counter

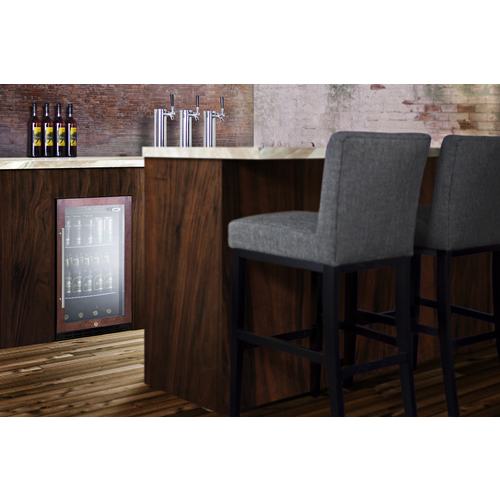

Commercially approved

ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

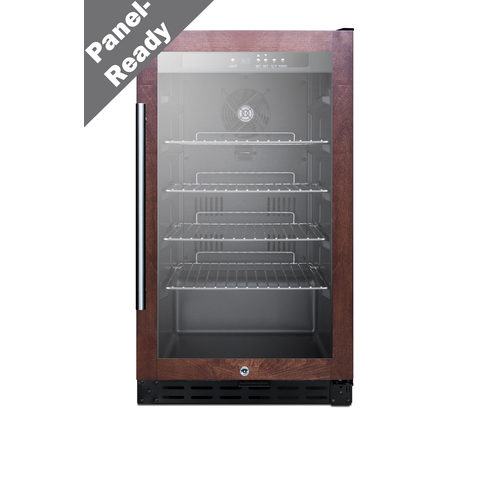

Panel-ready door trim

Door frame can be customized with a custom overlay panel (panel frame dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness)

Glass door

Double pane tempered glass to provide an elegant display with added protection

Factory installed lock

Keyed security on the door

Digital thermostat

Electronic controls for precise temperature management.

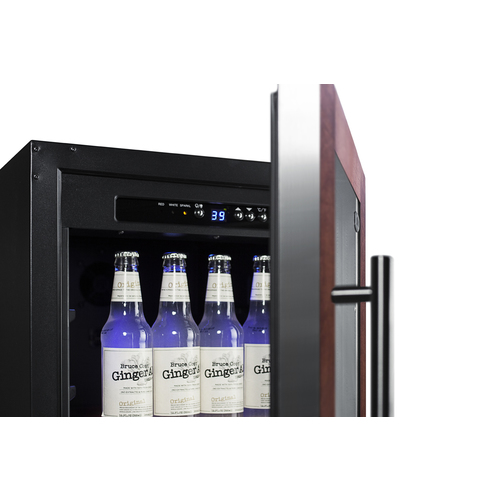

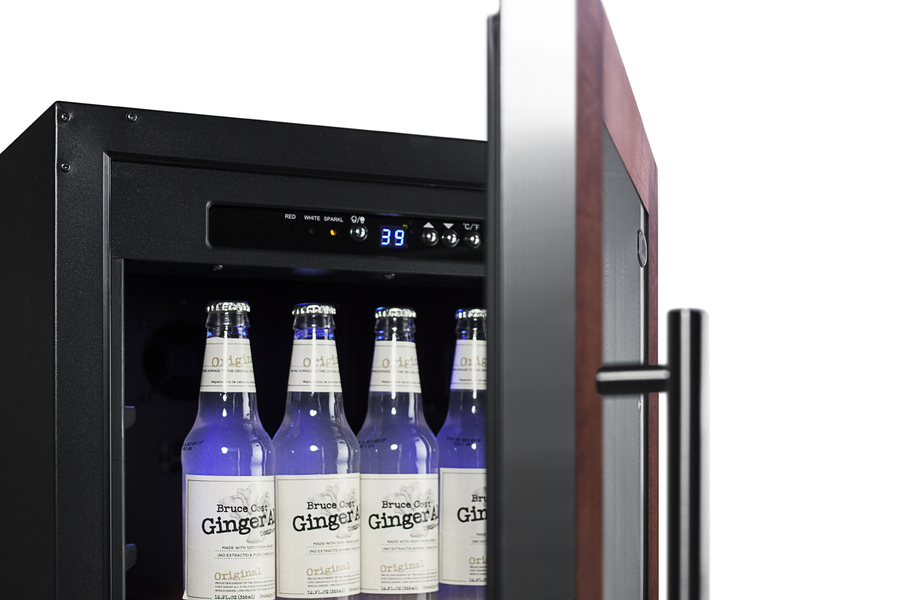

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

LED lighting

Gentle illumination with an on/off switch

Automatic defrost

Reduced maintenance with the convenience of auto defrost

Adjustable chrome shelves

Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup

Flush back

Space saving design

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT's selection of built-in undercounter beverage coolers combines user-friendly convenience with elegant style for an ideal fit in any setting.

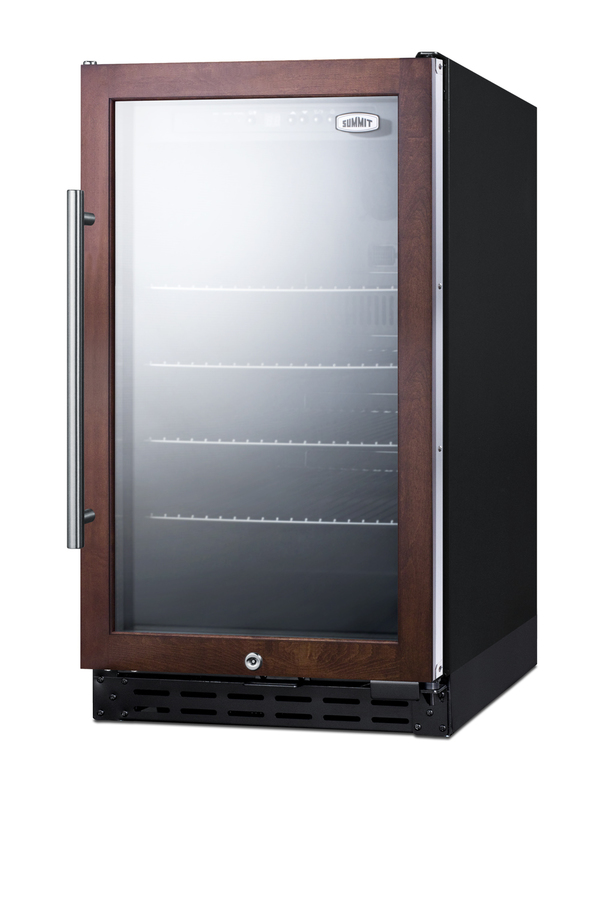

The SCR1841BPNRADA is an 18" wide all-refrigerator designed for use in residential settings. At 32" high, this unit is designed to fit under lower ADA compliant counters. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. The glass door features a panel-ready stainless steel door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness). NOTE: this unit ships with a right hand door swing. For a left hand version, add option LHD. Users provide their own handle.

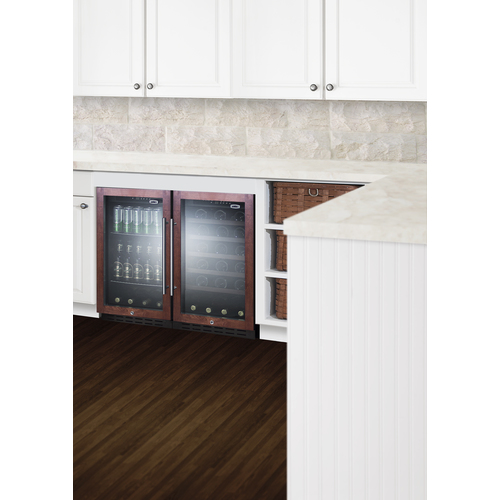

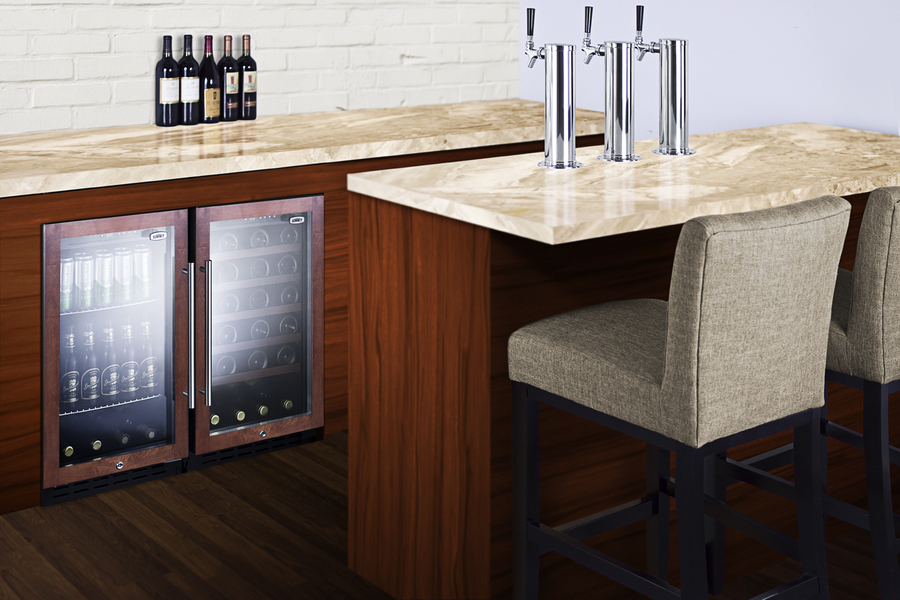

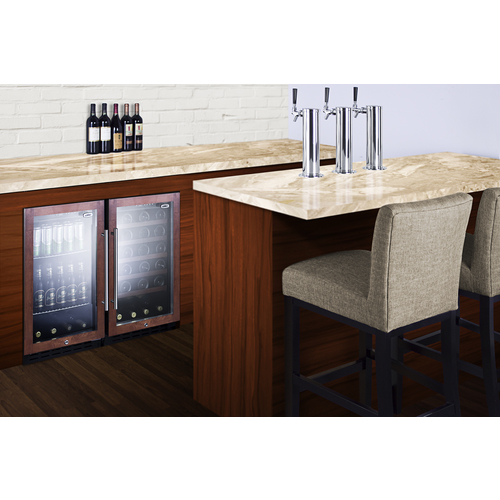

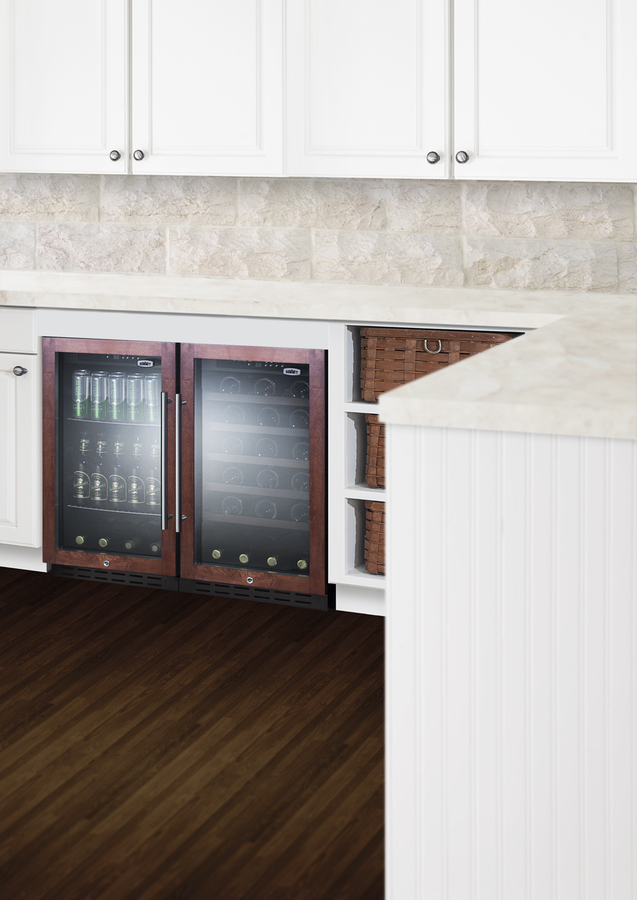

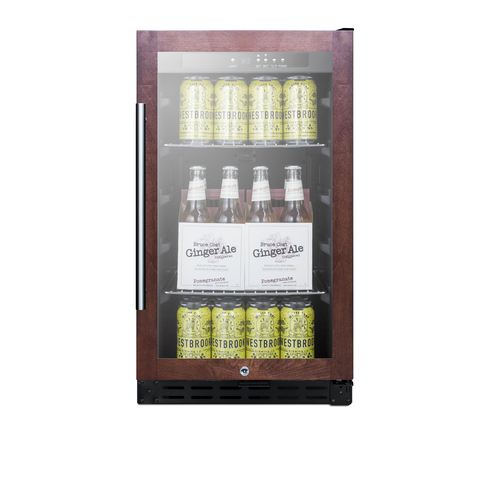

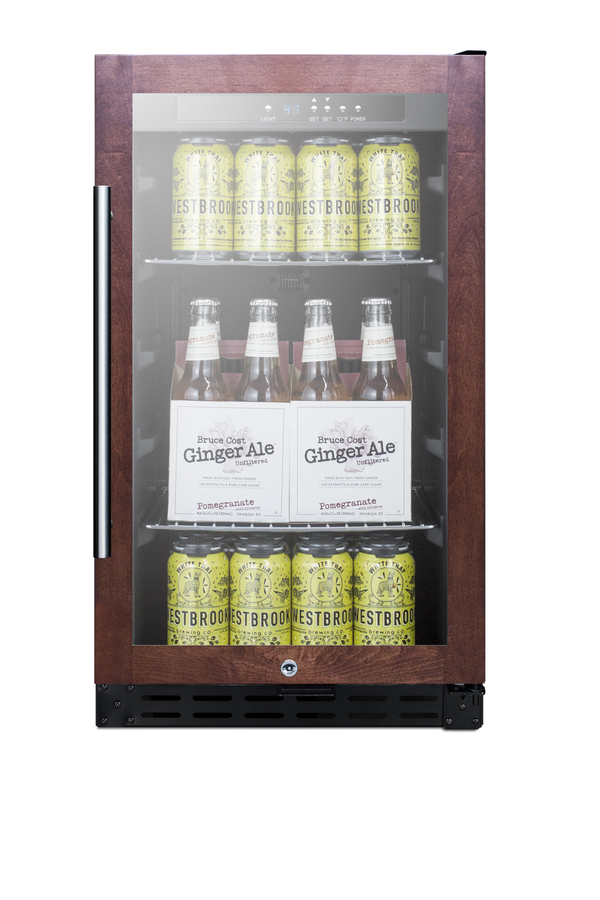

Items can be stored on four adjustable chromes shelves in the auto defrost interior, with attractive LED lighting providing an elegant display. The digital thermostat offers intuitive temperature management. The SCR1841BPNRADA can be paired with our matching wine cellar, see the SWC1840BPNRADA. For this unit in a counter height, see the SCR1841BPNR.

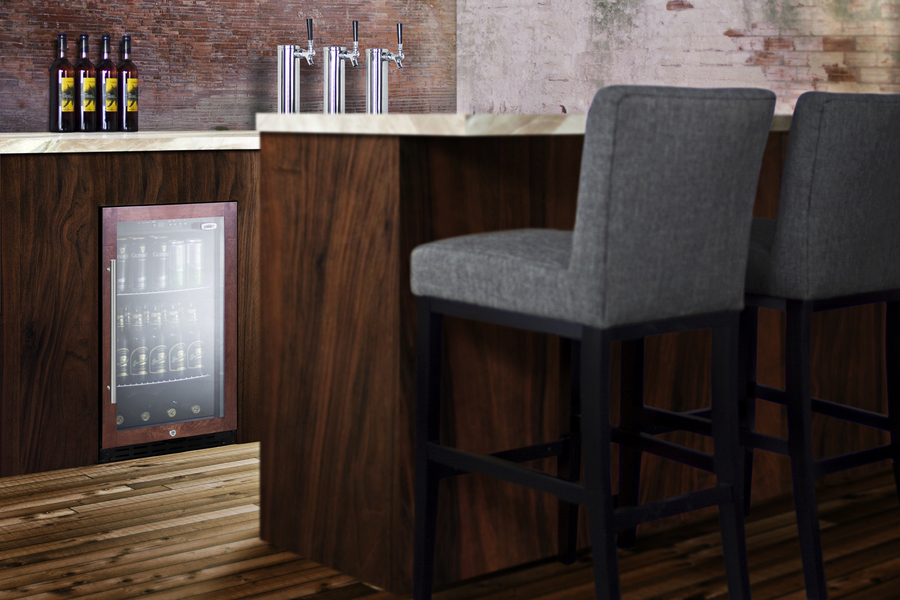

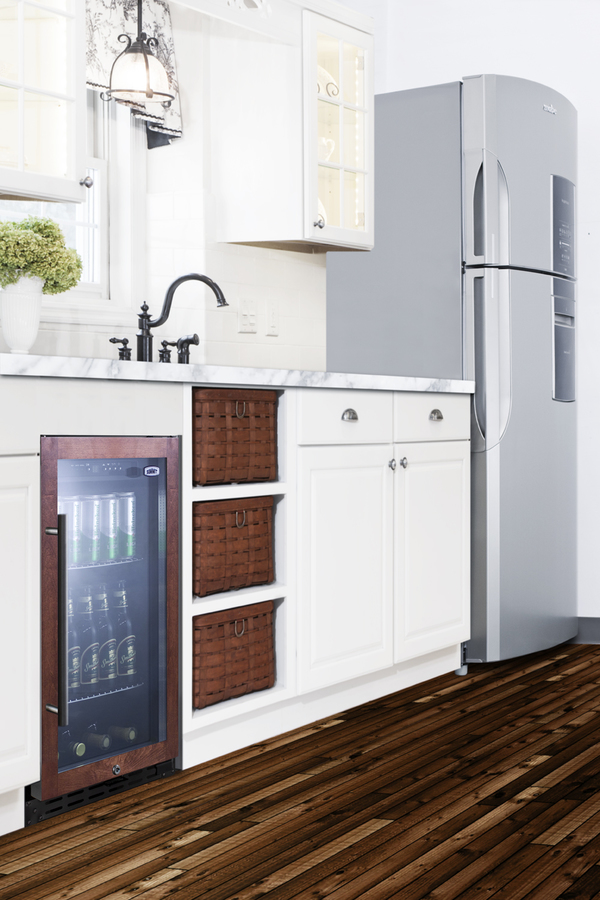

Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.

BROCHURE
SCR1841BPNRADA.pdf

USE & CARE
SCR1841B_Manual_3-29-2019.pdf

MSDS INFORMATION
R600a_K.pdf

SUPPORT
PNR_Instructions_-18_Inch_SCR18_SWC18_Series_5-2022.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
