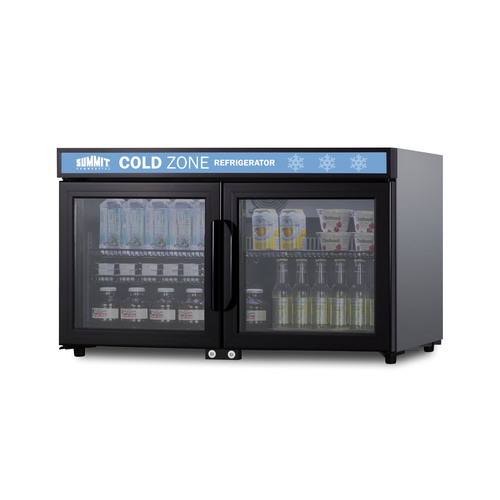

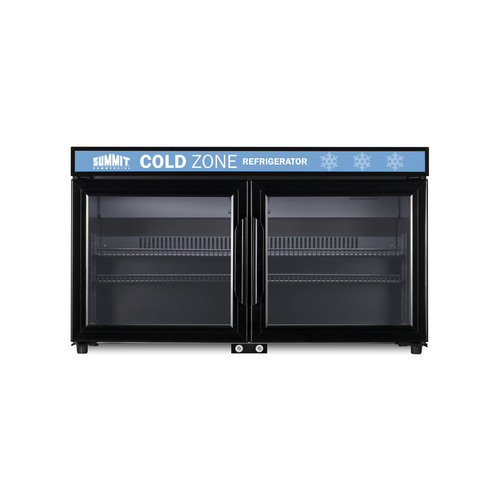

36" Wide Back Bar Beverage Center, Shallow Depth

SKU: SCR3502DLL
Countertop size ideal for back bars, convenience stores, and similar commercial environments
Estimated Time to Ship:

3 to 5 days

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
21.25" H x 36.0" W x 17.5" D
(54cm H x 91cm W x 44cm D)

Overview
Nominal Height 22.0" (56 cm)
Height of Cabinet 21.25" (54 cm)
Nominal Width 36.0" (91 cm)
Width 36.0" (91 cm)
Width with Door Open 39.0" (99 cm)
Nominal Depth 18.0" (46 cm)
Depth 17.5" (44 cm)
Depth with Handle 18.5" (47 cm)
Depth with door at 90° 34.25" (87 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety UL 471 by SGS
Canadian Electrical Safety CSA C22.2 No. 120 by SGS
Sanitation NSF 7 by SGS
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 86.0 lbs. (39 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101084244
Refrigerator Features
Door Swing French
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Can Storage Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.96oz.
High Side PSI 320.0
Low Side PSI 130.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 2 to 6ºC/36°F to 43°F
Dimensions
Interior Height 13.63" (35 cm)
Interior Width 33.0" (84 cm)
Interior Depth 13.0" (33 cm)
Compressor Step Height 7.25" (18 cm)
Compressor Step Width 33.0" (84 cm)
Compressor Step Depth 7.25" (18 cm)

Door
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings

17½" shallow depth

Ideal for back bars, grocery stores, and similar spaces with limited footprint space

Commercially approved

Meets NSF-7 sanitation standards and UL-471 for use in commercial environments

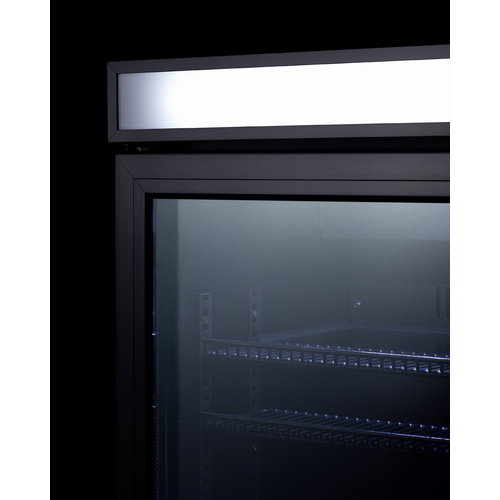

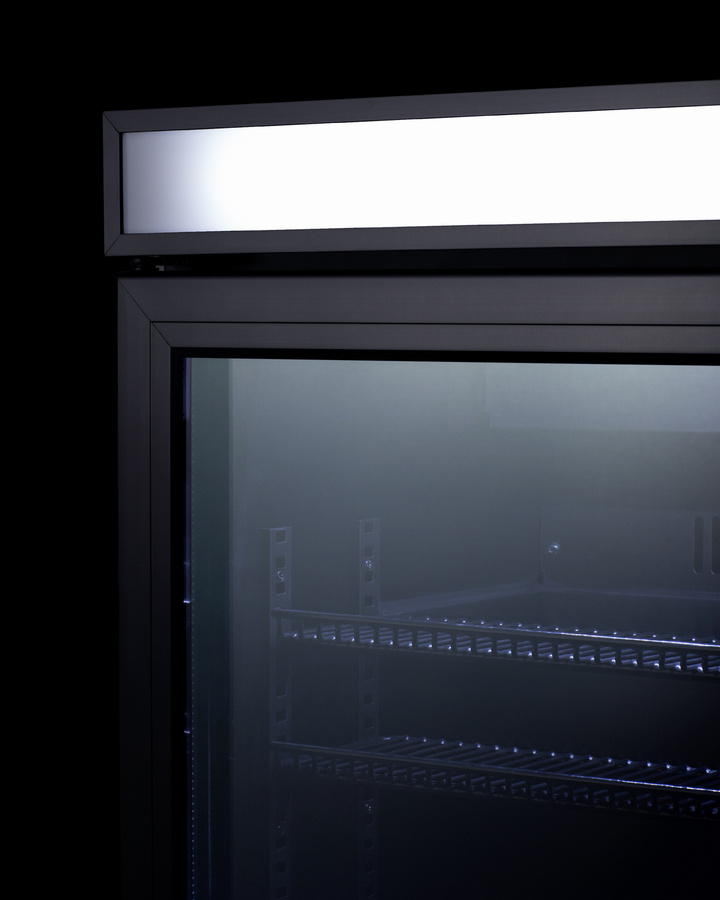

Exterior LED panel

LED panel allows users to insert their own decal for a truly customizable look (size insert at 35.67" W x 2.67" H)

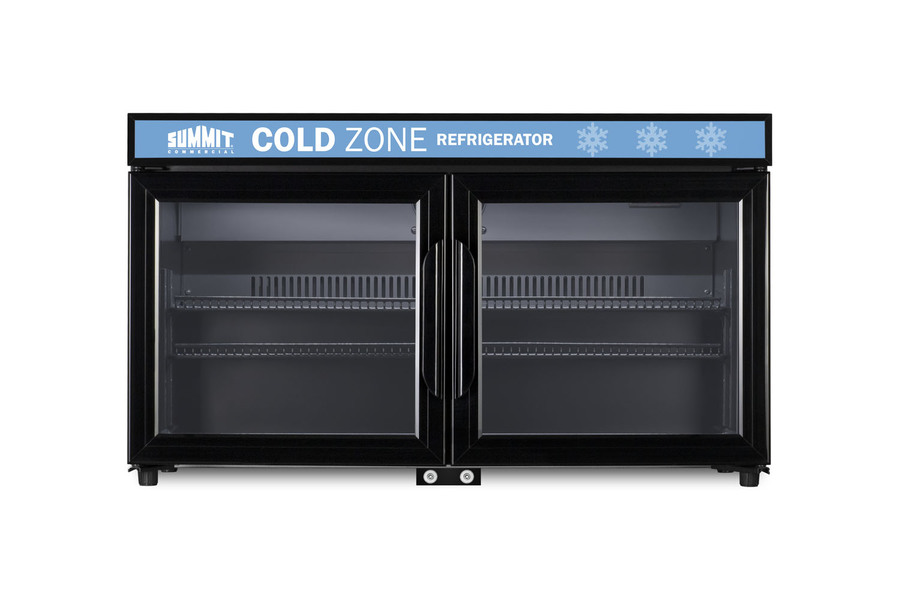

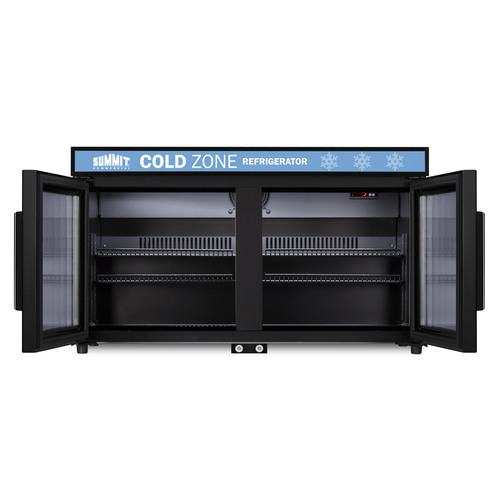

French door swing

Two side-by-side doors with French door opening

Self-closing doors

Doors will automatically close when left ajar, preventing items from accidentally being exposed to ambient temperatures

Factory installed locks

Keyed locks on each door for added security as needed

Automatic defrost

Reduced user maintenance with automatic defrost system

Fan-forced cooling

Internal fan ensures the interior is evenly cooled from top to bottom

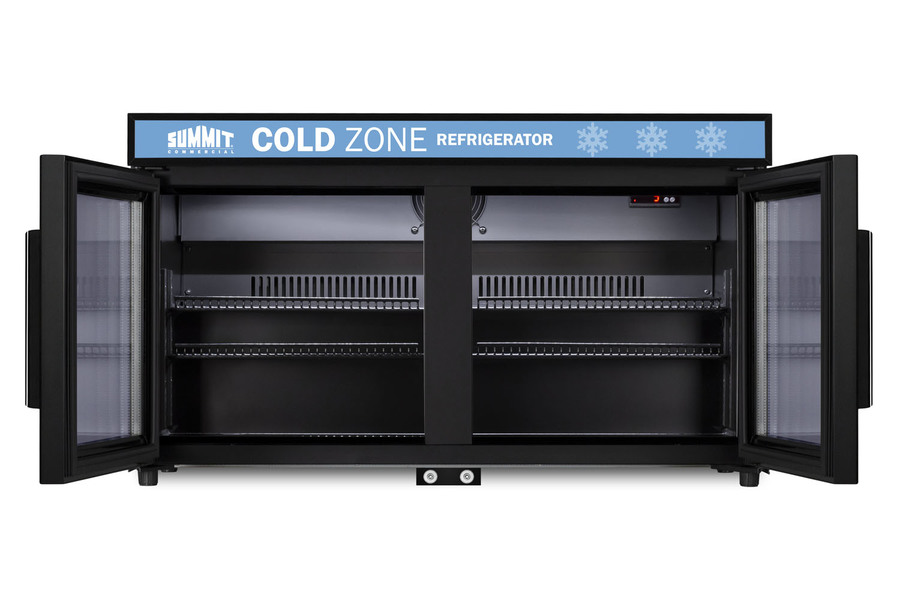

Removable shelves

Four black wire shelves accommodate a variety of storage options or can be removed to store larger food and beverage items

Interior LED lighting

Illuminates the interior for an easy view of stored contents

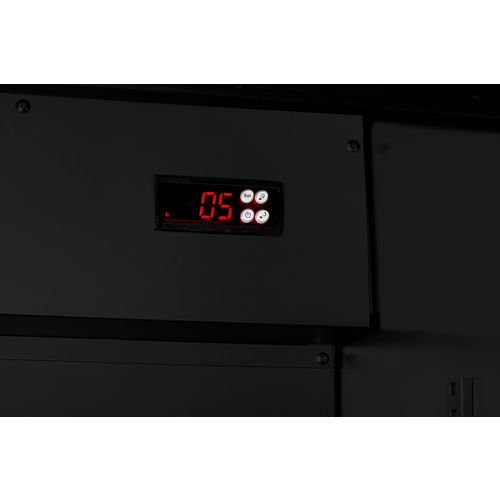

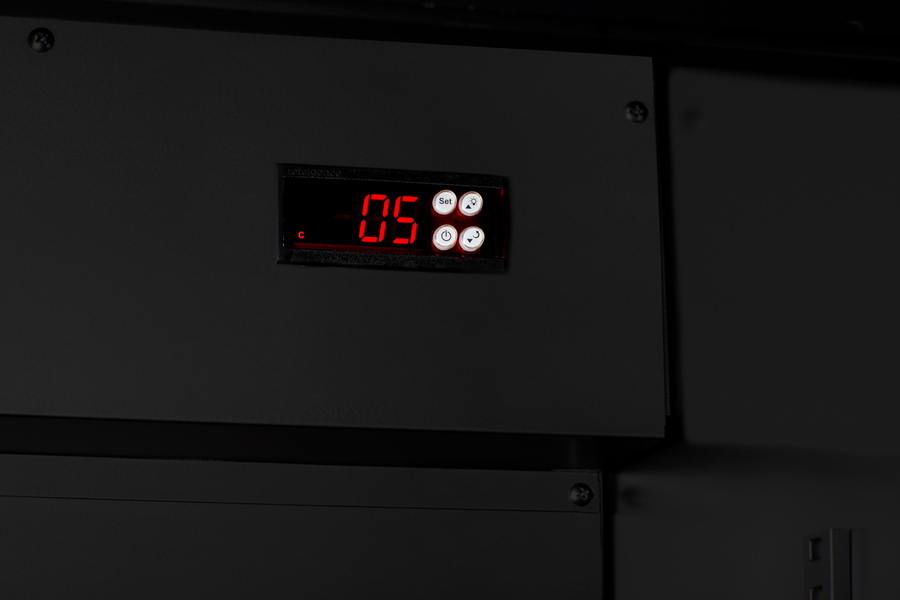

Digital thermostat

Electronic controls located on the inside for easy temperature management with a readout in Celsius

On/off switch

Easily allows users to manage the interior lighting to best meet their needs

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

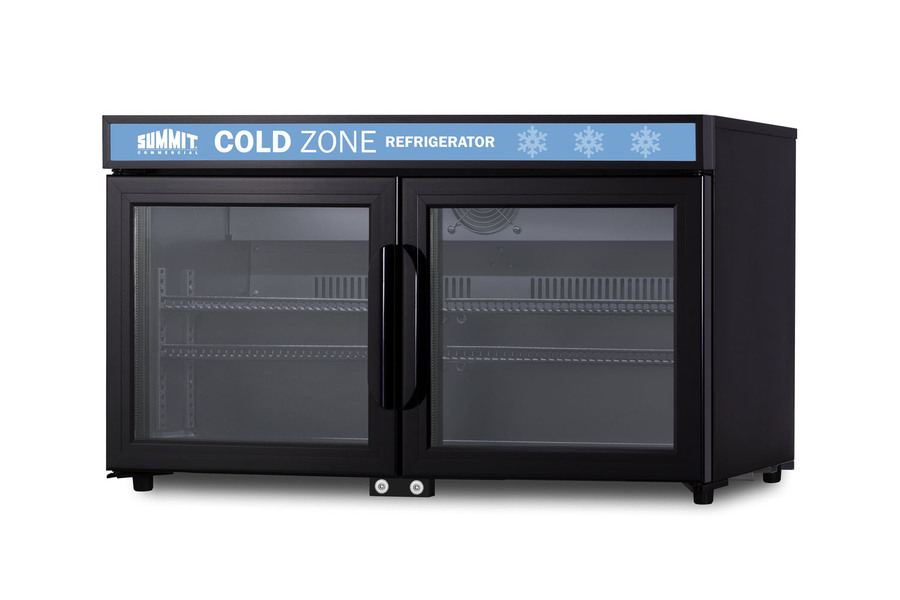

Black handles

Sturdy, curved black handles on each door provide for easy opening

Fully finished black cabinet

Allows the unit to be used freestanding

Sealed back

Space-saving design that offers easier cleanability

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Commercial refrigerators are designed for convenient use in an attractive presentation to increase impulse purchases.

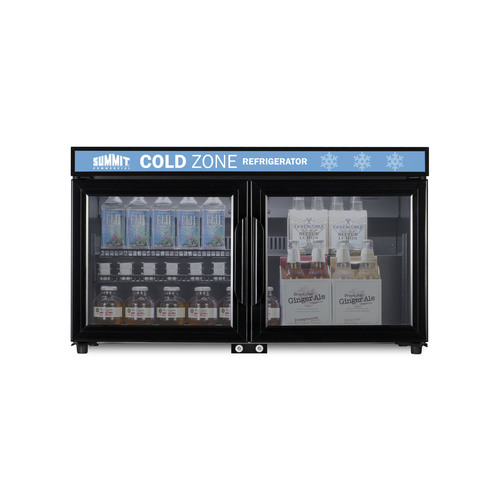

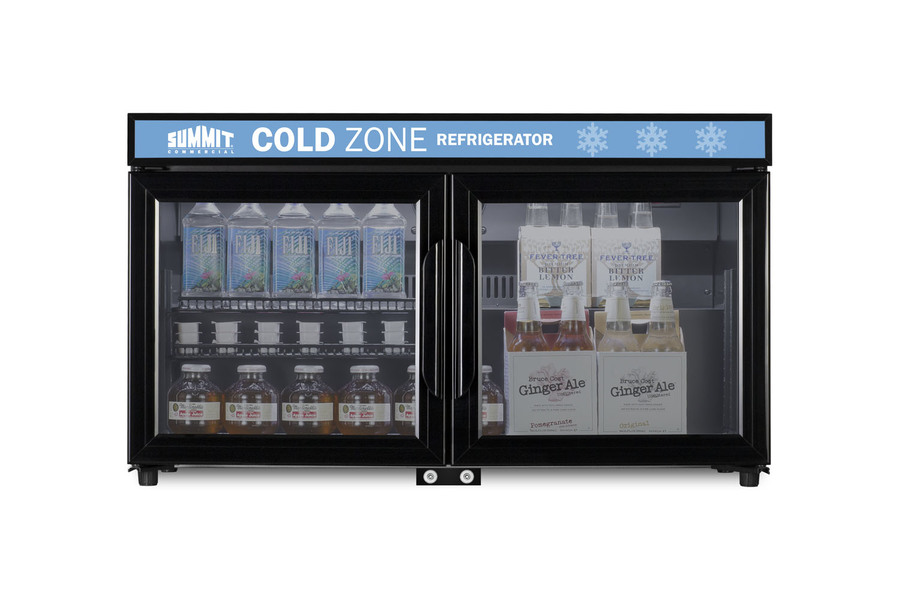

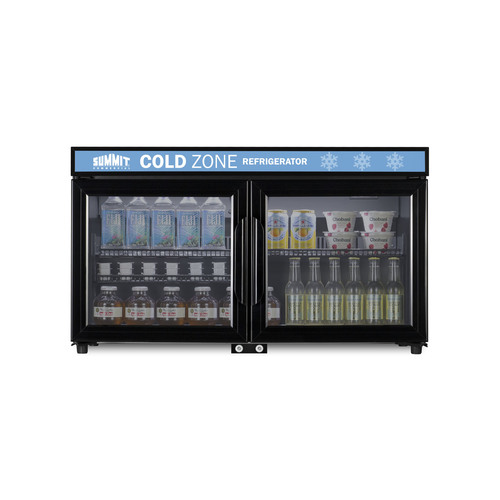

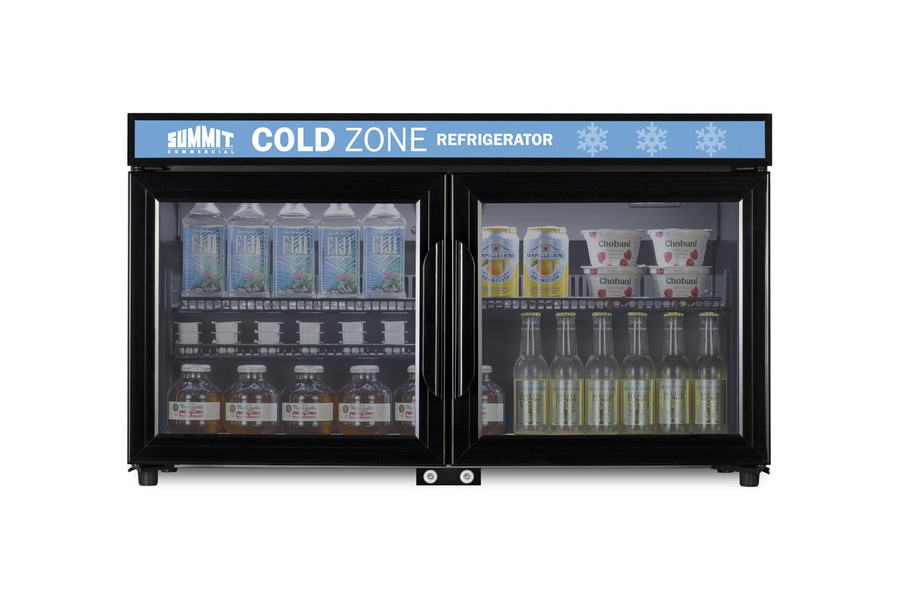

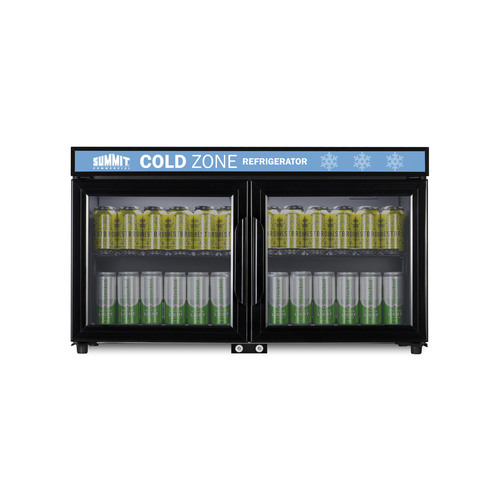

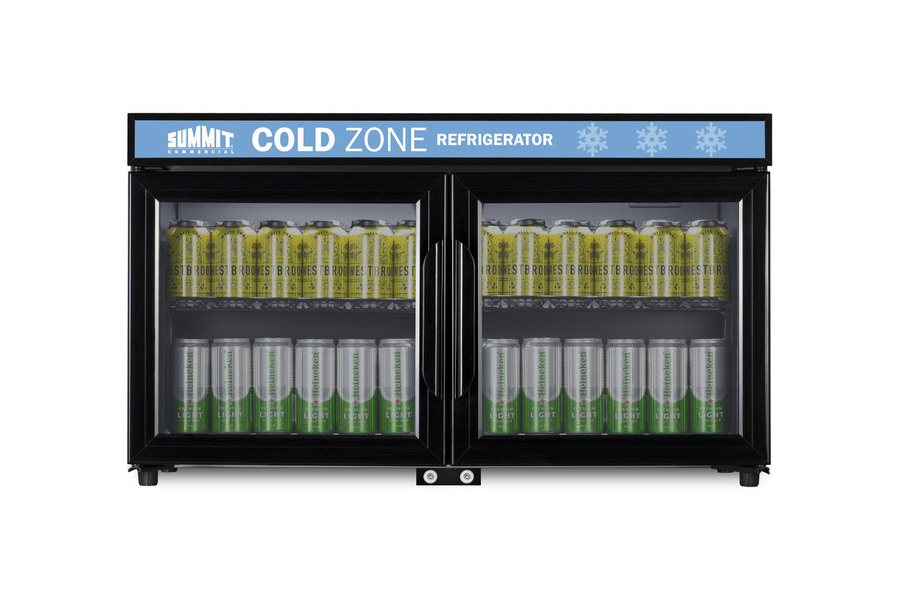

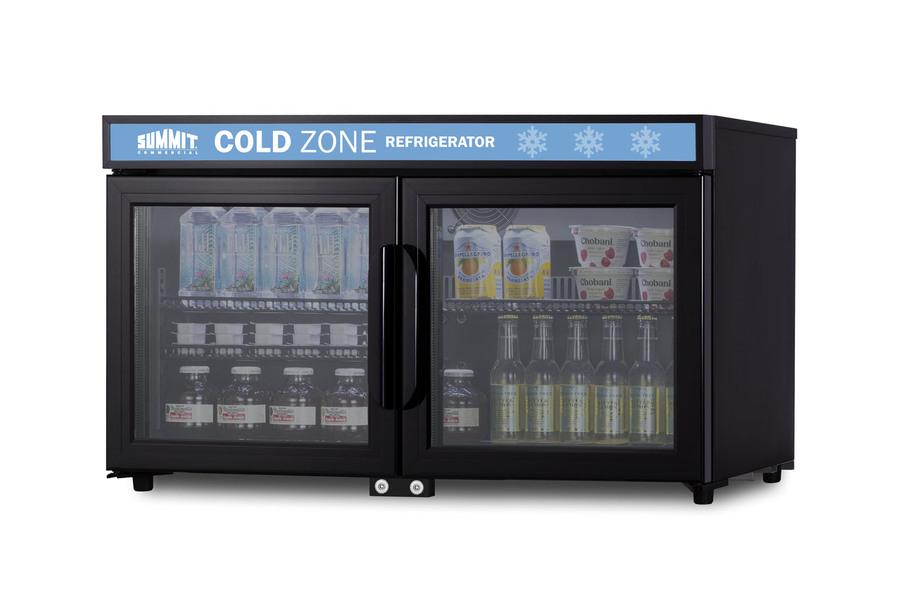

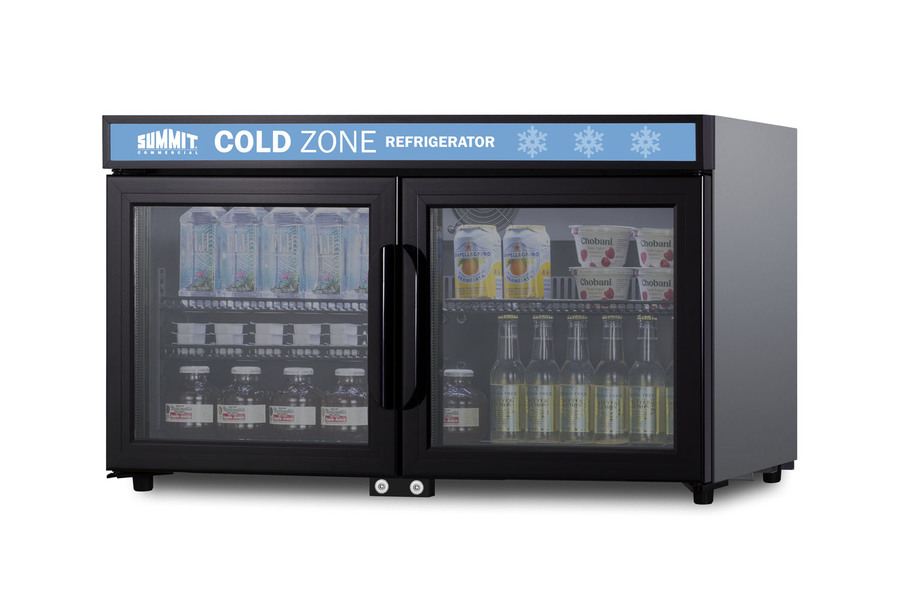

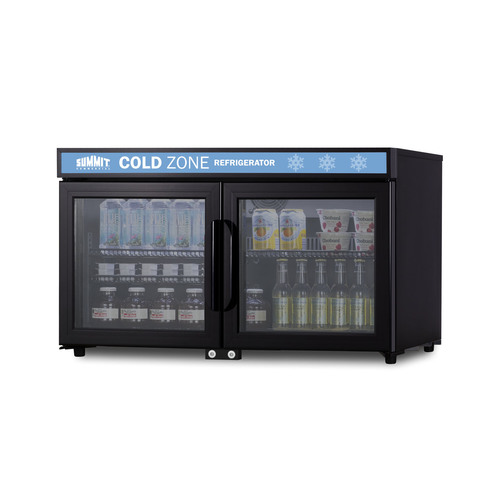

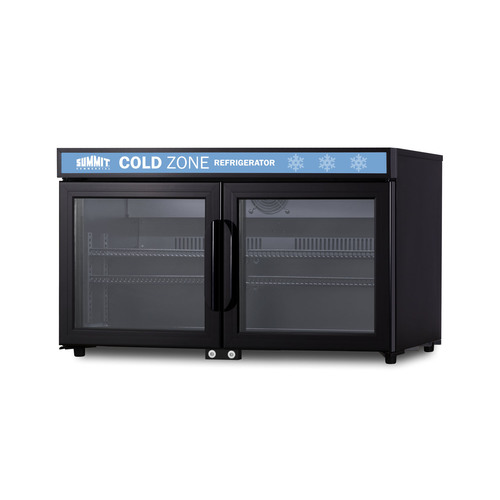

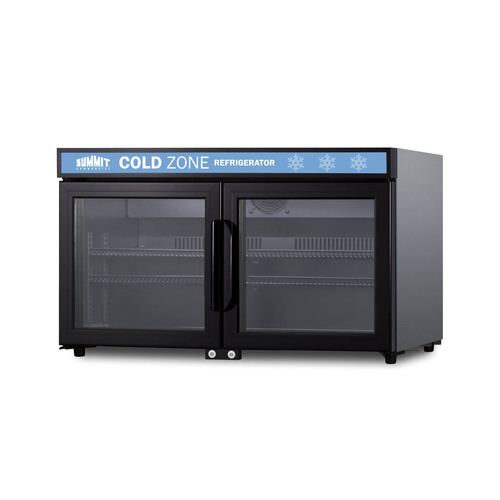

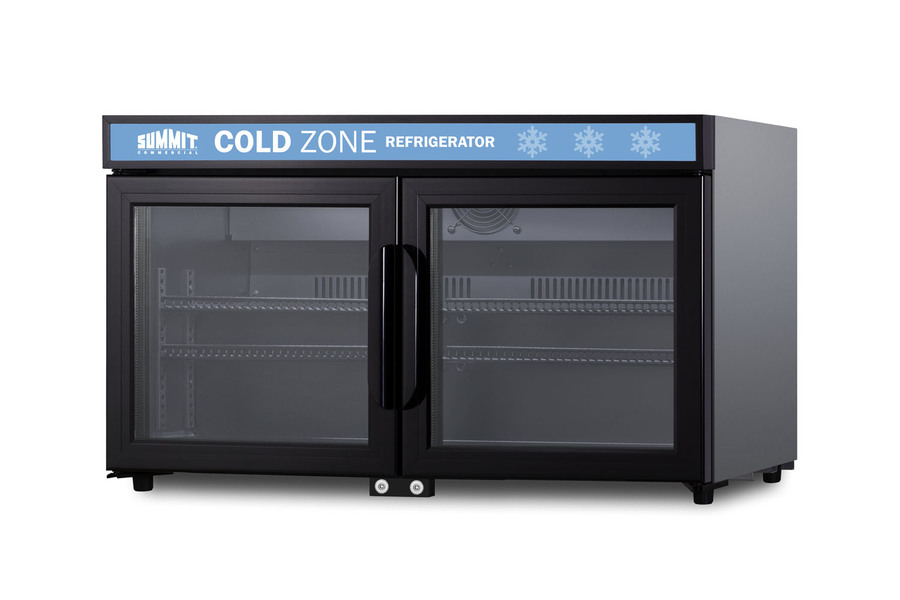

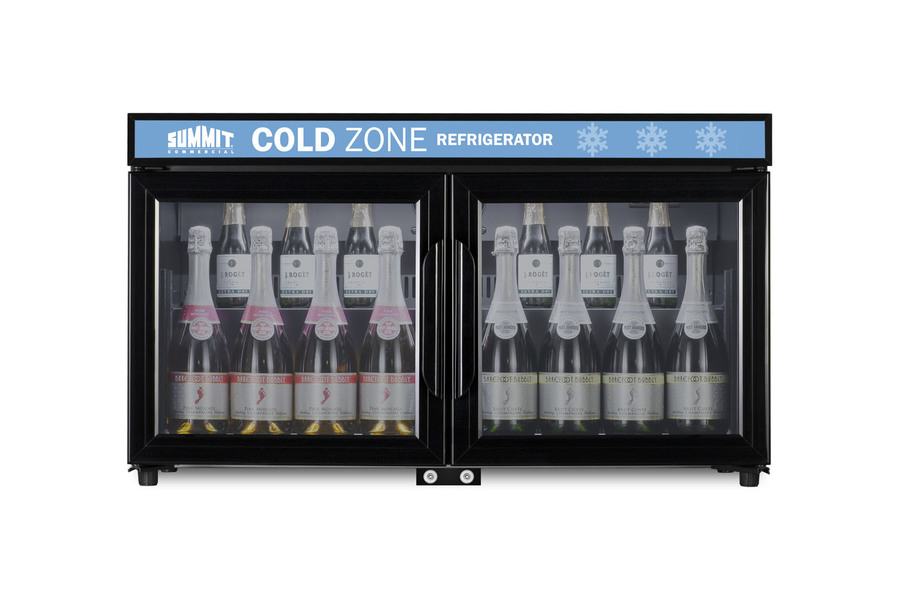

The SCR3502DLL is a 17.5" shallow depth single-zone beverage refrigerator with a 36" width, making it ideal for countertops and use on or in shelves (with proper ventilation). It is SGS-listed to NSF-7 standards for use in commercial settings and is designed for freestanding use. Its French door swing with two glass doors offers a full view inside the 3.2 cu.ft. interior, while pre-installed curved, sturdy black handles make for easy opening of the unit. Both doors have a self-closing feature to help protect stored items in commercial settings where customers may not take the time to ensure a tight seal. Factory-installed locks offer additional security. The fully-finished black cabinet suits any setting, with a sealed back for easier cleaning. Four leveling legs keep the unit level on uneven surfaces.

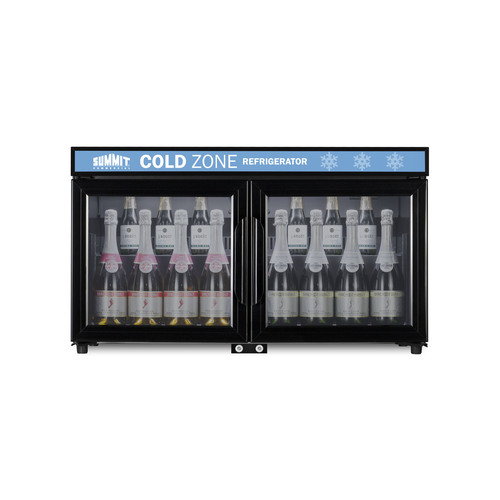

Inside, the SCR3502DLL utilizes automatic defrost operation for minimal user maintenance. LED lighting illuminates the interior, while the front LED panel affords the ability for users to insert their own decal for a truly customizable look. Four black wire shelves accommodate a variety of storage options, including condiments, cans, and other refrigerated items. Additionally,the shelves can be removed to store bottles or larger food and beverage items. Each shelf has a front lip to ensure products are secure when the door is opened and closed. Digital controls located on the inside offer easy temperature management with a readout in Celsius. For added peace of mind, an audible high/low temperature alarm sounds if the temperature in the unit goes out of the recommended range.

With its compact dimensions and customizable features, the SCR3502DLL is perfect for back bars, retail and convenience stores, supermarkets, and similar commercial environments seeking dependable refrigeration storage in a versatile design that fits in virtually any small space.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
