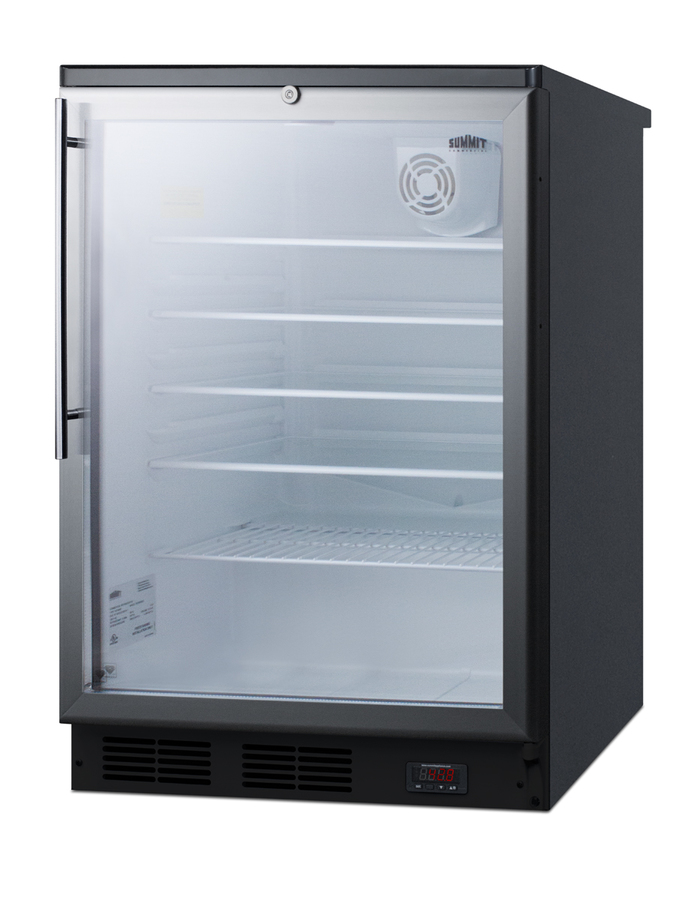

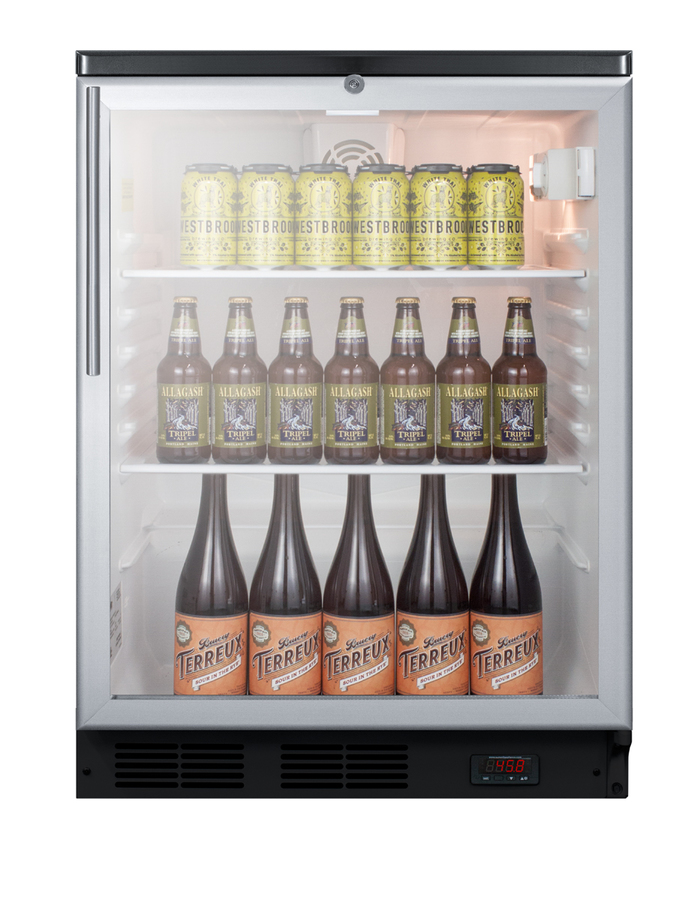

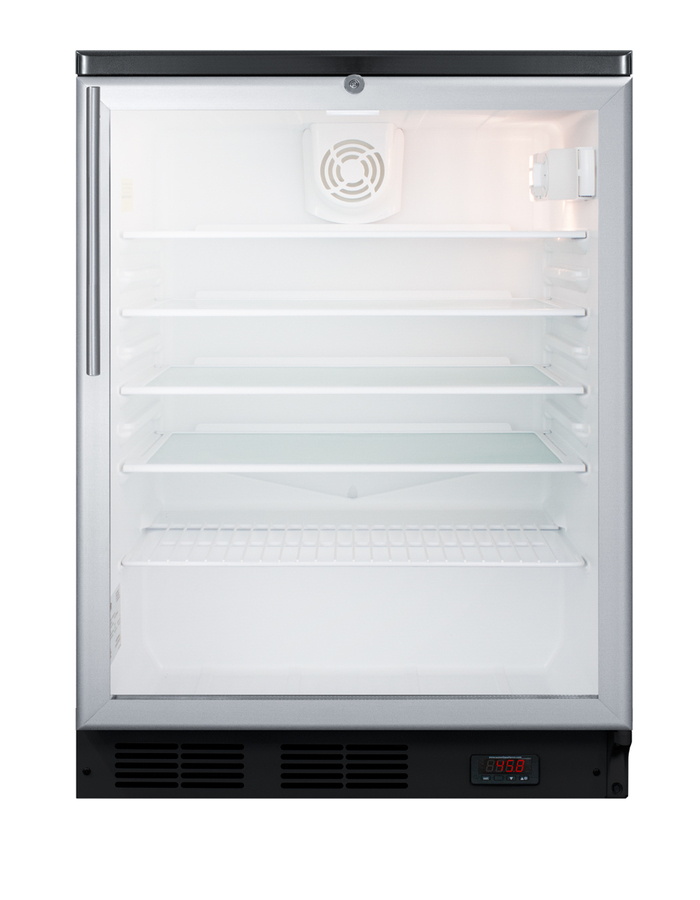

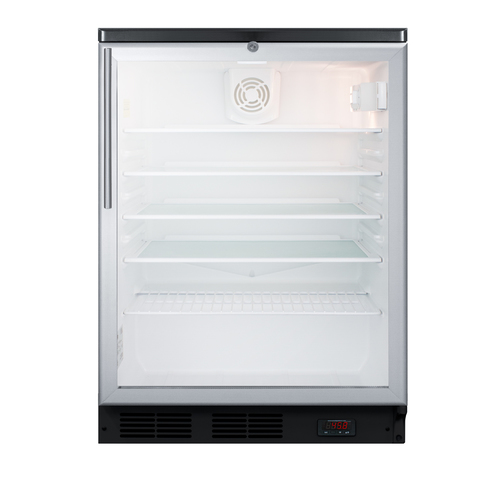

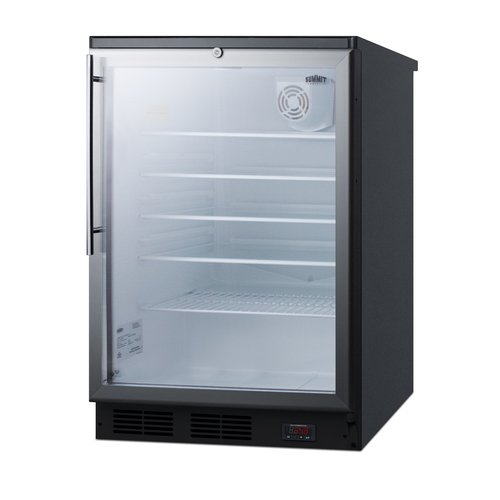

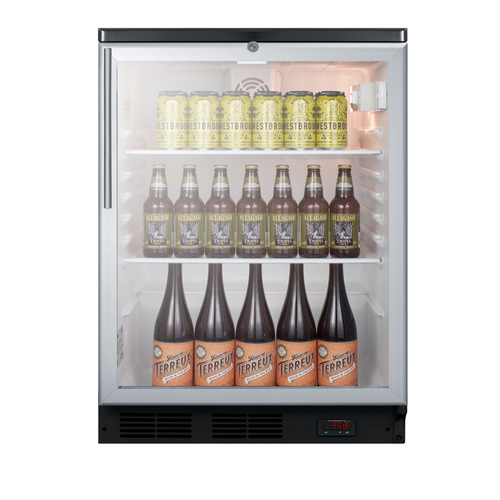

24" Wide Built-In Craft Beer Pub Cellar

SKU: SCR600BGLBIDTPUBHV

Wide range digital thermostat operates between 41 and 65ºF for optimum storage of craft beer & wine

DISCONTINUED- REPLACED BY SCR600BGLBIDTPUB

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

33.5" H x 23.63" W x 23.5" D
(85cm H x 60cm W x 60cm D)

Overview
Height of Cabinet	33.5" (85 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.5" (65 cm)
Depth with door at 90°	46.0" (117 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	ETL-S
Amps	1.8
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101059563
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Height Adjustable	1
Shelf Type	Glass
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.67oz.
High Side PSI	124.0
Low Side PSI	30.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	41 to 65ºF
Sound Level	33.5 dB
Dimensions
Interior Height	26.0" (66 cm)
Interior Width	20.75" (53 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	6.0" (15 cm)
Compressor Step Width	20.75" (53 cm)
Compressor Step Depth	5.0" (13 cm)

Handle

TB - Stainless steel towel bar style handle Install a 12" handle with curved towel bar design in brushed stainless steel	HV Add a stainless steel handle with sleek 14mm diameter placed vertically on the side
HH Add a stainless steel handle with sleek 14mm diameter placed horizontally across the top	TBC Copper Towel Bar Handle Upgrade Change this handle to a 12" vertically mounted towel bar style handle made from pure copper for antimicrobial protection

Exterior

Legs to raise unit height 6" high leveling legs	CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
LHD - Left hand door swing Door reversal to left hand swing	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK - Stainless steel kickplate Stainless steel kickplate factory installed	TOPSS Stainless steel top factory-installed on the cabinet
CAS1 1" high casters (2 locking in front) factory-installed to your unit for easier moibility

Door

T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings	T3 Door Tint Reflective door tint in light blue finish for medium energy savings
T2 Door Tint Tinted door in reflective deep blue finish with high energy savings	T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings	STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands-free access to open the door 90 degrees

Designed for craft beer storage

Wide range temperature control lets you manage the interior between 41º and 65ºF for optimum storage of all types of beer

Commercially approved

ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

Slim undercounter dimensions

Less than 24 inches wide to fit tight spaces

Built-in capable

Front-breathing design allows you to install the unit under counters with minimum clearance

Double pane tempered glass door

Heat resistant design provides clear view to promote impulse buys

Professional handle

Vertically mounted thin handle (14mm) in brushed stainless steel matches many popular styles of cabinetry

Factory installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Digital thermostat

Electronic controls for precise temperature management

Automatic defrost

Reduced user maintenance with automatic defrost

Internal fan

Fan-forced cooling helps to maintain a more evenly cooled interior

Adjustable glass shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Half-sized wire shelf

Sits on top of the compressor and features wire slots ideal for holding bottles on their sides

Interior light on rocker switch

Turn the light on when you need it and off when you're done with a convenient rocker switch

White interior finish

Interior offers more visibility with a brighter look

Hidden evaporator

SUMMIT's original "hidden" evaporator is concealed in the wall for easier cleaning and more efficient cooling

One piece interior liner

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT's unique selection of commercial European Pub Cellars offers a smart solution to storing or aging craft beer at the proper temperature.

The SCR600BGLBIDTPUBHV is ETL-S listed to NSF-7 commercial standards. The front-breathing design allows built-in installation under counters, while the fully finished black cabinet also allows freestanding use for added flexibility. This unit includes a double pane tempered glass door with a brushed aluminum frame and a vertically mounted thin (14mm diameter) handle in brushed stainless steel. The factory installed lock offers added security and is located towards the top of the door to ensure easier access.

Designed specifically for the storage of craft beer, SUMMIT Pub Cellars include a digital thermostat preset at 45ºF, with a range between 41-65ºF to accommodate a wide assortment of brews and wine. The SCR600BGLBIDTPUBHV utilizes automatic defrost operation to ensure minimum user maintenance, with an internal fan to help provide even cooling throughout the 5.5 cu.ft. interior. Adjustable glass shelves offer convenient and spill-proof storage. A removable half-sized wire shelf sits above the compressor step to make it easy to lay bottles on their sides. This unit includes an interior light on an on/off rocker switch. The clean white interior helps to improve visibility of your stored bottles and cans.

With its ideal footprint and quality design, the SCR600BGLBIDTPUBHV makes it easy to store and display craft beer and wine at its best. For added protection, this unit can be ordered with our custom door tints.

BROCHURE
SCR600BGLBIDTPUBHV.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
