24" Wide Built-In Beverage Center, ADA Compliant
(82cm H x 60cm W x 61cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.38" (82 cm) |
| Width | 23.63" (60 cm) |
| Depth | 24.0" (61 cm) |
| Depth with Handle | 25.5" (65 cm) |
| Depth with door at 90° | 46.0" (117 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | ETL-S |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101030623 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Glass and Wood |
| Shelf Qty | 4 |
| Adjustable Shelves | Yes |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 1.8oz. |
| High Side PSI | 285.0 |
| Low Side PSI | 70.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
|
Dimensions
|
|
| Interior Height | 26.0" (66 cm) |
| Interior Width | 20.75" (53 cm) |
| Interior Depth | 17.5" (44 cm) |
| Compressor Step Height | 6.0" (15 cm) |
| Compressor Step Width | 20.75" (53 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
AVAILABLE UPGRADES
| Exterior | ||||||
|---|---|---|---|---|---|---|
|
||||||
| Door | ||||||
|
FEATURES
32 inch height is designed to fit under ADA compliant counters
ETL-S Listed and CalCode Compliant
Make the best use of space by installing your appliance under the counter and flush with other cabinetry
Allows the unit to be used freestanding
Heat resistant design provides clear view of stored products, with an elegant trim in brushed aluminum
Full-length towel bar handle in brushed stainless steel
Keyed lock for a secure interior
Reduced user maintenance with automatic defrost
Two wooden shelves for wine storage and three glass shelves for other beverages
Simple cleanup with a seamless liner that won't hold a mess in hidden crevices
Turn the light on when you need it and off when you're done with a a convenient switch located behind the thermostat
Manage the temperature with ease and accuracy
Environmentally friendly design does not contain ozone-damaging chemicals
DESCRIPTION

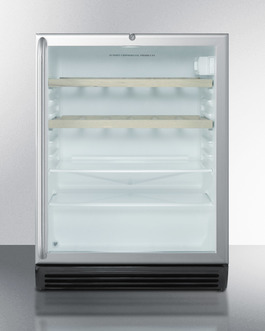

SUMMIT's SCR600LBIADA Series features commercially listed beverage centers designed for built-in use under lower ADA compliant counters in commercial settings. With a 24" footprint and 32" height, the SCR600BLBISHWOADA offers a generous 5.5 cu.ft. of storage capacity, with a combination of glass and wooden shelves to best store cans and bottles. The front-breathing system allows the unit to be built-in under counters, while the fully finished black cabinet also allows freestanding use. The glass door features an aluminum trim for an attractive view of stored products, with a full-length towel bar handle in brushed stainless steel for added style. A factory installed lock offers added security. Inside, the SCR600BLBISHWOADA utilizes low maintenance automatic defrost operation. We include SUMMIT's unique "hidden" evaporator in the rear wall, a design that protects the unit's system while maximizing shelf space. Full interior lighting is accessible on a convenient ON/OFF rocker switch, letting you light the interior only when you choose. This unit is ETL-S listed to NSF-7 commercial standards and is not recommended for household use.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
