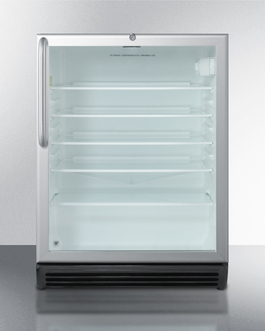

24" Wide Built-In Beverage Center, ADA Compliant

SKU: SCR600BLCSSADA

Made in Europe with a double pane tempered glass door

DISCONTINUED- REPLACED BY SCR600BGLCSSADA

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

32.38" H x 23.75" W x 24.0" D
(82cm H x 60cm W x 61cm D)

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.38" (82 cm)
Width	23.75" (60 cm)
Depth	24.0" (61 cm)
Depth with Handle	25.5" (65 cm)
Depth with door at 90°	46.0" (117 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	ETL-S
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101018737
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Glass
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R134a
Refrigerant Amount	1.8oz.
High Side PSI	285.0
Low Side PSI	70.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	26.0" (66 cm)
Interior Width	20.75" (53 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	6.0" (15 cm)
Compressor Step Width	20.75" (53 cm)
Compressor Step Depth	5.0" (13 cm)

Exterior

HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	SSK - Stainless steel kickplate Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	LHD - Left hand door swing Door reversal to left hand swing
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	SS Hinges Stainless steel top and bottom hinges
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Door

T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings	T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint Tinted door in reflective deep blue finish with high energy savings	T3 Door Tint Reflective door tint in light blue finish for medium energy savings
T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings	STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands-free access to open the door 90 degrees

Interior

FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior

Commercially approved

ETL-S Listed and CalCode Compliant

ADA Compliant

32 inch height is designed to fit under ADA compliant counters

Factory installed lock

Keyed lock for a secure interior

Wrapped stainless steel exterior

Durable elegance built to last

Professional towel bar handle

A curved handle in brushed stainless steel provides generous room for a comfortable grip

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinetry

Fully finished cabinet

Allows the unit to be used freestanding

Automatic defrost

Reduced user maintenance with automatic defrost

Adjustable glass shelves

Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

One piece interior liner

Simple cleanup with a seamless liner that won't hold a mess in hidden crevices

Interior light on rocker switch

Turn the light on when you need it and off when you're done with a a convenient switch located behind the thermostat

Adjustable thermostat

Manage the temperature with ease and accuracy

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

SUMMIT's SCR600LBIADA Series features commercially listed beverage centers designed for built-in use under lower ADA compliant counters in commercial settings.

With a 24" footprint and 32" height, the SCR600BLCSSADA offers a generous 5.5 cu.ft. of storage capacity with adjustable glass shelves for flexible arranging. The front-breathing system allows the unit to be built-in under counters, while the fully finished stainless steel wrapped cabinet also allows freestanding use. The glass door features an aluminum trim for an attractive view of stored products, with our signature towel bar handle in brushed stainless steel. A factory installed lock offers added security.

Inside, the SCR600BLCSSADA utilizes low maintenance automatic defrost operation. We include SUMMIT's unique "hidden" evaporator in the rear wall, a design that protects the unit's system while maximizing shelf space. Full interior lighting is accessible on a convenient ON/OFF rocker switch, letting you light the interior only when you choose. This unit is ETL-S listed to NSF-7 commercial standards and is not recommended for household use.

BROCHURE
SCR600BLCSSADA.pdf

USE & CARE
FF6WBI_FF7WBI__SCR600LBI_SCR600BLBI_Engl_French.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
