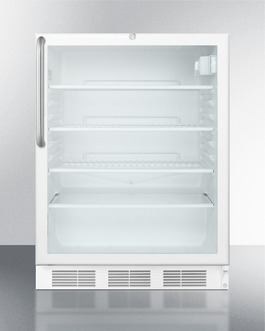

24" Wide Built-In Beverage Center

SKU: SCR600LCSS

European built with a hidden evaporator for a seamless interior

DISCONTINUED- REPLACED BY SCR600BGLCSS

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

33.25" H x 23.75" W x 23.5" D
(84cm H x 60cm W x 60cm D)

Overview
Height of Cabinet	33.25" (84 cm)
Height to Hinge Cap	33.25" (84 cm)
Width	23.75" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.0" (64 cm)
Depth with door at 90°	45.5" (116 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	ETL-S
Amps	1.3
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101004143
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Wire
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R134a
Refrigerant Amount	1.8oz.
High Side PSI	285.0
Low Side PSI	88.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	27.75" (70 cm)
Interior Width	20.75" (53 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	20.75" (53 cm)
Compressor Step Depth	5.0" (13 cm)

Exterior

HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	SSK - Stainless steel kickplate Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	LHD - Left hand door swing Door reversal to left hand swing
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	SS Hinges Stainless steel top and bottom hinges
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	Legs to raise unit height 6" high leveling legs
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Door

T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings	T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint Tinted door in reflective deep blue finish with high energy savings	T3 Door Tint Reflective door tint in light blue finish for medium energy savings
T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings	STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands-free access to open the door 90 degrees

Interior

FC - Internal Fan

FCGP internal fan with gel packs

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

Slim undercounter dimensions

Less than 24 inches wide to fit tight spaces

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinets

Fully wrapped stainless steel cabinet

Allows the unit to be used freestanding

Double pane tempered glass door

Heat resistant design provides clear view to promote impulse buys

Professional towel bar handle

A curved stainless steel handle provides generous room for a comfortable grip

Factory installed lock

Keyed lock for a secure interior

Automatic defrost

Reduced user maintenance with automatic defrost

One piece interior liner

Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Adjustable shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Interior light on rocker switch

Turn the light on when you need it and off when you're done with a convenient rocker switch

Adjustable thermostat

Manage the interior temperature with ease and accuracy

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Accucold by Summit Appliance offers a quality line of built-in undercounter glass door refrigeration for general purpose or commercial use.

With a 24" footprint, the SCR600LCSS offers a generous 5.5 cu.ft. of storage capacity with adjustable shelves for flexible arranging. The front breathing design allows built-in installation under counters, while the fully wrapped stainless steel cabinet also allows freestanding use. The glass door features a white trim and a factory installed lock. A f stainless steel handle in a towel bar style completes the look.

Inside, the SCR600LCSS utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator in the rear wall protects the unit's system while maximizing shelf space. Full interior lighting is accessible on a convenient ON/OFF rocker switch, letting you light the interior only when you choose. This unit is ETL-S listed to NSF-7 commercial standards and is not recommended for household use.

The SCR600LCSS is also available with our professional style handles. Browse the complete series to see our options. For this unit in a lower 32" ADA compliant height, see the SCR600LCSSADA.

BROCHURE w/ DRAWINGS
SCR600LCSS.pdf

TECHNICAL DRAWING (.dwg)
SCR600LCSS_SCR600BLCSSREFRIGERATOR.dwg

USE & CARE
FF6WBI_FF7WBI__SCR600LBI_SCR600BLBI_Engl_French.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
