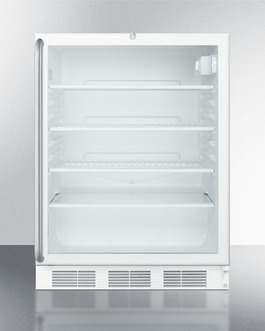

24" Wide Beverage Center, ADA Compliant

SKU: SCR600LSHADA

European built with a hidden evaporator for a seamless interior

DISCONTINUED- REPLACED BY SCR600BGLSHADA

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

32.38" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.38" (82 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Glass
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	ETL-S
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101042503
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Wire
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Dial
Refrigerant Type	R134a
Refrigerant Amount	1.8oz.
High Side PSI	285.0
Low Side PSI	70.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	26.0" (66 cm)
Interior Width	20.75" (53 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	6.0" (15 cm)
Compressor Step Width	20.75" (53 cm)
Compressor Step Depth	5.0" (13 cm)

Exterior

HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	SSK - Stainless steel kickplate Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	LHD - Left hand door swing Door reversal to left hand swing
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Door

T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings	T2 Door Tint Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint Reflective door tint in light blue finish for medium energy savings	T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings
T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings	STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands-free access to open the door 90 degrees

Interior

FC - Internal Fan

FCGP internal fan with gel packs

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

ADA Compliant

32 inch height is designed to meet ADA guidelines for lower counter height

Fully finished white cabinet

Allows the unit to be used freestanding

Double pane tempered glass door

Heat resistant design provides clear view of stored products

Factory installed lock

Keyed lock for a secure interior

Professional stainless steel handle

Full-length towel bar handle in brushed stainless steel

Automatic defrost

Reduced user maintenance with automatic defrost

Adjustable shelves

Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

One piece interior liner

Simple cleanup with a seamless liner that won't hold a mess in hidden crevices

Interior light on rocker switch

Turn the light on when you need it and off when you're done with a a convenient switch located behind the thermostat

Adjustable thermostat

Manage the temperature with ease and accuracy

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

Accucold by Summit Appliance offers a quality line of 32" high glass door refrigerators designed for general purpose or commercial use in settings following ADA guidelines for lower counter height.

With a 24" footprint, the SCR600LSHADA offers a generous 5.5 cu.ft. of storage capacity with adjustable shelves for flexible arranging. The fully finished white cabinet allows the unit to be freestanding. The glass door features a white trim and a factory installed lock. A full-length stainless steel handle in a towel bar style completes the look.

Inside, the SCR600LSHADA utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator in the rear wall protects the unit's system while maximizing shelf space. Full interior lighting is accessible on a convenient ON/OFF rocker switch, letting you light the interior only when you choose. This unit is ETL-S listed to NSF-7 commercial standards and is not recommended for household use.

The SCR600LSHADA is also available with our professional style handles. Browse the complete series to see our options. For a similar model designed for built-in installation, see the SCR600LBISHADA.

BROCHURE
SCR600LSHADA.pdf

USE & CARE
FF6W_FF7W__SCR600GL_SCR600BGL_User_Manual.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
