24" Wide Built-In Beverage Center (Panel Not Included)
3 to 5 days
(86cm H x 60cm W x 60cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 34.0" (86 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
| Capacity | 4.88 cu.ft. (138 L) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 290.0kWh/year |
| Amps | 0.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101148335 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Temperature Range | 36°F to 43°F |
| Sound Level | 37.4 dB |
|
Dimensions
|
|
| Interior Height | 25.0" (64 cm) |
| Interior Width | 19.38" (49 cm) |
| Interior Depth | 17.38" (44 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.38" (49 cm) |
| Compressor Step Depth | 4.63" (12 cm) |
AVAILABLE UPGRADES
| Exterior | ||||
|---|---|---|---|---|
|
||||
| Interior | ||||
|
FEATURES
Solid door all-refrigerator designed for commercial storage
ETL-S listed to NSF-7 Standards for use in commercial establishments
Make the best use of space by installing this unit under the counter and flush with other cabinetry
Professional finish with a matching handle
Walls are constructed from stainless steel for added strength and easy cleanup
Keyed lock for a secure interior
Intuitive digital controls ensure easy temperature management
Integrated door frame allows you to install overlay panels for a custom look that blends into your cabinetry; Panel size: 23 5/16" W x 28 3/16" H and at least 3/4" thick.
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

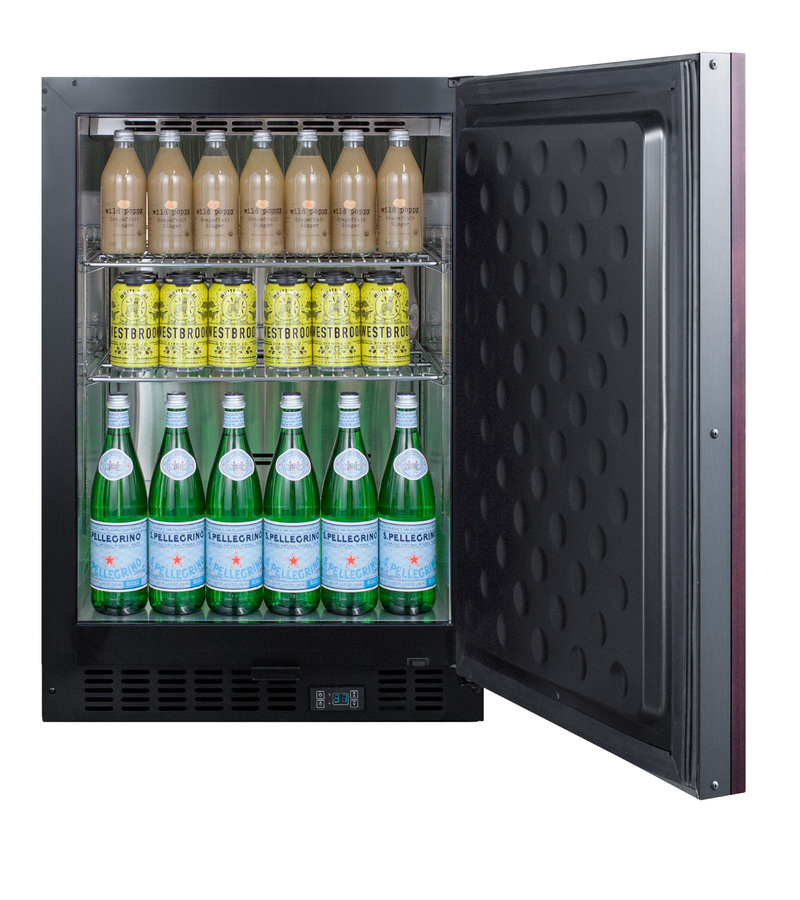

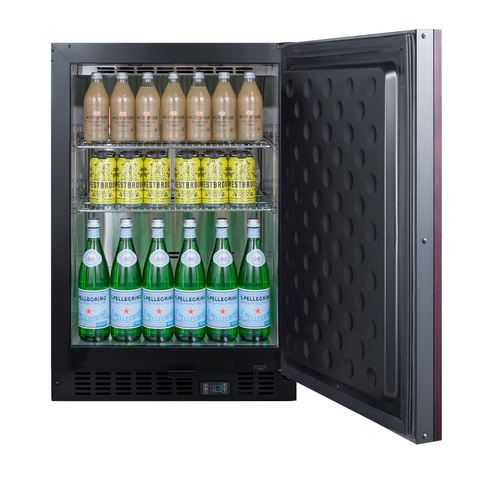

25" high interior accommodates two vertical rows of 12" tall bottles
Efficient and attractive lighting illuminates stored products
Audible alarm will sound if the door is left ajar for over a minute
Alarm sounds if the interior temperature rises out of suggested range
Reduced user maintenance with automatic defrost
Optional setting lets you disable the lighting and alarm for up to 48 hours
Unit will retain its last settings when power is restored in the event of power loss
Internal fan ensures the interior is evenly cooled from top to bottom
Space saving design with easier cleanability
Allows the unit to be used freestanding
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design without ozone-damaging chemicals
DESCRIPTION
Summit Commercial's extensive lineup of beverage centers and refrigerators offers the perfect storage conditions for restaurants and other foodservice establishments. The SCR610BLSDV1IF comes in an easy-fitting 24" footprint, with a front-breathing design that can be built-in under counters or used freestanding. The solid door comes with our integrated stainless steel frame, allowing you to install your own overlay panel to create a customized look to match adjacent cabinetry. A digital thermostat is located in the kickplate for easy temperature management. Inside, the SCR610BLSDV1IF utilizes low maintenance automatic defrost operation with an internal fan to ensure even temperature distribution. Recessed LED lighting offers the perfect display conditions inside the durable and easy-to-clean stainless steel interior. This unit includes three cantilevered chrome shelves to ensure flexible storage that accommodates any item size. The interior is taller than many refrigerators in its class, allowing the unit to easily store two rows of 12" high bottles. High temperature and open door alarms offer added protection in busy commercial settings. The SCR610BLSDV1IF is ETL-S listed to NSF-7 for use in commercial settings. For this unit with a glass door, see the SCR610BL.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
