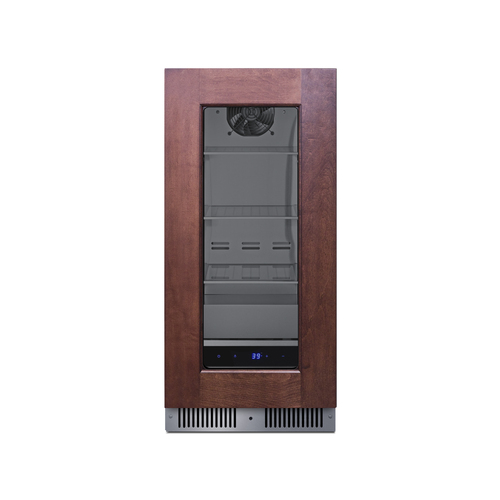

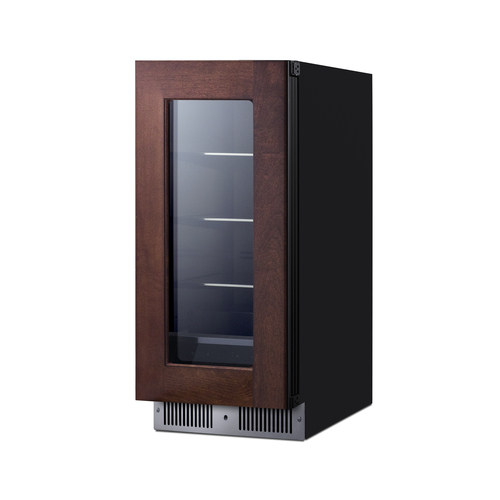

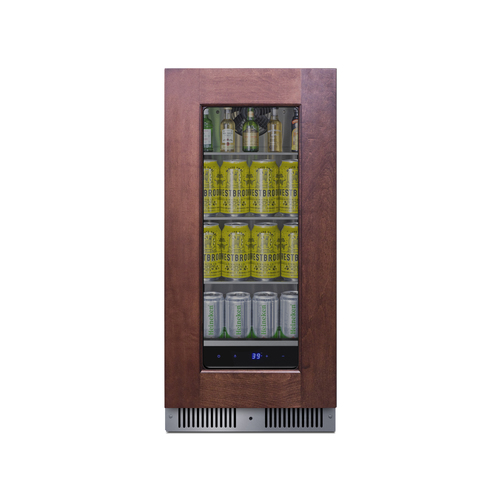

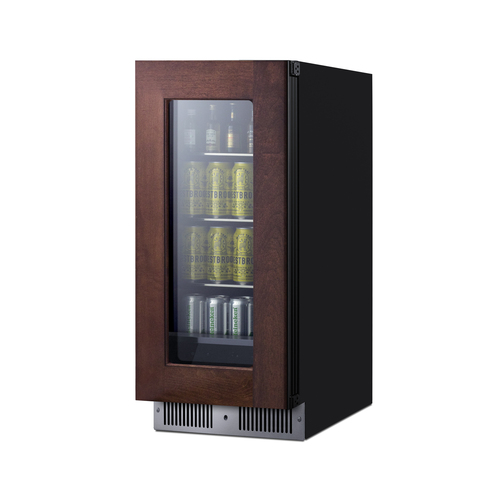

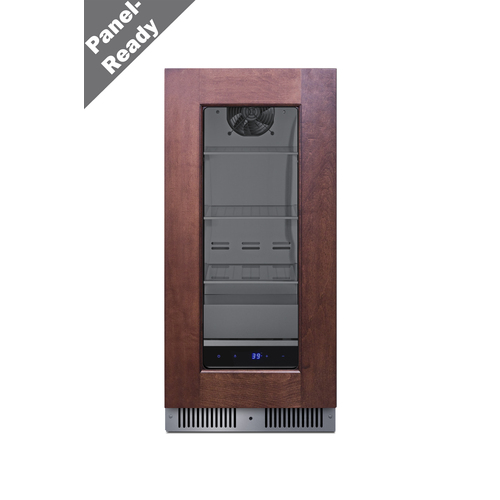

15" Wide Built-In Beverage Center (Panel Not Included)
12/06/2024
All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

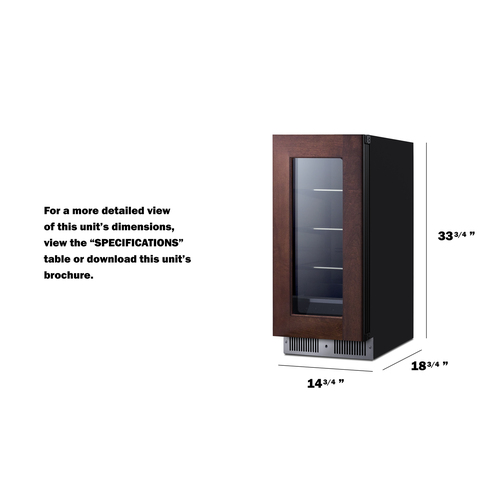

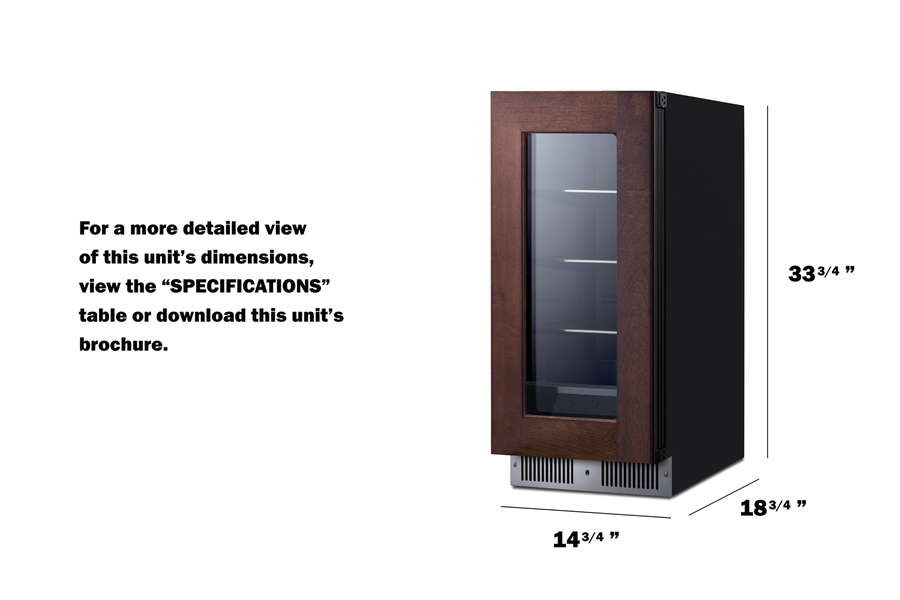

(86cm H x 37cm W x 46cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.75" (86 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.75" (37 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 18.0" (46 cm) |
| Depth with door at 90° | 32.63" (83 cm) |
| Capacity | 1.9 cu.ft. (54 L) |
| Bottles | 18 bottles |
| Defrost Type | Frost-Free |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 270.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 86.0 lbs. (39 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101145747 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | LHD |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.85oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36°F to 43°F |
| Sound Level | 33.5 dB |
|
Dimensions
|
|
| Interior Height | 26.0" (66 cm) |
| Interior Width | 10.63" (27 cm) |
| Interior Depth | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 10.63" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
AVAILABLE UPGRADES
| Door | |||||
|---|---|---|---|---|---|
|
FEATURES
Undercounter glass door beverage refrigerator for residential or commercial use
Unique 18" depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
Front-breathing design lets you make the best use of space by installing your appliance under the counter
ETL-S listed to NSF-7 Standards for use in commercial establishments
Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of stainless steel door trim

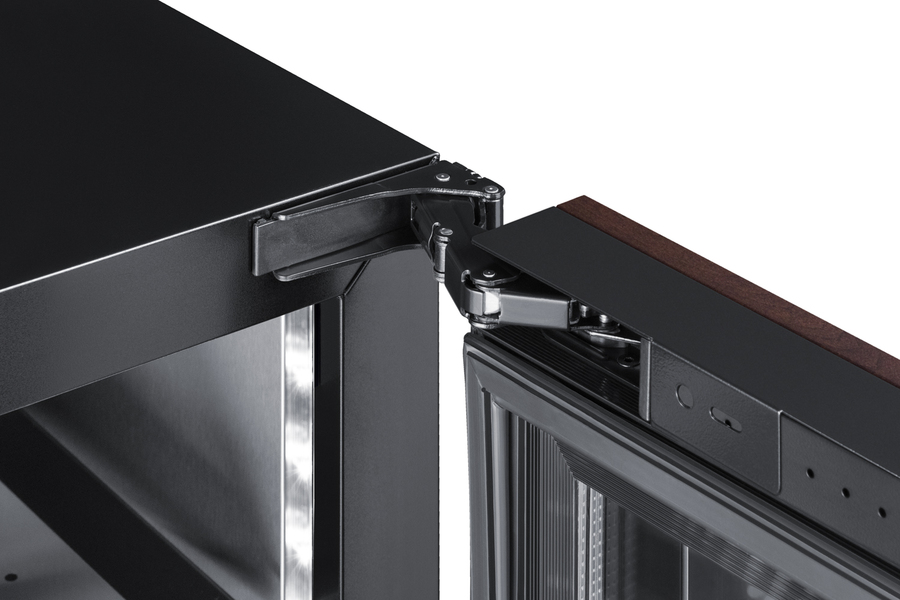

European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 14 5/8" W with a 3 1/4" H x 3 1/4" W inner frame
Elegant design offers a clear but protected view of your interior

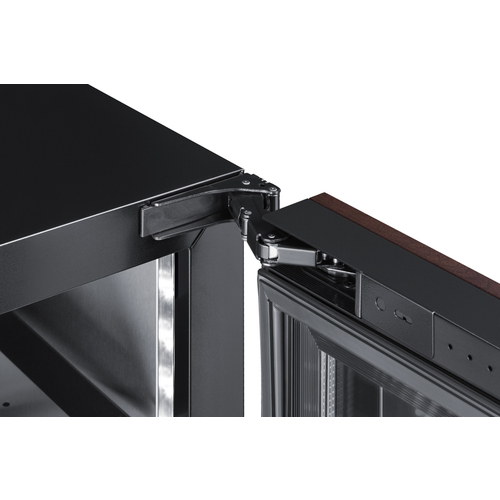

Smoother opening and a better fit with an integrated European hinge
Keyed lock for a secure interior (2 keys included)
Walls and floor are constructed from stainless steel for added strength and easy cleanup
No-frost operation for minimum user maintenance
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
Thermostat’s unique internal position allows for precise temperature readouts and easier temperature management
The unit's temperature range of 36°F to 43°F is ideal for chilling beverages

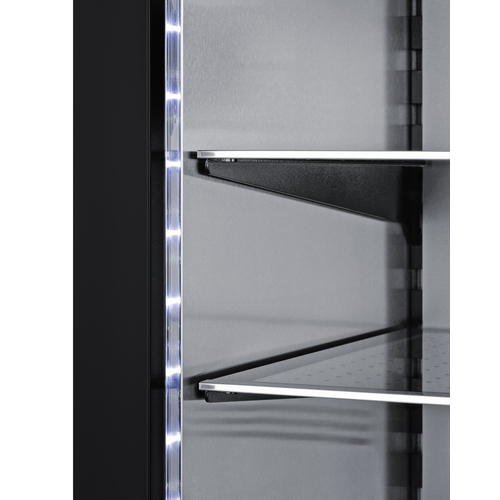

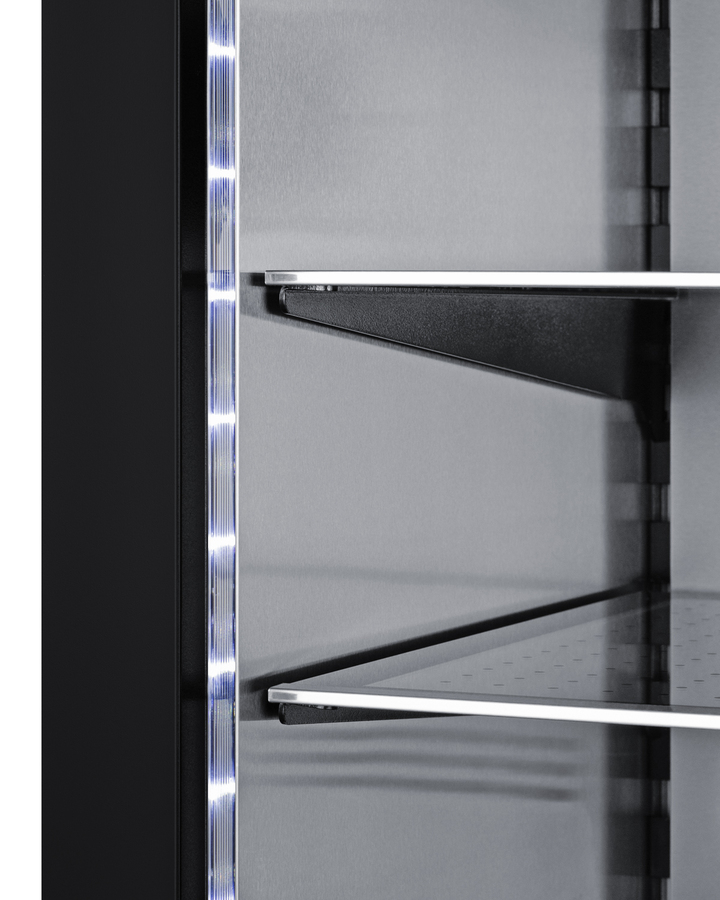

Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
Alarm sounds if the door is left open for more than 60 seconds
Audible alarm sounds if the interior temperature rises out of set range
Optional setting lets you disable the lighting and alarm for up to 96 hours during periods of observance
Unit will retain its last settings when power is restored in the event of power loss
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

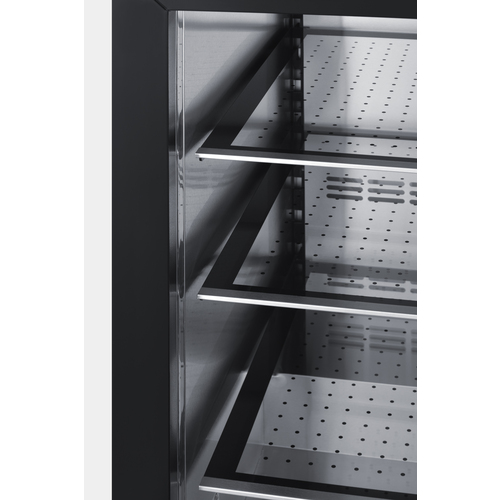

Spill-proof shelving for easy cleanup and flexible storage
Allows the unit to be used freestanding
Space-saving design with no exposed coils that offers easier cleanability
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Runs under 34 dB for a quiet performance that won't interrupt your conversation
For this unit with a standard right-hand door swing, see model SDHG1533PNR
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. The SDHG1533PNRLHD is a 15" wide beverage refrigerator, sized at 18" deep. It comes in a 34" height to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. A lock is located in the kickplate for added security. The panel-ready SDHG1533PNRLHD features our fully articulating European hinge, with a 2-piece bracket kit included to allow easy installation of your own custom door trim. This unit comes with a left-hand door swing. For a right-hand version, see the SDHG2443PNR. The SDHG1533PNRLHD's interior features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit includes an LED strip on each side of the interior cabinet, with dimmable settings in a gentle white hue that lets you create the perfect display conditions. Glass shelves ensure flexible storage to accommodate any size. The angled digital thermostat makes temperature readout and management easy and intuitive, with indicator lights showing when the interior is ideal for chilling beverages between 36°F and 43°F. Additional features include an open-door alarm, a high-temperature alarm, and a Sabbath mode setting that turns off some electrical elements for up to 96 hours during observances. The SDHG1533PNRLHD is ETL-S listed to NSF-7 commercial standards but can also be used in the home. Create a matching set by pairing this with our SDHW1532 wine cellar. This unit comes with a left-hand door swing. For a right-hand version, see the SDHG1533PNR. Alternative 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. For a 24" wide unit, see model SDHG2443PNRLHD.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
