24" Wide Built-In Beverage Center

SKU: SDHG2443LHD

Shallow 18" depth for an easy fit in island kitchens, wet bars, and other undercounter spaces with shallower cutouts

Estimated Time to Ship:

1 to 2 days

Find a dealer

Height:
Standard ADA

Door Swing:
RHD LHD

Storage:
Wine Beverage

Color: Glass

*Additional features may vary

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

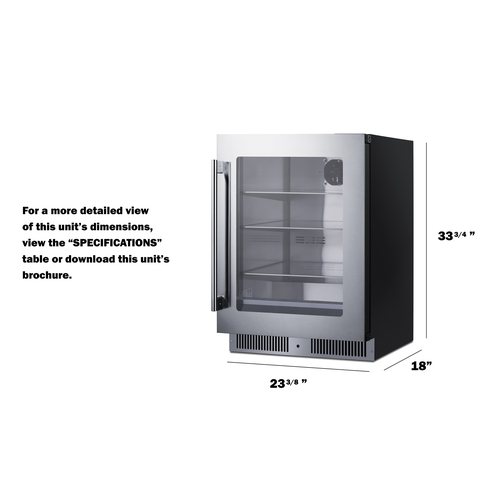

33.75" H x 23.38" W x 18.0" D
(86cm H x 59cm W x 46cm D)

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	33.75" (86 cm)
Nominal Width	24.0" (61 cm)
Width	23.38" (59 cm)
Nominal Depth	18.0" (46 cm)
Depth	18.0" (46 cm)
Depth with Handle	19.75" (50 cm)
Depth with door at 90°	41.25" (105 cm)
Capacity	3.5 cu.ft. (99 L)
Bottles	33 bottles
Defrost Type	Frost-Free
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	290.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	116.0 lbs. (53 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101107851
Refrigerator Features
Sabbath Mode	Yes
Door Swing	LHD
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.38oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Light	Yes
Temperature Range	36° F to 43°F
Sound Level	33.5 dB
Dimensions
Interior Height	26.0" (66 cm)
Interior Width	19.25" (49 cm)
Interior Depth	12.25" (31 cm)
Compressor Step Height	3.75" (10 cm)
Compressor Step Width	19.25" (49 cm)
Compressor Step Depth	5.0" (13 cm)

Exterior

RHD - Right hand door swing

Door

T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings	T2 Door Tint Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint Reflective door tint in light blue finish for medium energy savings	T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings
T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings

24" Wide Beverage Center

Undercounter glass door beverage refrigerator for residential or commercial use

18" depth

Unique 18" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

Built-In capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Double pane tempered glass door

Elegant design offers a clear but protected view of your interior

Seamless stainless steel door trim

Glass is framed by with a flush one-piece stainless steel trim for an elevated look

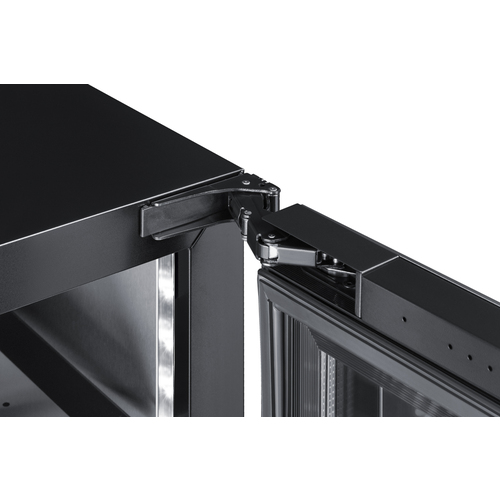

Fully articulating European style hinge

Smoother opening and a better fit with an integrated European hinge

Professional handle

Stainless steel handle completes the look

Stainless steel interior

Walls and floor are constructed from stainless steel for added strength and easy cleanup

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Ideal temperature range

The unit's temperature range of 36°F to 43°F is ideal for chilling beverages

Digital controls

Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature

High/low temperature alarm

Audible alarm sounds if the interior temperature rises out of set range

Frost-free operation

No-frost operation for minimum user maintenance

Angled thermostat

Thermostat’s unique internal position allows for precise temperature readouts and easier temperature management

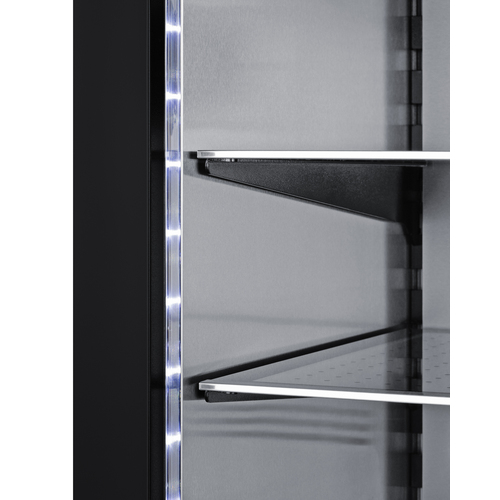

Dimmable LED light

Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

Open door alarm

Alarm sounds if the door is left open for more than 60 seconds

Sabbath mode

Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

Temperature memory function

Unit will retain its last settings when power is restored in the event of power loss

Internal fan

Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

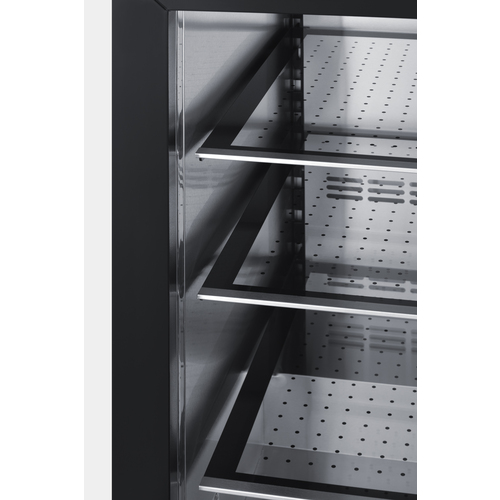

Adjustable glass shelves

Spill-proof shelving for easy cleanup and flexible storage

Fully finished black cabinet

Allows the unit to be used freestanding

Sealed back

Space-saving design with no exposed coils that offers easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Left-hand door swing

For this unit with a standard right-hand door swing, see model SDHG2443

Quiet operation

Runs under 34 dB for a quiet performance that won't interrupt your conversation

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

The SDHG2443LHD is a 24" wide beverage refrigerator, sized at just 18" deep. It comes in a 34" height to fit standard undercounter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless, stylish stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The fully articulating European hinge design ensures smoother opening. A lock is located in the kickplate for added convenience and security. This unit comes with a left-hand door swing. For a right-hand version, see the SDHG2443.

The unit's interior features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit includes an LED strip on each side of the interior cabinet, with dimmable settings in a gentle white hue that lets you create the perfect display conditions. Glass shelves ensure flexible storage to accommodate any size. The angled digital thermostat makes temperature readout and management easy and intuitive, with indicator lights showing when the interior is ideal for chilling beverages between 36° F and 43°F.

Additional features include an open-door alarm, a high-temperature alarm, and a Sabbath mode setting that turns off some electrical elements for up to 96 hours during observances.

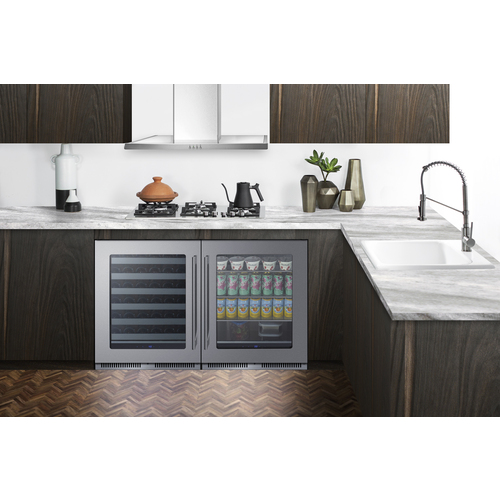

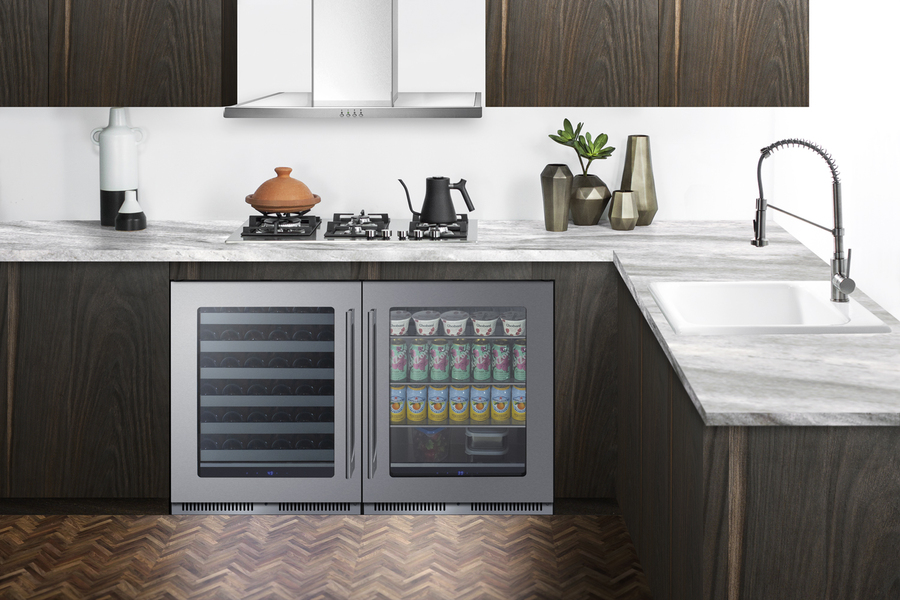

The SDHG2443LHD is ETL-S listed to NSF-7 commercial standards but can also be used in the home. Create a matching set by pairing this with our SDHW2442LHD wine cellar.

Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and ADA-compliant options. For a panel-ready version, see model SDHG2443PNRLHD.

BROCHURE w/ DRAWINGS
SDHG2443LHD.pdf

TECHNICAL DRAWING (.dwg)
SDHG2443_2_.dwg

ASSEMBLY DRAWING
SDHG2443-Assembly.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
