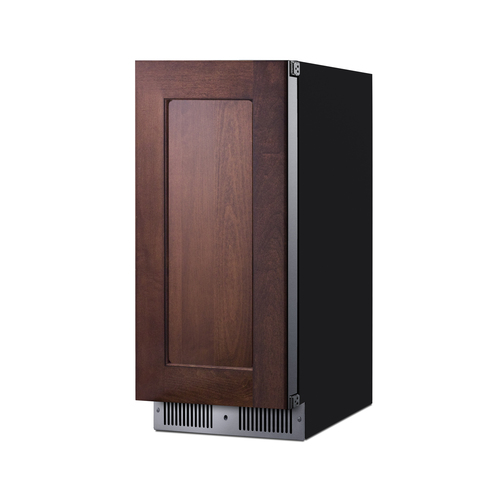

15" Wide Built-In All-Refrigerator (Panel Not Included)
Next day shipping
(86cm H x 37cm W x 46cm D)
SPECIFICATIONS
Overview
|
|
---|---|
Nominal Height | 34.0" (86 cm) |
Height of Cabinet | 33.75" (86 cm) |
Nominal Width | 15.0" (38 cm) |
Width | 14.75" (37 cm) |
Nominal Depth | 18.0" (46 cm) |
Depth | 18.0" (46 cm) |
Depth with door at 90° | 32.5" (83 cm) |
Capacity | 1.72 cu.ft. (49 L) |
Defrost Type | Frost-Free |
Door | Stainless Steel/Panel-Ready |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Energy Usage/Year | 270.0kWh/year |
Amps | 1.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 77.0 lbs. (35 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101145693 |
Refrigerator Features
|
|
Sabbath Mode | Yes |
Door Swing | RHD |
Reversible | Yes |
Shelf Type | Glass |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.64oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Temperature Range | 36°F to 43°F |
Sound Level | 33.6 dB |

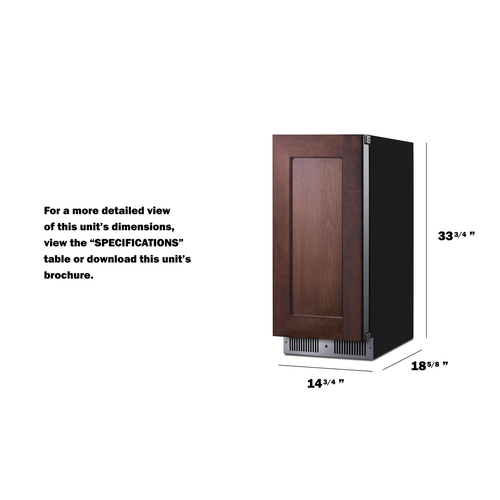

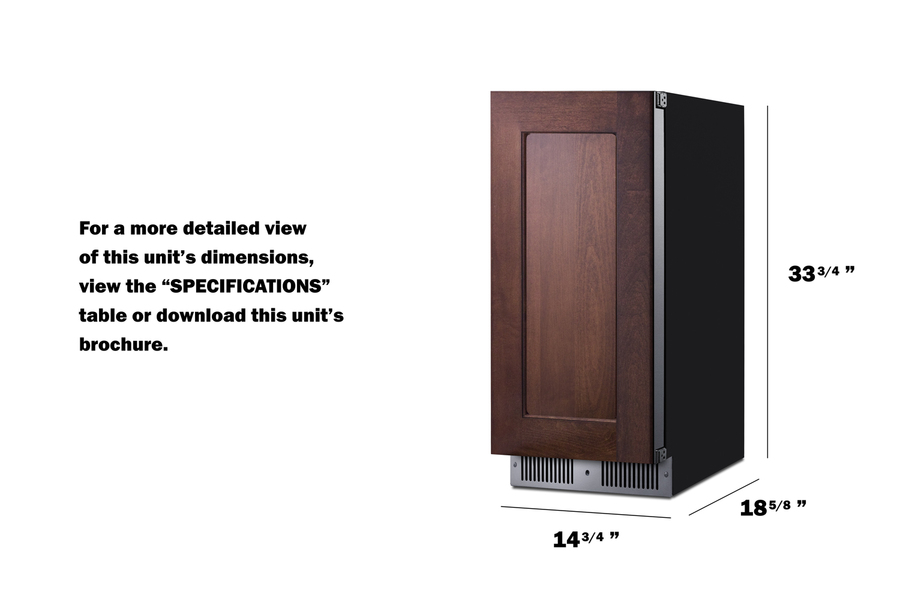

Dimensions
|
|
Interior Height | 26.0" (66 cm) |
Interior Width | 10.63" (27 cm) |
Interior Depth | 12.25" (31 cm) |
Compressor Step Height | 3.75" (10 cm) |
Compressor Step Width | 10.63" (27 cm) |
Compressor Step Depth | 5.0" (13 cm) |
AVAILABLE UPGRADES
Exterior | |
---|---|
|
FEATURES
1.7 cu.ft. interior for residential or commercial cold storage
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
Front-breathing design lets you make the best use of space by installing your appliance under the counter
ETL-S listed to NSF-7 Standards for use in commercial establishments

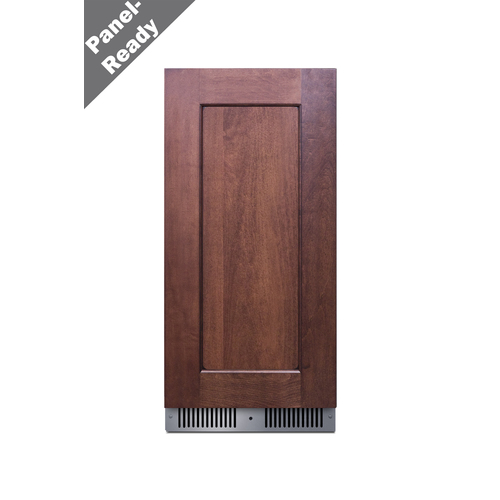

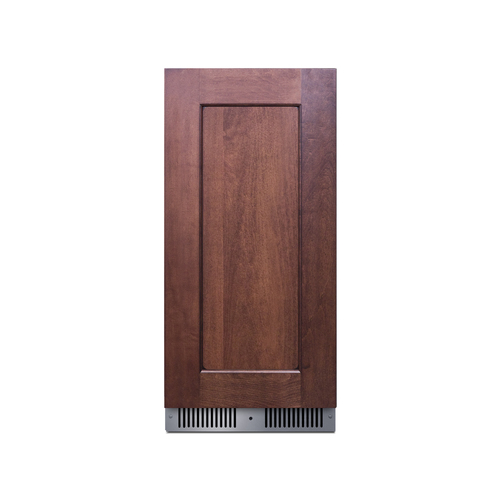

Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of a fully finished stainless steel door

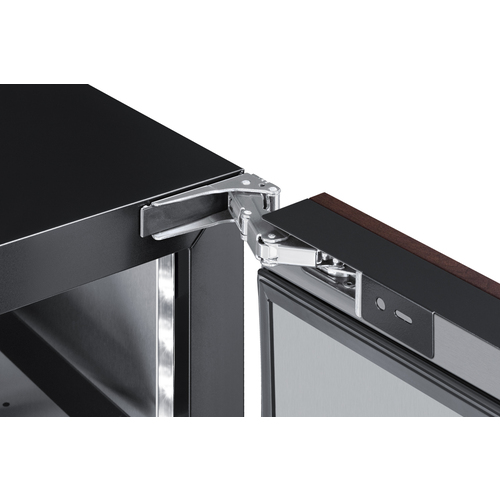

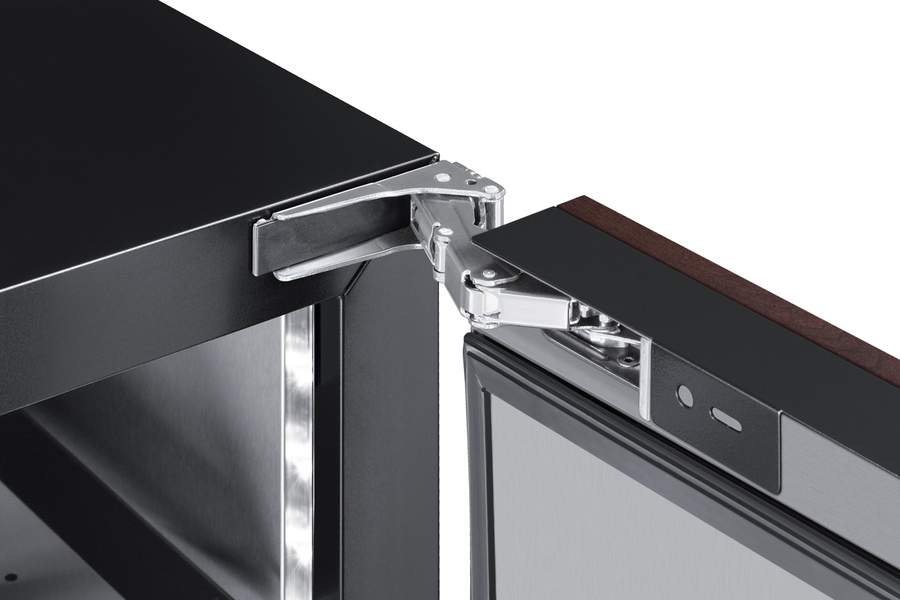

European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 14 5/8" W
Smoother opening and a better fit with an integrated European hinge
Walls and floor are constructed from stainless steel for added strength and easy cleanup
Keyed lock for a secure interior (2 keys included)
No-frost operation for minimal user maintenance
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

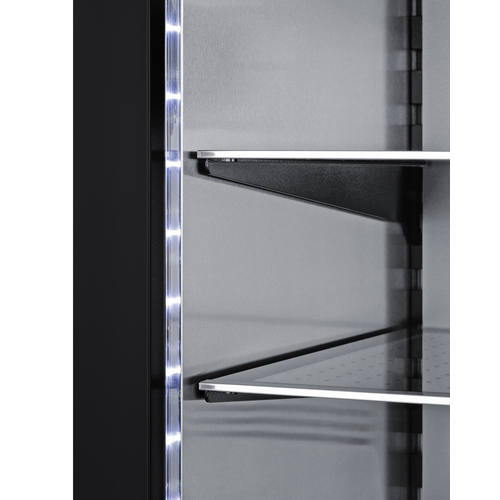

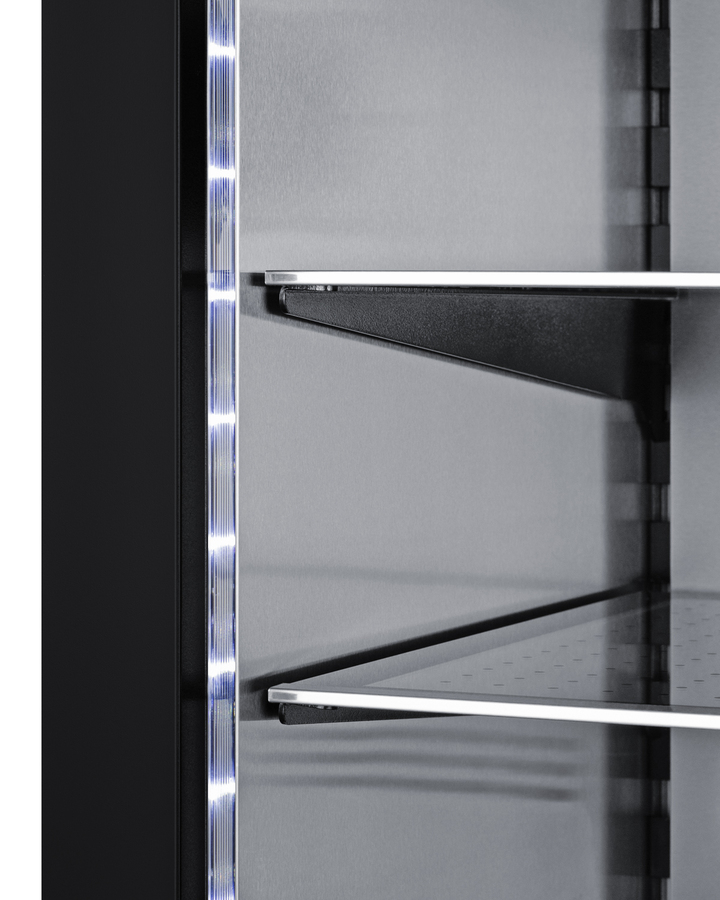

Efficient and attractive presentation with LED lighting that can be adjusted between three levels of brightness
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm sounds if the unit's interior goes out of the recommended range
Optional setting lets you disable the lighting and alarm for up to 96 hours
Unit will retain its last settings when power is restored in the event of power loss

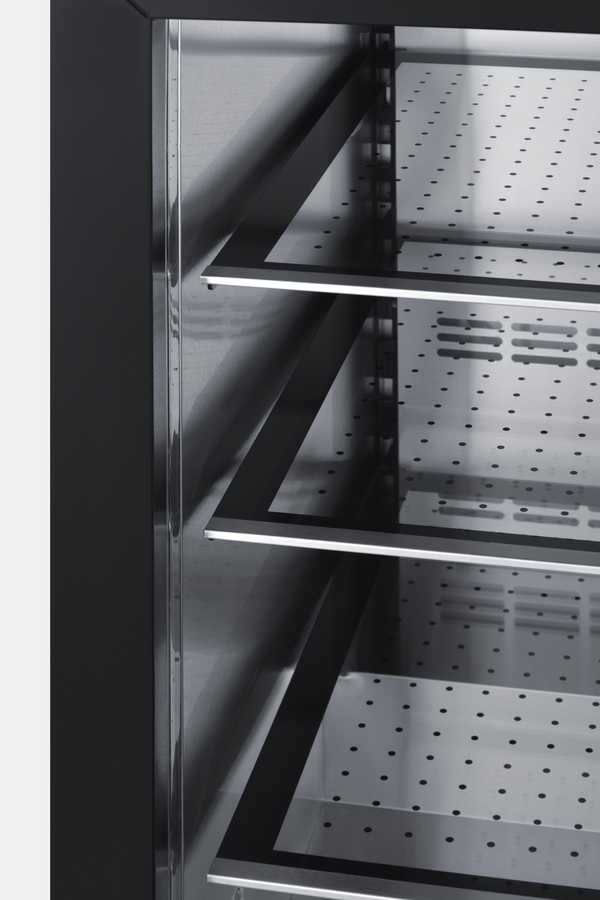

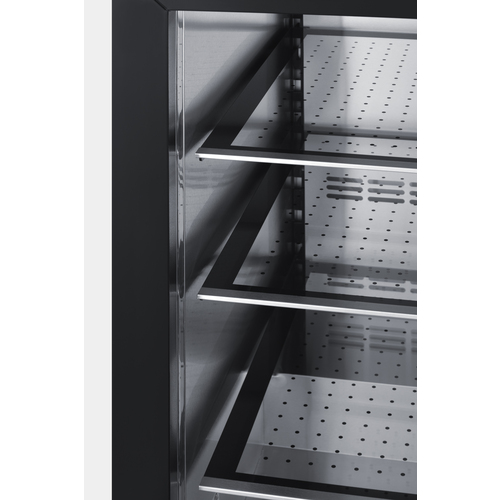

Spill-proof shelving for easy cleanup and flexible storage
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space-saving design with no exposed coils that offers easier cleanability

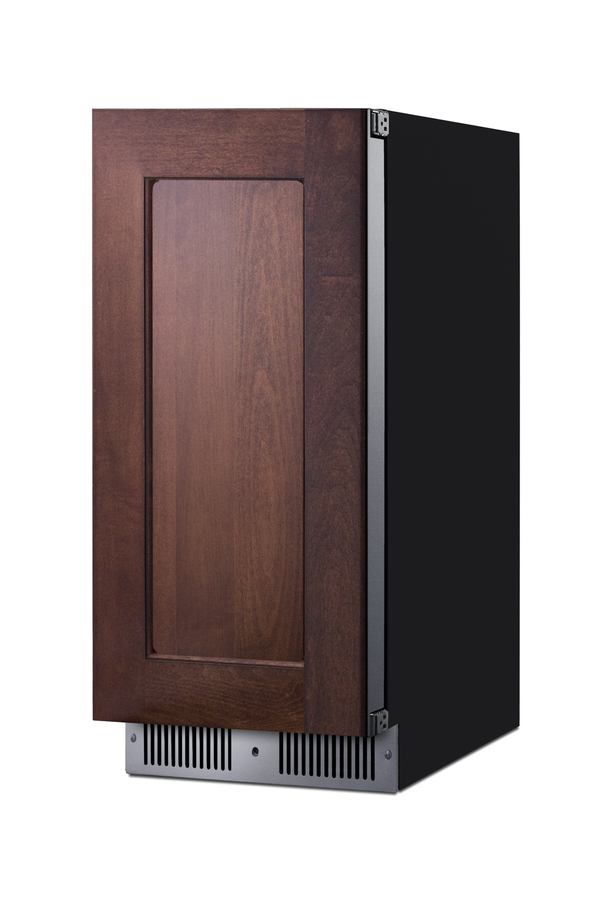

Allows the unit to be used freestanding
User-reversible door swing for added flexibility to best accommodate your setting
Runs under 34 dB for a quiet performance that won't interrupt your conversation
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

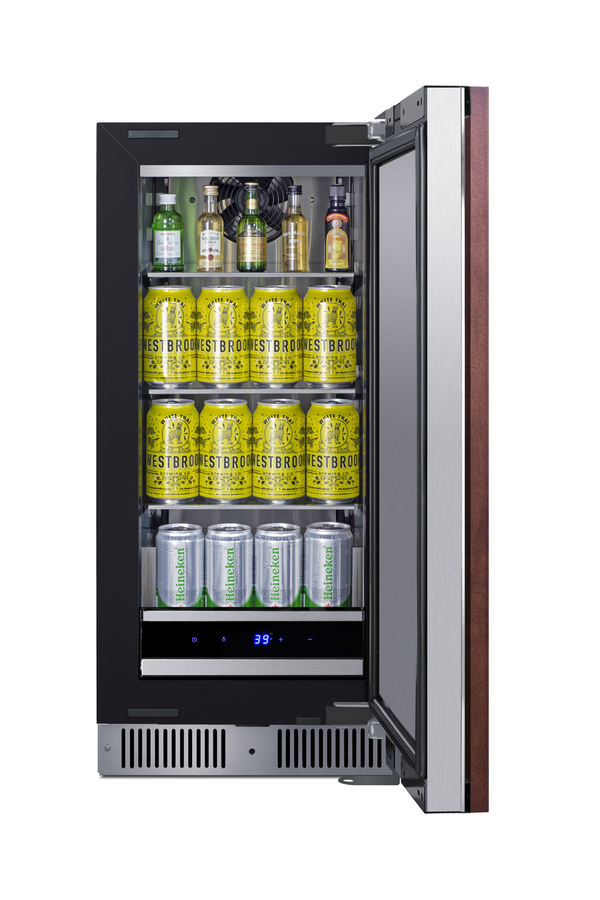

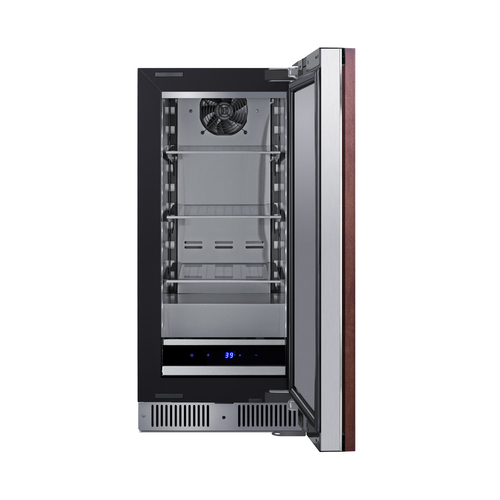

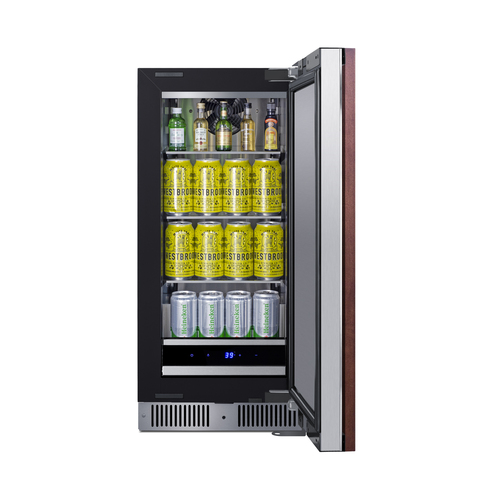

Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. The SDHR1534PNR is a 15" wide all-refrigerator sized under 18" deep. It comes in a 34" height to fit standard undercounter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. A lock is located in the kickplate for added security. The stainless steel wrapped door features our fully articulating European hinge. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can blend into your existing cabinetry design. The user-reversible door swing allows easy adjustment as needed. Inside, the unit features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes a cantilevered shelving system with glass shelves for flexible storage. Additional features include an open door alarm, high-temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during observance periods for up to 96 hours. The SDHR1534PNR is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Alternative 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
