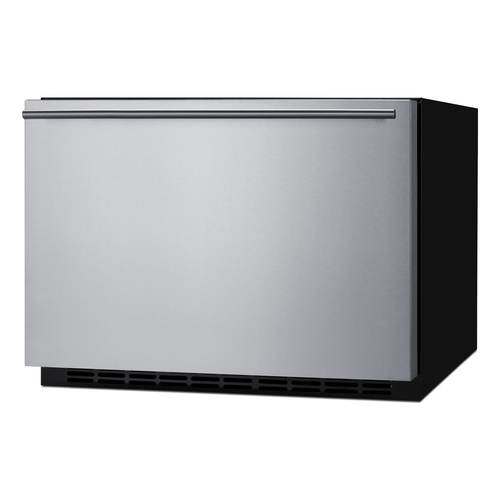

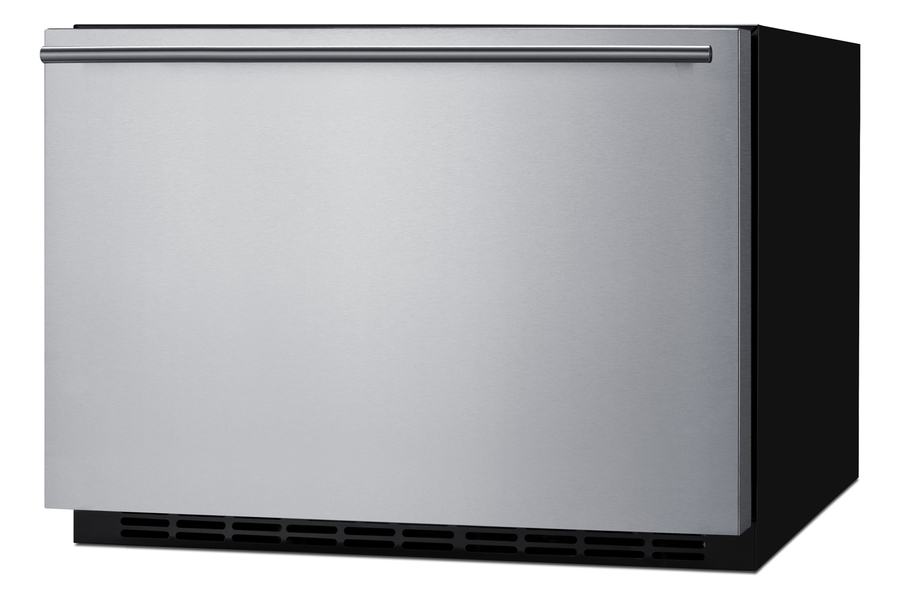

24" Wide Built-In Outdoor Drawer Refrigerator
1 to 2 days
(45cm H x 59cm W x 56cm D)
SPECIFICATIONS
Overview
|
|
---|---|
Nominal Height | 18.0" (46 cm) |
Height of Cabinet | 17.75" (45 cm) |
Nominal Width | 24.0" (61 cm) |
Width | 23.38" (59 cm) |
Nominal Depth | 22.0" (56 cm) |
Depth | 22.0" (56 cm) |
Depth with Handle | 23.5" (60 cm) |
Depth with door at 90° | 37.88" (96 cm) |
Capacity | 2.0 cu.ft. (57 L) |
Defrost Type | Frost-Free |
Door | Stainless Steel/Panel-Ready |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Energy Usage/Year | 265.0kWh/year |
Amps | 1.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 62.0 lbs. (28 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101089119 |
Refrigerator Features
|
|
Sabbath Mode | Yes |
Door Swing | Drawer |
Reversible | No |
Shelf Type | Glass |
Shelf Qty | 1 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.85oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Temperature Range | 36 to 43ºF |
Sound Level | 32.6 dB |
Dimensions
|
|
Interior Height | 13.0" (33 cm) |
Interior Width | 17.75" (45 cm) |
Interior Depth | 15.5" (39 cm) |
Compressor Step Height | 6.5" (17 cm) |
Compressor Step Width | 17.75" (45 cm) |
Compressor Step Depth | 4.5" (11 cm) |
FEATURES

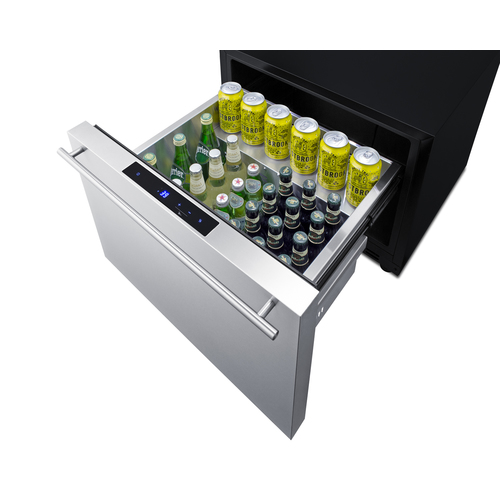

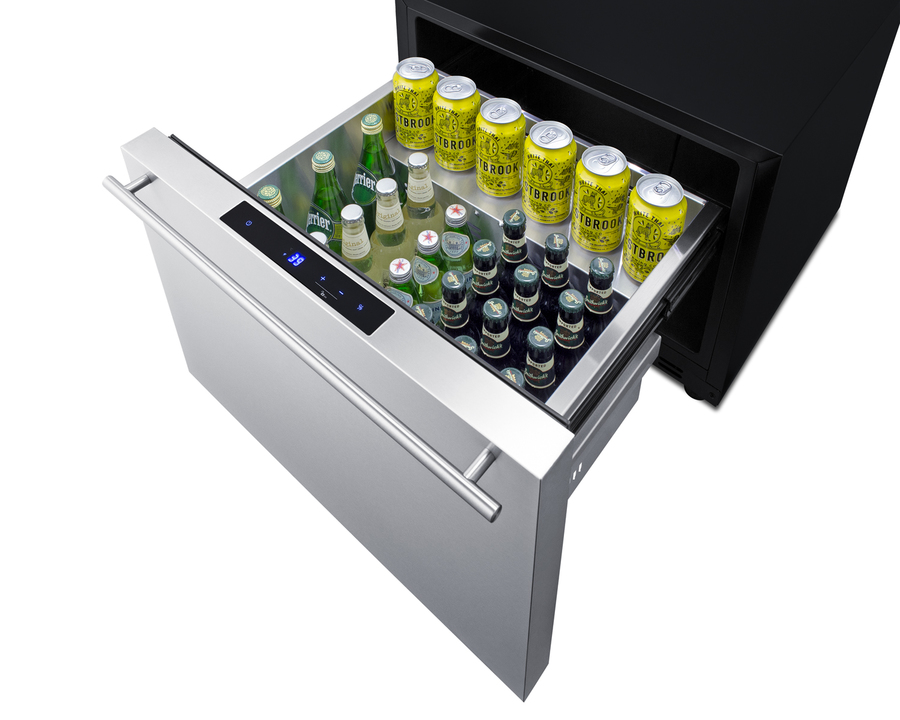

2 cu.ft. all-refrigerator in a single drawer style to complete any indoor or outdoor kitchen space

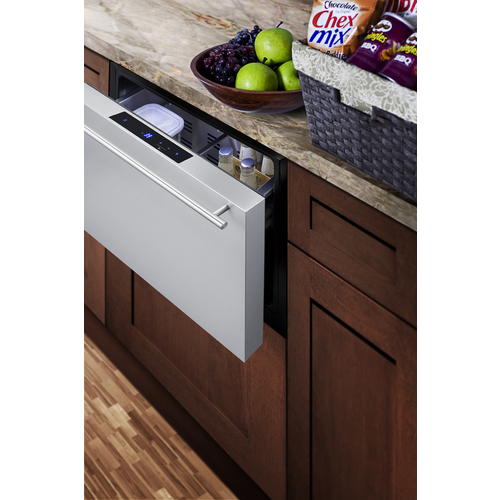

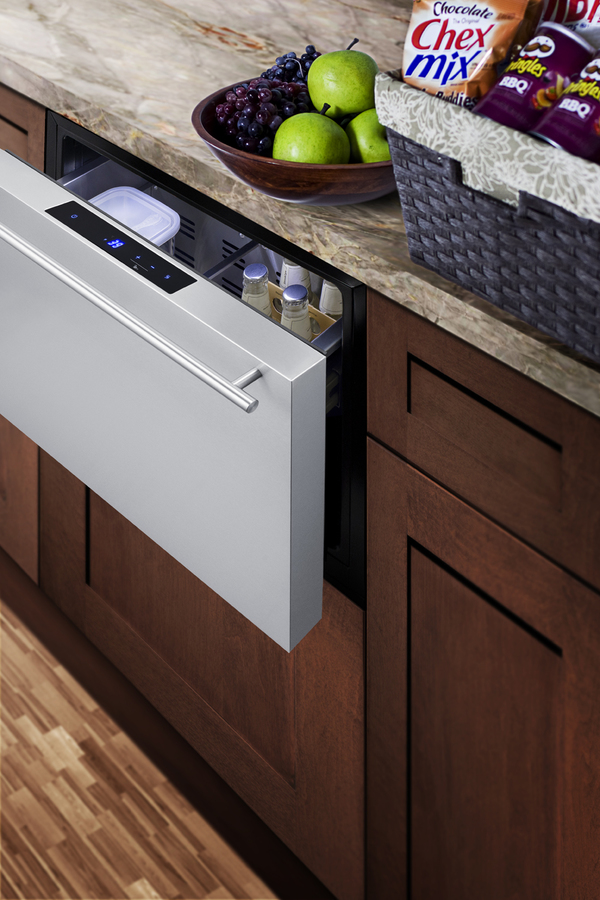

Durable construction allows safe installation in outdoor kitchens
ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
Front-breathing design allows you to build the drawer into cabinetry

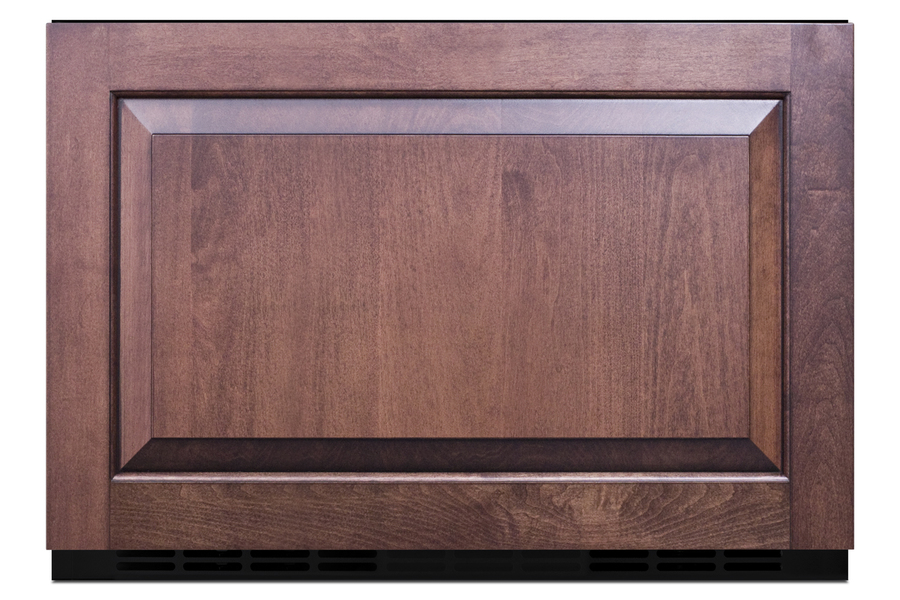

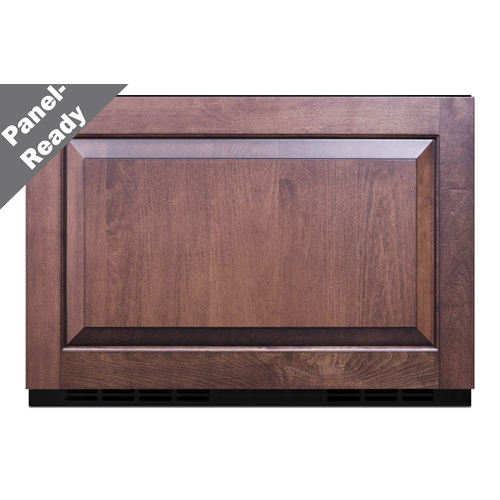

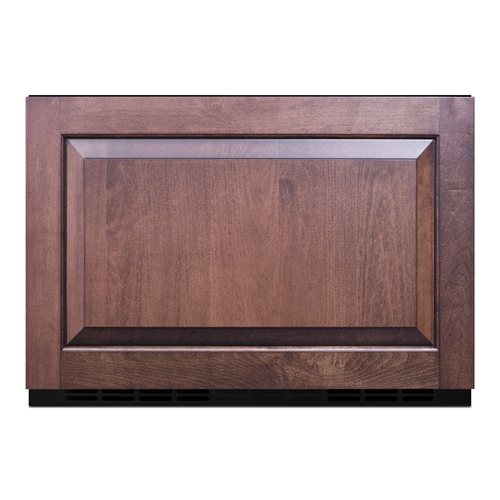

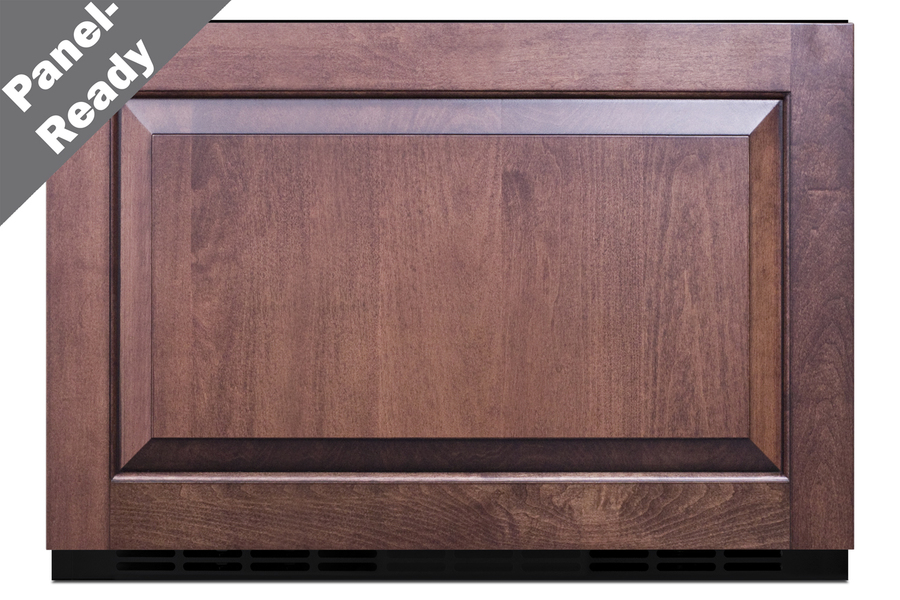

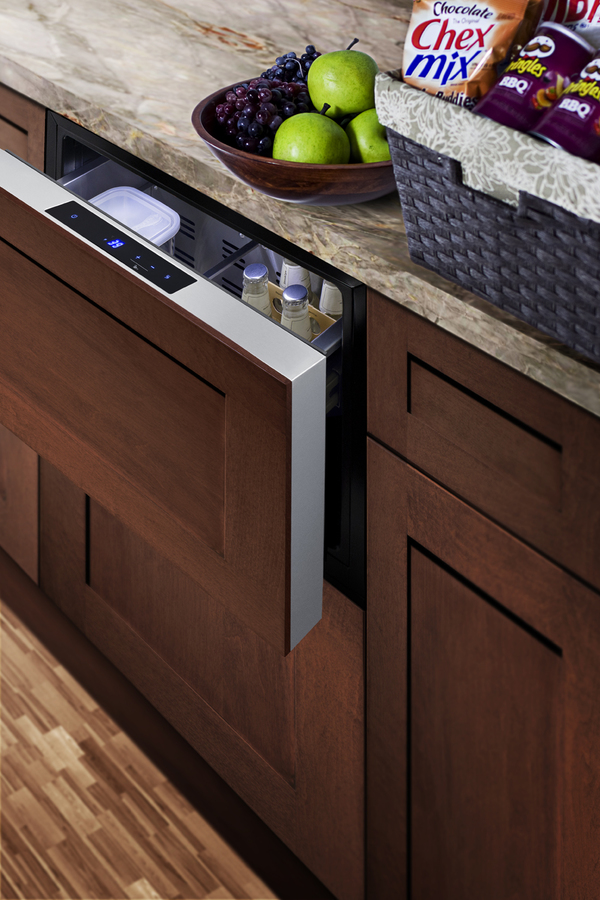

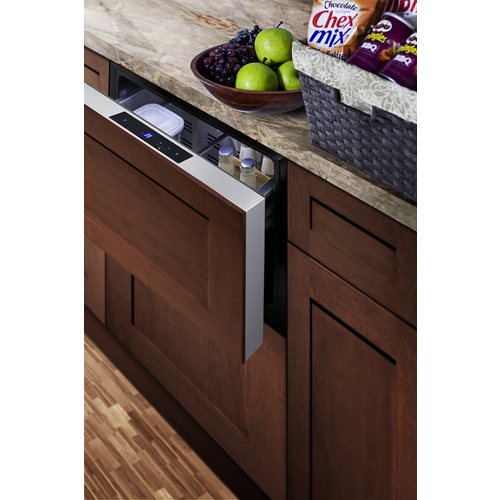

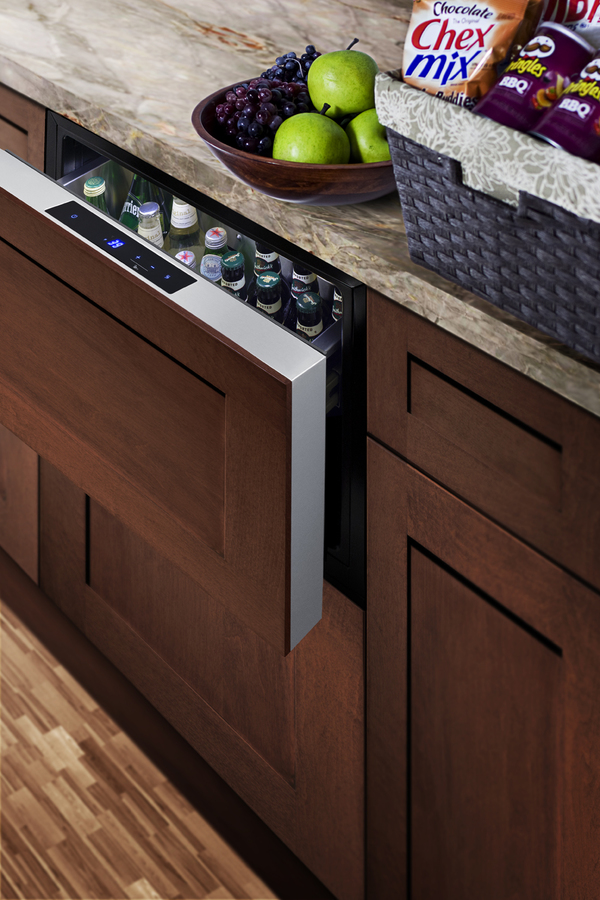

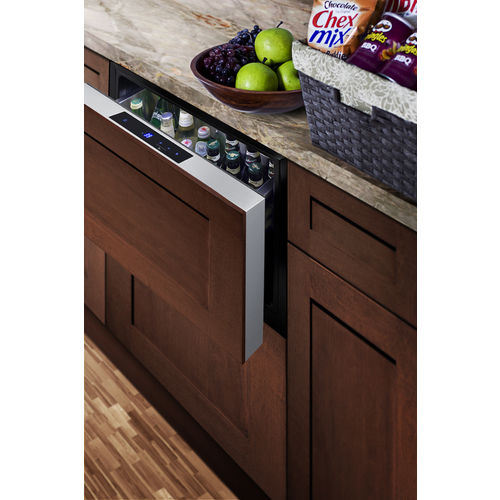

Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 23.4" W at 3/4" maximum thickness)

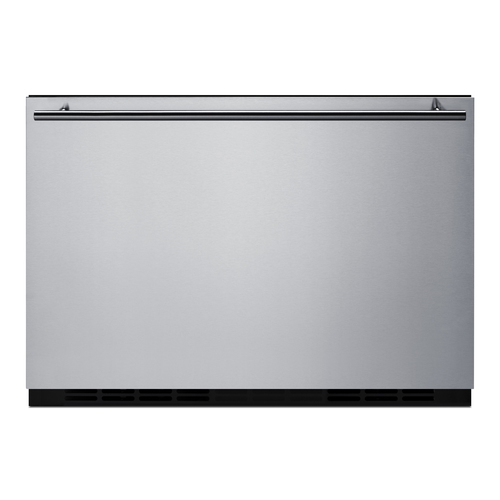

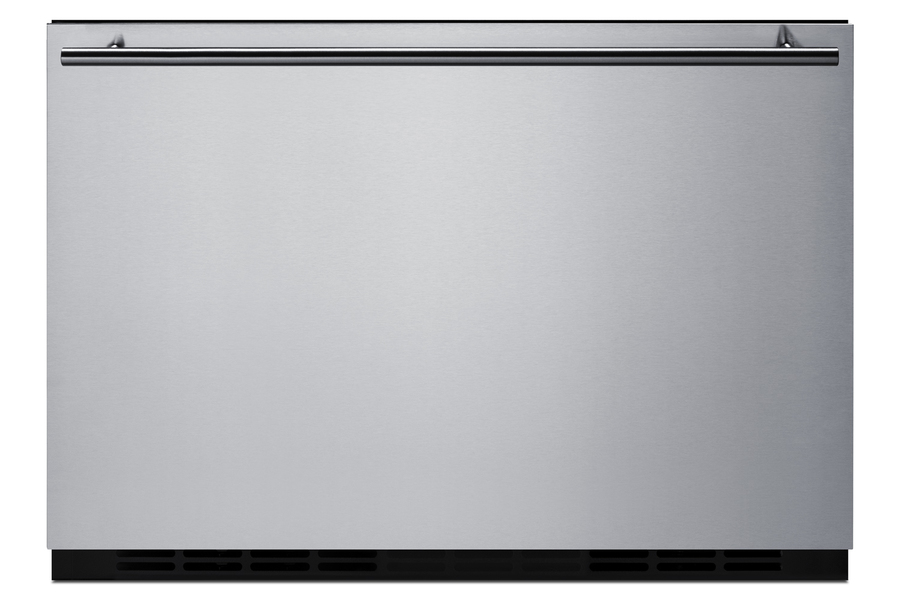

Drawer front and interior constructed from stainless steel for added durability and easy cleanability
Minimum user maintenance with a fully no-frost operation system

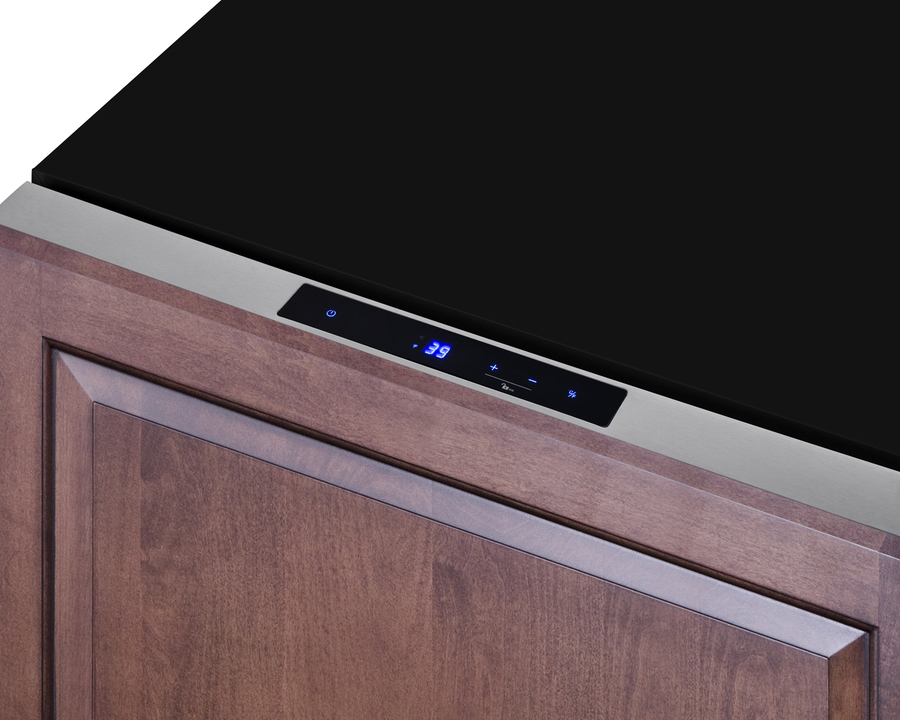

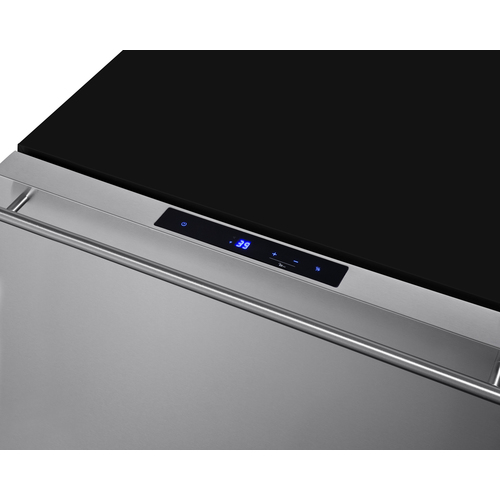

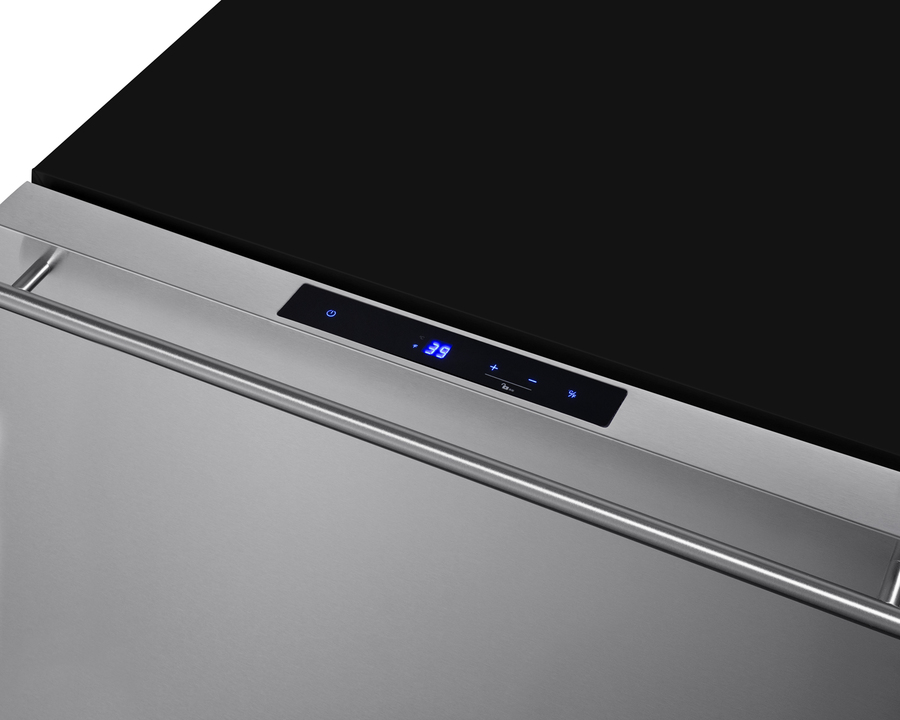

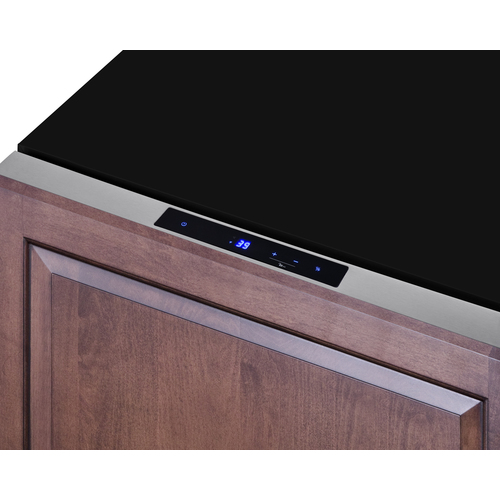

Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior

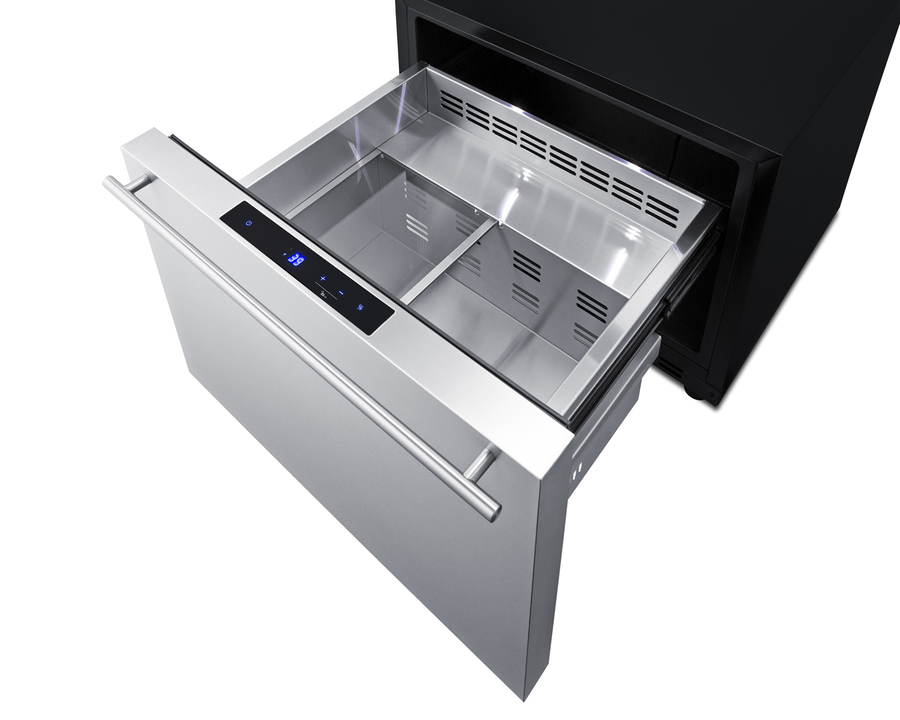

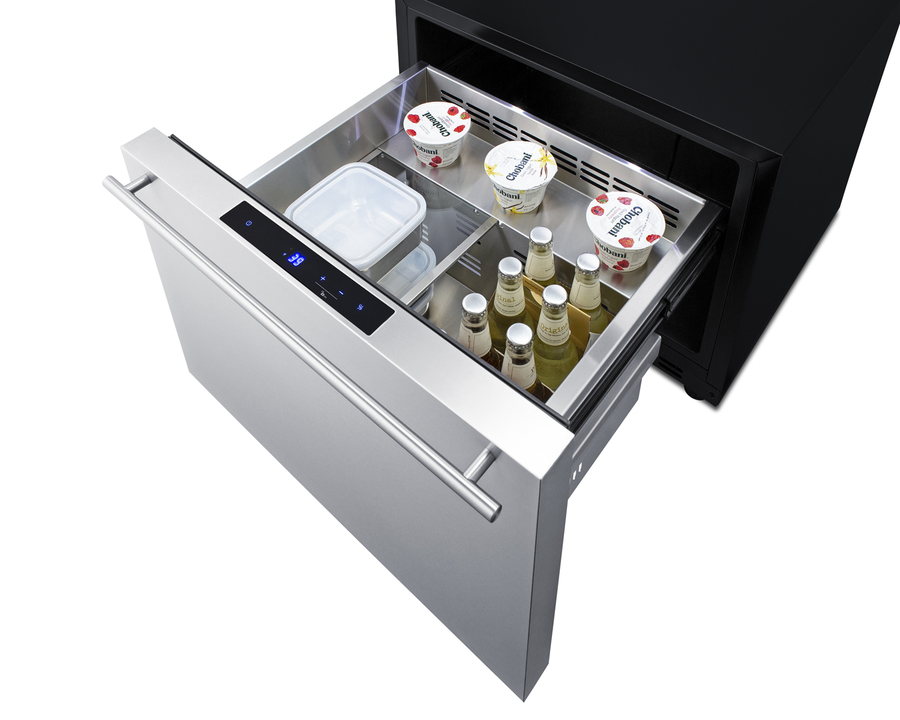

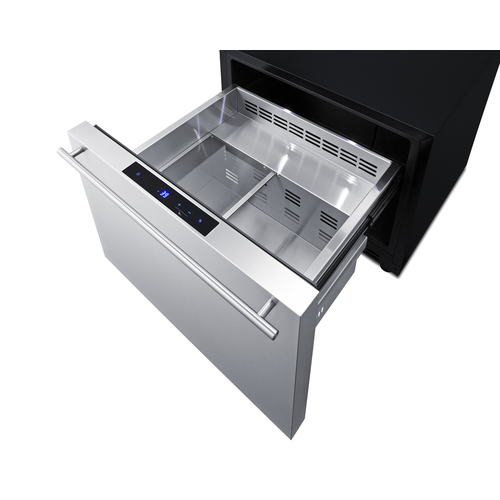

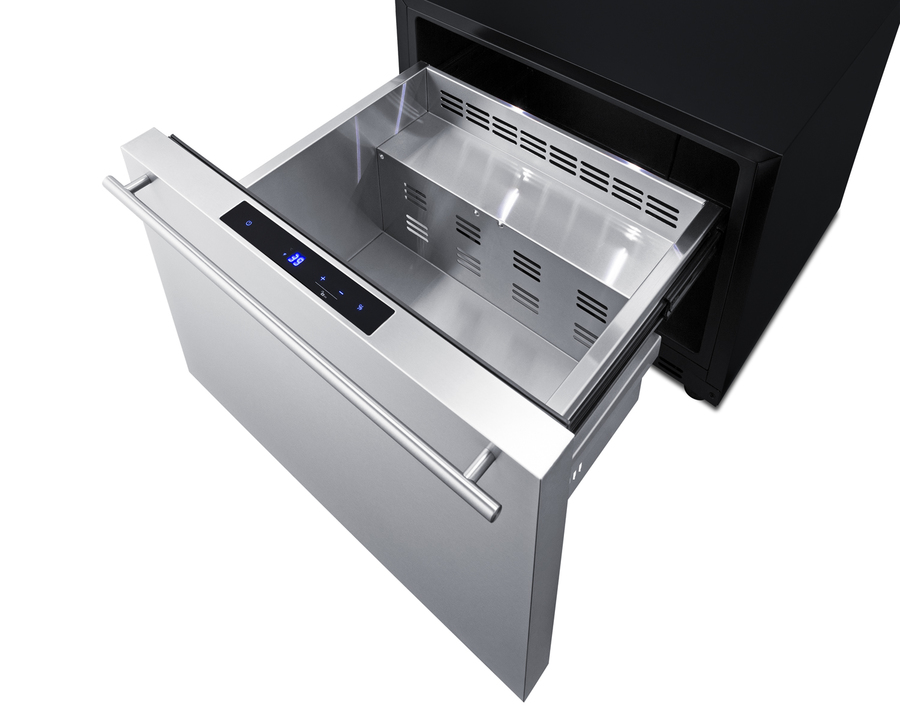

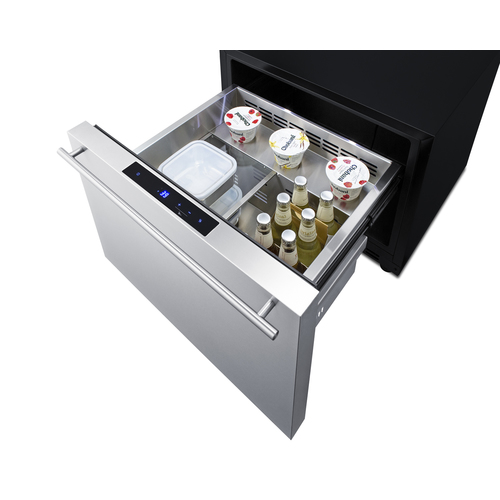

Removable divider makes it easy to organize stored items
Includes one half-sized shelf that lets you create more separation as needed
Fan-forced cooling ensures the unit is evenly cooled
Unit will retain its last settings when power is restored in the event of power loss
A sleek stainless steel handle adds an elegant touch to any setting
High temperature alarm sounds if the unit's interior goes out of the recommended range
Audible alarm will sound if the drawer is left open longer than one minute
Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours
Runs at under 33 dB for a quiet performance in any setting
Disables digital controls after two minutes of activity for added safety
Space-saving design with no exposed coils for easier cleanability
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit manufactures an extensive selection of built-in refrigeration specially constructed for safe and reliable cooling in outdoor kitchens. The SDR241OS is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. It's sized at just under 24" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The weatherproof construction allows safe use in outdoor settings, with a sealed back and fully finished black cabinet to ensure all components are protected from the elements. The drawer is constructed from 304 grade stainless steel, with a pro style handle and fully finished front. For more custom style, the drawer is panel-ready, allowing you to match or complement existing cabinetry in a few simple steps (suggested panel dimensions: 15.6" H x 23.4" W at 3/4" maximum thickness). Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. We include a removable clear cover that helps protect all components from the elements. To adjust the settings, slide the off to access the screen. Inside, the SDR241OS offers a full 2 cu.ft. capacity to accommodate your storage needs. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. We also include a half-sized glass shelf. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance. With its fully-featured, weatherproof design, the SDR241OS is the perfect cooling compartment or beverage holder in outdoor or indoor home kitchens, as well as hotel spaces, foodservice areas, and more. Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
