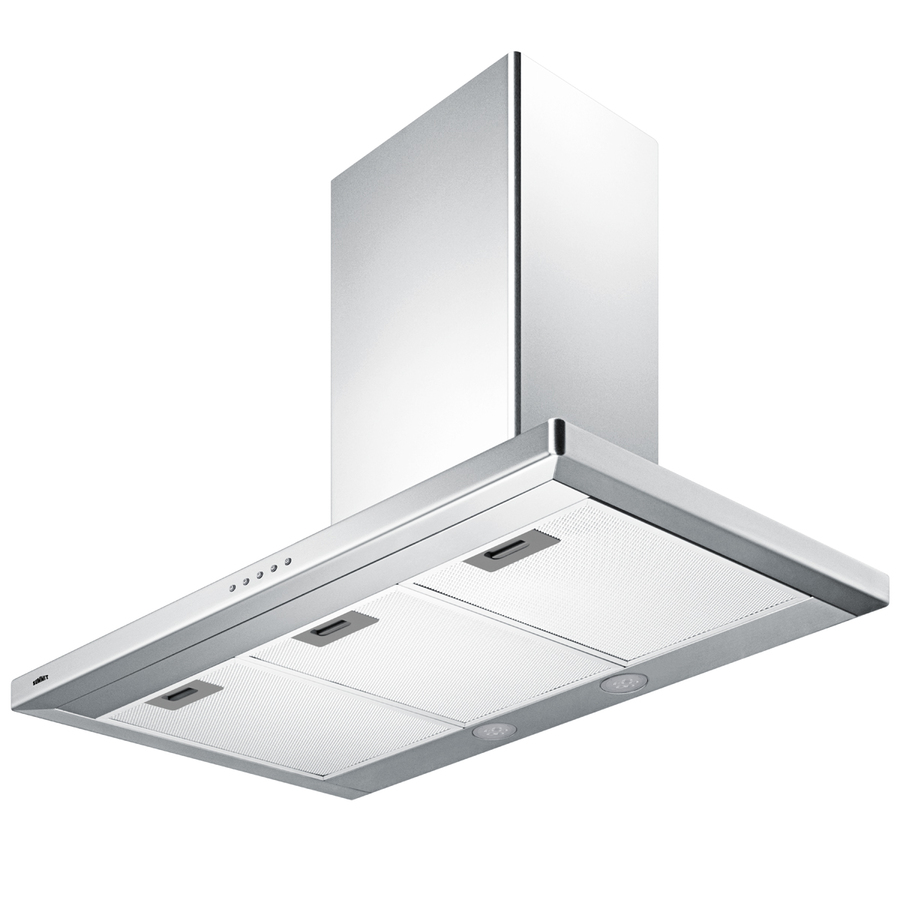

36" Wide Wall-Mounted Range Hood, ADA-Compliant
11/30/2024
(75cm H x 90cm W x 50cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 30.0" (76 cm) |
| Height of Cabinet | 29.5" (75 cm) |
| Nominal Width | 36.0" (91 cm) |
| Width | 35.44" (90 cm) |
| Nominal Depth | 20.0" (51 cm) |
| Depth | 19.69" (50 cm) |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Amps | 2.6 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 55.0 lbs. (25 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101107332 |
|
Range Hood
|
|
| Installation | Wall-Mounted |
| Venting | Convertible |
| Controls | Push Button |
| Light | Yes |
| Number of Lights | 2 |
| Light Type | LED |
| Number of Fan Speeds | 3 |
| Maximum Air Movement | 400.0 CFM |
| Sone Rating | 10 |
| Minimum Height | 15.75" (40 cm) |
| Maximum Height | 29.5" (75 cm) |
| Duct Shape | 6" Round |
FEATURES
European style range hood designed to bring effective ventilation over 36" wide cooking surfaces
Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

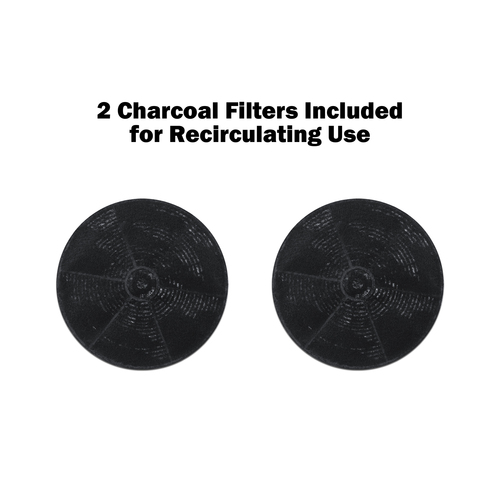

Two round carbon filters attach to the blower to absorb grease and odors when using the hood in recirculating mode
400 CFM blower to effectively remove smoke and cooking odors from your kitchen

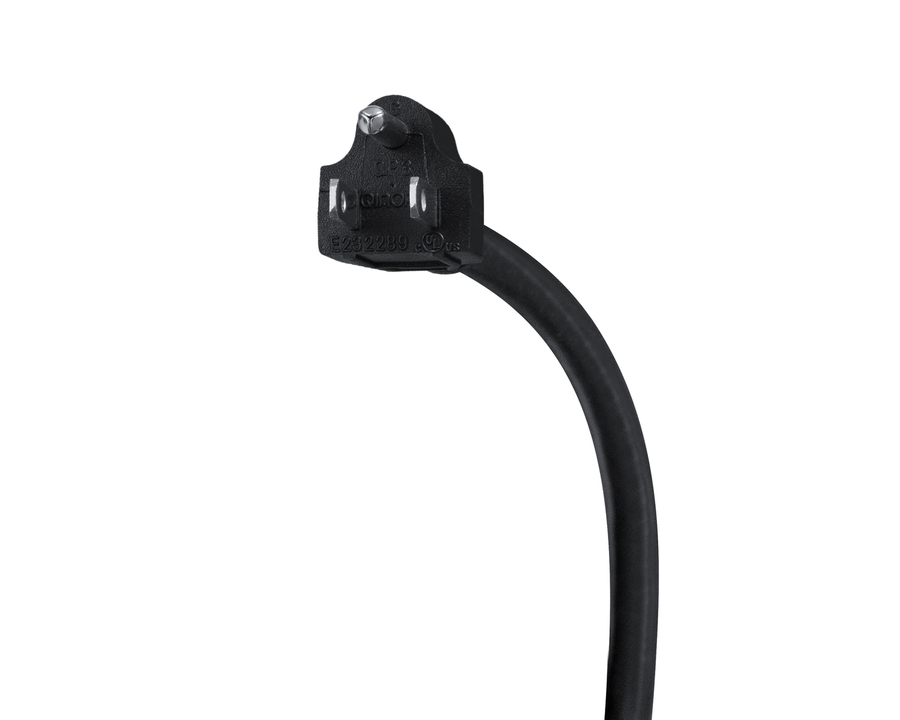

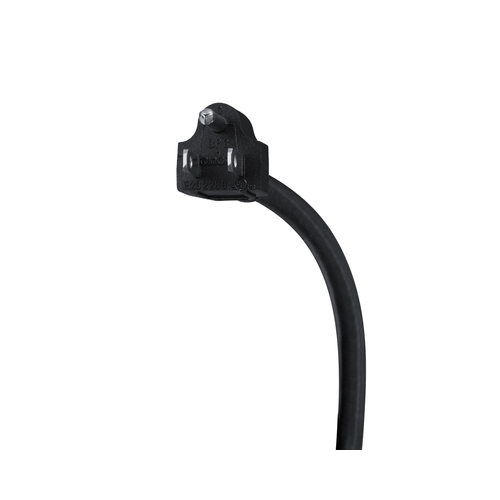

Pre-installed power cord with 3-prong plug for 115V outlets
Includes two pre-installed LED bulbs to illuminate your cooking surface
Includes a telescoping chimney extender that allows you to adjust the overall height between 15 3/4" to 29 1/2"
Durable construction in an attractive style with a horizontal grain

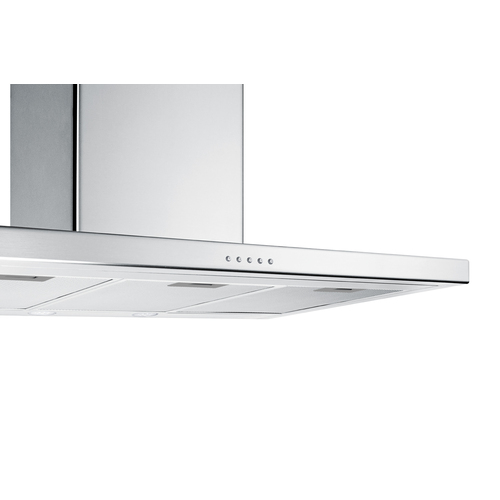

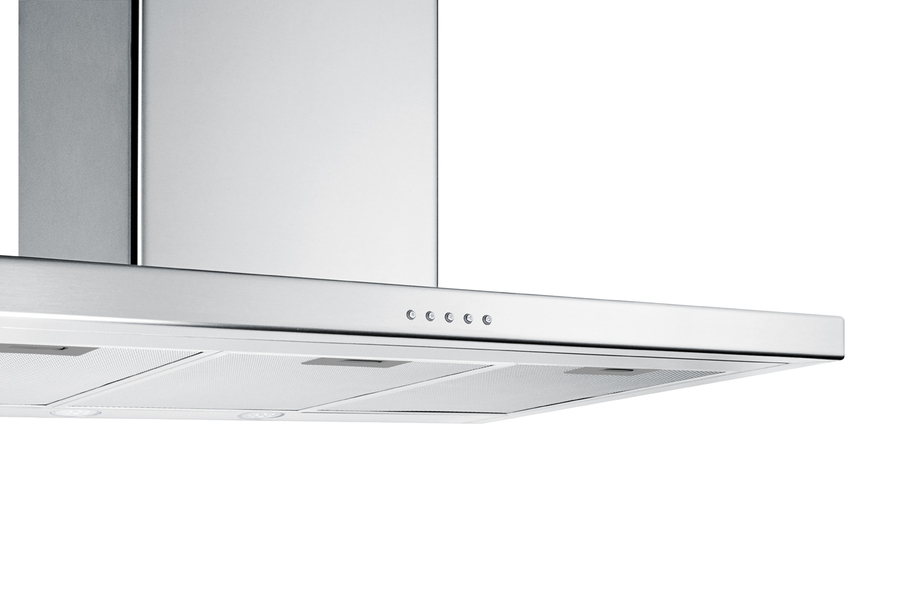

Touch buttons located towards the front of the hood let you adjust your ventilation and lighting as needed
Choose from three speeds to provide the proper level of ventilation for your cooking
Two mesh filters capture grease particles and are removable for easy cleanup
Ideal for most kitchen settings

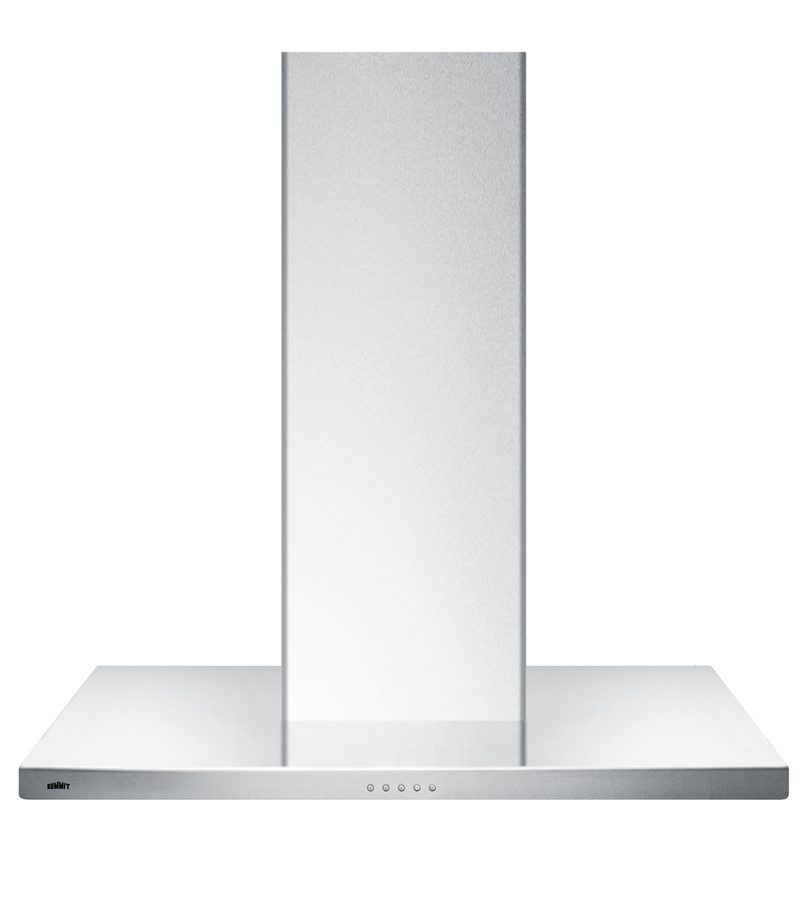

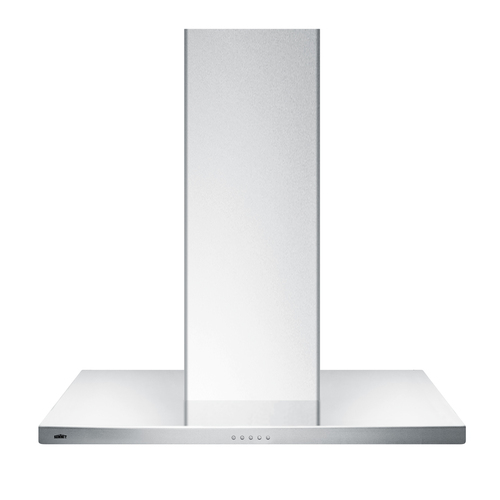

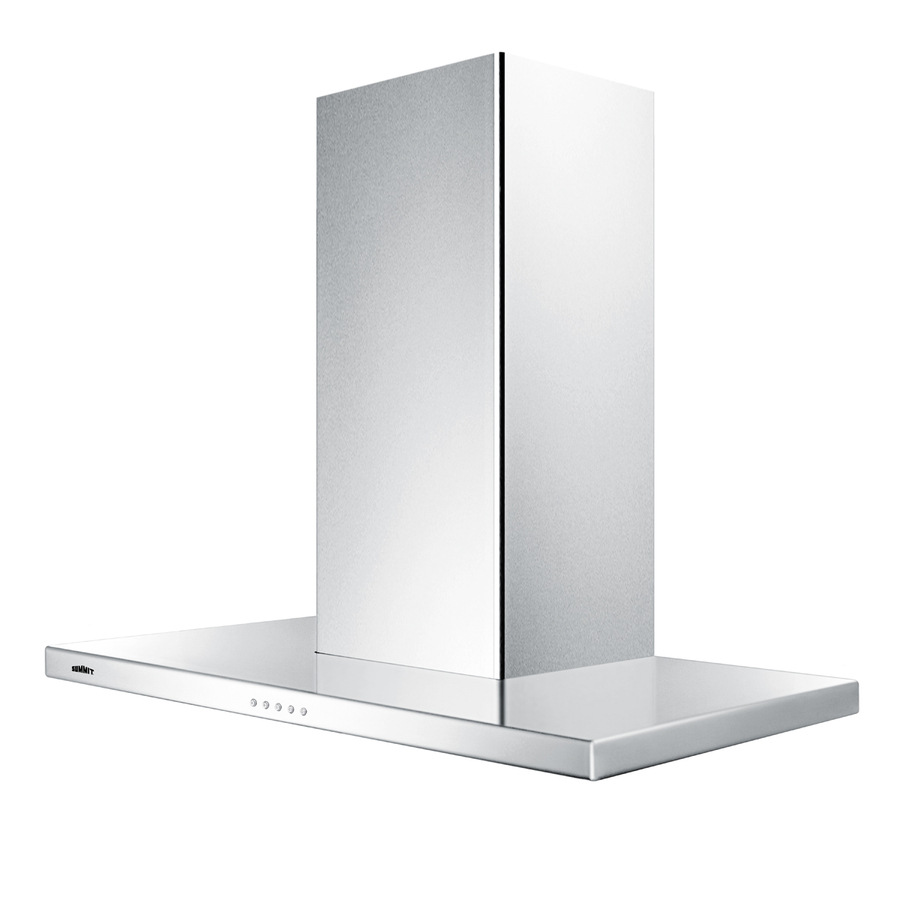

Popular rectangular T-shape style offers an attractive, modern look to complement any kitchen
DESCRIPTION
Summit's selection of European-style range hoods includes units specially designed to be installed in compliance with Sections 308 and 309 of the ADA Guidelines. Sized at 36" wide, model SEH4636SSADA is perfect for all kitchens looking for elegant style and powerful ventilation. This unit features brushed stainless steel construction with a horizontal grain and a rectangular T-shaped canopy to suit any setting. We include a chimney extender that lets you adjust the height to best fit your space. Two pre-installed LED light bulbs offer convenient illumination for your cooking surface. The SEH4636SSADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height following ADA guidelines. The 3-speed fan and 15-minute timer are operated from an easy-to-use slider control panel. Some assembly is required. This range hood can be used ducted with a 6" round duct, or for recirculating/ducted operation. We include two charcoal filters for use in kitchens where there is no exhaust connection to the outside. Two aluminum mesh cassette filters offer plenty of ventilation coverage. This model includes a pre-installed 3-prong 115V cord and mounting bracket. Additional ADA-compliant wall-mounted and under cabinet range hoods are available in a variety of sizes and styles. Browse our website for more choices.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
