30" Wide Gas Wall Oven

SKU: SGWOGD30

Designed and constructed in Italy, with luxury style in brushed stainless steel

Estimated Time to Ship:

Next day shipping

Find a dealer

Width:
27 Inch 30 Inch

*Additional features may vary

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

27.0" H x 29.5" W x 22.63" D
(69cm H x 75cm W x 57cm D)

Overview
Nominal Height	27.0" (69 cm)
Height of Cabinet	27.0" (69 cm)
Nominal Width	30.0" (76 cm)
Width	29.5" (75 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.63" (57 cm)
Depth with Handle	24.63" (63 cm)
Depth with door at 90°	39.75" (101 cm)
Capacity	3.0 cu.ft. (85 L)
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	15.0
Voltage/Frequency	115 V AC/60 Hz
Weight	144.0 lbs. (65 kg)
Parts & Labor Warranty	1 Year
UPC	761101064819
Gas Walloven
Ignition	Spark
LP Convertible	Yes
Oven Capacity	3.0
Controls	Dial
Oven Light	Yes
Cooking Timer	Yes
Cleaning Type	Manual
Oven Rack Qty	3
Oven Window	Yes
Interior Height	13.75" (35 cm)
Interior Width	23.0" (58 cm)
Interior Depth	16.0" (41 cm)
Cutout Height	26.63" (68 cm)
Cutout Width	28.0" (71 cm)
Cutout Depth	24.0" (61 cm)

30" wide gas wall oven

Deluxe design for wall installation in 26 5/8" H x 28" W x 24" D cutouts

Made in Italy

Designed and manufactured in Italy for Summit

Stainless steel construction

Professional style built to last with brushed stainless steel construction on the door and manifold

Professional handle

Solid tube handle in brushed stainless steel for a luxury look and strong grip

LP convertible

Unit comes set for natural gas but ships with an LP kit for easy conversion to propane connections

Large oven window

Extra wide glass window provides a full view of your cooking

Interior light

Stays on during the bake and broil process so you can observe your cooking progress at a glance

Convection function

Interior fan option offers more even convection heating, ideal for faster defrosting large dishes. Combine with the bake or broil function

Broil function

Broiler is located inside main cavity and can be accessed easily with its knob control

Powerful cooking

12,000 BTU oven offers endless cooking possibilities

Intuitive knob controls

Oversized analog knobs provide a simple and intuitive cooking experience with clear markings for each oven function

Porcelain interior

Durable construction built to last

Adjustable shelves

Includes three slide-out shelves with five positions to best accommodate a variety of dish sizes

Broiler pan included

Porcelain tray with removable metal grate

Digital clock and timer

Conveniently located in the center of the control panel

Electronic ignition

Pre-installed cord with a 3-prong plug included

Regulator included

Gas connector specially made to fit this unit's safety valve

Thermocouple flame failure protection

Automatically turns gas off if flame is extinguished

Summit's Made In Italy cooking lineup combines user-friendly function, elegant style, and lasting durability to create the ultimate luxury for home kitchens.

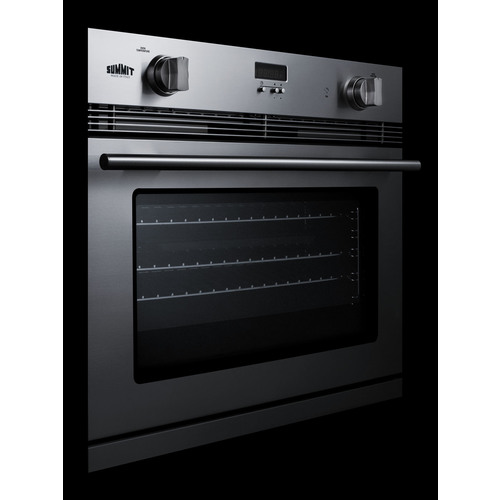

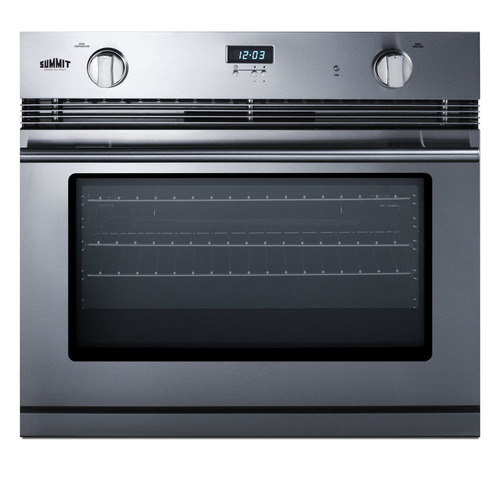

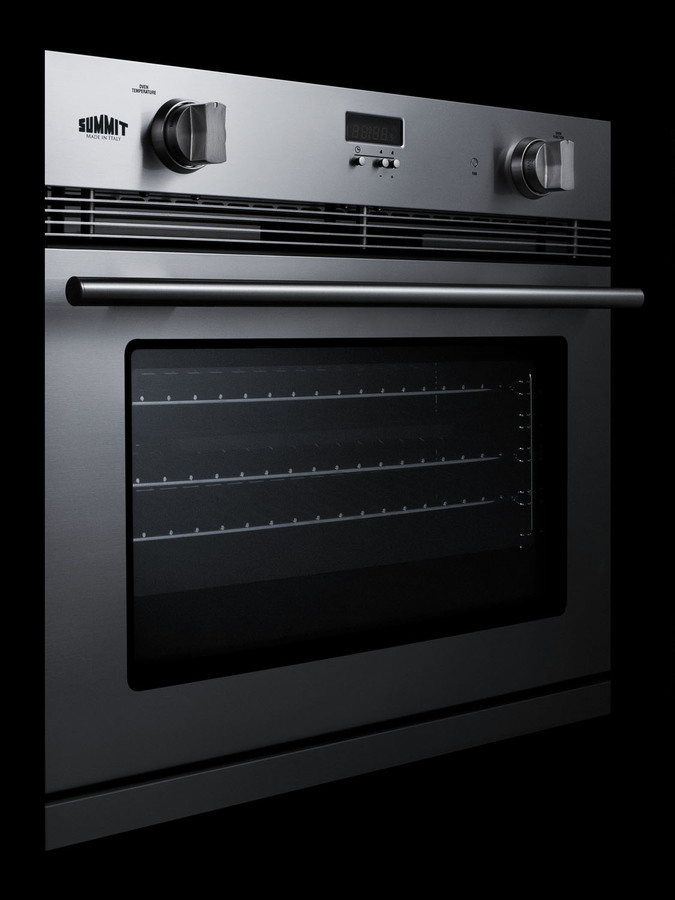

Model SGWOGD30 is a 30" wide gas wall oven designed for installation in 26 5/8" H x 28" W x 24" D wall cutouts. The exterior is fully constructed from stainless steel in a brushed horizontal grain, with a thick towel bar handle and modern oversized knobs to create a statement look. The extra large glass oven window and interior light ensure you have a full view inside the oven when cooking. The manifold includes a digital clock with a countdown timer for additional convenience.

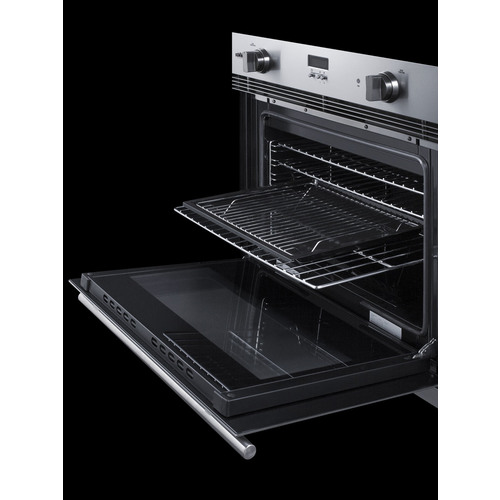

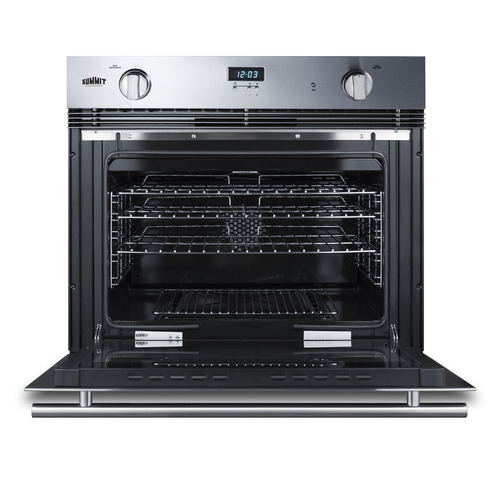

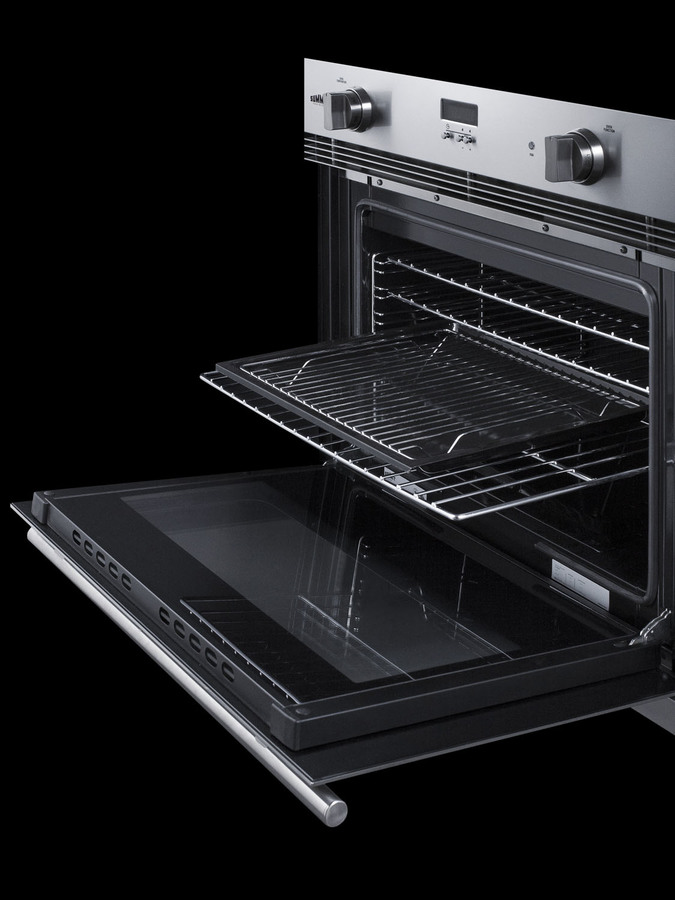

Inside, the SGWOGD30 features porcelain construction to hold up to everyday use. Three adjustable shelves can be positioned on five glides. We also include a broiler tray with a removeable metal grate. The powerful 12,000 BTU oven includes settings to bake and broil, with a convection fan that can be used with either function to ensure even heating on your dishes.

The SGWOGD30 ships preset for natural gas but includes an LP conversion kit to adjust to propane connections. This unit utilizes spark ignition and features a pre-installed cord with a 3-prong plug. The regulator is included.

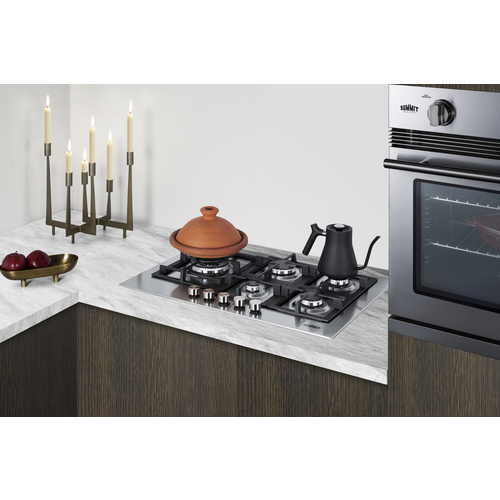

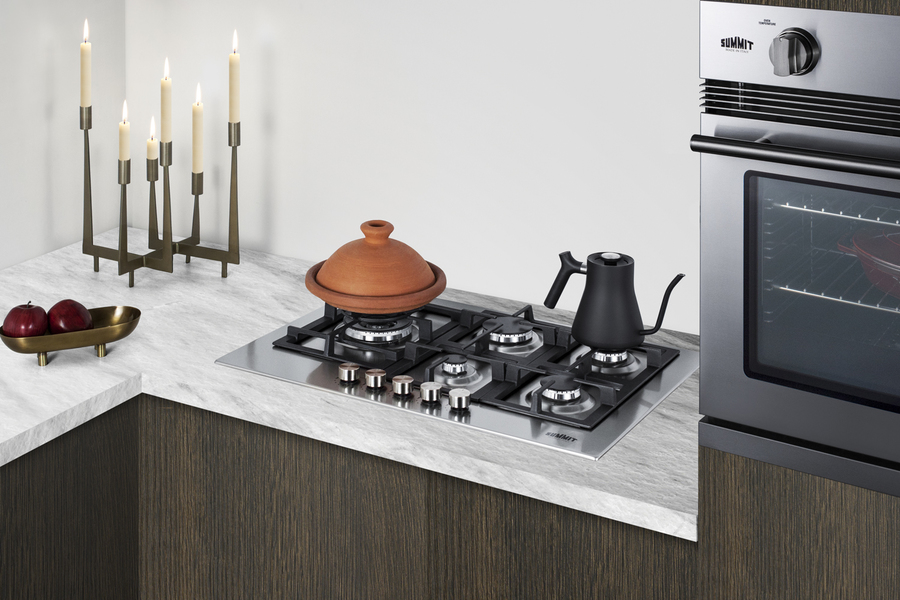

With its versatile functions and stunning design, the SGWOGD30 brings European elegance to the home. Matching Italian gas cooktops are also available in 24", 30", and 36" sizes. Browse the full Summit assortment to explore your options.

BROCHURE w/ DRAWINGS
SGWOGD30.pdf

TECHNICAL DRAWING (.dwg)
SGWOGD30.dwg

ASSEMBLY DRAWING
SGWOGD30-ASSY.pdf

3D DRAWING
SGWOGD30NoCord.obj

3D DRAWING
SGWOGD30.dwg

3D DRAWING
SGWOGD30.3ds

REVIT MODEL
QF_Summit_SGWOGD30_30_Wide_Stainless_Steel_Gas_Wall_Oven.rfa

USE & CARE
SGWOGD30_SGWOGD27_Updated_10-20-2022.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
