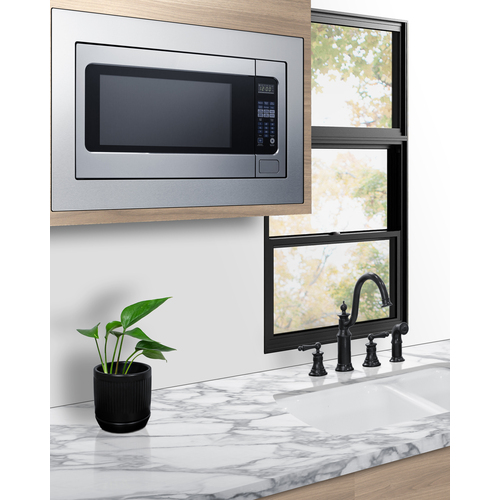

30" Wide Built-In Microwave (Trim Kit Included)
Next day shipping

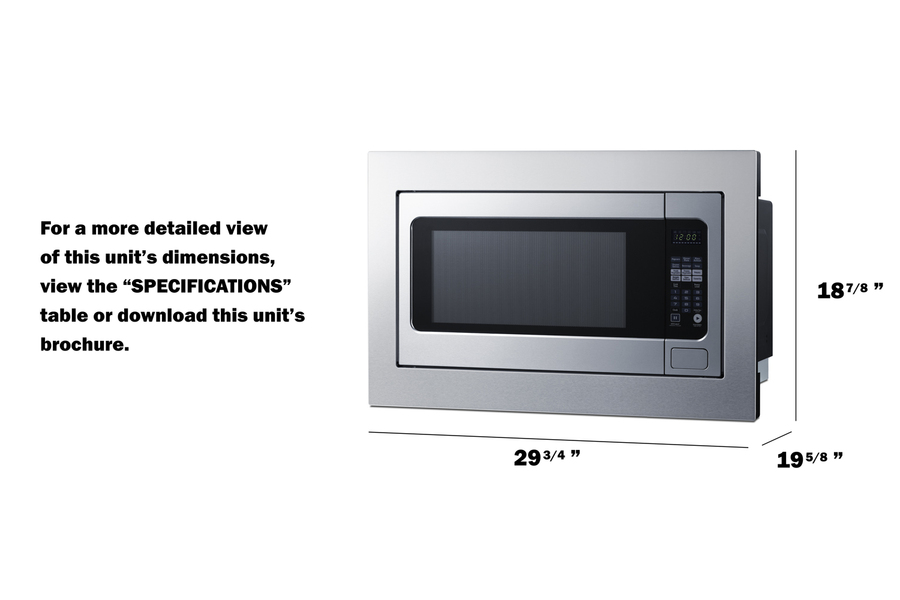

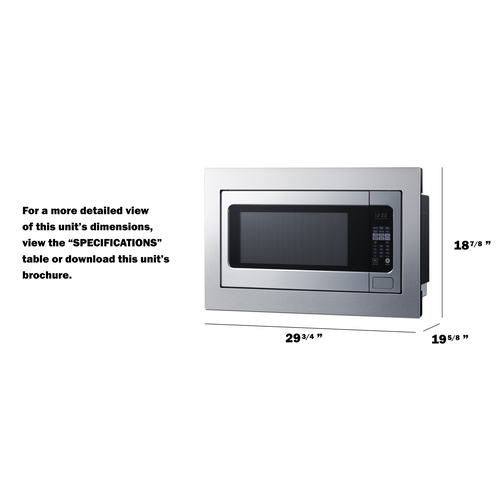

(48cm H x 76cm W x 50cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 19.0" (48 cm) |
| Height of Cabinet | 18.88" (48 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 29.75" (76 cm) |
| Nominal Depth | 20.0" (51 cm) |
| Depth | 19.63" (50 cm) |
| Depth with door at 90° | 39.88" (101 cm) |
| Capacity | 2.2 |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101146683 |
|
Microwave
|
|
| Type | Built-In |
| Wattage | 1200.0 |
| Controls | Digital |
| Digital Display | Yes |
| Turntable | Yes |
| Turntable Diameter | 16.5" (42 cm) |
| Specialized Cooking Buttons | Yes |
| Cutout Height | 17.13" (44 cm) |
| Cutout Width | 25.5" (65 cm) |
| Cutout Depth | 22.75" (58 cm) |
| Interior Height | 10.0" (25 cm) |
| Interior Width | 16.88" (43 cm) |
| Interior Depth | 17.0" (43 cm) |
FEATURES

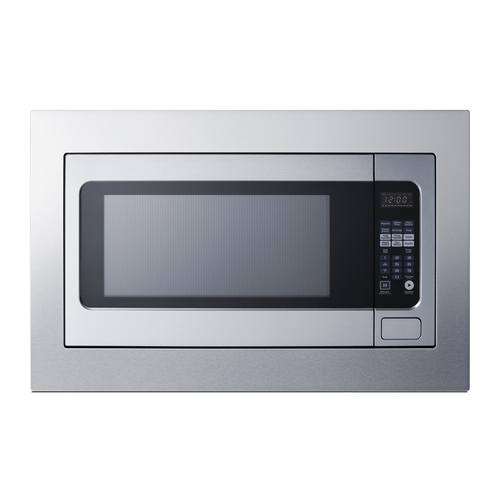

Built-in microwave oven that ships with a trim kit designed to allow installation in 30" wide cabinet openings
Designed for 17 1/8" H x 25 1/2" W x 22 3/4" D cutouts, with a trim kit that covers spaces up to 29 3/4" W; Note: actual microwave is sized at 13 1/2" H x 24 3/8" W x 19 5/8" D

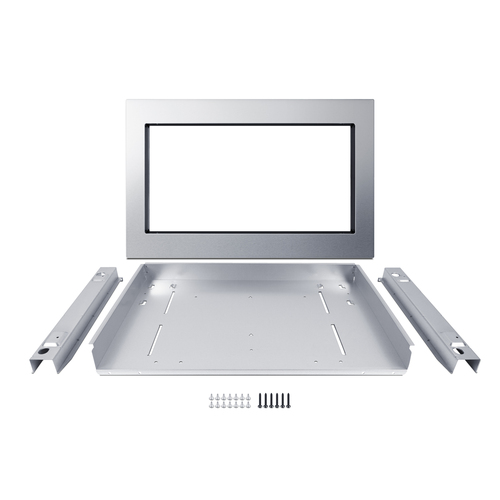

Ships with our TKSM30 accessory, complete with bottom duct (microwave base), rails, trim kit frame, and all the necessary screws for installation
Full 2.2 cu.ft of interior cooking space to fit large dishes
Powerful performance ideal for larger meals
Included with the microwave to help fit the overall unit into standard 30" wide spaces, with a horizontal grain to match other fixtures

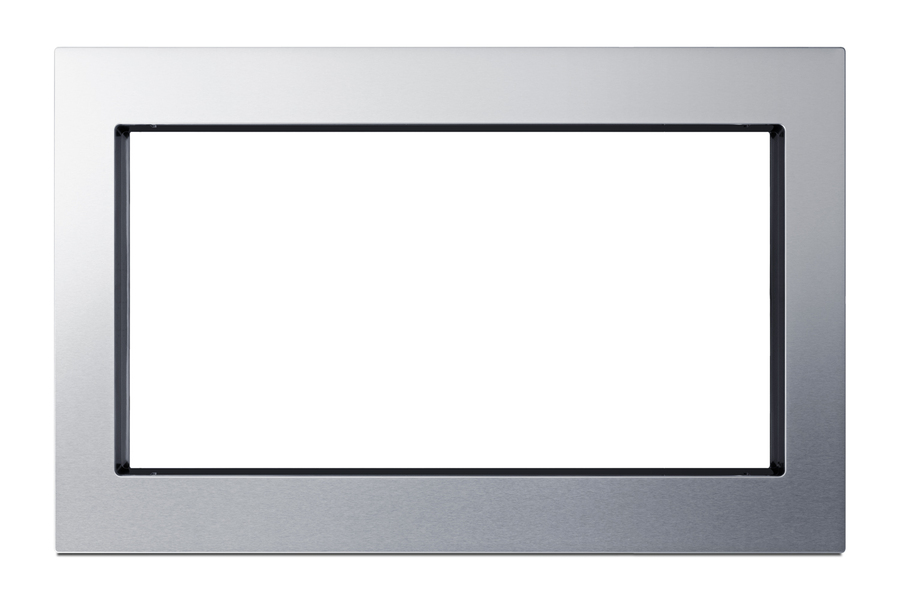

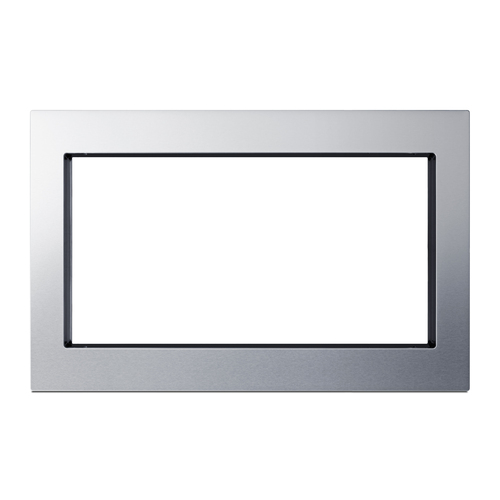

Brushed stainless steel trim in a horizontal grain to match many existing designs
Large window design makes it easy to view your cooking without opening the door

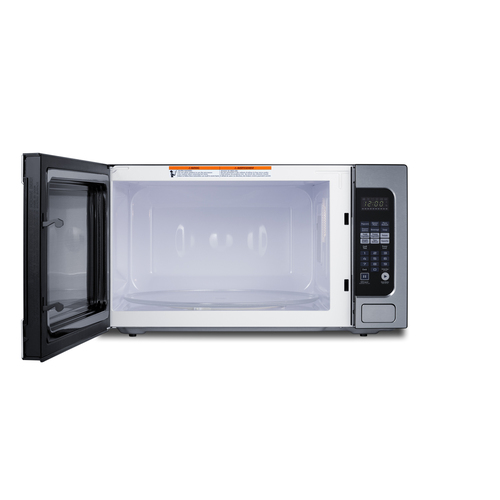

Interior includes sizable glass disc that rotates to ensure even heating

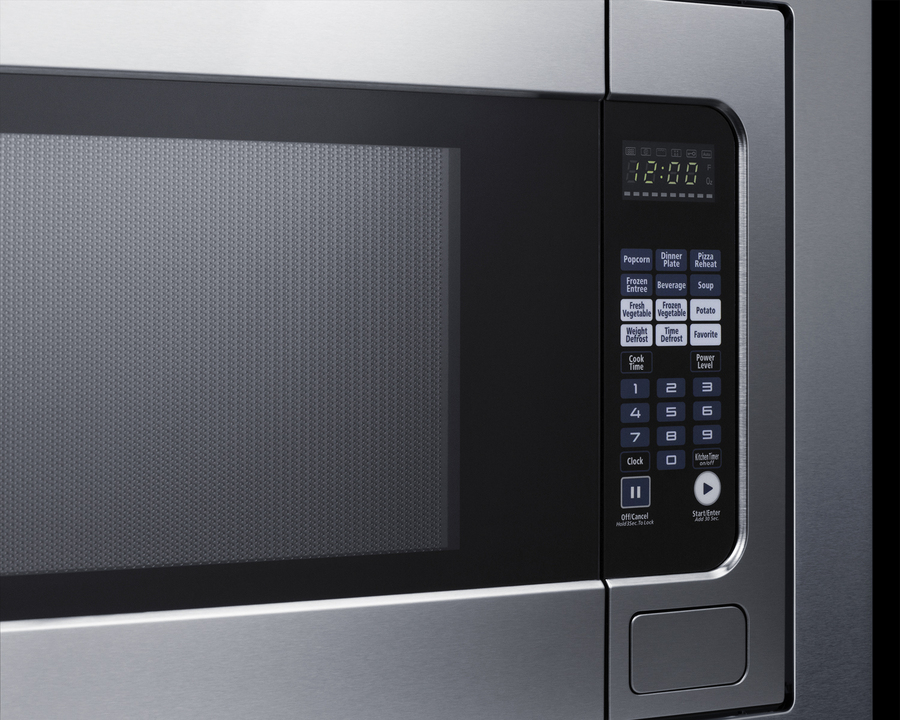

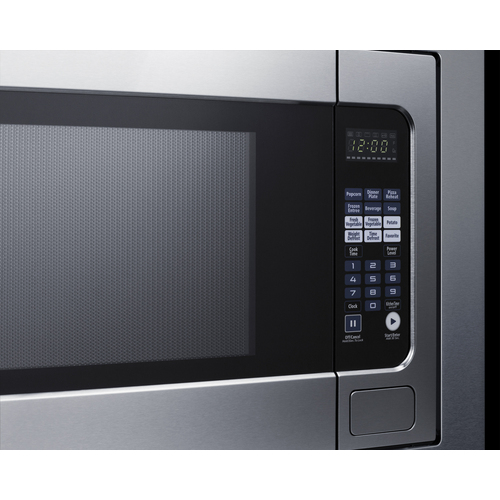

Front located controls with easy-to-identify settings for a variety of cooking activities
Program up to 2 cooking sequences to achieve the proper heating results
Pre-programmed settings for potatoes, pizza, beverages, popcorn, frozen dinners, and reheating
One-touch setting lets you add 30 seconds of full power heating
Defrost by weight or time for decreased cook time
Automatically sets the appropriate cooking time by sensing the moisture level of the food being cooked
Microwave can conveniently save up to 3 cooking procedures
Activate this setting to disable the control panel
Allows you to set a countdown timer as needed
Unit conveniently displays time
An audible signal lets you know when the time is up
This unit complies with part 18 of the FCC rules
DESCRIPTION
Summit's selection of built-in microwaves offers seamless solutions to complete any kitchen space. Model SMBI27TK30 is a 1200W microwave designed for built-in installation. It ships with a complete trim kit (accessory TKSM30) that includes a 29 3/4" wide stainless steel frame, bottom duct, rails, and the screws needed for setup. It can be installed above or below the counter and over a wall oven for added kitchen convenience. The dimensions of the actual microwave are 13.5" H x 24.38" W x 19.63" D. The cutout dimensions of the cabinet should be 17 to 17.125" H x 25.5" W x 22.75" D. For more information, download the installation instructions below. Inside, this microwave offers a full 2.2 cu.ft of cooking space in a clean white interior with a large glass turntable, which can be removed for easier cleanup. Our SMBI27TK30 features digital controls that offer a variety of cooking functions, including popcorn, reheating, defrosting, melting, and softening butter. Additional settings let you auto-defrost, cook by weight, or add 30 seconds for fast reheating. Multi-stage cooking enables you to combine different functions. With an attractive, low profile design and complete cooking convenience, the SMBI27TK30 is the ideal built-in microwave oven for kitchens with large capacity needs. For this unit with a 27" trim kit, see model SMBI27TK27. Additional sizes, as well as drawer and over-the-range microwaves, are also available. Browse the Summit line to explore our complete collection.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
The state of California requires manufacturers of cookware to disclose any chemicals on the designated Candidate Chemicals list that may come into contact with food. Learn more
