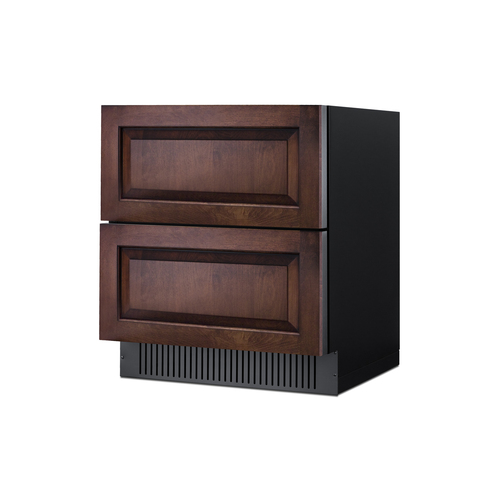

30" Wide 2-Drawer All-Refrigerator (Panels Not Included)
Next day shipping

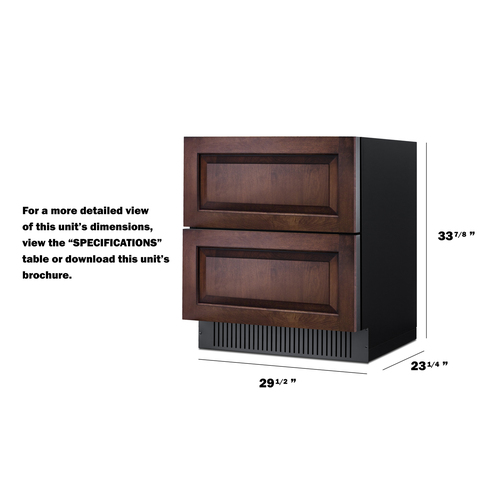

(86cm H x 75cm W x 59cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.88" (86 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 29.5" (75 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.25" (59 cm) |
| Depth with Handle | 25.25" (64 cm) |
| Depth with door at 90° | 37.75" (96 cm) |
| Capacity | 5.42 cu.ft. (153 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 305.0kWh/year |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 126.0 lbs. (57 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101090184 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | Drawer |
| Height Adjustable | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Interior Drawers | Yes |
| Interior Drawers Qty | 2 |
| Temperature Range | 34 to 65ºF |
| Sound Level | 35.6 dB |
|
Drawer Dimensions
|
|
| Interior Height 1 | 9.88" (25 cm) |
| Interior Width 1 | 23.75" (60 cm) |
| Interior Depth 1 | 16.5" (42 cm) |
| Interior Height 2 | 8.75" (22 cm) |
| Interior Width 2 | 23.75" (60 cm) |
| Interior Depth 2 | 16.5" (42 cm) |
|
Dimensions
|
|
| Compressor Step Height | 5.0" (13 cm) |
| Compressor Step Width | 23.75" (60 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
FEATURES

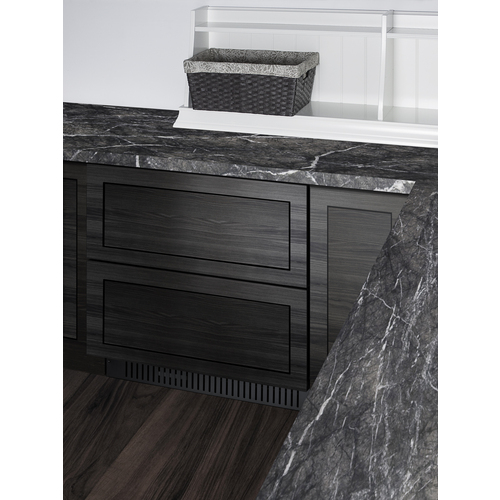

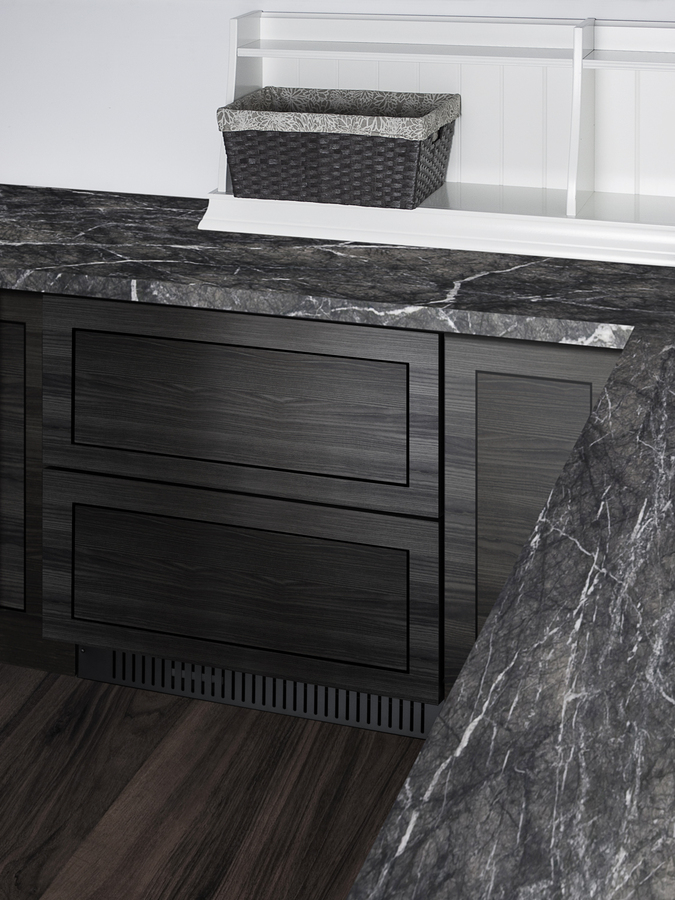

Uniquely sized for built-in installation under counters in residential or commercial kitchen settings

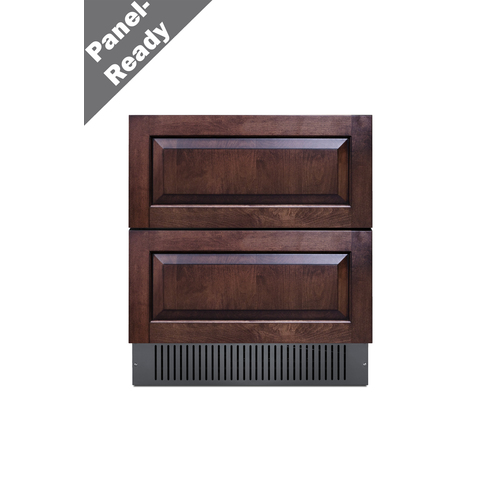

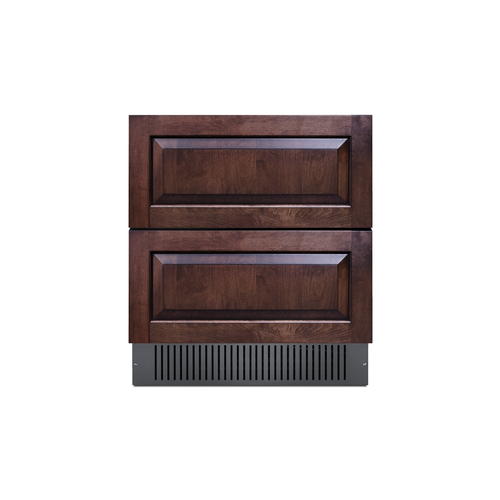

Drawers can be customized with overlay panels sized (at 29.5" x 13.78" at 3/4" thick) to match or accent existing cabinetry
Shallower depth than many similar units in this size class, allowing an easier fit in tight commercial or residential kitchen spaces
Interior and exterior drawer fronts feature weatherproof stainless steel construction in a horizontal grain for long-lasting luxury under the counter
Front-breathing design allows the unit to be built-in under counters
Durable, weatherproof construction designed to hold up to the elements
ETL-S listed to NSF-7 standards allows use in commercial kitchens
Included for optional use, or add your own to better match your cabinetry finishes
No-frost operation for minimal user maintenance

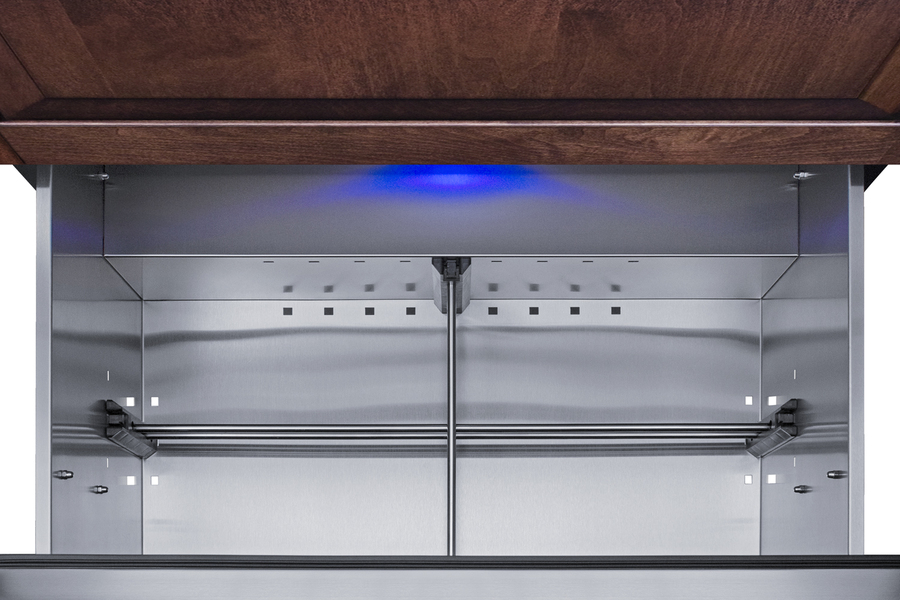

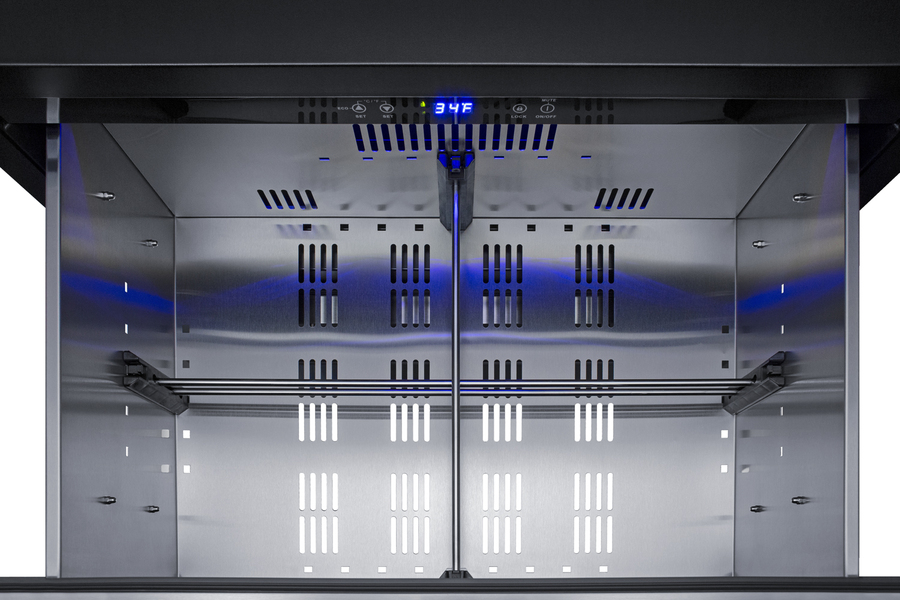

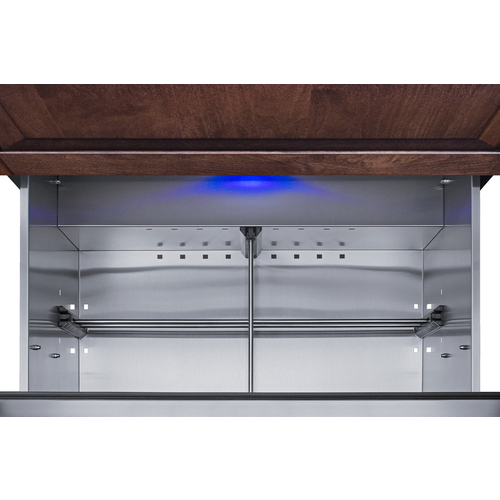

Both drawers feature an LED strip that provides a stunning blue illumination over the interiors

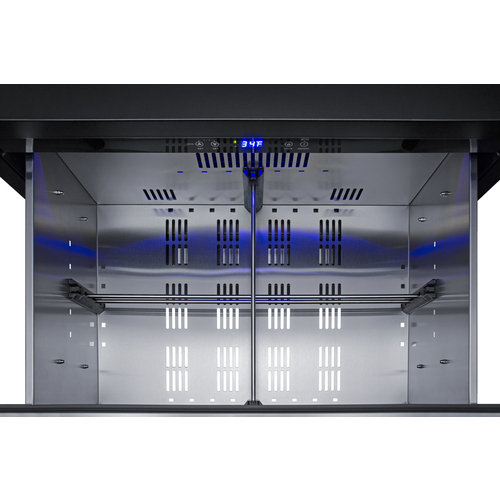

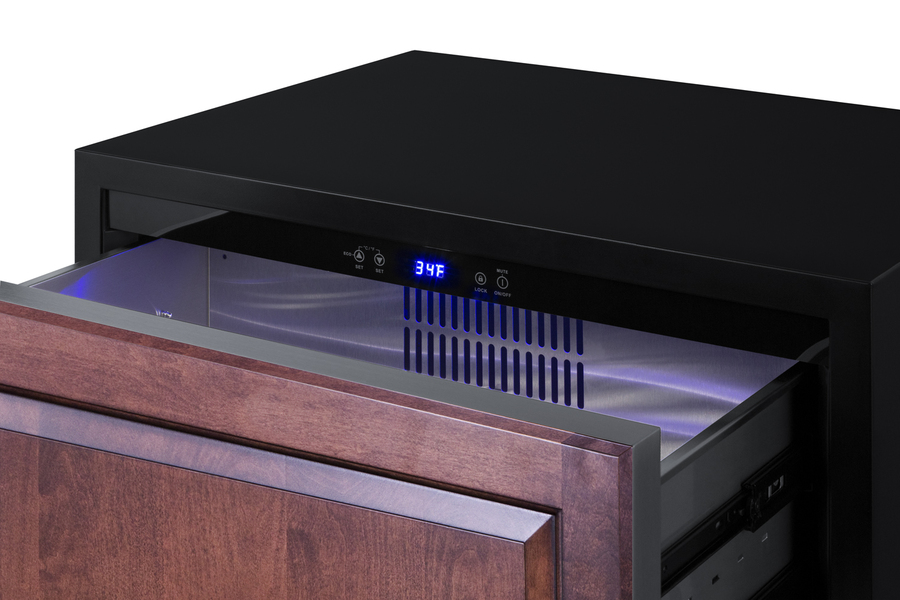

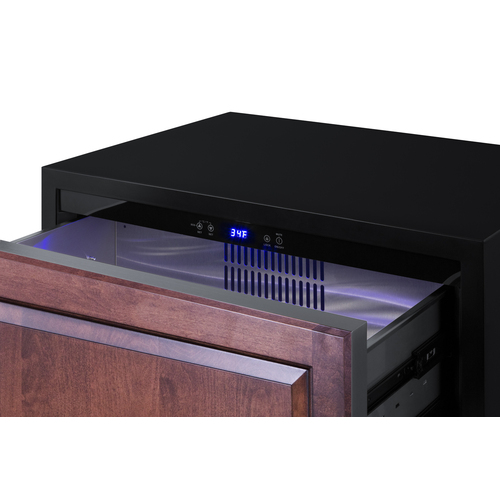

Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

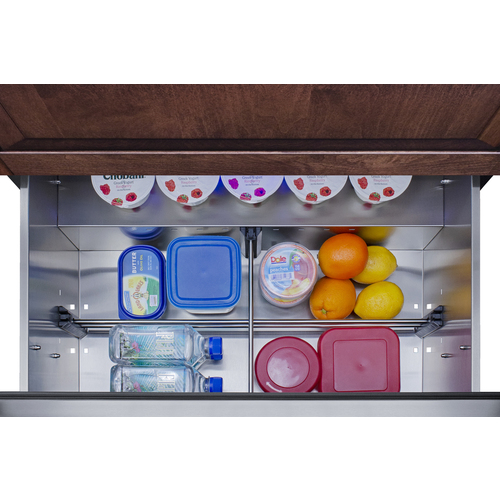

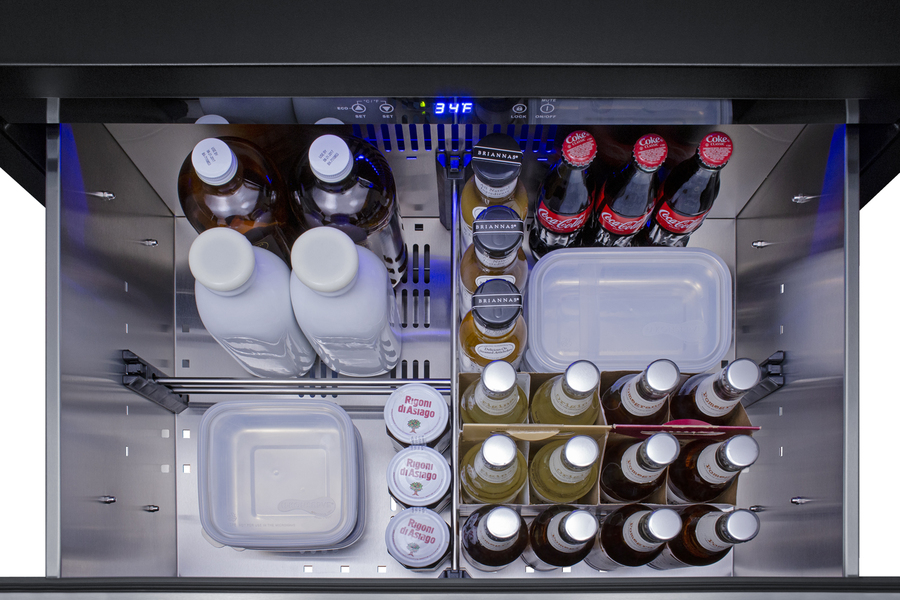

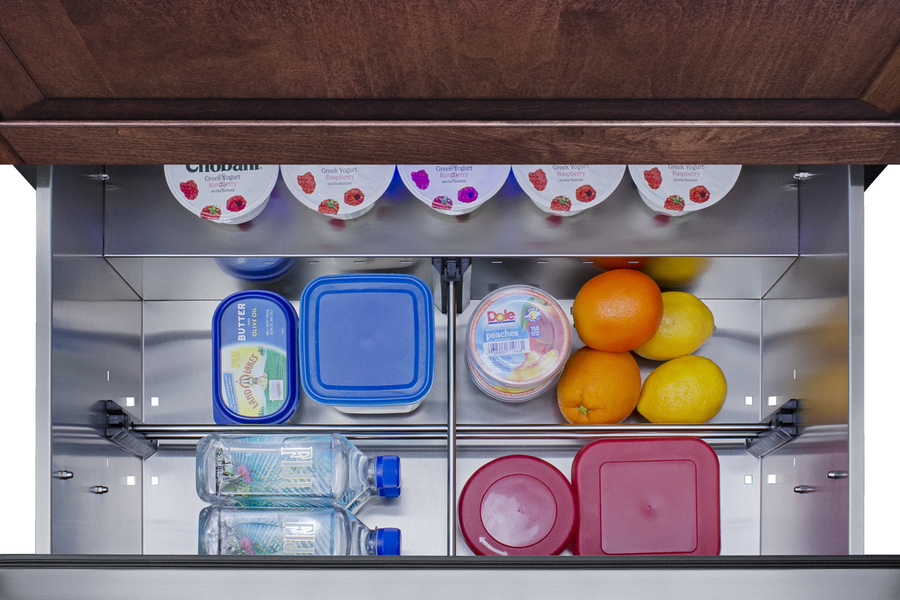

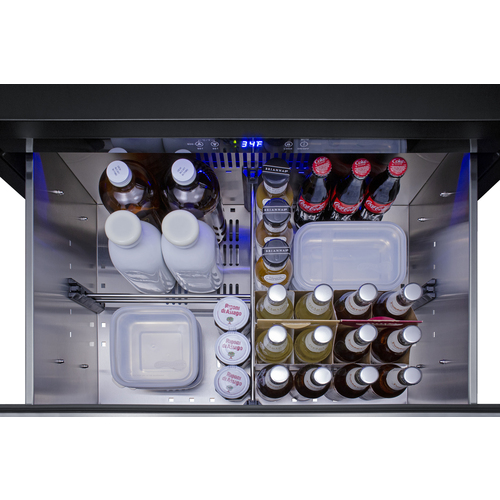

Each drawer includes a removable accessory that lets you divide your storage into four sections
Audible alarm sounds if the drawers are left open for more than five minutes
Optional feature disables alarms, interior light, and displays for up to 96 hours
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space-saving design with no exposed coils for easier cleanability
Provides for efficient, even cooling of the entire unit
Soft-close glides prevent drawers from slamming shut for additional durability and safety
Bracket (included) helps prevent tipping for added safety
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit is expanding its popular lineup of built-in undercounter refrigeration with new luxury choices for 30" wide spaces in residential or commercial kitchen indoor and outdoor spaces. Model SPR3032DPNR is a panel-ready 2-drawer all-refrigerator sized just under 30" wide and under 24" deep for an easy fit under the counter in any kitchen with limited depth. The drawer fronts are designed to accept overlay panels (sized at 29.5" x 13.78 at a 3/4" thickness) to allow you to create a custom look that best suits your kitchen design. We include a set of handles for optional use, and the drawer fronts are fully finished in stainless steel if you prefer that style. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. The sealed back and right angle plug help to ensure an easy fit. With a generous 5.42 cu.ft. interior capacity, the SPR3032DPNR is perfect for keeping a variety of items in easy reach. Each drawer includes a removable divider that lets you create four adjustable sections inside to help organize the interior. The intuitive digital control panel features a wide range from 34 to 65ºF, allowing you to adjust your storage conditions for standard food items or beverages better held at warmer temperature. The temperature display can be switched from Fahrenheit to Celsius for added convenience. Both drawers feature LED lighting in a striking blue finish for elegant illumination. Frost-free operation minimizes maintenance and internal fans help to maintain an evenly cooled interior. Additional features include open drawer alarms, a child lock to prevent changes to the controls, an eco mode setting, and a 96 hour sabbath mode to disable certain features for periods of observance. The SPR3032DPNR features weatherproof construction for safe installation in outdoor kitchens. It is ETL-S listed to NSF-7 commercial standards and also complies with residential regulations for home use. In addition to this refrigerator, we also manufacture the same style in a 27" fit, as well as 32" high versions of both models for installation under lower ADA compliant counters. Browse Summit's extensive selection of built-in undercounter refrigeration to discover the perfect fit for virtually any kitchen space.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
