24" Wide Outdoor All-Refrigerator

SKU: SPR627OSSSHH

Built-in capable for use in outdoor kitchens

Estimated Time to Ship:

3 to 5 days

Find a dealer

Refrigerator Type:
Freezerless All-Freezer

Application:
Indoor Outdoor

Color: Stainless Steel/Black

*Additional features may vary

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

34.0" H x 23.63" W x 23.5" D
(86cm H x 60cm W x 60cm D)

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	34.0" (86 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.38" (64 cm)
Depth with door at 90°	45.63" (116 cm)
Capacity	4.6 cu.ft. (130 L)
Defrost Type	Frost-Free
Door	Stainless Steel
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	250.0kWh/year
Amps	0.8
Voltage/Frequency	115 V AC/60 Hz
Weight	105.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101046822
Refrigerator Features
Sabbath Mode	Yes
Door Swing	RHD
Reversible	Yes
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.99oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Light	Yes
Sound Level	32.8 dB
Dimensions
Interior Height	24.0" (61 cm)
Interior Width	19.25" (49 cm)
Interior Depth	17.5" (44 cm)

Exterior

SSK - Stainless steel kickplate Stainless steel kickplate factory installed	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing Door reversal to left hand swing

CEE Tier II qualified

Efficient design meets CEE Tier II specifications, using 25% less energy than DOE standards require for this product category

ENERGY STAR certified commercial performance

Meets ENERGY STAR standards as a commercial refrigerator and meets DOE standards for residential use

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Fully finished black cabinet

Allows the unit to be used freestanding in the outdoors

Stainless steel wrapped door

Durable construction with a professional look

Professional handle

Thin (14mm diameter) stainless steel handle mounted horizontally to add a modern look

Factory installed lock

Keyed lock for a secure interior

Frost-free operation

No-frost operation for minimum user maintenance

Digital thermostat

Electronic controls located inside the unit for precise temperature management

Recessed LED light

Elegant lighting with a convenient on/off switch on the control panel

Adjustable glass shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Optional door storage

Add accessory SHELFKIT627 for a set of door racks that you can install after order

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Reversible door

User-reversible door swing

Ground Fault Circuit Interrupter

Integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks

Flat door liner

Easy to clean, with more depth for storage

Sealed back

No exposed electrical components allow safe use in the outdoors

Commercially approved

Meets UL-471 and is ETL-S listed to NSF-7 Standards for use in commercial establishments

Sabbath Mode

Optional setting lets you disable the lighting and alarm for up to 48 hours

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT's SPR627OS Series features built-in all-refrigerators equipped with user-friendly features for convenient use in any outdoor kitchen.

The SPR627OSSSHH is a 24" wide all-refrigerator that can be used built-in or freestanding in any outdoor or indoor location. It has a jet black cabinet with a user-reversible stainless steel wrapped door complete with a sleek, horizontally mounted stainless steel handle. A factory installed lock offers added security.

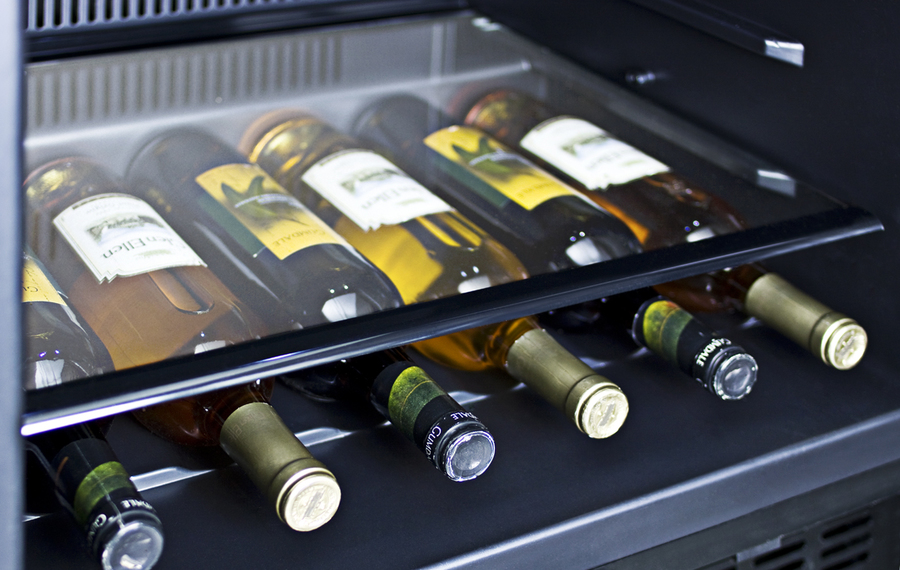

Inside, this frost-free refrigerator includes an internal fan for an evenly cooled interior and a recessed LED light for an elegant yet energy efficient glow. The digital thermostat (located in the interior) allows you to adjust the temperature at the touch of a button. Adjustable glass shelves make it easy to organize the 4.6 cu.ft. interior. The floor is specially slotted to hold bottles in place. This unit has a flat door liner to accept larger trays. For optional door storage, add our SHELFKIT627.

With a stunning design and convenient features, SUMMIT SPR627OSSSHH is the ideal finish for any outdoor or indoor kitchen. To create a matching set, pair this unit with the frost-free SPFF51OSSSHH freezer. This unit is ETL-S listed to NSF-7 standards for use in commercial establishments and is ENERGY STAR certified as a commercial refrigerator. It also meets DOE standards for residential applications, using 25% less energy than the maximum allowed for this product class and capacity.

BROCHURE
SPR627OSSSHH.pdf

USE & CARE
FF1532B_SPR316OS_FF64B_SPR627OS_SCFF1533B_SCFF52W_SCFF53B_SPFF51OS_04.2021.pdf

MSDS INFORMATION
R600a_K.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
