6" Wide Built-In Wine Cellar
01/25/2025
All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
(82cm H x 15cm W x 53cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.25" (82 cm) |
| Nominal Width | 6.0" (15 cm) |
| Width | 5.88" (15 cm) |
| Nominal Depth | 21.0" (53 cm) |
| Depth | 20.75" (53 cm) |
| Depth with Handle | 22.38" (57 cm) |
| Depth with door at 90° | 25.5" (65 cm) |
| Bottles | 7 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 40.0 lbs. (18 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101056319 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.57 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 25.75" (65 cm) |
| Interior Width 1 | 3.5" (9 cm) |
| Interior Depth 1 | 14.25" (36 cm) |
| Compressor Step Width | 3.5" (9 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 41 to 72ºF |
| Sabbath Mode | Yes |
| Sound Level | 33.8 dB |
AVAILABLE UPGRADES
| Door | |||||
|---|---|---|---|---|---|
|
|||||
| Exterior | |||||
|
FEATURES
Perfectly sized to complete any extra undercounter space
Make the best use of space by installing your appliance under the counter
Sized at 32 1/4" high to fit under most lower ADA compliant counters
Meets UL-471 commercial standards
Leveling legs can be adjusted to raise the height up to 34.25" for an appropriate fit under standard counters
Provides a full display of your stored collection with a heat-safe double tempered design
Electronic controls for precise temperature management
Interior can hold up to 7 Bordeaux style bottles. Most wider Burgundy style bottles fit as well
The floor slight is slightly angled, allowing you store bottles that have been uncorked at a gentle tilt
Temperature readout can be shown in Celsius or Fahrenheit
Provides an attractive and efficient bottle display
Reduced maintenance and steady temperature performance
Interior fan helps to ensure the temperature is evenly distributed
Stainless steel look for added elegance
User-reversible door swing allows you to easily adjust to better accommodate your setting
Audible alarm will sound if the door is left ajar for over 60 seconds
If the interior temperature becomes too warm, an audible alarm will sound and the temperature display will flash until the proper temperature is restored
Optional setting lets you disable the lighting and alarm for up to 48 hours
Unit will retain last temperature settings in the event of a power failure
Flat design offers added space savings by requiring no extra depth to plug the unit in
Space saving design with easier cleanability
Includes an extra kickplate to cover up the leveling legs if the unit's height is raised
Runs at under 34 dB for a quiet performance in any setting
Compressor-based operation to ensure reliable temperature performance
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

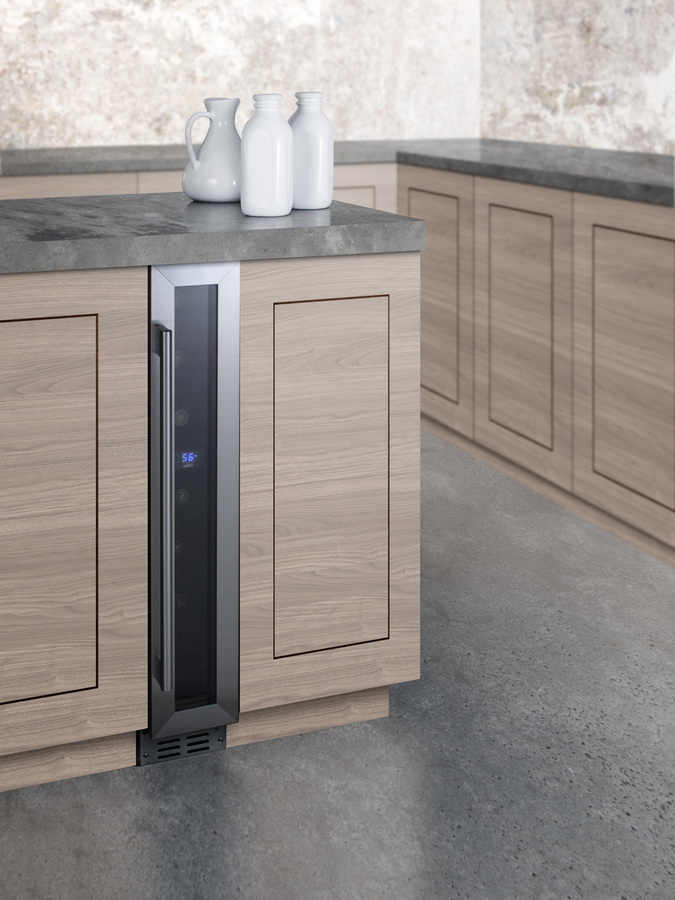

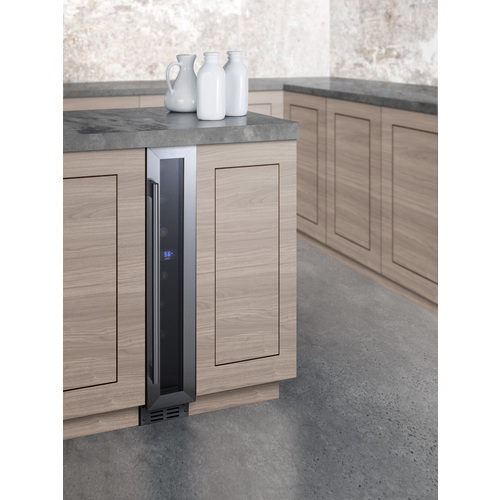

Complete any undercounter space in style with Summit's SWC007, a 6 inch wide wine cellar fully featured for user convenience. Designed for built-in installation, the SWC007 features a front-breathing compressor-based cooling system. The stainless steel trimmed glass door includes a pro style handle and is user-reversible for added flexibility. This unit has a jet black exterior finish. The sealed back and right angle plug make it easy to install flush with cabinetry. At just 32 1/4 inches high, this unit can easily fit under most ADA compliant counters. We include a kickplate extender and leveling legs that allow you to raise the height an additional 2 1/2 inches, ensuring an easy fit under standard countertops as well. Inside, the SWC007 features a digital thermostat with easy touch controls and a temperature readout that can be viewed in Celsius or Fahrenheit at the touch of a button. Seven slots let you store wine bottles with ease, including a slightly angled floor slot that makes it easier to store bottles that have already been opened. This unit is equipped with an open door and high temperature alarm to help ensure your bottles are stored properly. The Sabbath mode setting allows you to disable certain features during periods of observance. With its attractive design and innovative size, the SWC007 is the perfect way to finish any kitchen design.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
