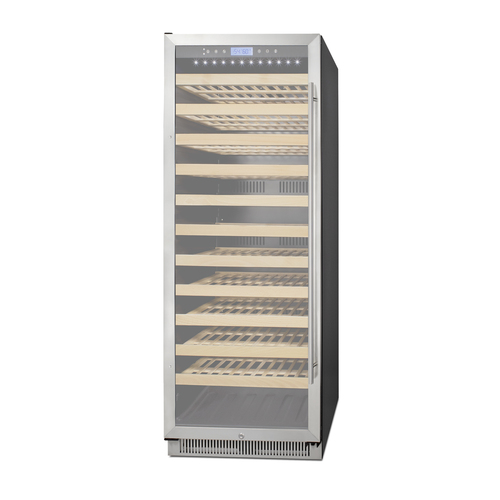

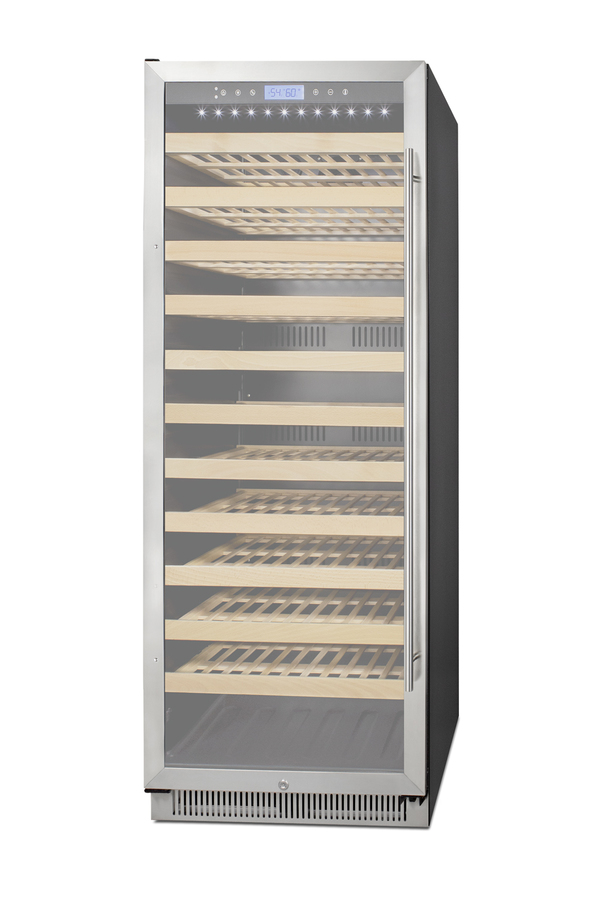

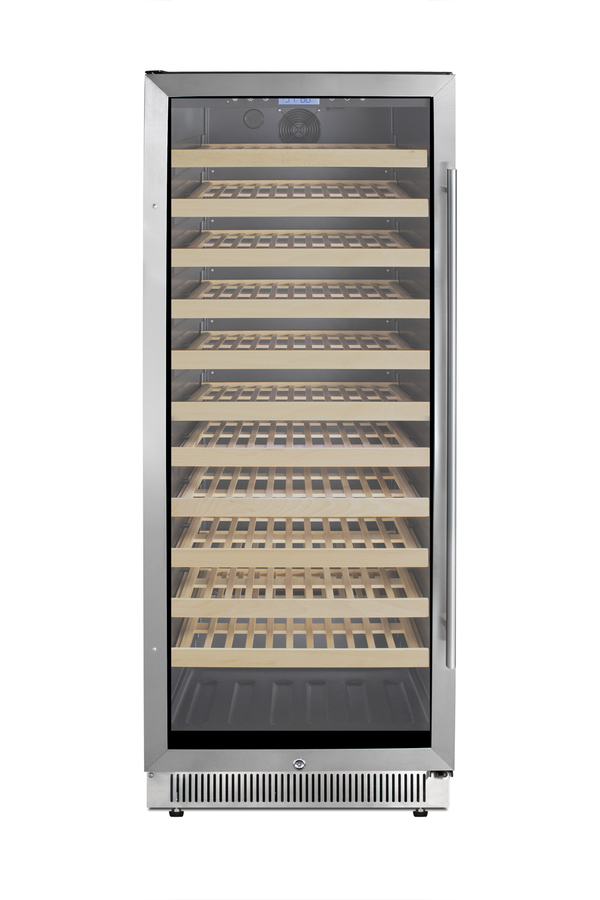

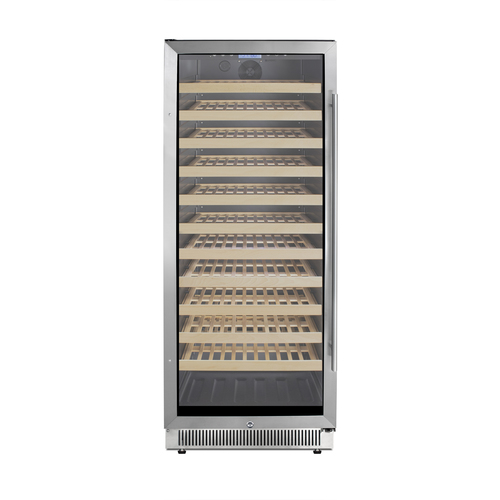

24" Wide Single Zone Wine Cellar

SKU: SWC1127BLHD
Flexible design allows built-in installation or freestanding use
DISCONTINUED
Door Swing:
RHD LHD

*Additional features may vary

55.25" H x 23.63" W x 26.5" D
(140cm H x 60cm W x 67cm D)

Overview
Nominal Height 56.0" (142 cm)
Height of Cabinet 55.25" (140 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 27.0" (69 cm)
Depth 26.5" (67 cm)
Depth with Handle 28.25" (72 cm)
Depth with door at 90° 48.75" (124 cm)
Bottles 127 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.8
Voltage/Frequency 115 V AC/60 Hz
Weight 161.0 lbs. (73 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101079226
Wine Cellar
Number of Zones 1
Door Swing LHD
Reversible No
Shelf Type Wood
Shelf Qty 11
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.58 oz.
High Side PSI 320.0
Low Side PSI 120.0
Interior Height 1 46.0" (117 cm)
Interior Width 1 20.38" (52 cm)
Interior Depth 1 21.0" (53 cm)
Level Legs 2
Temperature Range 41-65°F

Door
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings

Built-in capable

Front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 55.75" H x 23.88"W x 28" D)

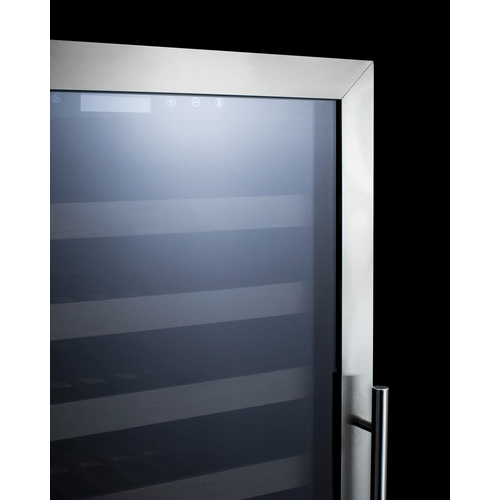

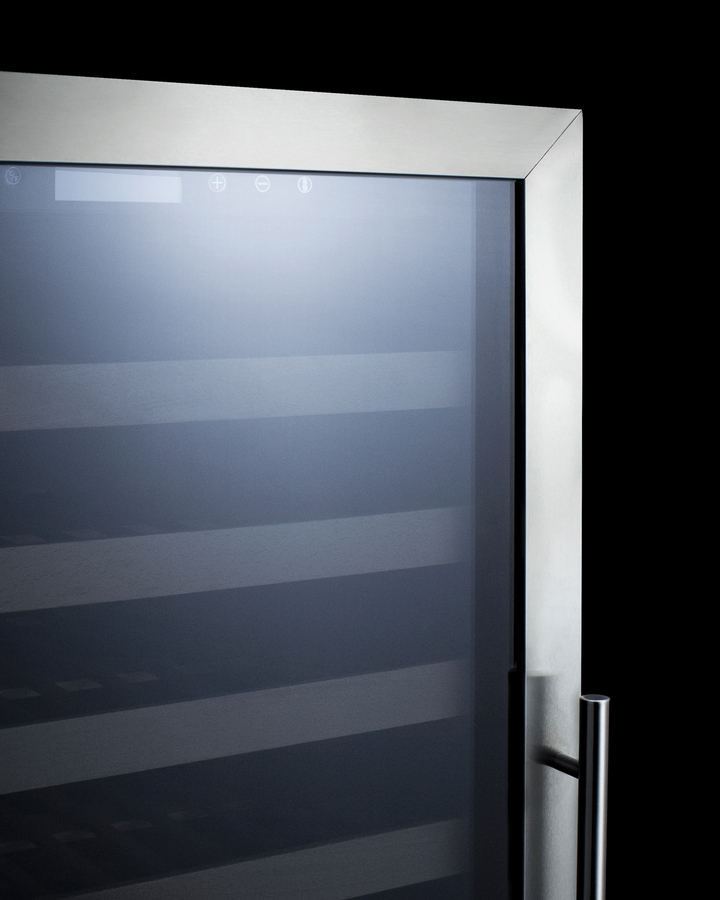

Stainless steel trimmed glass door

Provides a full display of the interior, with two levels of glass for added protection

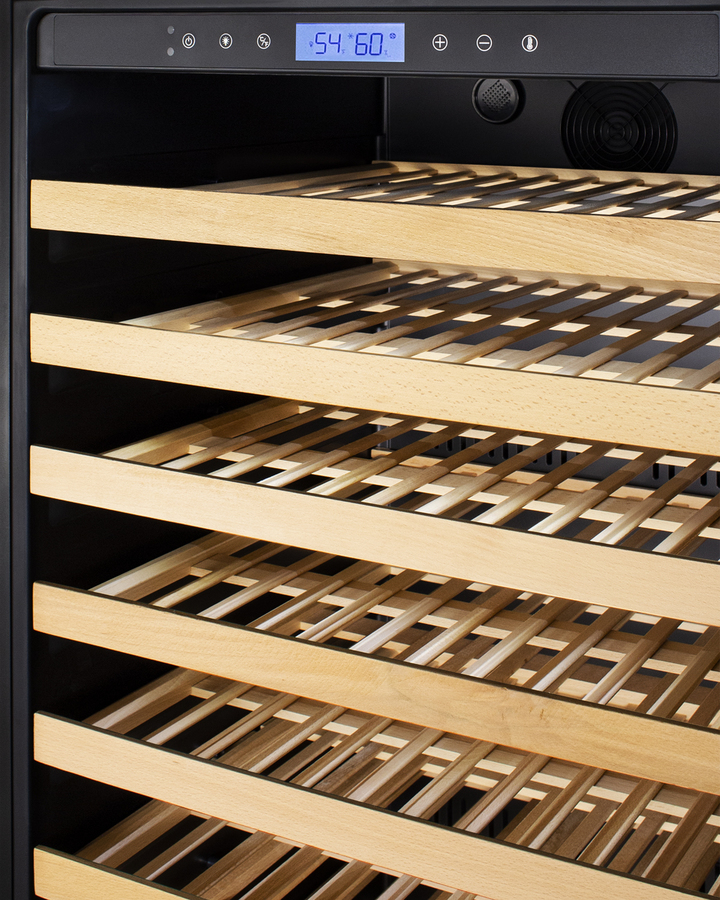

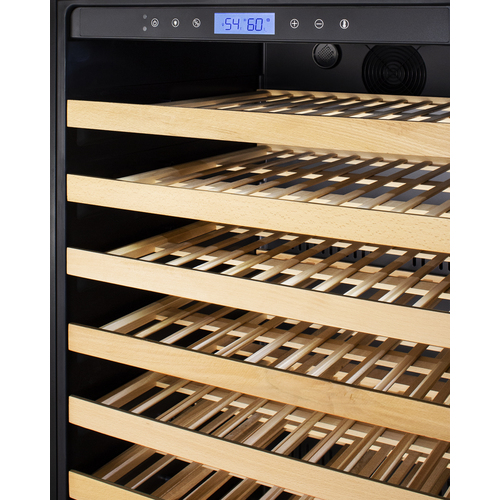

Digital thermostat

Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit

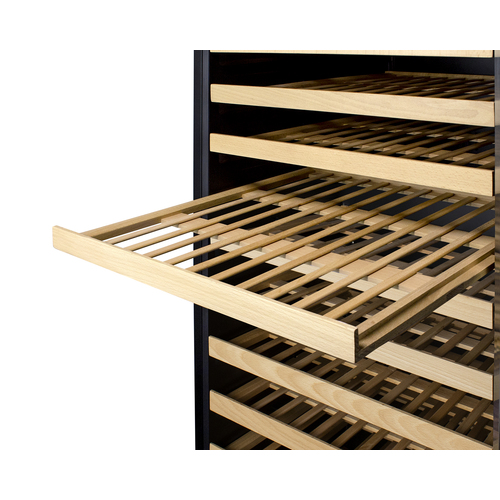

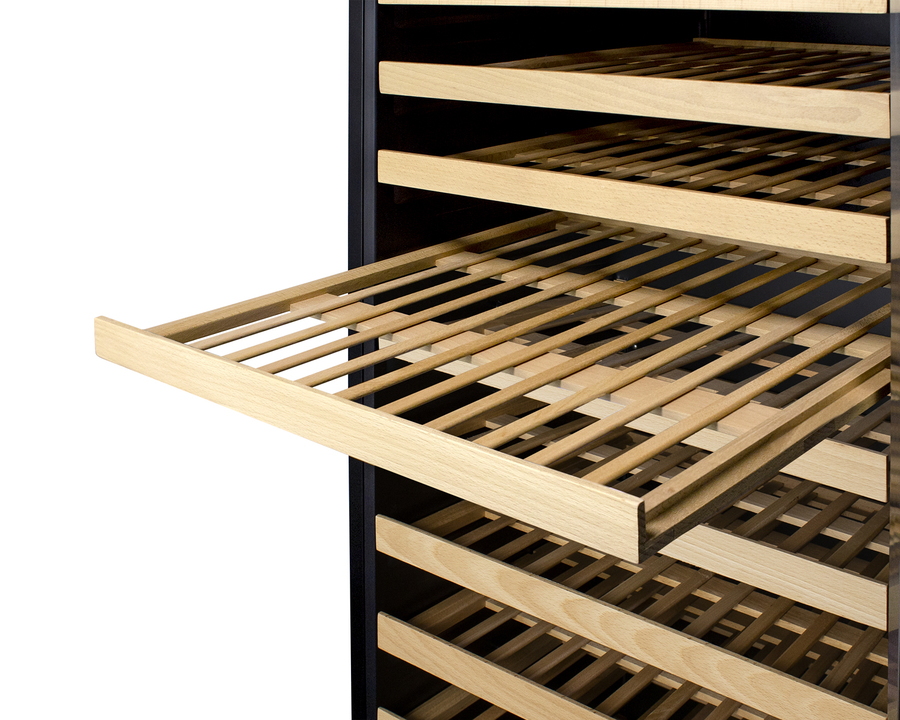

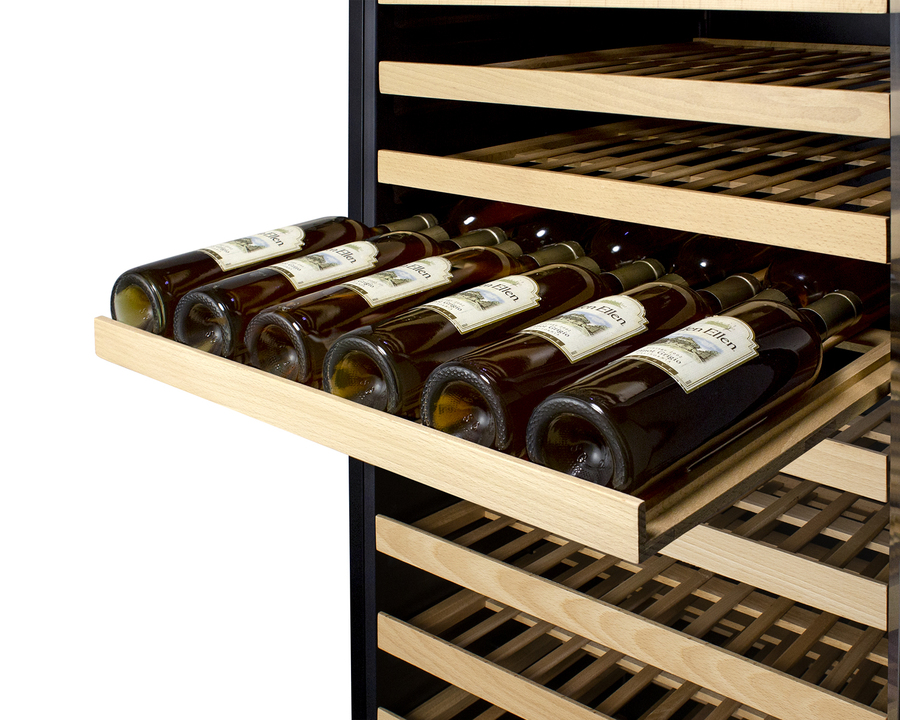

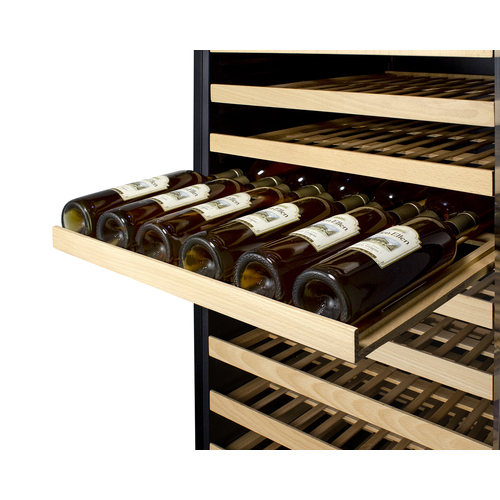

Slide-out wooden shelving

11 shelves slide out 50% for easier loading and optimum capacity

Versatile storage

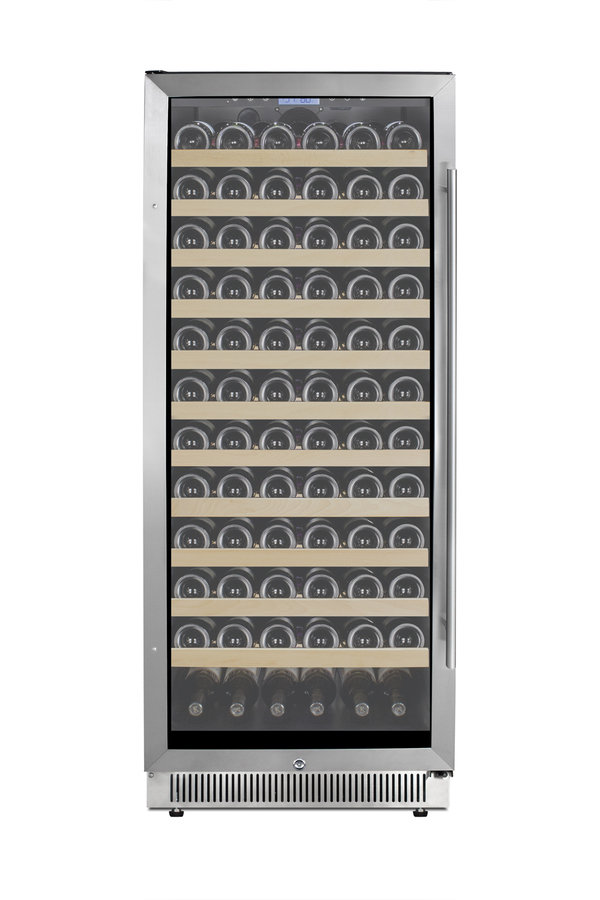

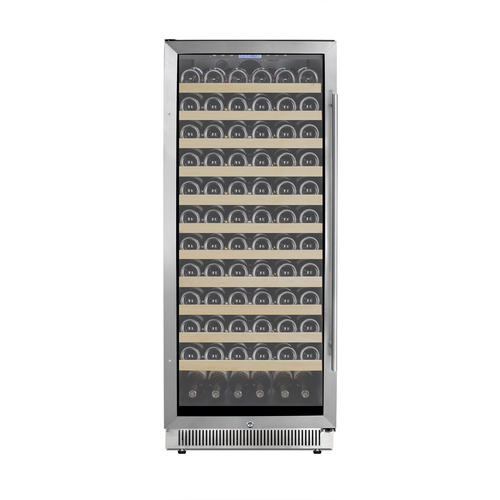

Interior can hold up to 127 standard 750ml Bordeaux style bottles (11 bottles per shelf and 6 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 110 bottles (11 on shelves 2-11 and 6 on the slotted floor)

Professional handle

37" long handle in a brushed stainless look offers the perfect finish to your wine cellar

LED lighting

LED lighting located at the top of the unit provides an attractive and energy-efficient illumination of your collection in a gentle white hue

Factory-installed lock

Keyed lock secures both zones (2 keys included)

Temperature range

Temperature range of 41-65°F for storing your collection under the proper conditions

Ventilated stainless steel kickplate

Allows for front ventilation in an elegant design

Charcoal filtration system

Helps to purify air for an odor-free interior

High/low temperature alarms

Audibly sounds if the interior rises or falls out of recommended range

Open door alarm

Alerts if unit door is ajar for more than 5 minutes

Magnetic door gasket

Ensures a tight seal for energy savings and improved performance

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

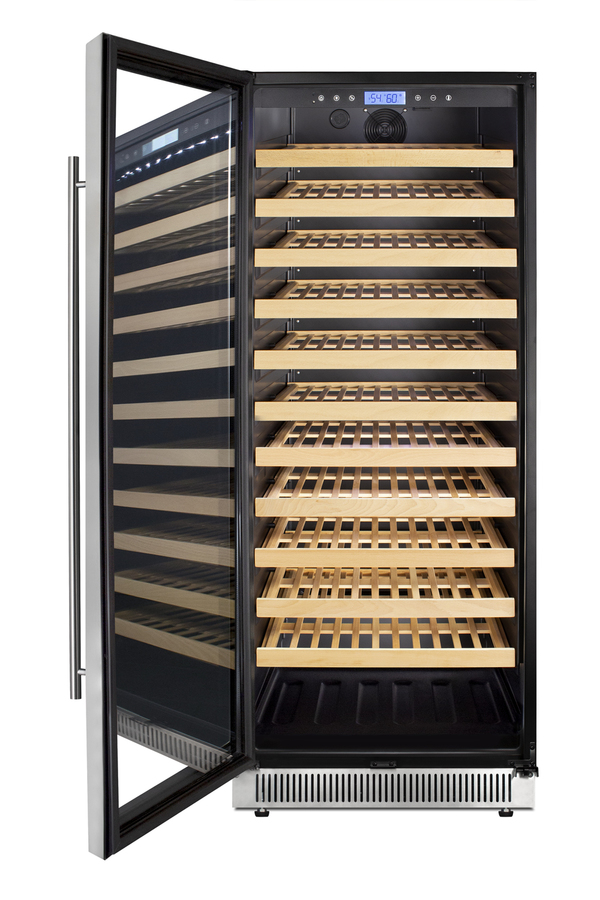

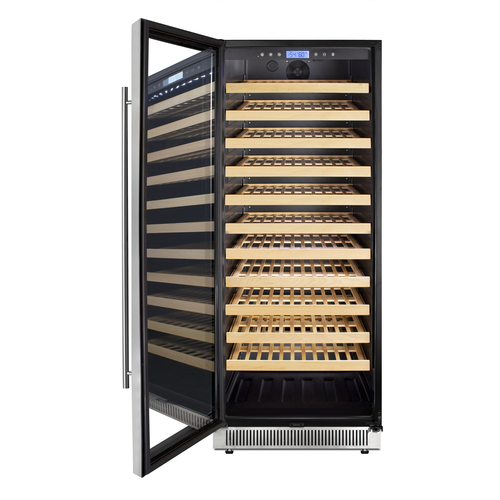

Left-hand door swing

This unit comes with a left-hand door swing. (Note: the door is not user-reversible; for a right-hand door swing, see the SWC1127B)

Sealed back

Flush back allows for a better fit and easier cleanability

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit offers a unique selection of built-in capable full-sized wine cellars for convenient wine storage in the home.

The SWC1127BLHD is a 24" wide wine cellar featuring a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use. Sized just under 27" deep, this unit has a sealed back and right angle plug for added depth savings. The exterior features a double pane tempered glass door with stainless steel trim. A stainless steel kickplate provides added elegance, while the pro-style handle completes the look. This unit includes a factory-installed keyed lock for added security and powerful magnetic gaskets to ensure a proper seal in high-traffic commercial settings. This unit has a left-hand door swing. (Note: the door is not user-reversible. For a right-hand version, see the SWC1127B.)

Inside, the SWC1127BLHD includes 11 wooden shelves that slide out 50% for easy loading and unloading. Optimal storage capacity accommodates up to 127 standard 750ml Bordeaux bottles (note: your capacity may vary depending on the bottle style). For wider Burgundy style bottles (typically used for Pinot Noir and Chardonnay), the SWC1127B can hold up to 116 bottles. This has a single temperature zone with digital controls that can be adjusted from 41-65°F to accommodate red or white wine as needed. White LED lighting positioned at the top of the unit attractively illuminates your collection for a stylish display. An internal fan ensures both zones are properly chilled, while a charcoal filtration system keeps the interior odor-free. Additional features include an open door alarm and high/low temperature alarm that sound if the unit temperature goes out of range.

With its convenient size, advanced features, and elegant design, the SWC1127BLHD is the perfect addition to any home bar or kitchen seeking full capacity wine storage with a modern presentation.





Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
