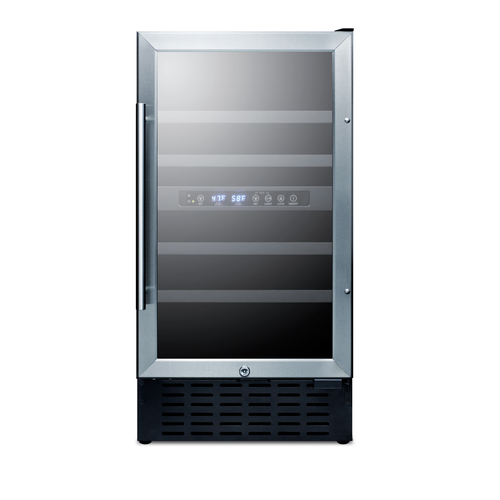

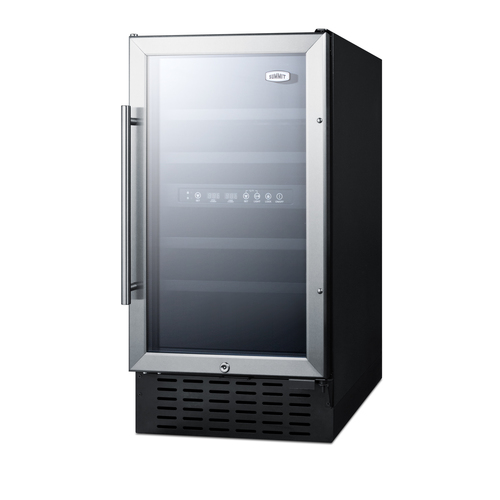

18" Wide Built-In Wine Cellar
Next day shipping
All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
(87cm H x 45cm W x 60cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 35.0" (89 cm) |
| Height of Cabinet | 34.25" (87 cm) |
| Nominal Width | 18.0" (46 cm) |
| Width | 17.75" (45 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with door at 90° | 39.75" (101 cm) |
| Capacity | 3.3 cu.ft. (93 L) |
| Bottles | 28 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101055084 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wood |
| Shelf Qty | 4 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Interior Height 1 | 10.63" (27 cm) |
| Interior Width 1 | 14.25" (36 cm) |
| Interior Depth 1 | 18.0" (46 cm) |
| Compressor Step Height | 5.25" (13 cm) |
| Compressor Step Width | 14.25" (36 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 41º to 64ºF |
| Interior Height 2 | 12.25" (31 cm) |
| Interior Width 2 | 14.25" (36 cm) |
| Interior Depth 2 | 18.0" (46 cm) |
AVAILABLE UPGRADES
| Exterior | |||||
|---|---|---|---|---|---|
|
|||||
| Door | |||||
|
FEATURES
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door
Make the best use of space by installing your appliance under the counter

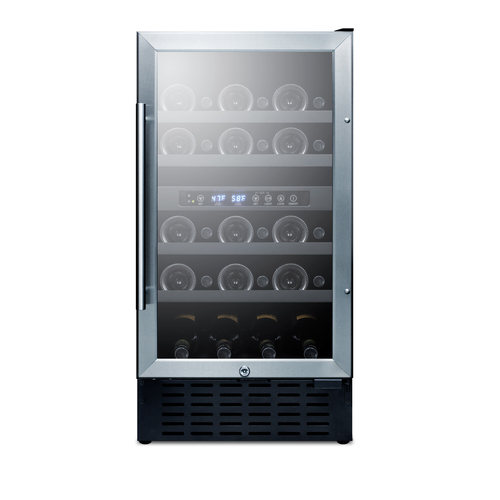

Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles
Provides a full display of stored contents with a heat-safe double tempered design
Keyed lock for a secure interior, with 2 keys included

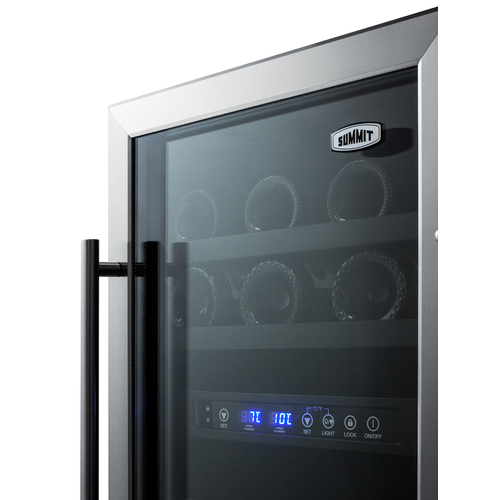

Electronic controls for precise temperature management.
Temperature readout can be shown in Celsius or Fahrenheit
Gentle illumination for each temperature zone for an elegant presentation

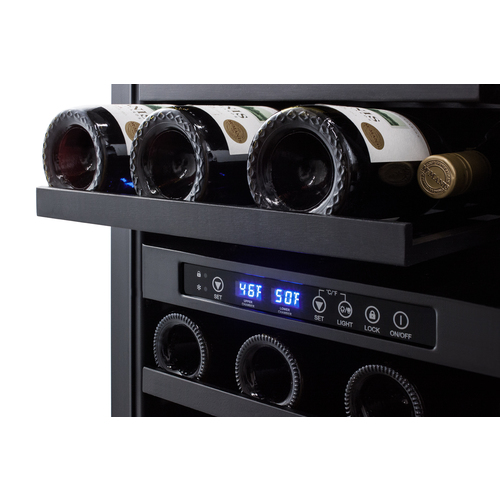

4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish
Reduced maintenance with the convenience of auto defrost
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Stainless steel handle completes the look
Hinge is flush with cabinet, adding no height to the unit
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
ec
Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a warmer 50 to 64ºF range in the lower chamber
DESCRIPTION
SUMMIT's collection of built-in wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space. Sized just under 18" wide, the SWC182Z is front-breathing for built-in installation under counters, while the fully finished black cabinet also allows freestanding use. The reversible glass door features an elegant stainless steel trim and professional handle. A factory installed lock offers added security, with two keys included. Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux style bottles or 22 wider Burgundy style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management. With its slim fit and convenient design, the SWC182Z makes an attractive addition to any room. For this unit in a 32" ADA compliant height, see the SWC182ZADA.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
