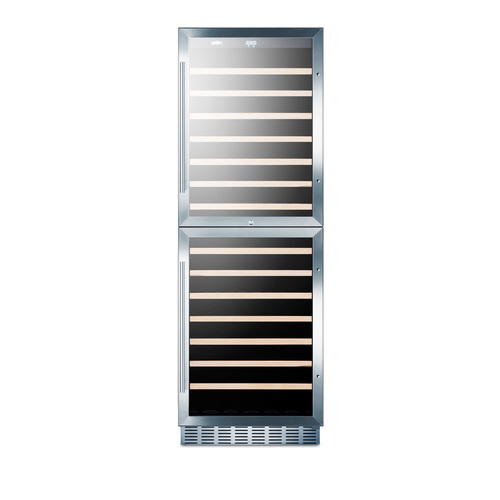

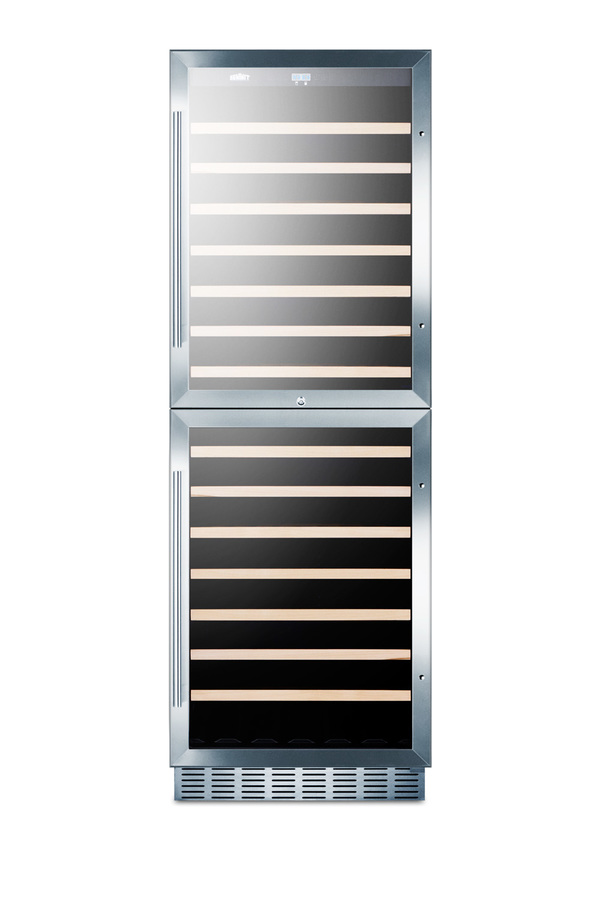

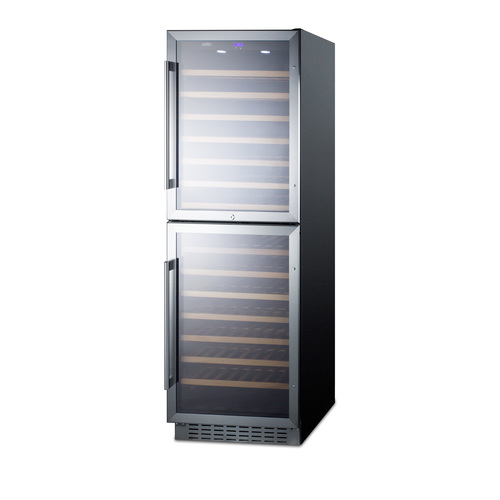

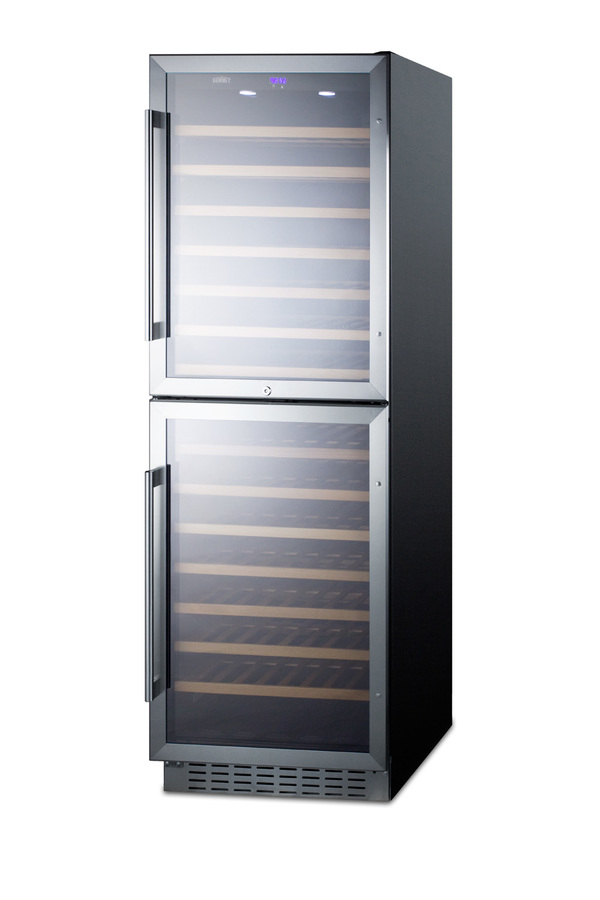

24" Wide Wine Cellar

SKU: SWC1875B

Dual zone design to store red and white wine under the right conditions

Estimated Time to Ship:

Next day shipping

Find a dealer

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

69.63" H x 23.63" W x 22.75" D
(177cm H x 60cm W x 58cm D)

Overview
Nominal Height	70.0" (178 cm)
Height of Cabinet	69.63" (177 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.75" (58 cm)
Depth with Handle	24.63" (63 cm)
Depth with door at 90°	44.75" (114 cm)
Bottles	118 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.7
Voltage/Frequency	115 V AC/60 Hz
Weight	191.0 lbs. (87 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101030746
Wine Cellar
Number of Zones	2
Door Swing	RHD
Reversible	Yes
Shelf Type	Wood
Shelf Qty	14
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.07 oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Height 1	27.75" (70 cm)
Interior Width 1	20.0" (51 cm)
Interior Depth 1	17.5" (44 cm)
Temperature Range	41°F to 55°F (upper zone); 55°F to 72°F (lower zone)
Interior Height 2	31.0" (79 cm)
Interior Width 2	20.0" (51 cm)
Interior Depth 2	17.5" (44 cm)
Sabbath Mode	Yes

Exterior

Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	LHD - Left hand door swing Door reversal to left hand swing
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations

Door

T1SF Door Tint Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models	T2F Door Tint Tinted door in reflective deep blue finish with high energy savings
T3F Door Tint Reflective door tint in light blue finish for medium energy savings	T4F Door Tint Neutral door tint in light smoke finish for moderate energy savings

Built-in capable

Front-breathing unit can be integrated into your cabinetry; 1/4" of space required around sides and top

Large capacity

Stores up to 118 bottles of standard Bordeaux style or wider Burgundy style bottles

Two temperature zones

Chill white and sparkling wine in the upper zone while preserving your reds at a warmer temperature below

Commercial design

Meets UL-471 commercial standards

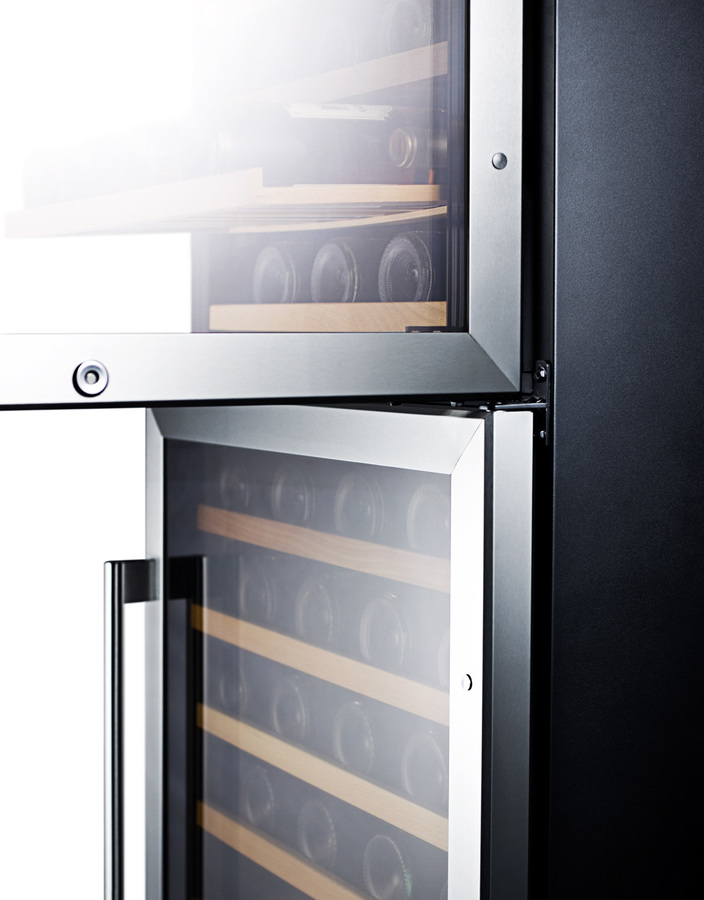

Two reversible glass doors

Elegant tint with user-reversible convenience and stainless steel trim

Digital thermostat

Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit

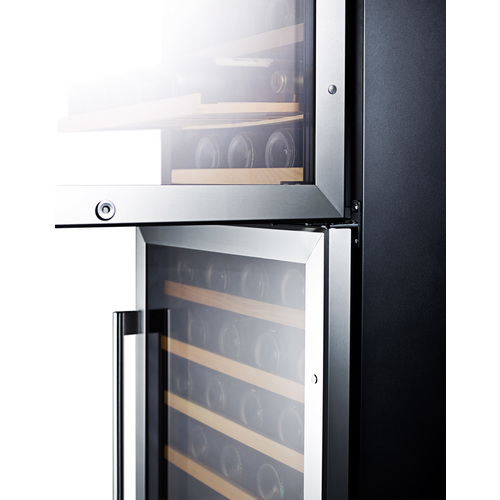

Factory installed lock

Keyed lock secures both sections

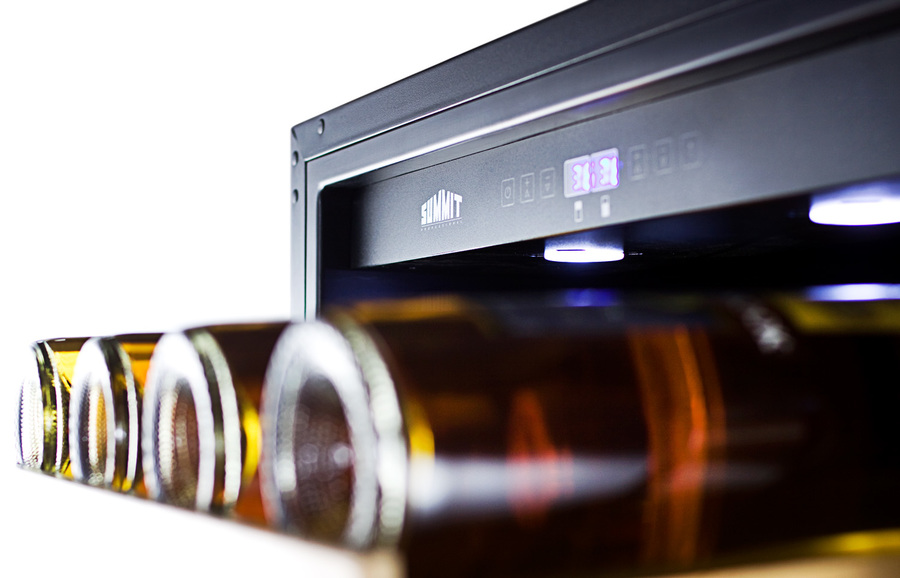

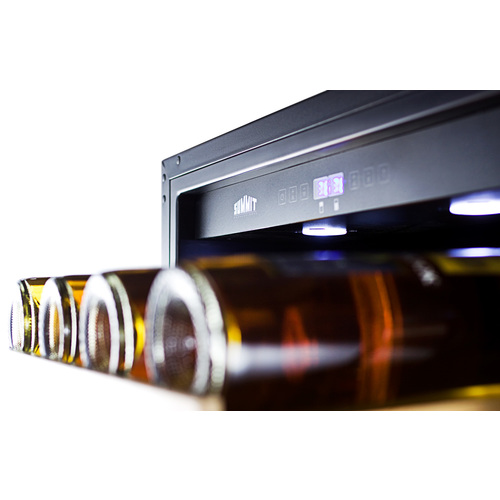

Recessed LED lighting

Attractive and energy efficient illumination for your collection

Slide-out wooden shelving

14 easy gliding shelves

Automatic defrost

Reduced maintenance with auto defrost system

Professional handles

Sturdy chrome handles add a professional look

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Stainless steel kickplate

An added touch of elegance

Temperature range

40ºF to 72ºF; Upper zone is ideal for white and sparkling wine served at a cooler temperature; Lower compartment is better suited for holding reds at a warmer temperature

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

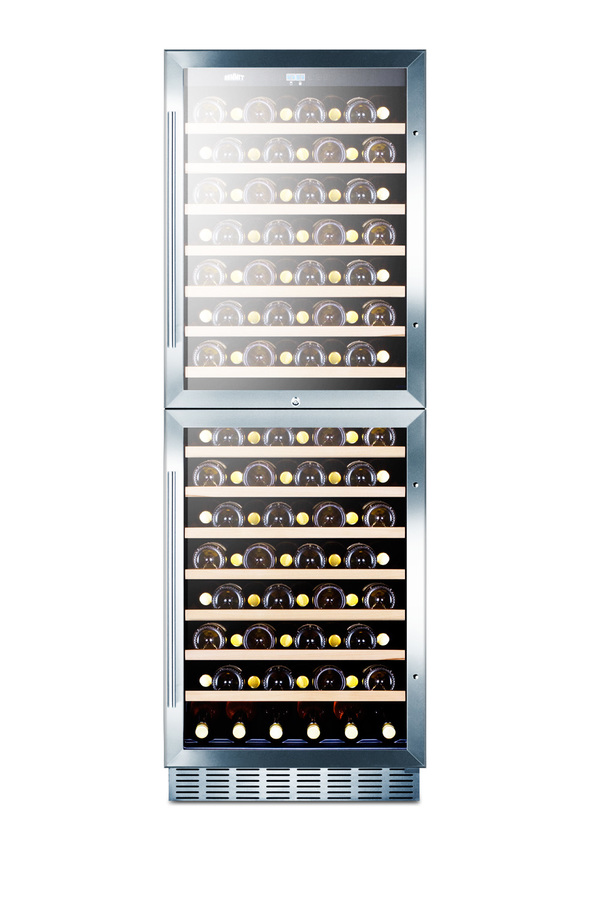

SUMMIT SWC1875B is a built-in capable two-zone wine cellar designed to store up to 118 bottles.

With an easy-fitting 24" footprint, the SWC1875B can be used built-in or freestanding and features two distinct temperature zones, each with its own reversible glass door. Store white and sparkling wine in the upper zone while preserving your reds below at a warmer temperature. Two digital thermostats let you set the proper conditions for your collection, with a digital readout in Fahrenheit or Celsius.

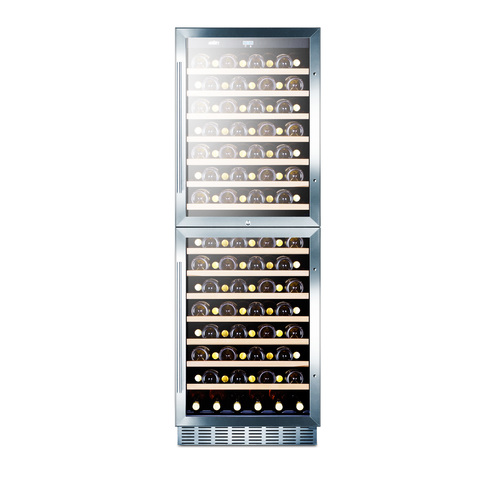

Inside, the SWC1875B includes 14 slide-out wooden shelves to properly hold bottles. Store up to 118 standard 750ml Bordeax style bottles, or 118 wider Burgundy style bottles (generally used for Chardonnay or Pinot Noir). If storing champagne, the top shelf can hold 8 bottles. Recessed LED lighting offers an attractive display and a factory installed lock ensures the security of your collection. This model has a jet black cabinet with stainless steel trimmed glass doors. Professional chrome handles and a stainless steel kickplate complete the elegant look.

BROCHURE w/ DRAWINGS
SWC1875B.pdf

TECHNICAL DRAWING (.dwg)
SWC1875BWINECELLARA-C2000.dwg

REVIT MODEL
QF_Summit_SWC1875B_Bottle_Commercial_Wine_Cellar.rfa

USE & CARE
ASDW_VC_ALWC_SWC_K_Wine_Cellar_Manual_September_2022.pdf

SUPPORT
SWC1875B_Shelving_Guide.pdf

MSDS INFORMATION
R600a_K.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
