SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 70.0" (178 cm) |
| Height of Cabinet | 69.5" (177 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 27.0" (69 cm) |
| Depth | 26.5" (67 cm) |
| Depth with Handle | 28.25" (72 cm) |
| Depth with door at 90° | 48.75" (124 cm) |
| Bottles | 162 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 2.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 200.0 lbs. (91 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101066349 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Wood |
| Shelf Qty | 13 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.76 oz. |
| High Side PSI | 320.0 |
| Low Side PSI | 120.0 |
| Interior Height 1 | 31.0" (79 cm) |
| Interior Width 1 | 20.38" (52 cm) |
| Interior Depth 1 | 21.0" (53 cm) |
| Level Legs | 2 |
| Temperature Range | 41-54°F (upper zone); 54-65°F (lower zone) |
| Interior Height 2 | 29.75" (76 cm) |
| Interior Width 2 | 20.38" (52 cm) |
| Interior Depth 2 | 21.0" (53 cm) |
| Sound Level | 34.7 dB |
AVAILABLE UPGRADES
| Door | ||||
|---|---|---|---|---|
|
||||
| Exterior | ||||
|
FEATURES
Front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 70.75" H x 23.88"W x 28" D)
Provides a full display of the interior, with two levels of glass for added protection
Chill white wine in the upper zone while preserving your reds at a warmer temperature below
Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit
The upper and lower zones are evenly split for a symmetrical look

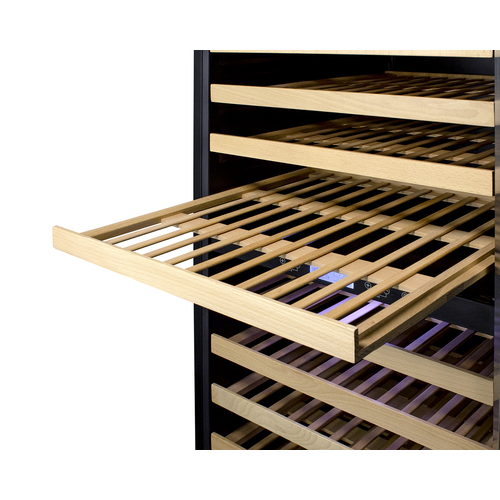

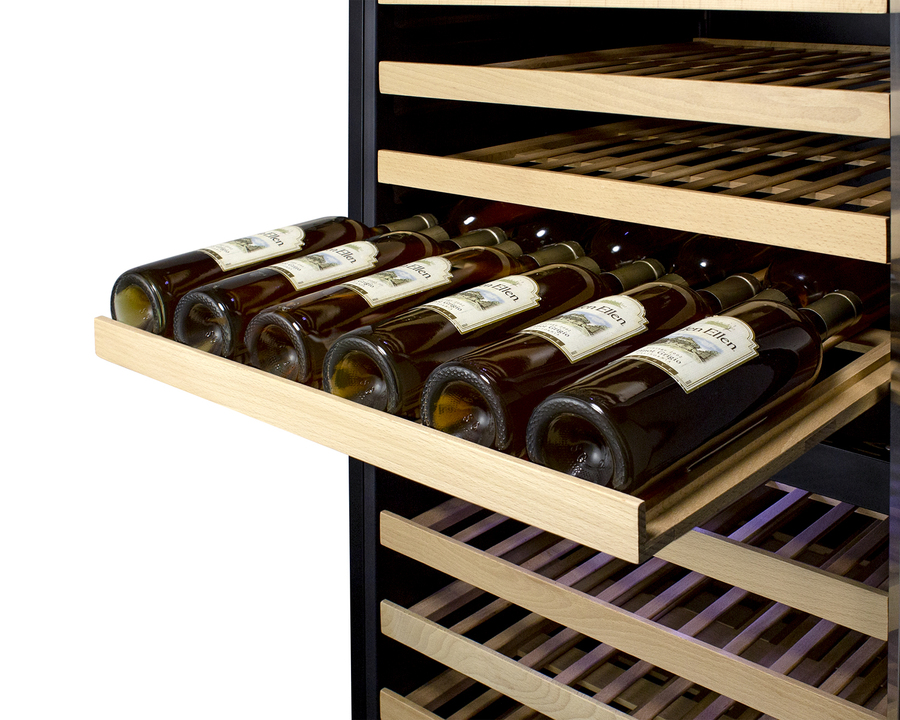

13 shelves slide out 50% for easier loading and optimum capacity

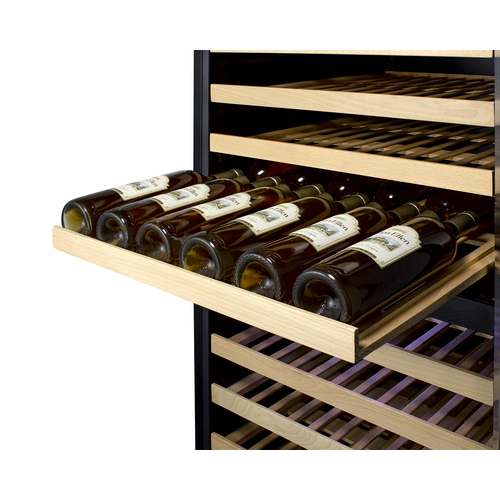

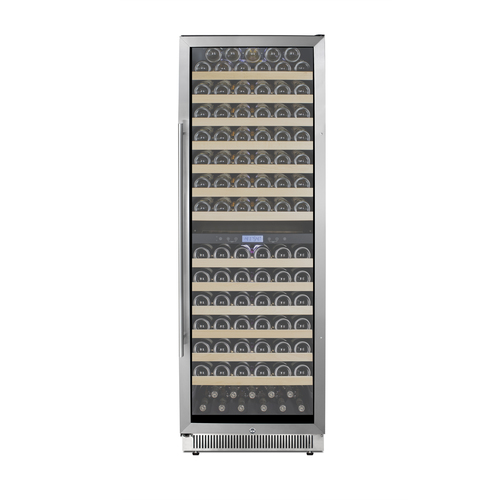

Interior can hold up to 162 standard 750ml Bordeaux style bottles (19 bottles stacked on the upper shelf, 11 bottles per middle 12 shelves, and 11 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 146 bottles (11 on the upper shelf, 8 on the top shelf of the lower zone, 11 on each of the other 11 shelves, and 6 on the slotted floor)
37" long handle in a brushed stainless look offers the perfect finish to your wine cellar
Two LED lights at the top of each zone provide an attractive and energy-efficient illumination of your collection with a gentle white hue
Keyed lock secures both zones (2 keys included)
Upper zone: 41-54°F ideal for chilling white and sparkling wine; Lower zone: 54-65°F for holding reds at a warmer temperature
Allows for front ventilation in an elegant design
Helps to purify air for an odor-free interior
Audibly sounds if the interior rises or falls out of recommended range
Alerts if unit door is ajar for more than 5 minutes
Ensures a tight seal for energy savings and improved performance
Flush back allows for a better fit and easier cleanability
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit offers a unique selection of built-in capable full-sized wine cellars for convenient wine storage in the home.

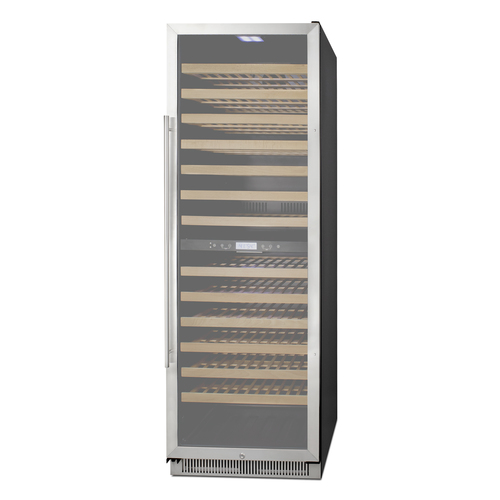

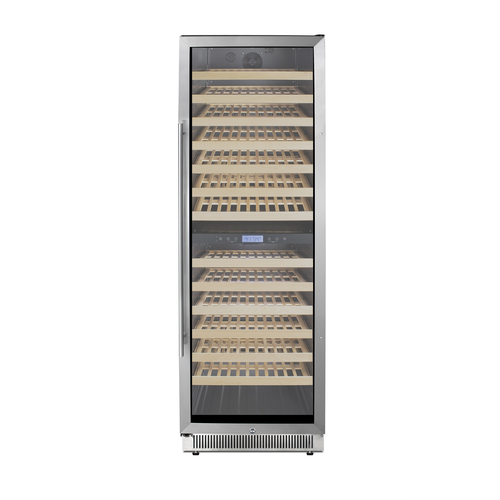

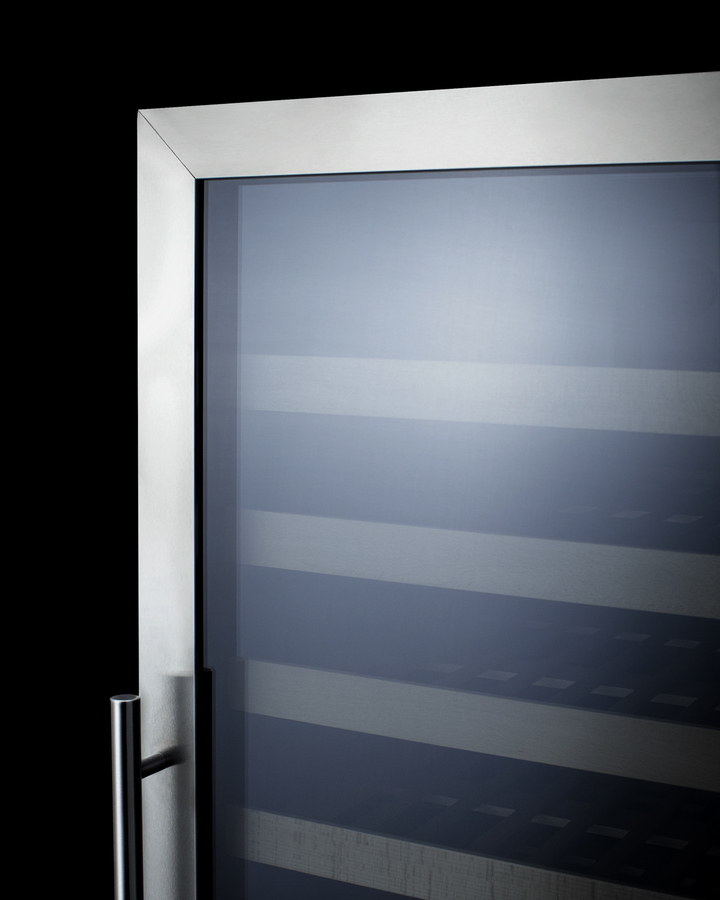

The SWC1966B is a 24" wide dual zone wine cellar designed to display your wine collection under the proper conditions. The evenly divided upper zone is reserved for white and sparkling wine, while the lower zone features a warmer temperature range to best preserve reds. It comes with a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use. Sized just under 27" deep, this unit has a sealed back and right-angle plug for added depth savings. The exterior features a double pane tempered glass door with stainless steel trim. A stainless steel kickplate provides added elegance, while the pro-style handle completes the look. This unit includes a factory installed keyed lock for added security and powerful magnetic gaskets to ensure a proper seal for efficient cooling.

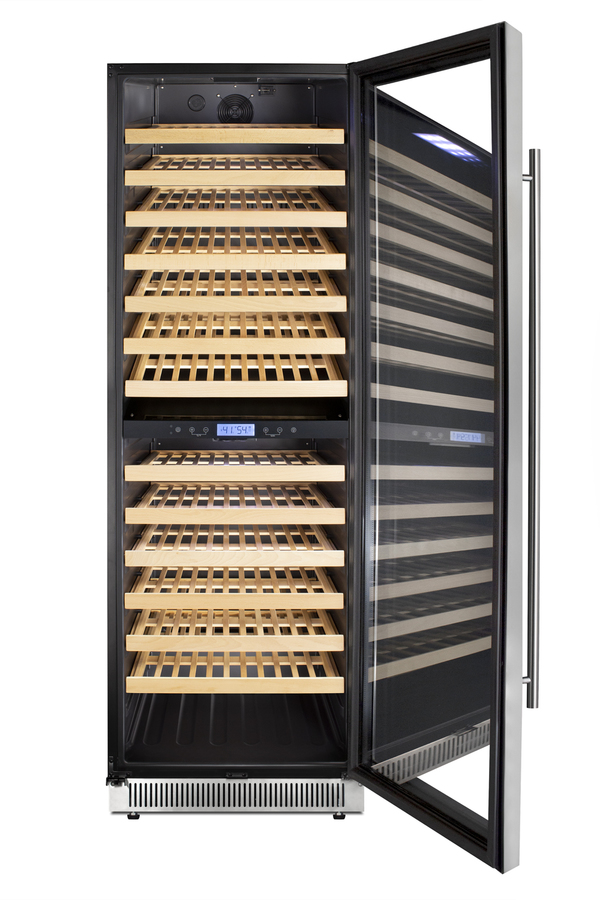

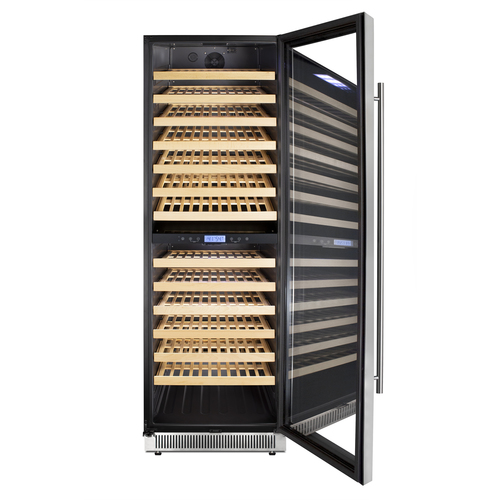

Inside, the SWC1966B includes 13 wooden shelves that slide out 50% for easy loading and unloading. Optimal storage capacity accommodates up to 162 standard 750ml Bordeaux bottles (note: your capacity may vary depending on the bottle style). For wider Burgundy style bottles (typically used for Pinot Noir and Chardonnay), the SWC1966B can hold up to 146 bottles. Two white LED lights positioned at the top of each zone attractively illuminate your collection for a stylish display, while the digital control panel makes it easy to manage the temperature. An internal fan ensures both zones are properly chilled. A charcoal filtration system keeps the interior odor-free. Additional features include an open door alarm and high/low temperature alarm that sound if the unit temperature goes out of range.
With its convenient size, advanced features, and elegant design, the SWC1966B is the perfect addition to any home bar or kitchen seeking full capacity wine storage with a modern presentation.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
