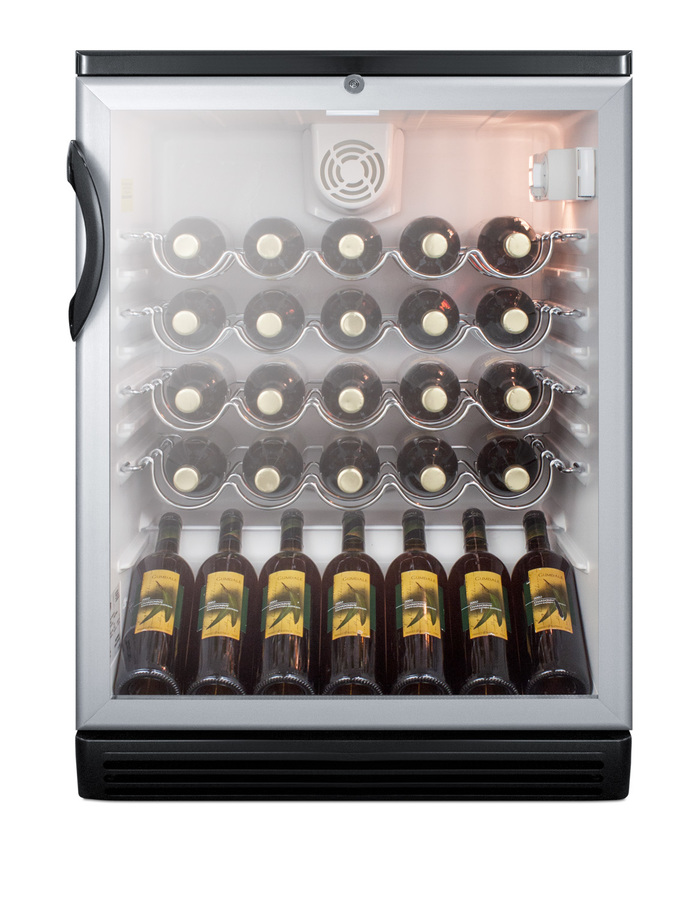

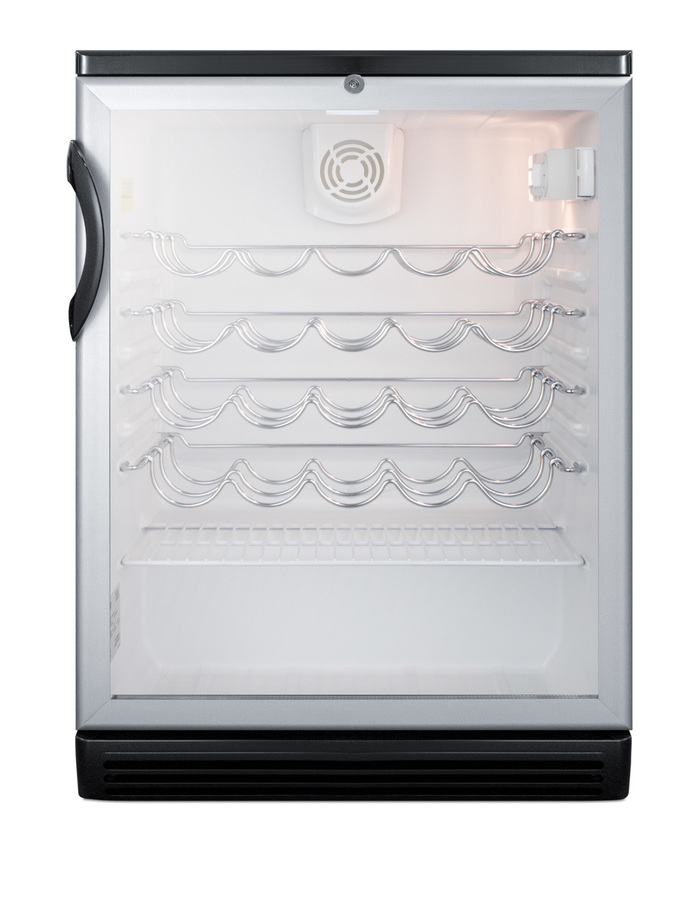

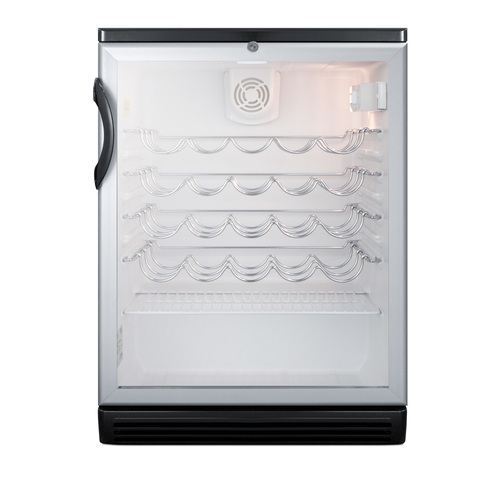

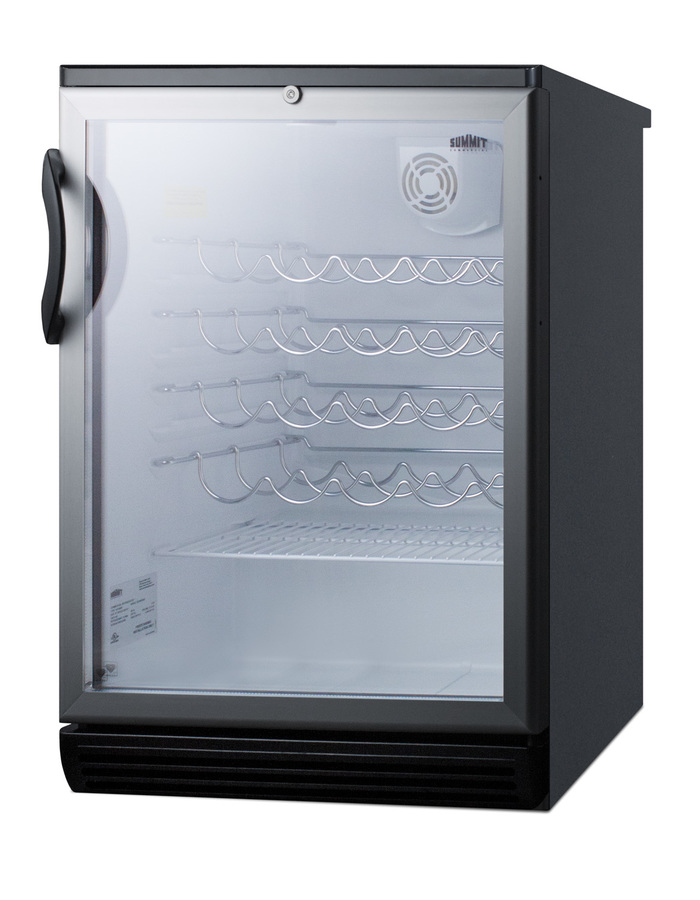

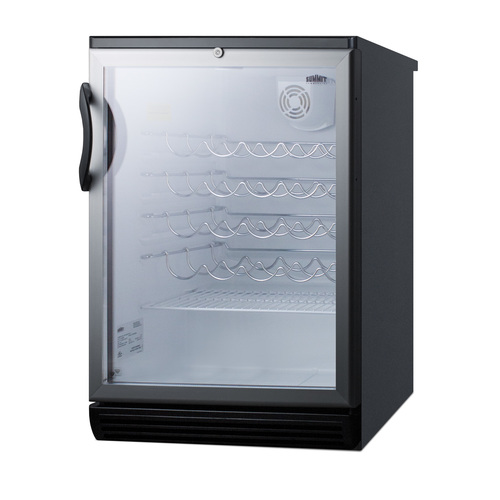

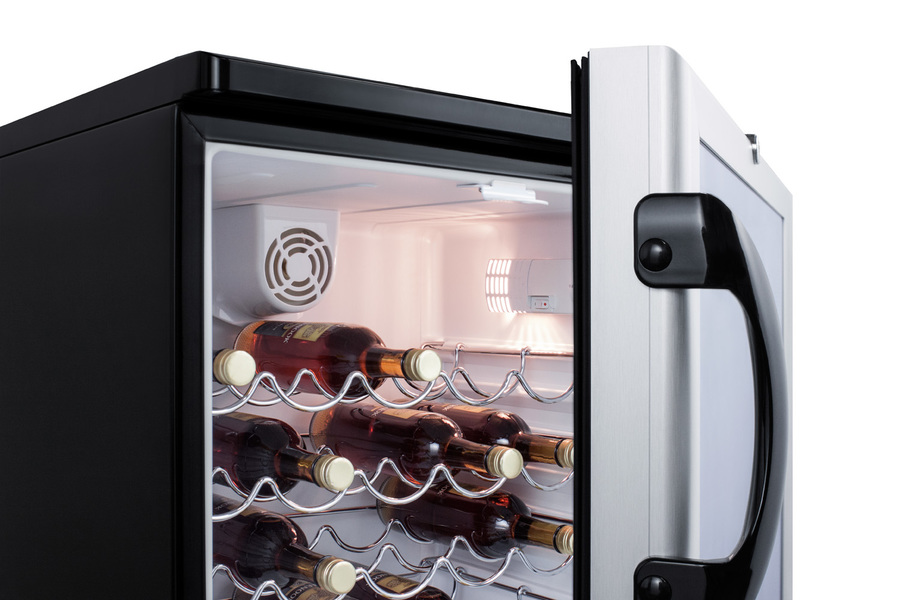

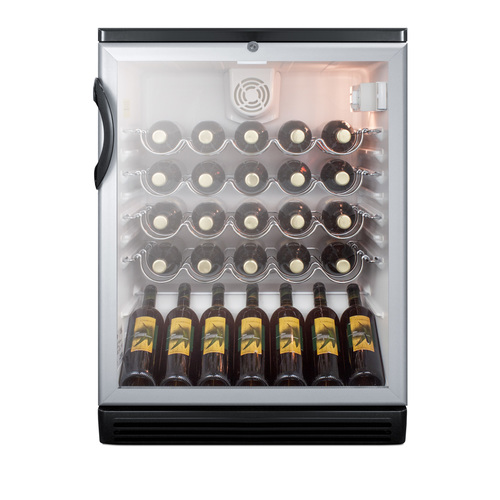

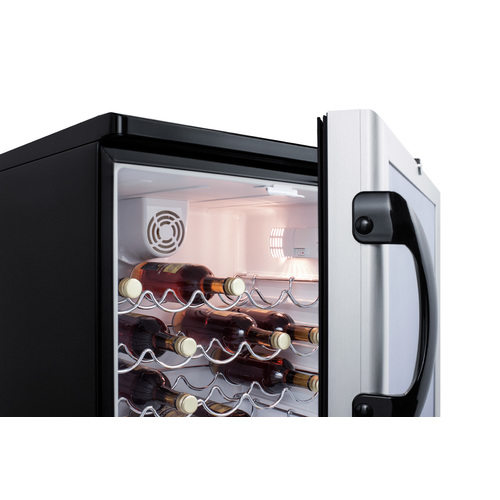

24" Wide Wine Cellar

SKU: SWC6GBL

ETL-S listed to NSF-7 standards for use in commercial settings

Estimated Time to Ship:

3 to 5 days

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

33.5" H x 23.63" W x 23.5" D
(85cm H x 60cm W x 60cm D)

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	33.5" (85 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Capacity	5.5 cu.ft. (156 L)
Bottles	36 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	ETL-S
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	115.0 lbs. (52 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101001609
Wine Cellar
Number of Zones	1
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Scalloped
Shelf Qty	4
Thermostat Type	Dial
Interior Light	Yes
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	0.67 oz.
High Side PSI	124.0
Low Side PSI	30.0
Interior Height 1	26.0" (66 cm)
Interior Width 1	20.75" (53 cm)
Interior Depth 1	17.5" (44 cm)
Compressor Step Height	6.0" (15 cm)
Compressor Step Width	20.75" (53 cm)
Compressor Step Depth	5.0" (13 cm)
Condensor Location	Rear of Unit

Exterior

SSK - Stainless steel kickplate Stainless steel kickplate factory installed	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	LHD - Left hand door swing Door reversal to left hand swing
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	SS Hinges Stainless steel top and bottom hinges
Legs to raise unit height 6" high leveling legs

Door

T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings	T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint Tinted door in reflective deep blue finish with high energy savings	T3 Door Tint Reflective door tint in light blue finish for medium energy savings
T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings

Handle

HV Add a stainless steel handle with sleek 14mm diameter placed vertically on the side	TB - Stainless steel towel bar style handle Install a 12" handle with curved towel bar design in brushed stainless steel

Commercially approved

ETL-S listed to NSF-7 for use in foodservice establishments

Slim counter height dimensions

Less than 24" wide to fit tight spaces

Fully finished black cabinet

Allows the unit to be used freestanding

Double pane tempered glass door

Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a refined touch

Factory installed lock

Keyed lock for secure interior, conveniently located at the top of the door

Reversible door

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Automatic defrost

Reduced maintenance with auto defrost system

Internal fan

Fan-forced cooling helps to maintain a more evenly cooled interior

Scalloped steel shelving

Curved shelves designed for the ideal storage of wine bottles

Half-sized wire shelf

Sits on top of the compressor and features wire slots ideal for holding bottles on their sides

Hidden evaporator

SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers or food

Interior light

Illuminate your collection with an interior light controlled by a rocker on/off switch

Adjustable thermostat

Dial thermostat accommodates white wine temperature. If using this model for red wine storage, add a DT digital thermostat upon ordering

100% CFC Free

Environmentally friendly design

Temperature range

5ºC to 10ºC/41ºF to 50ºF; To reach warmer temperatures, order with our red wine thermostat option (10ºC to 18ºC/50ºF to 64ºF range)

SUMMIT's SWC6G Series features European designed glass door wine cellars approved for commercial use, with quality construction for long-term storage of reds and whites.

The counter height SWC6GBL is just under 24" wide for an easy fit in tight settings, with a finished black cabinet for freestanding use and an aluminum trimmed reversible glass door for a stylish display. A factory lock offers keyed security.

Inside, the SWC6GBL is fully featured for proper storage of white wine. Scalloped steel shelves hold bottles inside the roomy interior, with a rocker switch light for optional illumination. Automatic defrost keeps maintenance to a minimum while our unique "hidden" evaporator makes cleanup a snap.

With a reliable performance and clean style, the SWC6GBL is ideal for storing the finest wine collection in any commercial or residential setting.

NOTE: These models are designed primarily for white wine storage but can be upgraded with a digital thermostat to accommodate red wine temperatures.
