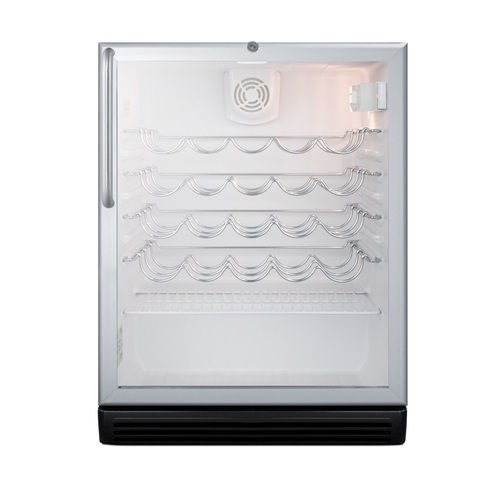

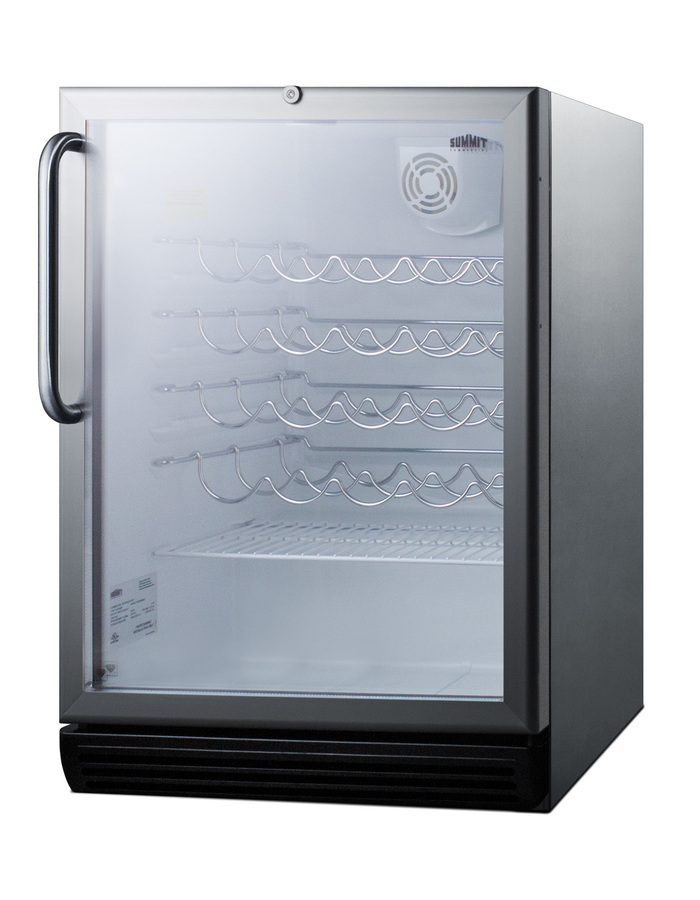

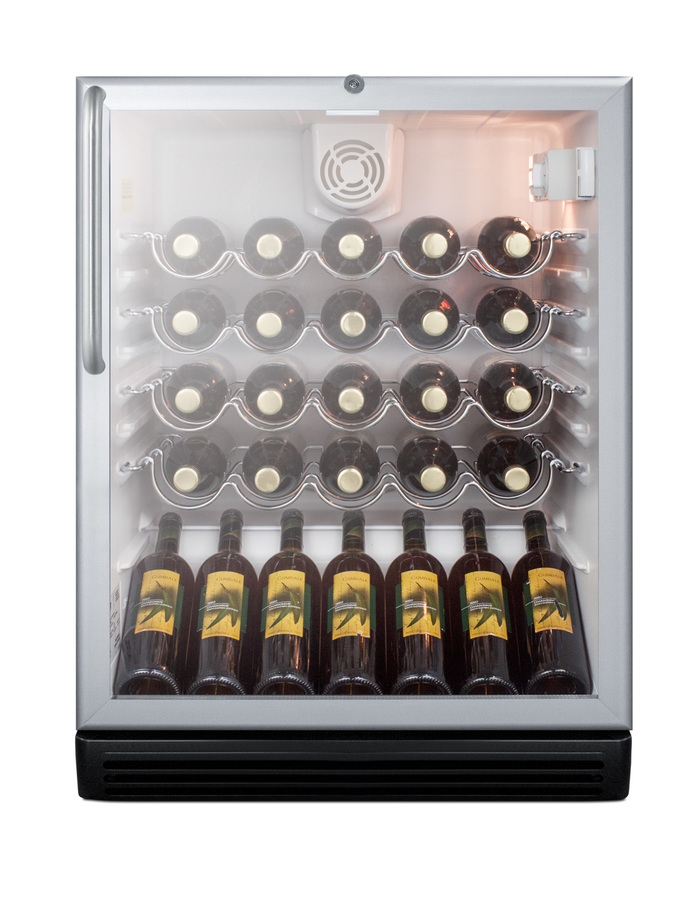

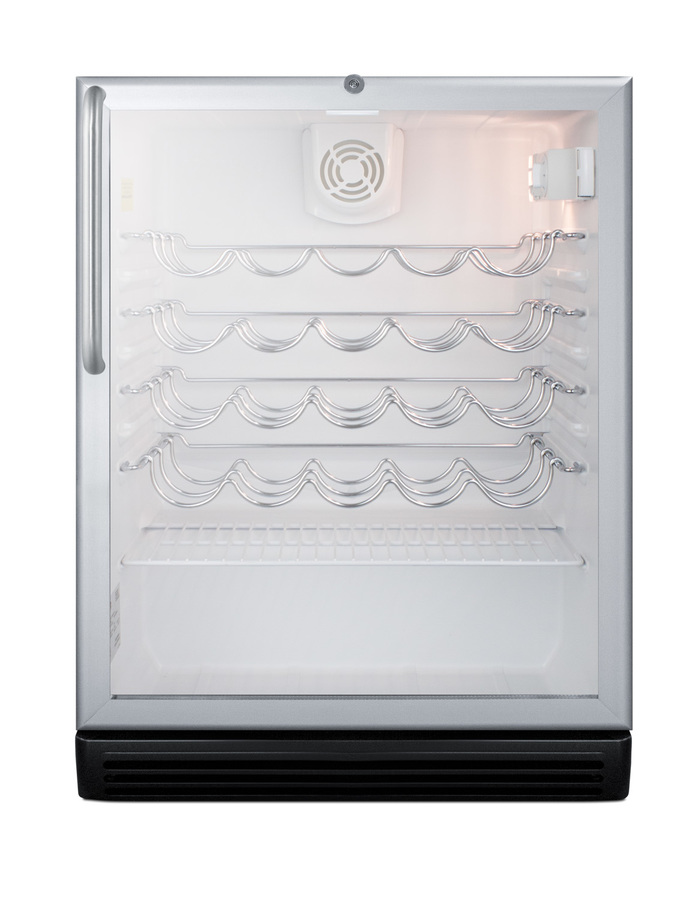

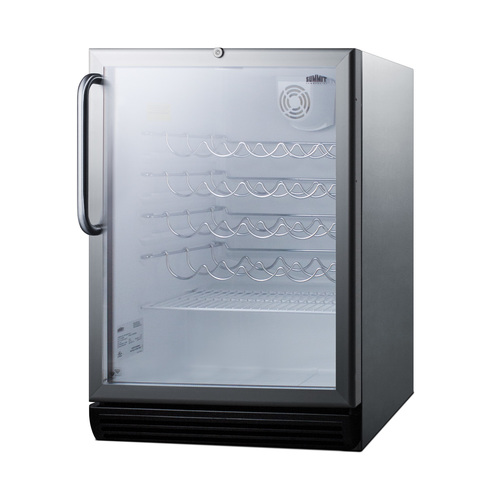

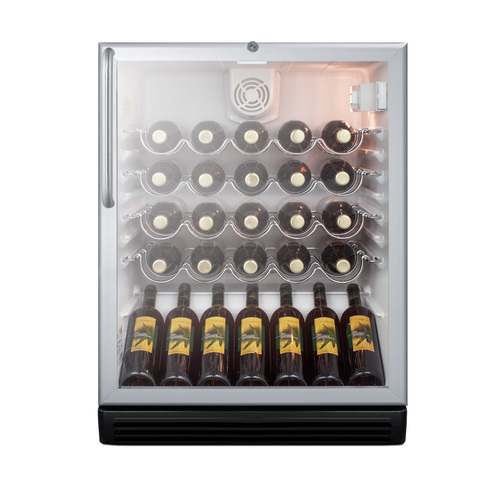

24" Wide Built-In Wine Cellar, ADA Compliant

SKU: SWC6GBLCSSADA

ETL-S listed to NSF-7 standards for use in commercial settings

Estimated Time to Ship:

3 to 5 days

Find a dealer

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

32.38" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.38" (82 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Capacity	5.5 cu.ft. (156 L)
Bottles	36 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	ETL-S
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	115.0 lbs. (52 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101022581
Wine Cellar
Number of Zones	1
Door Swing	RHD
Reversible	Factory Reversible
Adjustable Shelves	Yes
Shelf Type	Scalloped
Shelf Qty	4
Thermostat Type	Dial
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.67 oz.
High Side PSI	124.0
Low Side PSI	30.0
Interior Height 1	26.0" (66 cm)
Interior Width 1	20.75" (53 cm)
Interior Depth 1	17.5" (44 cm)
Compressor Step Height	6.0" (15 cm)
Compressor Step Width	20.75" (53 cm)
Compressor Step Depth	5.0" (13 cm)

Exterior

SSK - Stainless steel kickplate Stainless steel kickplate factory installed	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing Door reversal to left hand swing	SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option
SS Hinges Stainless steel top and bottom hinges	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management

Door

T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings	T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint Tinted door in reflective deep blue finish with high energy savings	T3 Door Tint Reflective door tint in light blue finish for medium energy savings
T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings

ADA compliant

32" high to fit under lower ADA compliant counters

Commercially approved

ETL-S listed to NSF-7 for use in foodservice establishments

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinets

Stainless steel cabinet

Fully wrapped in stainless steel for lasting luxury

Double pane tempered glass door

Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a refined touch

Factory installed lock

Keyed lock for secure interior, conveniently located at the top of the door

Professional towel bar handle

A curved stainless steel handle provides generous room for a comfortable grip

Automatic defrost

Reduced maintenance with auto defrost system

Scalloped steel shelving

Curved shelves designed for the ideal storage of wine bottles

Interior light

Illuminate your collection with an interior light controlled by a rocker on/off switch

Hidden evaporator

SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers or food

Adjustable thermostat

Dial thermostat accommodates white wine temperature. If using this model for red wine storage, add a DT digital thermostat upon ordering

100% CFC Free

Environmentally friendly design

Temperature range

5ºC to 10ºC/41ºF to 50ºF; To reach warmer temperatures, order with our red wine digital thermostat option (10ºC to 18ºC/50ºF to 64ºF range)

SUMMIT SWC6GBIADA series features European designed, commercially approved wine cellars capable of built-in use under lower ADA compliant counters.

The SWC6GBLCSSADA is conveniently sized at just 24" wide, with a front-breathing design for built-in installation under counters. The fully finished stainless steel wrapped cabinet also allows freestanding use. This unit features a double pane tempered glass door for reliable storage. We include our signature towel bar style handle in brushed stainless steel to complete the professional look. The lock is located towards the top of the door for easier access.

Inside, the SWC6GBLCSSADA includes adjustable scalloped shelves perfectly designed to hold bottles in place. The white interior helps to improve visibility, letting your collection stand out clearly. This unit includes an interior light with an on/off rocker switch located behind the adjustable dial thermostat.

The SWC6GBLCSSADA is made in Europe and is ETL-S listed to NSF-7 standards for commercial use. Additional handle styles and door tint options are available.

NOTE: These models are designed primarily for white wine storage but can be upgraded with a digital thermostat to accommodate red wine temperatures.

BROCHURE
SWC6GBLCSSADA.pdf

USE & CARE
SWC6GBL_BI_ADA_manual.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
