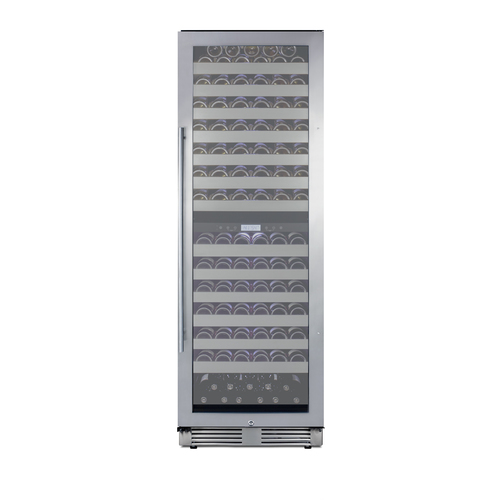

24" Wide Dual-Zone Wine Cellar

SKU: SWCP2163
Luxury design built to NSF-7 standards for versatile use in residential or commercial settings
Estimated Time to Ship:

Next day shipping

Door Swing:
RHD LHD
Cabinet:

*Additional features may vary

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
69.5" H x 23.63" W x 26.5" D
(177cm H x 60cm W x 67cm D)

Overview
Height of Cabinet 69.5" (177 cm)
Width 23.63" (60 cm)
Depth 26.5" (67 cm)
Depth with Handle 28.25" (72 cm)
Depth with door at 90° 48.75" (124 cm)
Bottles 163 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 269.0 lbs. (122 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101066356
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 13
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.76 oz.
High Side PSI 320.0
Low Side PSI 120.0
Interior Height 1 31.0" (79 cm)
Interior Width 1 20.38" (52 cm)
Interior Depth 1 21.0" (53 cm)
Level Legs 2
Temperature Range 41-54°F (upper zone); 54-65°F (lower zone)
Interior Height 2 29.75" (76 cm)
Interior Width 2 20.38" (52 cm)
Interior Depth 2 21.0" (53 cm)
Sound Level 34 dB

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Door
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings

Commercially approved

ETL-S listed to NSF-7 standards for use in restaurants, bars, and other foodservice settings

Built-in capable

Front-breathing design allows the unit to be integrated with minimum clearance for a flush look (fits in spaces sized at 70.75" H x 23.88"W x 28" D)

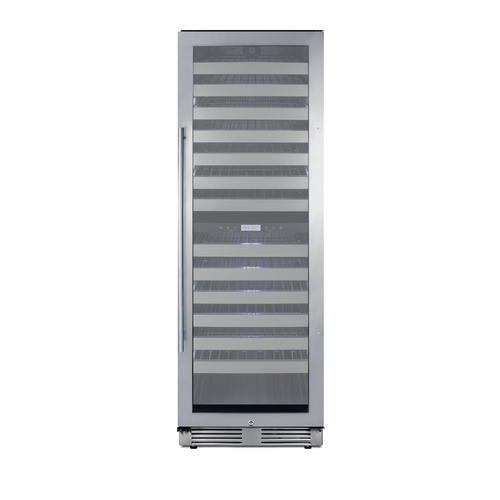

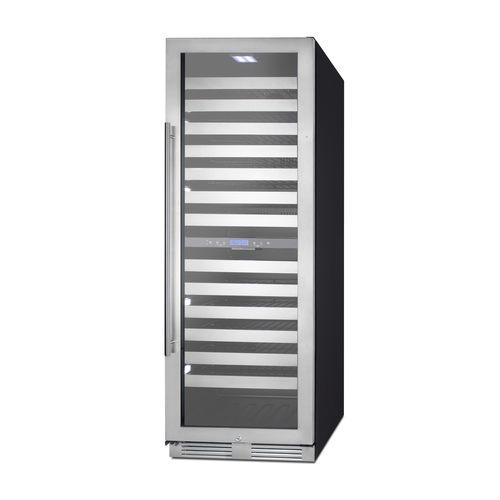

Double pane tempered glass door

Provides a full display of the interior, with two levels of glass for added protection

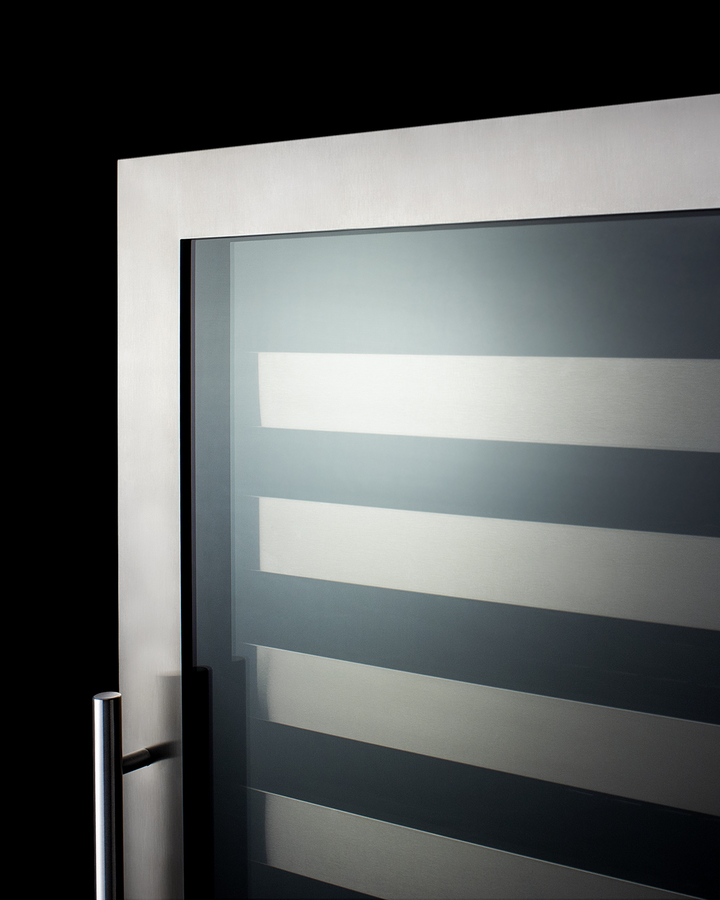

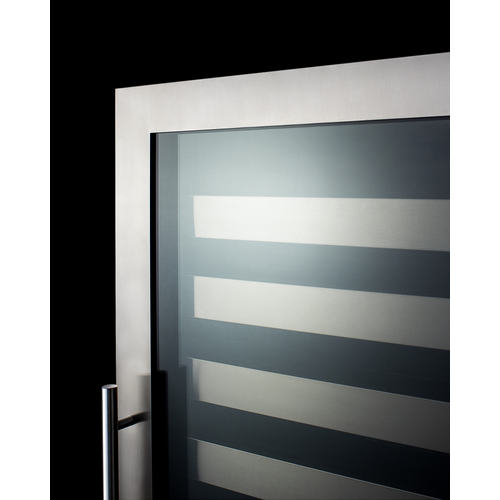

Seamless stainless steel door frame

Single-piece door trim offers a more deluxe look

Two temperature zones

Chill white wine in the upper zone while preserving your reds at a warmer temperature below

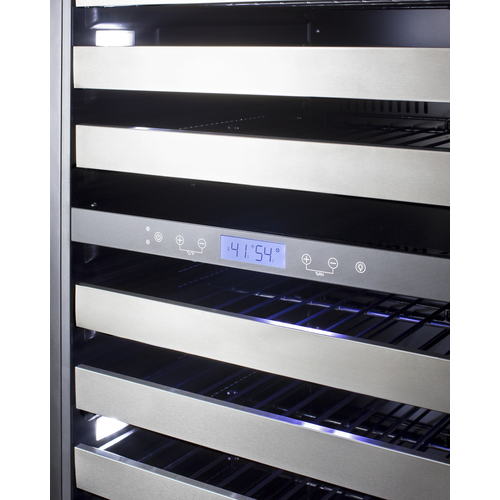

Digital thermostat

Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit

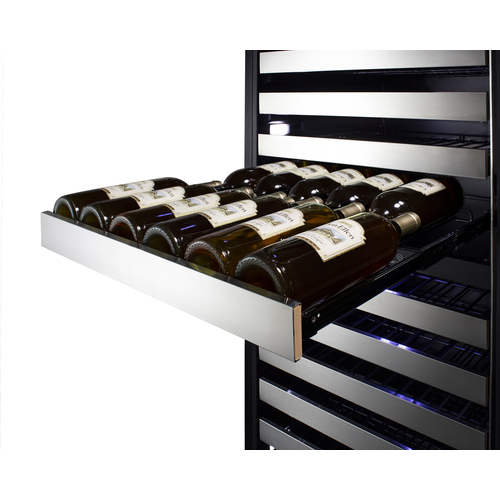

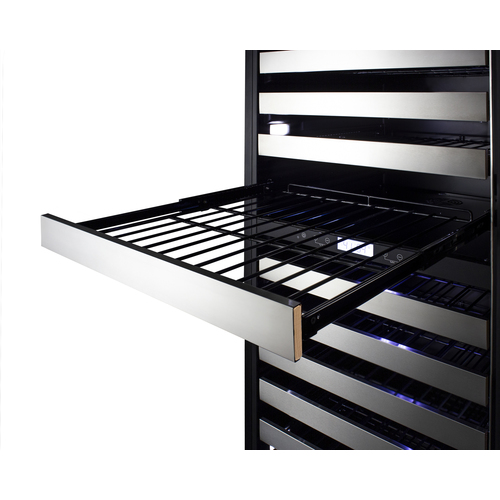

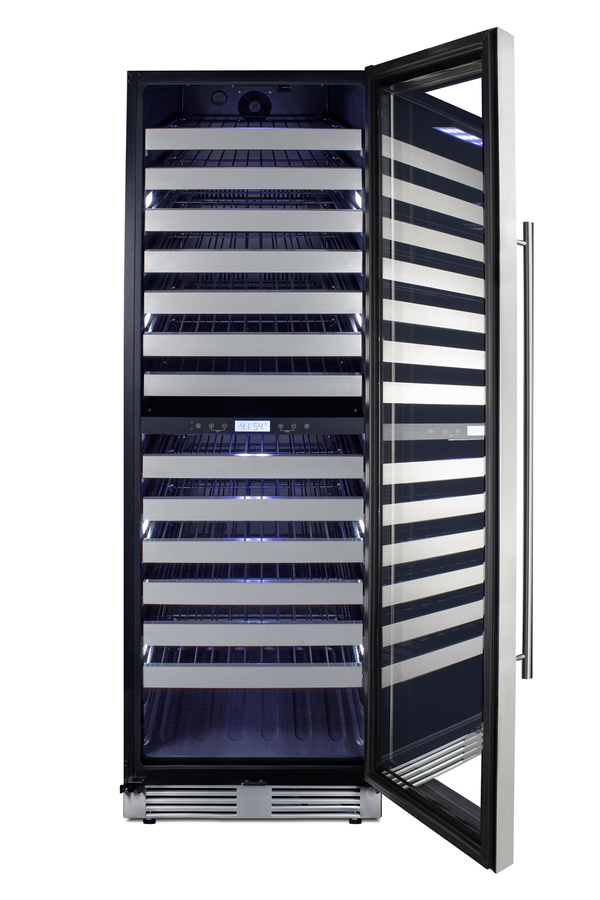

Full-extension wire shelving

13 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity

Stainless steel trimmed shelving

Fronts feature a stainless steel accent to elevate your presentation

Versatile storage

Interior can hold up to 163 standard 750ml Bordeaux style bottles (20 bottles stacked on the upper shelf, 11 bottles per middle 12 shelves, and 11 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 110 bottles (8 per shelf with 6 stacked on the slotted floor)

Professional handle

37" long handle in a brushed stainless look offers the perfect finish to your wine cellar

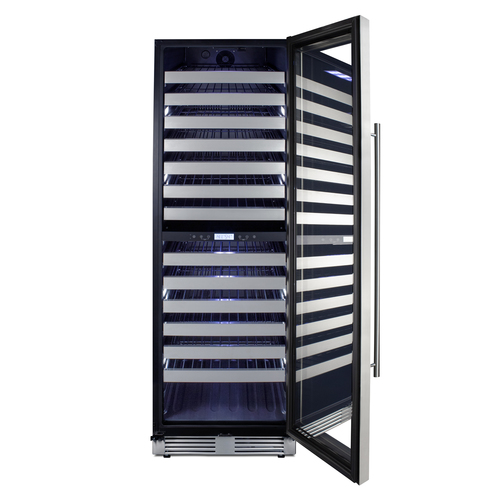

LED lighting

Nine LED lights provide an attractive and energy-efficient illumination of your collection with a gentle white hue

Factory-installed lock

Keyed lock secures both zones (2 keys included)

Temperature range

Upper zone: 41-54°F ideal for chilling white and sparkling wine; Lower zone: 54-65°F for holding reds at a warmer temperature

Stainless steel kickplate

Allows for front ventilation in an elegant design

Charcoal filtration system

Helps to purify air for an odor-free interior

High/low temperature alarms

Audibly sounds if the interior rises or falls out of recommended range

Open door alarm

Alerts if unit door is ajar for more than 5 minutes

Magnetic door gasket

Ensures a tight seal for energy savings and improved performance

Sealed back

Flush back allows for a better fit and easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit offers a unique selection of built-in capable full-sized wine cellars with a versatile luxury design ideal for residential or commercial use

The SWCP2163 is a 24" wide dual zone wine cellar that is ETL-S listed to NSF-7 commercial standards. The upper zone is reserved for white and sparkling wine, while the lower zone features a warmer temperature range to best preserve reds. It features a front-breathing design for built-in installation, with a fully finished black cabinet that also allows freestanding use. Sized just under 27" deep, this unit has a sealed back and right angle plug for added depth savings. The luxury exterior features a double pane tempered glass door with a seamless stainless steel trim. A stainless steel kickplate provides added elegance, while the pro-style handle completes the look. This unit includes a factory-installed keyed lock for added security and powerful magnetic gaskets to ensure a proper seal in high-traffic commercial settings.

Inside, the SWCP2163 includes 13 full-extension black wire shelves positioned on ball bearing glides for smooth loading. Stainless steel fronts offer a modern touch. Optimal storage capacity accommodates up to 163 standard 750ml Bordeaux bottles (note: your capacity may vary depending on the bottle style). For wider Burgundy style bottles (typically used for Pinot Noir and Chardonnay), the SWCP2163 can hold up to 110 bottles. Nine white LED lights positioned on the sides and top of the unit attractively illuminate your collection for a stylish display. An internal fan ensures both zones are properly chilled, while a charcoal filtration system keeps the interior odor-free. Additional features include an open door alarm and high/low temperature alarm that sound if the unit temperature goes out of range.

With its convenient size, advanced features, and luxury design, the SWCP2163 is perfect for restaurants, bars, wineries, and homes seeking full capacity wine storage with a modern presentation.




Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
