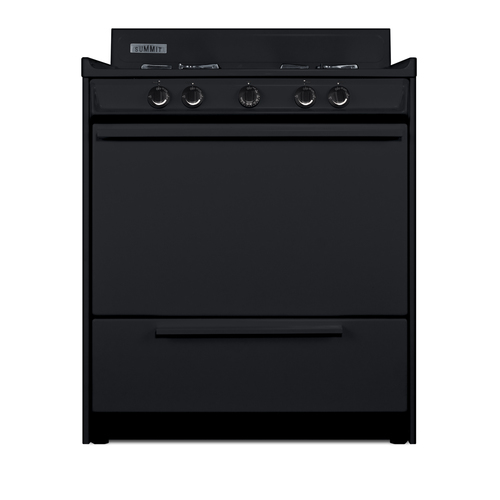

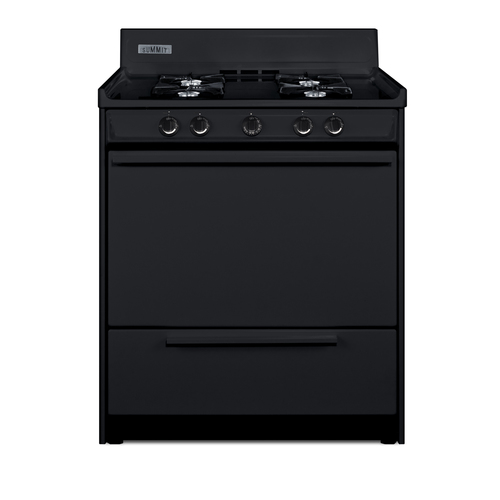

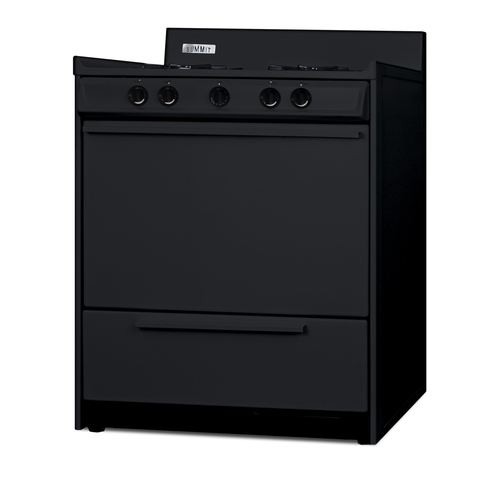

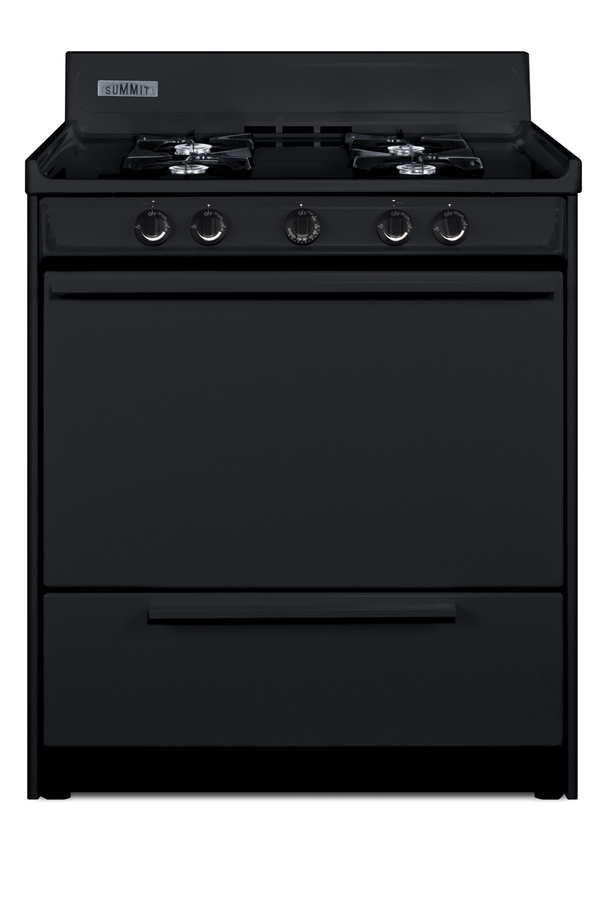

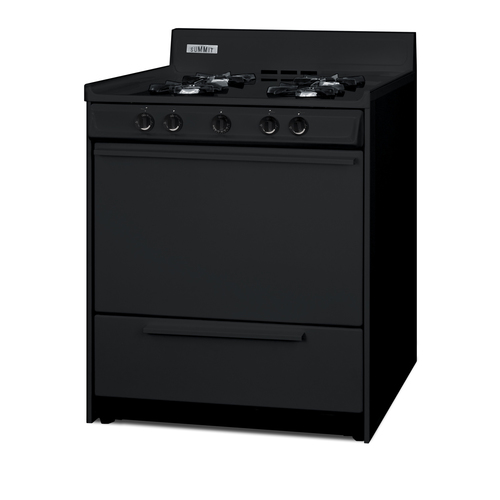

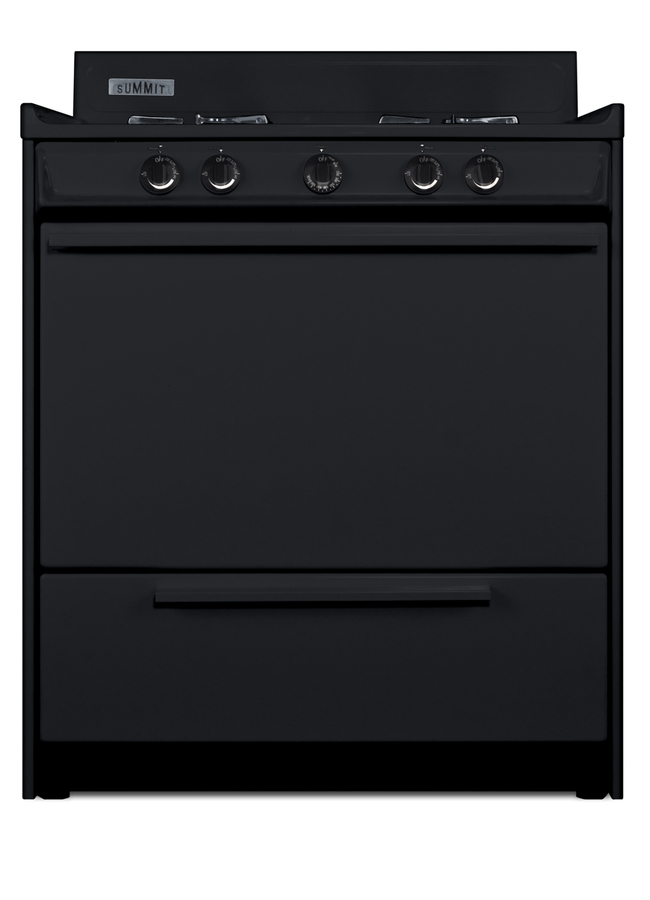

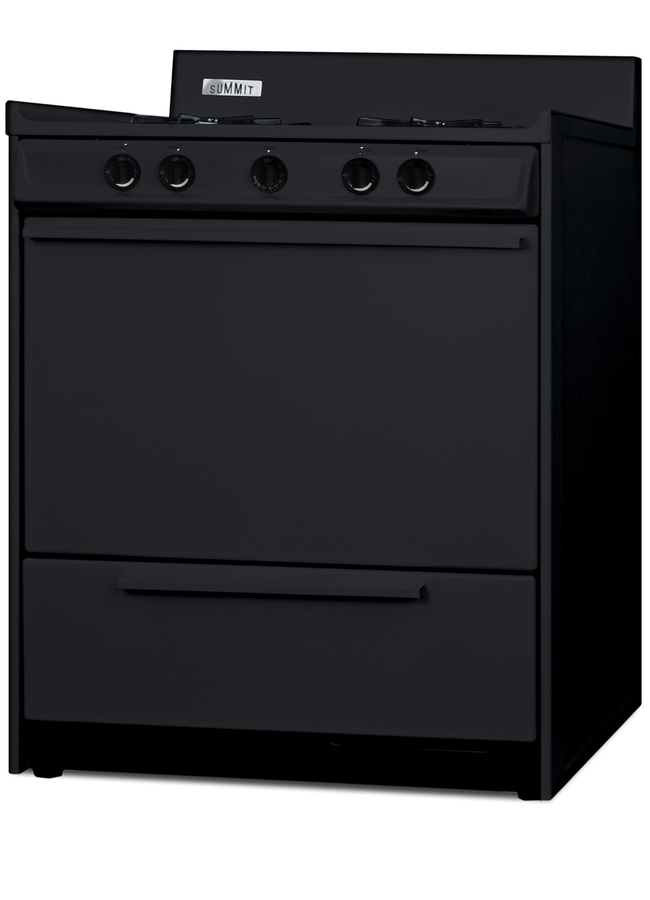

30" Wide Gas Range, Open Burners
Next day shipping; multi-piece orders may extend lead time. Call 718-893-3900 ext. 507 to discuss
(102cm H x 76cm W x 61cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 40.0" (102 cm) |
| Height of Cabinet | 40.0" (102 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 30.0" (76 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 24.0" (61 cm) |
| Door | Black |
| Cabinet | Black |
| US Electrical Safety | CSA |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 160.0 lbs. (73 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101054087 |
|
Gas Range
|
|
| Ignition | Spark |
| LP Convertible | With Kit LP Accessory |
| Oven Capacity | 3.69 cu.ft |
| Cooktop Surface | Porcelain |
| Burner Type | Open |
| Number of Burners | 4 |
| Burner #1 BTU | 9000.0 |
| Burner #2 BTU | 9000.0 |
| Burner #3 BTU | 9000.0 |
| Burner #4 BTU | 9000.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Backguard | Yes |
| Cleaning Type | Manual |
| Oven Rack Qty | 2 |
| Oven Interior Height | 14.0" (36 cm) |
| Oven Interior Width | 24.0" (61 cm) |
| Oven Interior Depth | 19.0" (48 cm) |
| Broiler Location | Below Oven |
FEATURES
Designed and constructed domestically
Standard size ideal for most kitchens
Shallower fit is ideal for L-shaped and galley kitchens
9000 BTU burners with built-in enamel grates to meet most cooking needs
Set for use with natural gas connection. To convert for propane use, add Kit LP
Spark ignition system with a pre-installed 115V 3-prong cord
Lower compartment for separate broiling with even heat distribution
Smart design limits the depth and protects adjacent cabinets
Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust
Upfront controls and easy-to-operate knobs offer easier accessibility
Lasting durability with solid construction inside and out designed to hold up to everyday kitchen use
Porcelain oven door and top can be removed for easier cleaning

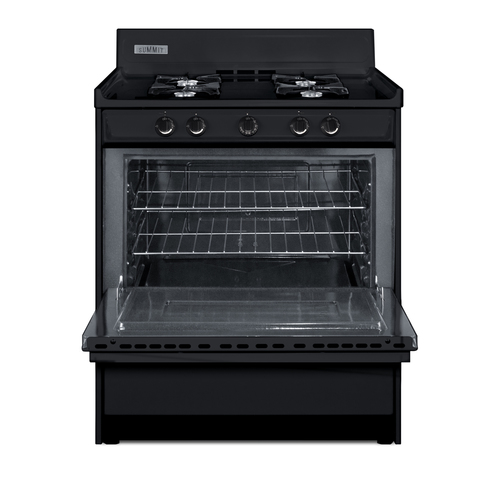

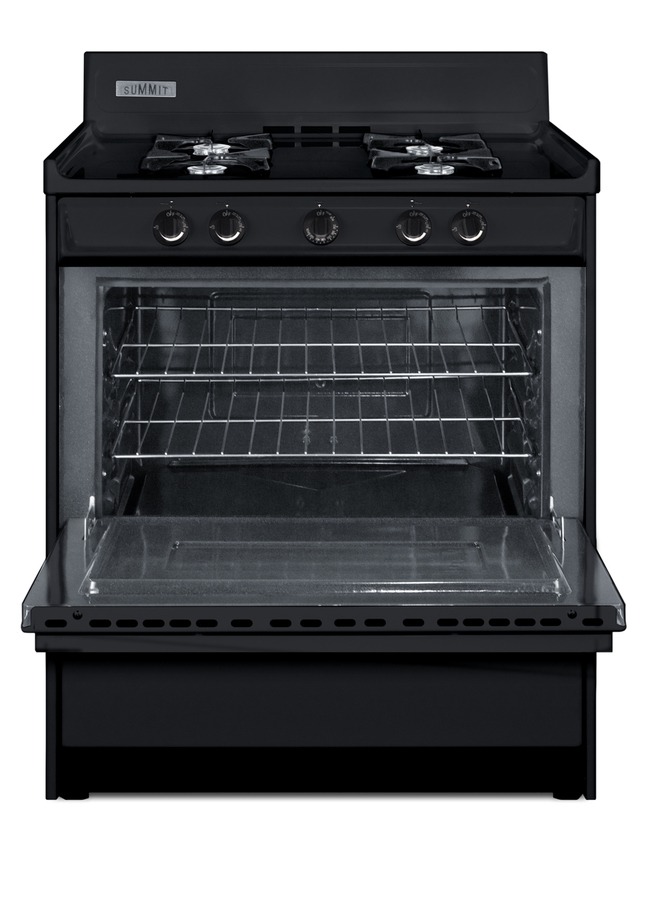

Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Included for user installation to help prevent tipping
Two-piece porcelain broiler tray with grease well
Jet black finish brings a modern look to smaller kitchen spaces
DESCRIPTION

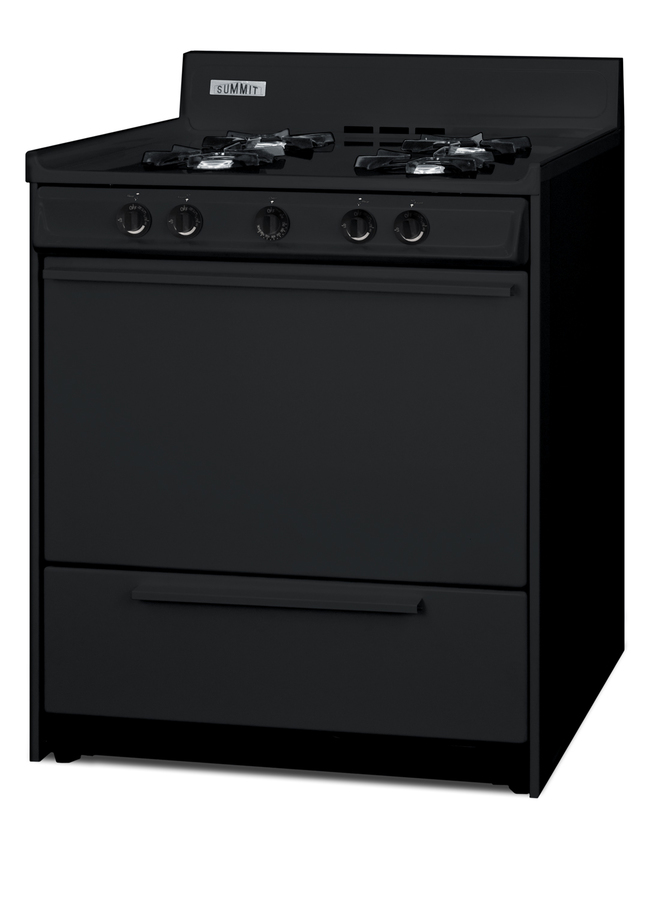

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The TNM2107C is a gas range sized at 30" wide, with a generous 3.7 cu.ft oven interior that can accommodate large trays. Two adjustable oven racks are included. The broiler is located below the oven in a drop-down compartment. Four open 9000 BTU gas burners accommodate most of your stovetop heating needs, with upfront push-to-turn knobs that let you adjust your cooking without reaching over hot burners. This unit utilizes an electronic ignition system for added safety. The TNM2107C comes in a jet black finish to suit any kitchen setting. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Constructed from porcelain and steel, the TNM2107C offers lasting durability. We include an anti-tip bracket for added safety. With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 24", and 36" wide fits. This unit ships ready for natural gas connections. To use with propane, add the Kit LP.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
