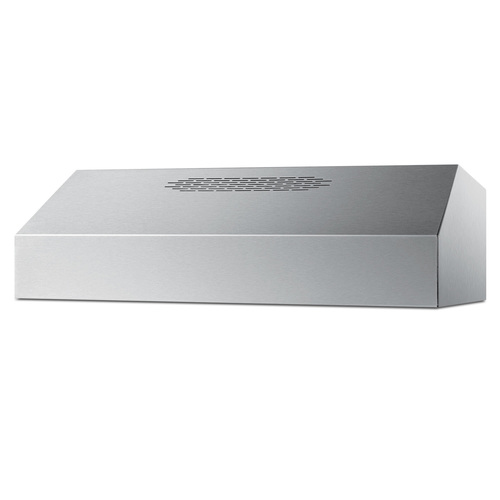

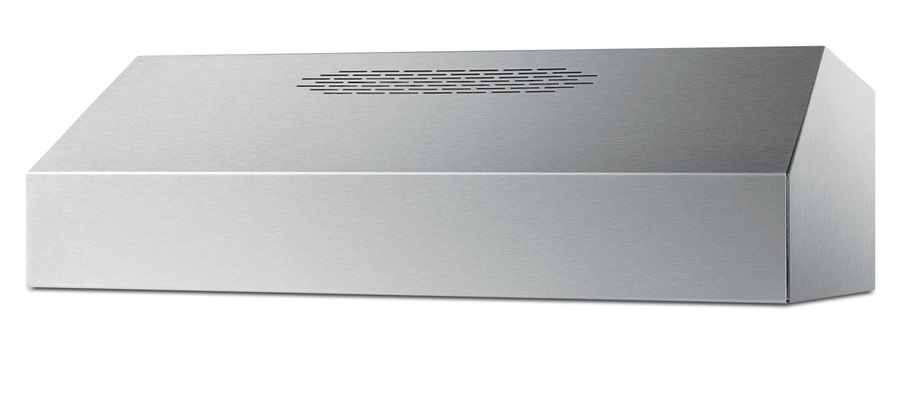

36" Wide Convertible Range Hood

SKU: ULT2836SS

Made in the USA and convertible for ducted or ductless use

Estimated Time to Ship:

Next day shipping; multi-piece orders may extend lead time. Call 718-893-3900 ext. 507 to discuss

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

9.0" H x 36.0" W x 17.88" D
(23cm H x 91cm W x 45cm D)

Overview
Nominal Height	9.0" (23 cm)
Height of Cabinet	9.0" (23 cm)
Nominal Width	36.0" (91 cm)
Width	36.0" (91 cm)
Nominal Depth	18.0" (46 cm)
Depth	17.88" (45 cm)
Cabinet	Stainless Steel
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Weight	20.0 lbs. (9 kg)
Parts & Labor Warranty	1 Year
UPC	761101008707
Range Hood
Installation	Under Cabinet
Venting	Convertible
Controls	Dial
Light	Yes
Number of Lights	2
Light Type	Halogen
Maximum Air Movement	390.0 CFM
Duct Shape	4.75" x 6.13" Rectangular

Convertible range hood

Use for ducted or ductless installation

36 inch width

Designed to match 36 inch ranges; also available in 24, 30, and 30 inch widths

Stainless steel finish

Durable build for professional look and easy cleanup

Aluminum filter

Washable piece provides thorough filtering to reduce odors

Dual light

Two dimmable 50 watt halogen lights included

Variable speed

More options for ventilation

Made in the U.S.A.

Solidly constructed for years of use

SUMMIT's exclusive ULT series of 390CFM range hoods offer superior construction, full features, and modern style.

The ULT2836SS is a 36 inch wide range hood with a stainless steel finish. This convertible hood can be used for ducted or ductless operation with variable speed options. Additional features include a washable aluminum filter and dual lights with the bulbs included.

Made in the U.S.A. and available in four sizes, SUMMIT's ultra series is the best bet for users in the market for quality hoods at value prices.

BROCHURE w/ DRAWINGS
ULT2836SS.pdf

TECHNICAL DRAWING (.dwg)
HOODS_ULT2820SS_ULT2824SS_ULT2830SS_ULT2836SSA-C2000.dwg

USE & CARE
ULT_Hoods_Installation_Instruction_and_Use_and_Care_Guide.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
