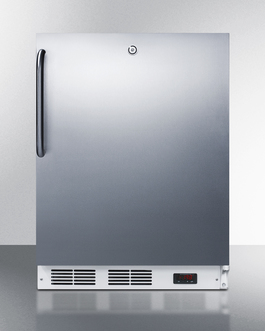

24" Wide All-Freezer, ADA Compliant
3 to 5 days
(82cm H x 60cm W x 60cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 24.25" (62 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 3.5 cu.ft. (99 L) |
| Defrost Type | Manual |
| Door | Stainless Steel |
| Cabinet | White |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101043593 |
|
Freezer
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Crisper Finish | Opaque |
| Crisper Cover | Glass |
| Interior Height | 24.25" (62 cm) |
| Interior Width | 17.75" (45 cm) |
| Interior Depth | 16.5" (42 cm) |
| Shelf Type | Glass |
| Thermostat Type | Digital |
| Refrigerant Type | R134a |
| Refrigerant Amount | 2.7 oz. |
| High Side PSI | 235.0 |
| Low Side PSI | 70.0 |
| Interior Drawers | Yes |
| Drawers Qty | 3 |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 17.5" (44 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
| Temperature Range | -12ºC to -25ºC |
AVAILABLE UPGRADES
| Exterior | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
|||||||||
| Lock | |||||||||
|
|||||||||
| Handle | |||||||||
|
|||||||||
| Door | |||||||||
|
FEATURES
32 inch height for lower ADA counters
Less than 24 inches wide to fit tight spaces
Allows the freezer to be used freestanding
Keep contents secure with a key lock on the door
Durable design with lasting elegance
A curved stainless steel handle provides generous room for a comfortable grip
Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
No temperature fluctuations with an energy efficient manual defrost system
Static cooling system
Conveniently organize your items while keeping the temperature stable when the door is opened
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Electronic controls located in the front kickplate for easy and intuitive temperature management
Environmentally friendly design without ozone-damaging chemicals
DESCRIPTION
Accucold VT65MADA medical all-freezers offer low temperature storage in a perfectly sized footprint designed for freestanding use in ADA compliant settings. The 32” high VT65MLSSTBADA has a 24” footprint and is designed for freestanding use, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup. This medical unit has a white cabinet and 304 grade stainless steel wrapped door. A factory installed lock offers added security and a curved towel bar handle completes the look. NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
